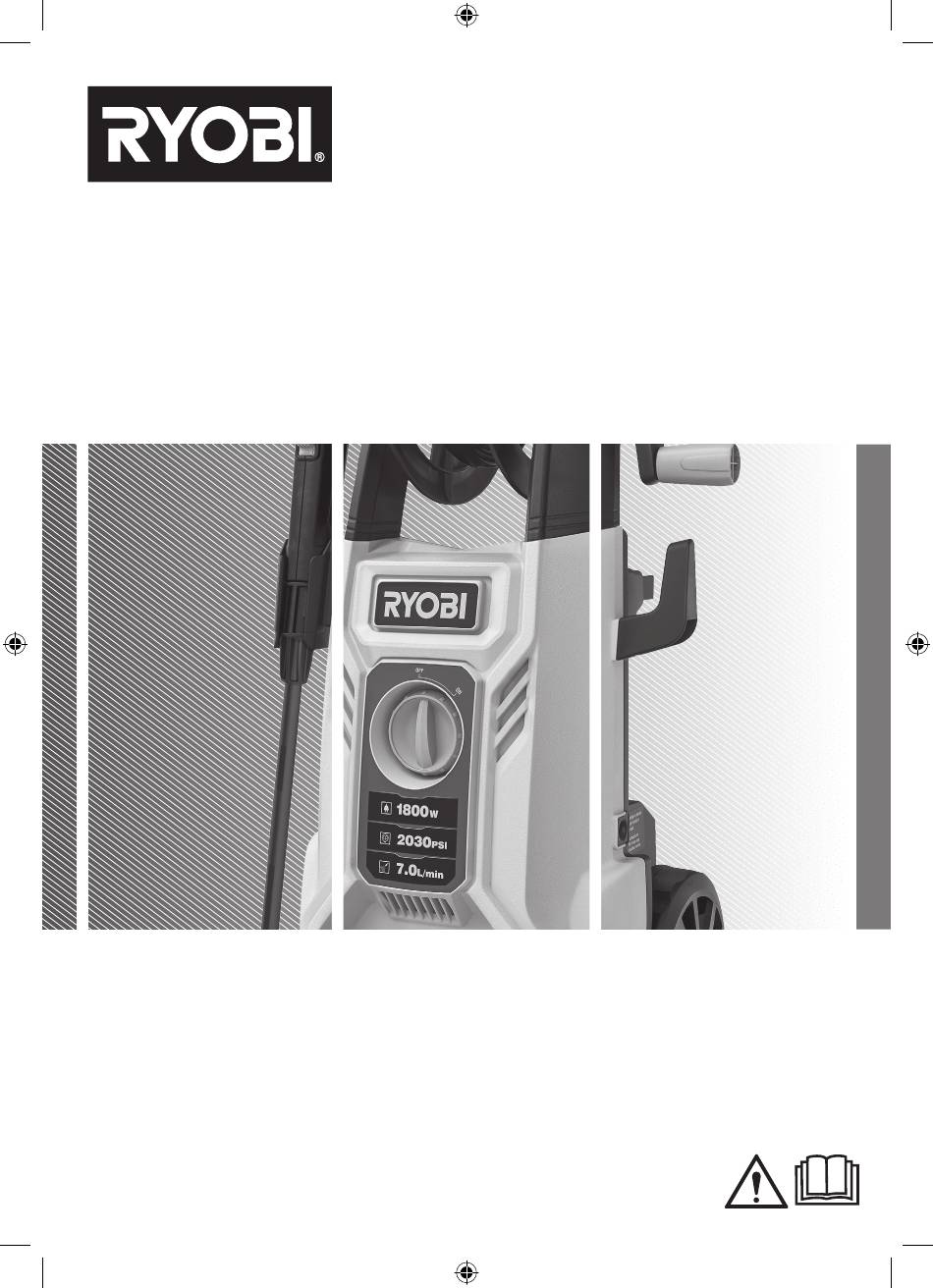

  • Page 1 FRONT PAGE RACPWS6...

  • Page 2: Intended Use

    WARNING! Do not use the product when IMPORTANT! people are within range unless they are It is essential that you read the instructions wearing protective clothing. in this manual before assembling, operating, ■ To reduce the risk of injury, keep children and maintaining the product.

  • Page 3: Electrical Safety Warnings

    ■ Injuries may be caused, or aggravated, by ADDITIONAL SAFETY WARNINGS prolonged use of the product. When using ■ Some regions have regulations that restrict the product for prolonged periods, ensure to the use of the product to some operations. take regular breaks.

  • Page 4: Overload Protection

    ■ Regularly inspect and maintain the product down power within the product. To resume for safe operation. RYOBI recommends operation, disconnect the product from the inspecting the product every 6 months. power supply, wait for about 15 minutes, and reconnect the product to the power supply.

  • Page 5: Symbols On The Product

    SYMBOLS ON THE PRODUCT Safety alert Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Never point the gun to persons, animals, the product, the power supply, or any electric appliance. The product is not suitable for connection to the drinking water supply without a backflow preventer.
  • Page 6 RACPWS6 Carry handle Hose reel Hose reel handle Power cord holder On/Off switch Power cord Wheel Hose release button Water outlet port Trigger gun holder Lance hook Water inlet port Know your product...
  • Page 7 Surface cleaner Detergent bottle Turbo nozzle 15-degree nozzle Spray wand Quick-connect collar Spray angle lock button Trigger Trigger handle lock Hose release button Trigger gun outlet High-pressure hose Handle screws O-rings Reel holder Water inlet filter Nozzle cleaning tool Operator’s manual Garden hose Detergent Garden hose connector...
  • Page 8 At the left-hand side of the product, On top of the product, attach the carry Attach the reel holders on each side of push down the trigger handle holder handle. the hose reel. until it clicks into place. At the right- hand side of the product, push down the power cord holder until it clicks into place.
  • Page 9 Rotate the product to face its rear side. Attach the hose reel handle to the reel At the rear side of the carry handle, holder. attach the hose reel. Insert one end of the high-pressure NOTE: Use the garden hose to connect Uncoil the high-pressure hose.
  • Page 10 Connect one end of the garden hose to the water source. Install and secure the Connect one end of the garden hose to garden hose connector on the other end of the garden hose. the water inlet filter. Turn on the water source to allow water to flow into the product.
  • Page 11 Operating the Using the Using the surface p.12 p.13 p.14 cleaner product detergent bottle Replacing the Cleaning the Storing the product p.15 p.16 p.17 O-ring product...
  • Page 12 OPERATING THE PRODUCT 1. Pull back the quick-connect collar and insert the preferred nozzle. 2. Connect the product to a power source. Turn the on/off switch to the on position. 3. Set the trigger handle lock to the unlock position. Squeeze the trigger to operate the product.
  • Page 13 USING THE DETERGENT BOTTLE 1. Turn detergent bottle counterclockwise direction, and pull out the detergent nozzle head. 2. Fill the bottle with detergent solution. Reinstall the detergent nozzle head to the bottle. 3. Pull back the quick-connect collar. Push the detergent nozzle into the quick- connect collar until it clicks into place.
  • Page 14 USING THE SURFACE CLEANER 1. Turn the on/off switch to the off position. Set the trigger handle lock to the lock position. 2. Insert the surface cleaner into the spray wand. 3. Turn the on/off switch to the on position. Set the trigger handle lock to the unlock position.
  • Page 15 9x2.65 mm REPLACING THE O - RING NOTE: Check the lance or hose end for stretched, cracked, or split O-ring. NOTE: Replace damaged O-rings with the appropriate size. O-ring dimensions are as 4.8x1.8 mm follows: ■ Spray wand – 9 x 2.65 mm ■...
  • Page 16 CLEANING THE PRODUCT 1. Turn the on/off switch to the off position. Disconnect the product from the power outlet. 2. Clean the product using a brush. WARNING: Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents.
  • Page 17 STORING THE PRODUCT 1. Turn the on/off switch to the off position. Disconnect the product from the power outlet. 2. Turn off the water supply. 3. Set the trigger handle lock to the unlock position. Squeeze the trigger until no more water flows out of the product.
  • Page 18 6. Feed the high-pressure hose into the hose reel. 7. Rotate hose reel handle counterclockwise to store the high- pressure hose properly. 8. Disconnect the garden hose from the water inlet port and garden tap. 9. Pull back the quick-connect collar. 10.
  • Page 19 NOTE: product pulsating intermittently or water is not exiting the nozzle smoothly, the nozzle may be blocked. Use the nozzle cleaning tool to remove blockages and clean the nozzle. Insert the cleaning tool into the nozzle and turn the tool to remove the blockages.

  • Page 20: Product Specifications

    Electric high pressure cleaner measured in accordance with a standardised Model RACPWS6 test and may be used to compare one tool with Rated voltage 220–240 V a.c. another. They may be used for a preliminary assessment of exposure.
  • Page 24 Techtronic Industries Australia Pty Ltd 31 Gilby Road, Mount Waverley, VIC 3149 Melbourne, Australia Techtronic Industries N.Z. Limited Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. 099903098002-01...
