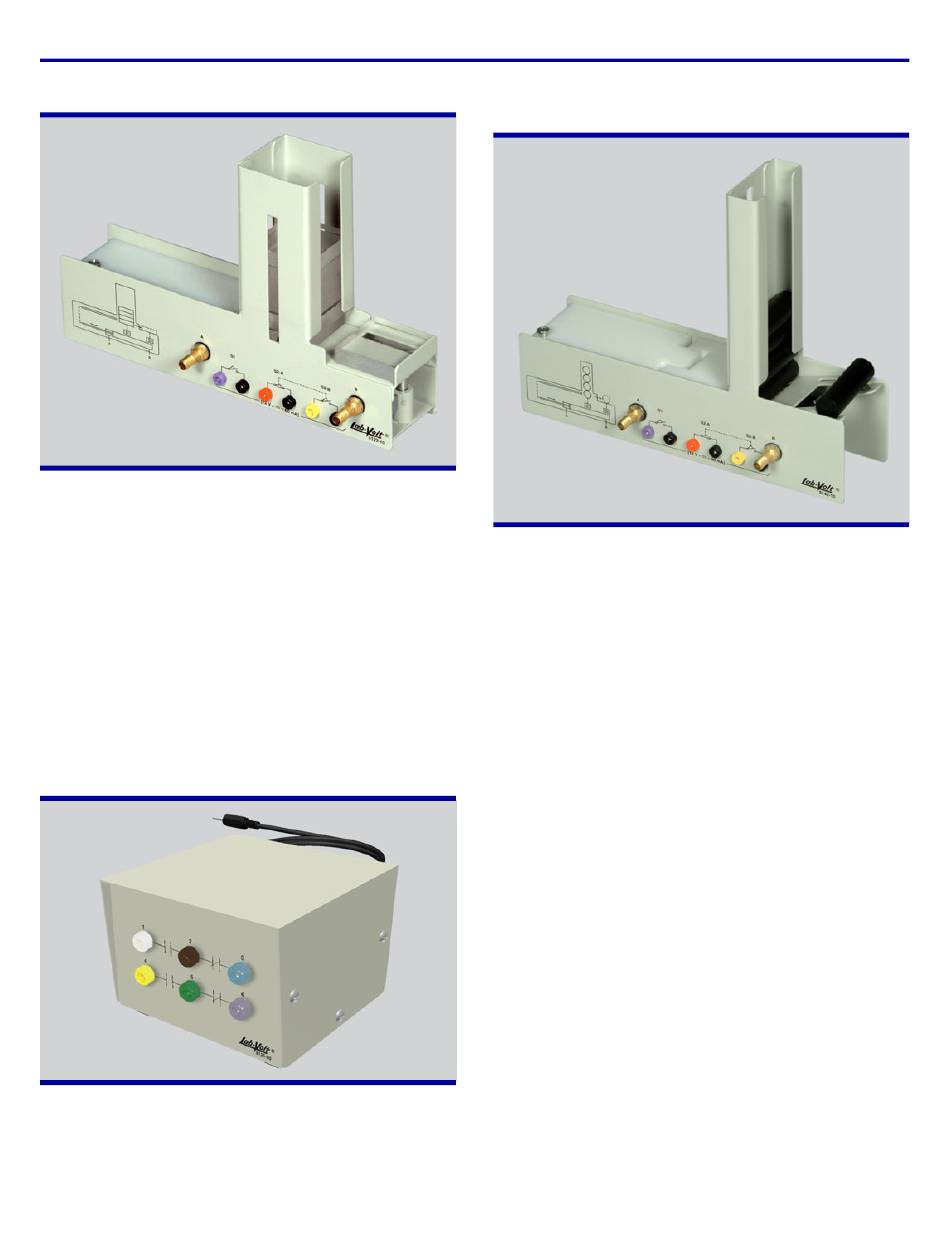

Model 5122-1 – Pneumatic Feeder (Square Parts)
The Pneumatic Feeder (Square Parts) is designed to feed
square parts measuring 50 x 50 x 12.5 mm
(2 x 2 x 0.5 in). It consists of storage and feeder sections
and a pneumatic cylinder. Both sections have
microswitches to send feedback to the Pneumatic Feeder
Controller. When the Pneumatic Feeder Controller
detects that the feeder section is empty, it supplies
compressed air to the pneumatic cylinder to push a part
from the storage section into the feeder section. This
module requires a Pneumatic Feeder Controller.
The Pneumatic Feeder (Square Parts), Model
5122-A, includes the Pneumatic Feeder Controller.
Model 5125 – Control Relay
The Control Relay module is used to control external
devices. It consists of a relay (12-V dc solenoid and
DPDT contacts) and connecting cables.
Model 5142-1 – Pneumatic Feeder (Cylindrical
Parts)
The Pneumatic Feeder (Cylindrical Parts) is designed to
feed cylindrical parts having a diameter of 19 mm (0.75
in) and a length of 63.5 mm (2.5 in). It consists of a
storage and feeder sections, and a pneumatic cylinder.
Both sections have microswitches to send feedback to
the Pneumatic Feeder Controller. When the Pneumatic
Feeder Controller detects that the feeder section is
empty, it supplies compressed air to the pneumatic
cylinder to push a part from the storage section into the
feeder section. This module requires a Pneumatic Feeder
Controller.
The Pneumatic Feeder (Cylindrical Parts), Model
5142-A, includes the Pneumatic Feeder Controller.
