Pytes V15 User Manual page 16

AWG
(kcmil)
4/0
211.48
3/0 167.67
2/0 133
1/0 105.5
1 83.65
2 66.31
3
52.6
4
41.7
5.3.3.1 Single Battery
Connect the positive and negative terminals of V15 to energy storage inverter with
power cables.
5.3.3.2 Multiple Batteries

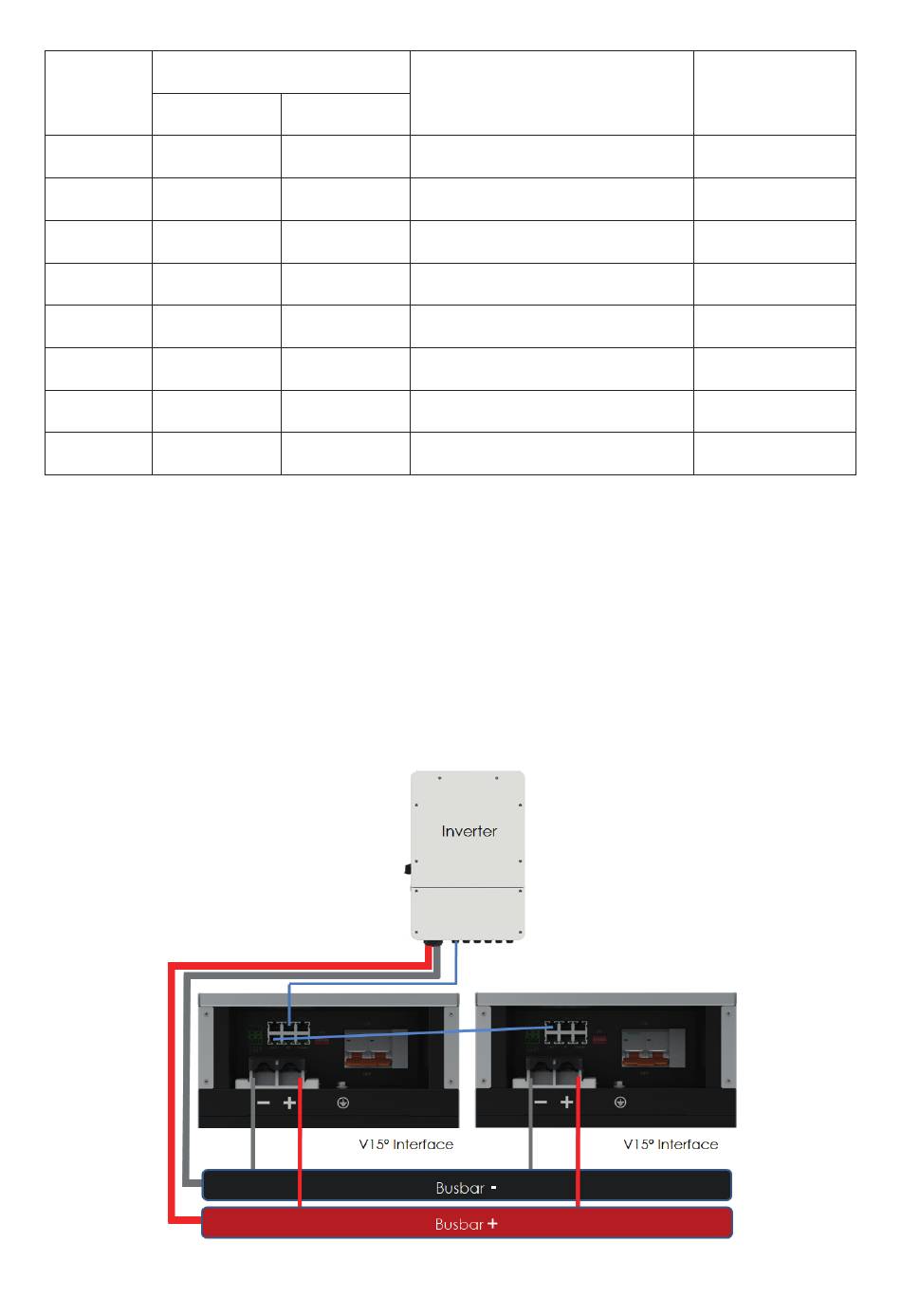

Connect the positive and negative terminals from V15 separately to positive and
negative busbars. Then connect the positive and negative busbars to inverter. V15
supports up to 6pcs in parallel connection.
Warning: Connect the batteries in series is forbidden.
Area
(mm²)
107.22
85.01
67.43
53.49
42.41
33.62
26.67
21.15
Standard Current
(A)
423.2
335.5
266.2
211.1
167.4
132.7
105.2
83.5
16
Max Current
(A)
482.6
382.6
303.6
240.7
190.9
161.3
120
95.2
