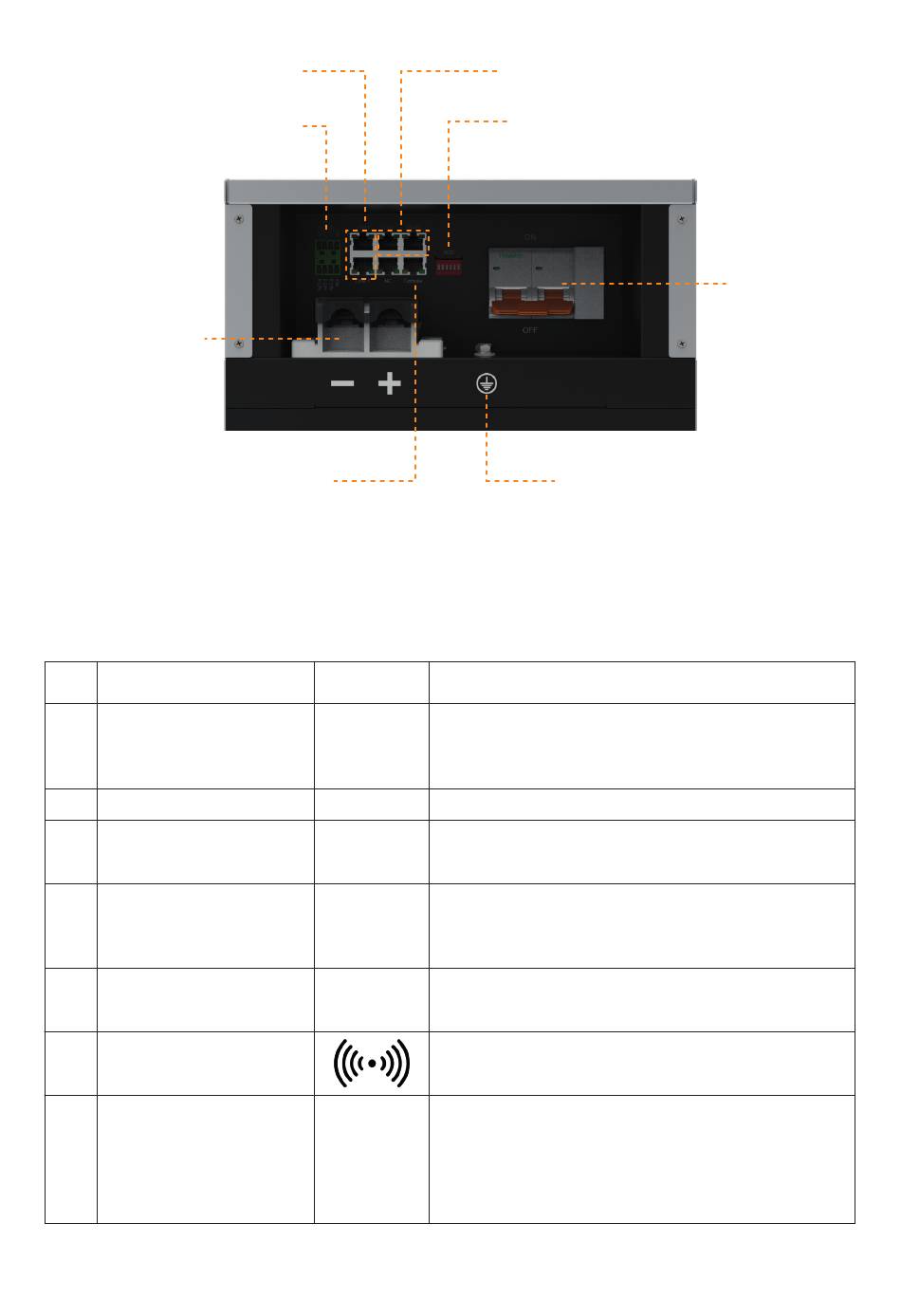

Pytes V15 User Manual page 12

Cascade Communication
Dry Contact
Power Interace
RS232 Console Port
Remarks: The RJ45 port printed with NC underneath is idle
3.2 Components
No. Name
Power Switch
1
Start Button
2
Alarm indicator
3
Running light
4
Capacity indicator
5
WiFi Antenna
6
Connector
Dry contact
7
Ports
Label
POWER
SW
ALM
RUN
SOC
IN1-/IN1+
COM2/NO2
COM3/NO3
COM4/NO4
RS485/CAN External
Communication Port
DIP Switch
Ground Point
Function description
When switched to "ON", the system can be
activated by "SW" or external power supply;
when switched to "OFF", the system is off.
Long Press for 1s/3s to Power on/off V15
Red light. The light flashes when Alarm. The
light is continuously on when under protection.
Green light. The light flashes when Standby.
The light is constantly on when charging.
The light flashes when discharging
Green light bar indicates battery present
capacity
WiFi Module for remote system data
monitoring and firmware upgrading
1 way input and 3 ways output dry contact
signal.
12
DC Breaker
