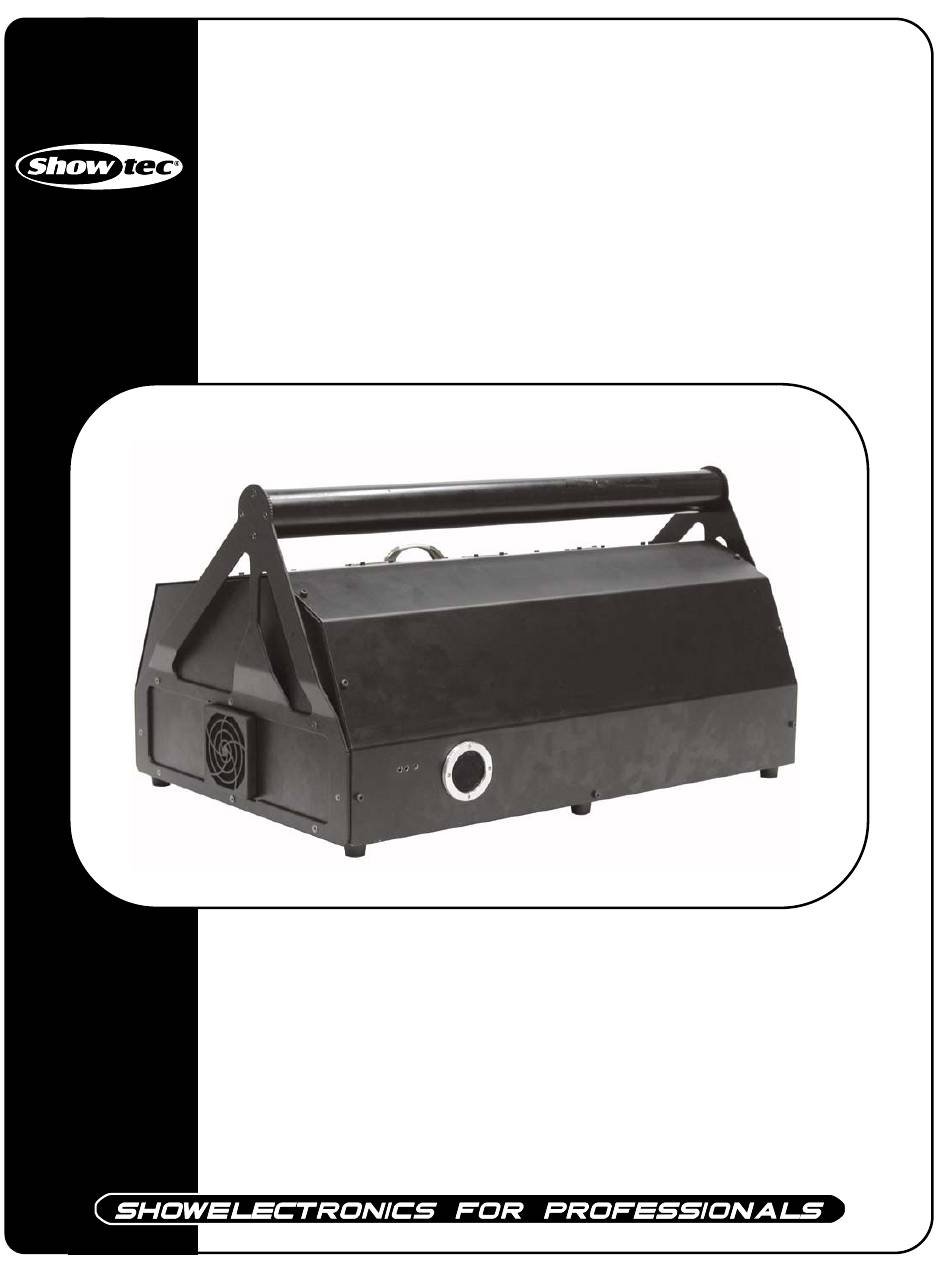

  • Page 1 Shogun Pro-250 ORDERCODE 32040...

  • Page 2: Table Of Contents

    SHOGUN 250mW Projector HIGHLITE International B.V. CONTENTS PAGE 1. Introduction……………………………….…..3 2. AC Power…………………………………..5 3. Installation………………………………….…8 4. CypherLiteUSB Operating Instructions...….9 5. Sound Active……………………...……..…12 6. ILDA DB-25 Operation…..…………….…….12 7. DMX Control..........15 8. Auto-Play Mode...........18 9. Troubleshooting..………………………….19 10. Technical Specifications………………...…..20 The following is a guide to installing your new Shogun 250mW projector.

  • Page 3: Introduction

    SHOGUN 250mW Projector HIGHLITE International B.V. NTRODUCTION Thank you for purchasing this laser product. You can be assured that you have made an investment into one of our highest quality laser products. After unpacking, take a moment to orient yourself to the controls on the back of the unit.

  • Page 4: To Protect Yourself And Others From Electric Shock

    SHOGUN 250mW Projector HIGHLITE International B.V. To protect yourself and others from electric shock Disconnect the fixture from AC power before removing or installing the projector, fuses, or any part service. Always ground (earth) the projector electrically. Failure to do so may damage your projector. Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault protection.

  • Page 5: Ac Power

    SHOGUN 250mW Projector HIGHLITE International B.V. UNPACKING The packing material is carefully designed to protect the projector during shipment - always use it to transport the projector. The Projector comes with: • One 5m DB25 cable • Two (2) Keys, please record the number on the fob and retain for future reference.
  • Page 6 SHOGUN 250mW Projector HIGHLITE International B.V. How to Earth your power supply Warning! The power supply used to power the projector requires earthed (grounded) power mains. All power cables used in the installation of the projector and the computer or DMX console should have three pins.
  • Page 7 SHOGUN 250mW Projector HIGHLITE International B.V. Never connect the projector or computer to a dimmer or relay- type system. To apply power Warning! The power cables must be undamaged and rated for the electrical requirements of all connected devices. Important! Powering through a dimmer system will damage the projector and computer.

  • Page 8: Installation

    SHOGUN 250mW Projector HIGHLITE International B.V. INSTALLATION LOCATION AND ORIENTATION For safe operation, install the Projector and Computer in a location where: - • It is at least 0.3 meters (12 inches) away from illuminated surfaces and combustible materials. • It is not easily touched or bumped.

  • Page 9: Cypherliteusb Operating Instructions

    SHOGUN 250mW Projector HIGHLITE International B.V. USB Operating Instructions CAUTION: Use of controls, adjustments, or performance of procedures other than what is specified herein may result in hazardous radiation exposure, which can result in severe eye damage and or physical injury. This projector is designed to operate using IDLA standard Signal (DB25), USB or DMX-512.
  • Page 10 SHOGUN 250mW Projector HIGHLITE International B.V. The wizard will then load the necessary files and you will see the PC recognize the Flashback3 board in the projector. 8. To start using Cypher USB, click on the Cypher icon. 9. When the program opens, it will have an empty workspace.
  • Page 11 SHOGUN 250mW Projector HIGHLITE International B.V. You can link cues together to create a sequence of effects. Simply right click on the desired first cue, select “Link” and then click on the cues you wish to follow in order. At any time you can unlink cues by clicking on the “Link”...

  • Page 12: Sound Active

    SHOGUN 250mW Projector HIGHLITE International B.V. Sound Active Mode 1. Upload the sound active workspace to the Flashback3. 2. Play your audio at the level you expect the laser projector to respond to. 3. Adjust the sound sensitivity knob on the back of the unit until you see Laser light.

  • Page 13: Compliance Statement

    SHOGUN 250mW Projector HIGHLITE International B.V. Compliance Statement Compliance Statement Your new Shogun 250mW Projector has been designed to comply with FDA and IEC Standards for it classification. The Shogun 250mWprojector is a Class IIIB laser product. Laser Safety and Compliance Information This product is manufactured to comply with the IEC 60925-1 and in accordance with U.S.
  • Page 14 SHOGUN 250mW Projector HIGHLITE International B.V. A Combo label with the Product Model Number, Serial Number, Date of Manufacture, Laser Light Warning Label, Warranty Void Label and Interlocked Housing Label This projector has been designed to be hung from a truss, ceiling or on a wall. It is recommended that, for safety purposes, your projector be mounted using either a suitable hanging clamp or bolted to the surface as instructed in this manual.

  • Page 15: Dmx Control

    SHOGUN 250mW Projector HIGHLITE International B.V. DMX Control Control features Your projector’s DMX feature is capable of being controlled from a DMX-512 controller. The projector utilizes the effects on your SmartMedia Card. To learn more about CypherLiteUSB, please refer to the CypherLiteUSB Manual on the Software Disc. Connecting your projector to a DMX-512 Controller DMX-512 uses a three-pin cable similar to XLR or Microphone leads.

  • Page 16: Dip Switch Settings

    SHOGUN 250mW Projector HIGHLITE International B.V. Dip Switch Settings This projector uses dip switches to assign the desired DMX address. DMX-512 is a simple to use control protocol that allows you to control up to 512 channels at any one time. NLSP500LDRGB Projector uses 14 Channels to control its functions.
  • Page 17 SHOGUN 250mW Projector HIGHLITE International B.V. © HIGHLITE International B.V. All rights reserved Printed in China 2006...

  • Page 18: Auto-Play Mode

    SHOGUN 250mW Projector HIGHLITE International B.V. AUTO-PLAY Using the CypherLiteUSB software you can also set the unit up to run a cue as soon as it powers up. This may be useful in settings where the projector is used for advertisement or to project logos and does not require an operator.

  • Page 19: Troubleshooting

    SHOGUN 250mW Projector HIGHLITE International B.V. Troubleshooting Problem Remedy Laser does not light. Power On? Key on? DB-9 Interlock on? Volume Knob (sound active mode only) ? Smart Media Card present with the gold pins facing down? Image appears either too wide or too thin. Adjust the “X”...

  • Page 20: Technical Specifications

    SHOGUN 250mW Projector HIGHLITE International B.V. Tech Specs Model: Shogun 250mWProjector Laser Type: LD & DPSS Laser Life: 6,000 to >10,000 Hours Output Type: CW Cooling: TEC Thermal Electronically Cooled Color: 100mW 635nm Red; 50mW 532nm Green; 50mW 473nm Blue Output: 250mWRGB Modulation: Analog AC Power: 100-500V AC 50~60Hz (Self Switching PSU)
