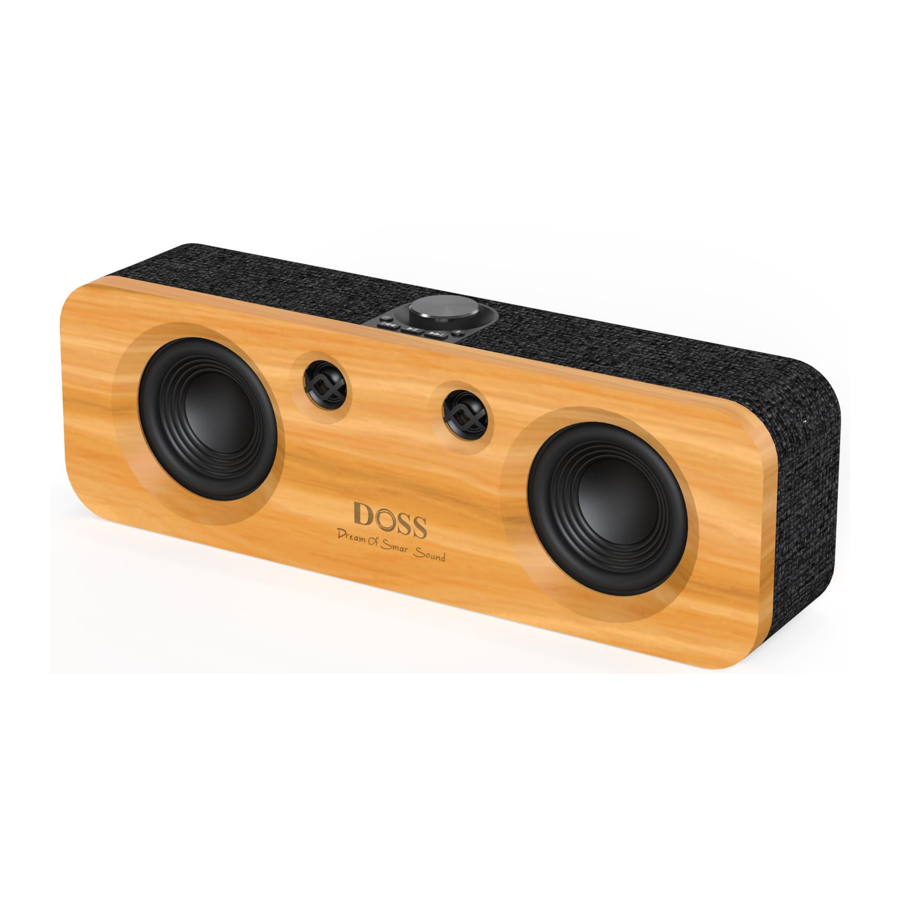

DOSS SoundBox H200 Manual

Packing content

• 1 x SoundBox H200
• 1 x Type-C charging cable
• 1 x User Manual

Specifications

• Output: 50W
• DC power input: 5V/2A
• Battery: 7.4V 4500mAh
• Unit net weight: 2.9kg
• Charge time: 4.5hrs
• Frequency response: 40Hz-20KHz
• Unit dimension: 15.7 x 3.6 x 5.3 inches
• Play time: Up to 35 hours (50% volume)
• Bluetooth distance: Up to 20m/66ft
• Warranty: One-year limited

Important notes before using

• To prolong the lifetime of the battery, fully charge the speaker before the first time using it.
• The battery is at a low level when the front indicator flashes red rapidly.
• The speaker will automatically power off after 15 minutes without audio input.
• You can press and hold the Bluetooth and power button for 2 seconds to disable this function.
• When all buttons can't be controlled, try to press and hold the play/pause and
• power buttons for 2 seconds to restore the factory setting.
• If you need any assistance while using this speaker, please feel free to contact customer service at support@dossav.com.

Buttons and control

LED indication

	Flashing blue	Bluetooth pairing
	Solid Blue	Bluetooth paired
	Solid red	AUX mode
	Solid green	TF card mode
	Flashing green	USB drive mode
	Solid white	Coaxial audio mode
	Flashing white	TWS pairing
	Solid white	TWS paired
	Flashing green	Maximum volume
	Flashing red	Low battery level
	Solid red	Charging
	Light off	Fully charged

Connections

Bluetooth mode

1. Place your speaker and the device within 1 meter away.
2. Press the power button for 2 seconds to turn the speaker on. The speaker will enter Bluetooth pairing mode and flash blue.
3. Turn on Bluetooth on your device and choose SoundBox H200 in the list.
4. If the pairing is successful, the LED will change to solid blue.

TWS (True Wireless Stereo) mode

1. Turn on both speakers.
2. Select a speaker as the primary speaker. Press and hold the button and the indicator light will flash white rapidly.
3. Once paired, the LED of the primary speaker turns solid white, while the second speaker turns slowly flashing white.
4. Find " SoundBox H200 " on your Bluetooth device and connect it.

Note: APE format is not supported in TWS mode.

Use your speaker with Echo Dot

You can connect the Dot with the speaker by Bluetooth.
Please follow the steps to set up via Bluetooth:

1. Download the Alexa app and follow the standard setup procedure to get the dot connected to your home Wi-Fi network.
2. Switch the SoundBox H200 to Bluetooth mode.
3. Run the Alexa App, tap Menu, and then tap Settings.
4. Tap the Echo Dot in your list of Alexa devices, then tap Bluetooth.
5. The SoundBox H200 should appear in the list of Bluetooth devices. If not, please long press the Bluetooth button and try it again.
6. Once listed, tap on the speaker to complete the pairing process.
7. To remove the device, return to Bluetooth > tap the name of speaker > tap "Forget Device"

Safety instructions

• Avoid dropping or hitting the speaker.
• Avoid exposing to extreme temperature.
• Avoid using the speaker near a microwave.
• Never disassemble or repair the speaker.
• Never use any corrosive cleanser/oil to clean.
• Never leave the speaker in a car parked in the sun.
• Never attempt to charge the speaker while it is wet.

Contact Information

For updates, promotions, and experience sharing, join our customer community.

@dossav/@dossfans

@dossdirect

www.dossaudio.com

1-833-275-3677

Mon-Fri 9 AM-5 PM PT (USA)

Customer Service Email:

US: support@dossav.com

CA: support_ ca@dossav.com

UK: support_ uk@dossav.com
