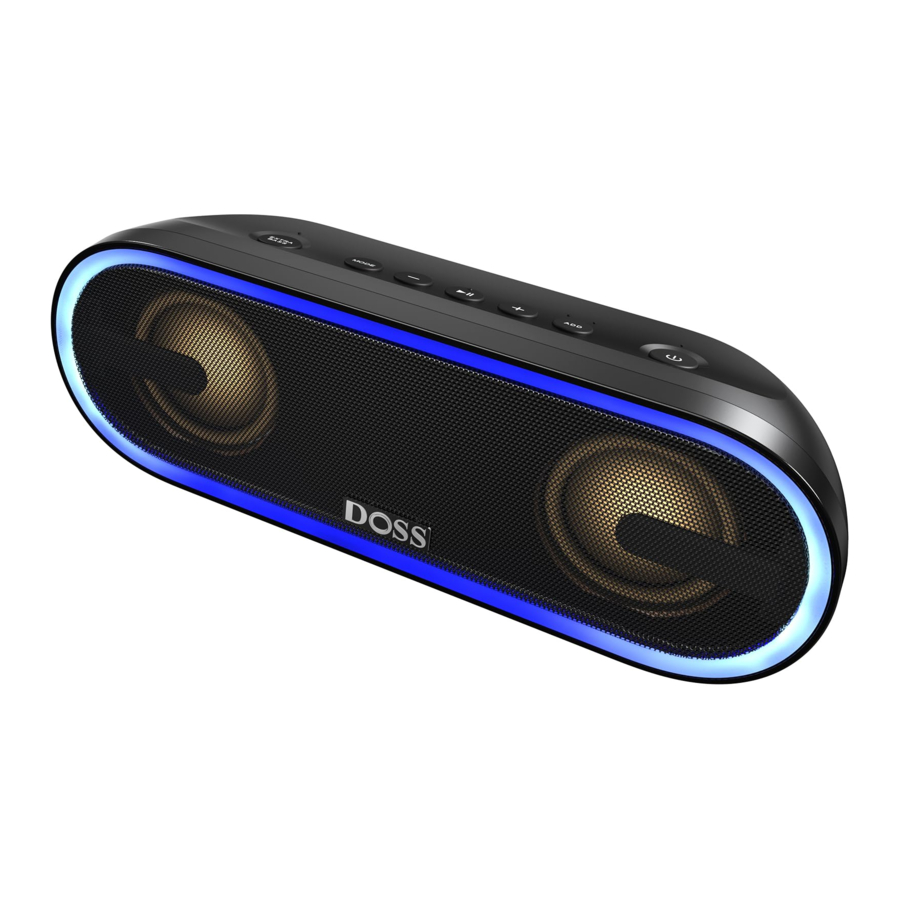

DOSS SoundBox Pro+ P300 Manual

Packing content

1 x SoundBox Pro+ P300
1 x USB-C charging cable
1 x User Manual

Specifications

Output power: 40W
DC input: 5V 2A
Battery: 2600mAh
Charging time: ≤3.5H
Playtime: 20H (at 50% volume)
Bluetooth version: V5.3
Bluetooth range: up to 25m/82ft
Net weight: 2.43pounds
Unit dimension: 10.3*3.3*3.6inches
TF card audio format: MP3/WAV/FLAC (Max capacity 256G)
Warranty: One-year limited

Important notes before using

To prolong the lifetime of the battery, fully charge the speaker before the first time using it.
Charging indicator: Solid red — charging; No light — fully charged.
The indicator light will flash red when the battery level is below 20%.
The speaker will auto-power off after 15 minutes without audio input.
To remove/activate the auto-power off, press and hold the MODE and button for 2s simultaneously. (flash red — remove; flash green — activate )
To remove/activate all prompt stones, press and hold the — and button for 2s simultaneously. (flash red — remove; flash green — activate )
Press and hold the and button for 2s simultaneously to restore the factory setting.
If you need any assistance while using this speaker, please feel free to contact customer service at support@dossav.com.

Buttons and control

Indicators

	Flash blue	Bluetooth pairing
	Flash red	Low battery
	Solid blue	Bluetooth paired
	Solid green	TF card mode
	Solid red	AUX-IN mode
	Solid white	Extra bass mode
	Light off	Cancel extra bass
	Flash rapidly left and right	TWS pairing
	Solid white	TWS paired

Connections

Pairing your device via Bluetooth

Enable the Bluetooth feature on your device.
Find "SoundBox Pro+ P300" on the Bluetooth device and connect it.
Once paired, you can see the status "connected" on your device.

Press to re-enter Bluetooth pairing if your device can't find SoundBox Pro+ P300 in 10 seconds.

True Wireless Stereo mode

Turn on both speakers and make sure they're in the Bluetooth disconnect state.
Press and hold the "ADD" button 3s of one of the speakers to enter the TWS mode. The indicator will flash white rapidly left and right. At this time, the other speaker will pair with it automatically.
After completing the TWS pairing, the host speaker's indicator will turn solid white on the left, while the other speaker's indicator will turn solid white on the right.
Find "SoundBox Pro+ P300" on your Bluetooth device and connect it.

Use your unit with Echo Dot

You can connect the Dot to the speaker via Bluetooth.
Please follow the steps to set up via Bluetooth:

Download the Alexa app and follow the steps to set up the procedure to get the Dot connected to your home Wi-Fi network.
Switch the SoundBox Pro+ P300 to Bluetooth mode, you can press the power button to re-enter Bluetooth pairing.
Run the Alexa app, tap Menu, and then tap Settings.
Tap the Echo Dot in your list of Alexa devices, then tap Bluetooth.
The SoundBox Pro+ P300 should appear in the list of Bluetooth devices. If not, please press the power button and try again.
Once listed, tap on the speaker to complete the pairing process.
To remove the device, return to Bluetooth>tap the name of the speaker> tap "Forget Device"

Note:
Voice command will not be able to turn on/off the speaker if you connect to it via Bluetooth.

Warning

DO NOT drop, hit or shake the speaker.
DO NOT disassemble, repair or modify the speaker by yourself.
DO NOT use cleaning products that contain benzene, solvents or alcohol.
DO NOT expose the speaker to excessive heat or direct sunlight for a long time.
DO NOT store the speaker in a place with humidity or dust.
DO NOT place heavy objects on top of the speaker.
DO NOT use the speaker near a microwave oven or wireless LAN products
