Doss Soundbox Pro DS-1685 Manual

Packing content

SoundBox Pro x 1
USB-C charging cable x 1
User manual x 1

Specifications

Bluetooth version: V5.0
Range: 20 m/66ft
Output: 10W x 2
Input: 5V=1A
Battery: Li-ion 3.7V=2200mAh
Weight: 500g
Unit dimension: 7.74 x 2.94 x 2.95 inches
Play time: 20 hours (at 50% volume)
Warranty: One-year

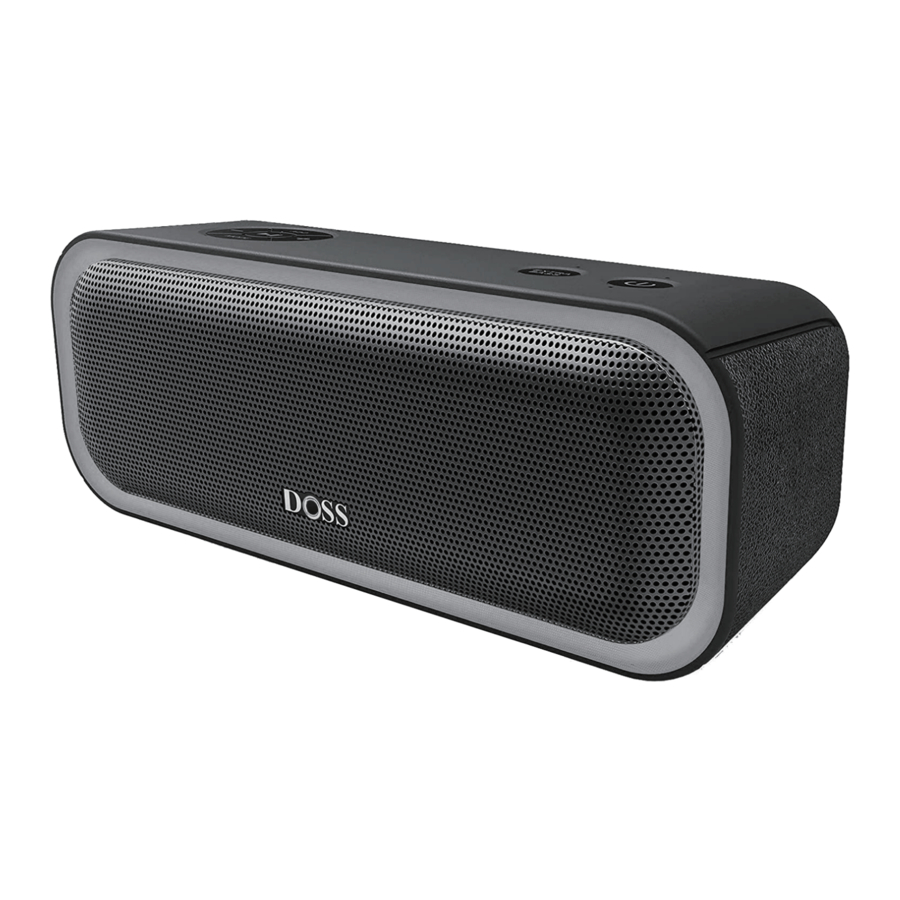

Product overview

Buttons and controls

Indicators

Indicator view	Indicator state	System state
	Rapidly flashing blue	Bluetooth disconnects
	Solid blue	Bluetooth connected
	Solid red	Audio in mode
	Flashing red	Battery low level
	Solid green	Micro SD card mode
	Flashing green	Maximum volume
	OFF	Power off
	Solid white	Extra bass mode
	Light off	Cancel extra bass
	L(le) and R(right) rapidly flashing white alternately	TWS Pairing
	L(le)/R(right) solid white	TWS Paired
	Solid red	Charging
	OFF	Fully charged

Pairing your device via Bluetooth

Enable Bluetooth on your device and search for the speaker.
Select SoundBox Pro on the Bluetooth list.
Once paired, you can see the connected status on your device.

The speaker will auto power off after 15 minutes without any media input. To remove the function, please contact <support@dossav.com> for support.
The music volume will drop down 15% automatically when the speaker is on low battery.

Having problems connecting?

Make sure that your device is within 1 meter from the speaker.
Press and hold the Play/Pause button for 5 seconds. Still have problems? Contact DOSS customer service at support@dossav.com for assistance.

Play music from a Micro SD card

Play in download order
Support capacity: 128G or less
Support format: MP3, WAV, FLAC

How to set up true wireless stereo pairing

Start the first speaker

Turn on the speaker; press and hold the ADD button for 3s.

Start the second speaker

Turn on the speaker

Stereo paired
Setting up true wireless stereo pairing - Step 2

The speaker with the left led on is the Primary. The speaker with the right led on is the Secondary.

Warning

DO NOT drop, hit or shake the speaker.
DO NOT disassemble, repair or modify the speaker by yourself.
DO NOT use cleaning products that contain benzene, solvents or alcohol.
DO NOT expose the speaker to excessive heat or direct sunlight for a long me.
DO NOT store the speaker in a place with humidity or dust.
DO NOT place heavy objects on top of the speaker.
DO NOT use the speaker near a microwave oven or wireless LAN products.
