DOSS SoundBox Pro+ Manual

Packing content

DOSS SoundBox Pro+ x 1
Micro USB charging cable x 1
User manual x 1

Specifications

Bluetooth version: V5.0
Range: 20 m/66ft
Output: 12W x 2
Input: 5V=2A
Battery: Li-ion 3.7V=4400mAh
Weight: 758g
Unit dimension: 8.9 x 3.3 x 3.5 inches
Play time: 15 hours ( at 50% volume )
Warranty: One-year

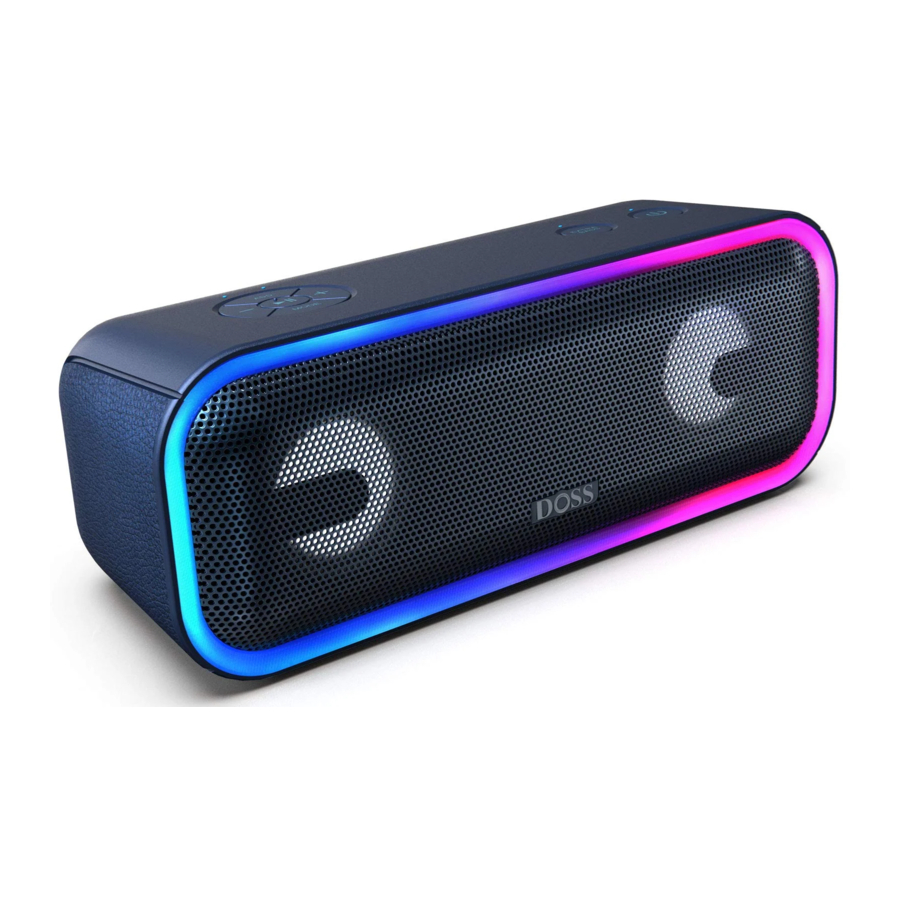

Product overview

Buttons and controls

Indicators

Indicator view	Indicator state	System state
	Rapidly flashing blue	Bluetooth disconnects
	Solid blue	Bluetooth connected
	Solid red	Audio in mode
	Solid green	Micro SD card mode
	OFF	Power off
	Solid white	Extra bass mode
	Light off	Cancel extra bass
	L(left) and R(right) rapidly flashing white alternately	TWS Pairing
	L(left)/R(right) solid white	TWS Paired
	Solid red	Charging
	OFF	Fully charged

Pairing your device via Bluetooth

Enable Bluetooth on your device and search for the speaker.
Select SoundBox Pro+ on the Bluetooth list.
Once paired, you can see the connected status on your device.

The speaker will auto power off after 15 minutes without any media input. To remove the function, please contact <support@dossav.com> for support.
The music volume will drop down 15% automatically when the speaker is on low battery.

Having problems connecting?

Make sure that your device is within 1 meter from the speaker.
Press and hold the Play/Pause button for 5 seconds.

Still have problems? Contact DOSS customer service at support @dossav.com for assistance.

Pairing your device via Auxiliary cable

Play via 3.5mm Auxiliary cable(not supplied)

Play music from a Micro SD card

Play in download order
Support capacity: 32G or less
Support format: MP3, WAV, WMV

How to set up true wireless stereo pairing

Make sure both speakers didn't connect to any device via Bluetooth, if they did, please press and hold play/pause button for 5 seconds.
Turn on both speakers.
Press and hold the ADD button on one of the speakers for 3s.
Waiting for pairing.
Once paired successfully, the speaker with the left led on is the Primary, the speaker with the right led on is the Secondary.
Turn on Bluetooth on your device and select DOSS Soundbox Pro+ on your Bluetooth list.

Warning

DO NOT drop, hit or shake the speaker.
DO NOT disassemble, repair or modify the speaker by yourself.
DO NOT use cleaning products that contain benzene, solvents or alcohol.
DO NOT expose the speaker to excessive heat or direct sunlight for a long time.
DO NOT store the speaker in a place with humidity or dust.
DO NOT place heavy objects on top of the speaker.
DO NOT use the speaker near a microwave oven or wireless LAN products.
