Federal Signal Corporation StreamLine LP3 LED Series Manual

Model LP3 LED
StreamLine Series LED Lights
®
Limited Warranty: This product's limited warranty
can be found at www.fedsig.com/SSG-Warranty.
Messages to Installers and Users
should be installed to code by a licensed electrician
and follow all safety instructions. Failure to do so
may result in property damage, serious injury, or
death.
• Read and understand instructions before
installing or operating the equipment.
• SHOCK HAZARD—To avoid electrical shock
hazards, do not connect wires when power is
applied.
• Do not connect this device to the system when
power is on.
• After installation, ensure that the lens screw is
properly tightened and that threaded joints are
fully engaged.
• After installation, test the device to ensure that
it is operating properly.
• Establish a procedure to routinely check the
device installation for integrity and proper
operation.
Failure to follow all safety precautions and
instructions may result in property damage, serious
injury, or death.
Unpacking the Device: After unpacking the device,
examine it for damage and verify the parts. If a part
is missing or appears damaged, do not attempt to
install. Contact Federal Signal Customer Support at
+1 708-587-3587 or iordersup@fedsig.com.
Mounting the Device
The models LP3SL and LP3TL LED lights can be
mounted directly to a flat surface. When surface-
mounting the Model LP3SL, wiring can be run
through a hole in bottom of the housing or through
a notch in the bottom recess of the housing.
IMPORTANT: If the device operates on AC voltage,
do NOT route wiring through the notch in the
housing. Routing wiring through the notch violates
This product the National Electrical Code and invalidates the UL
listing of the beacon.
Surface Mounting the LP3SL
To mount the LP3SL:
1.
2.
3.
4.
5.
Remove the lens screw. See Figure 1.

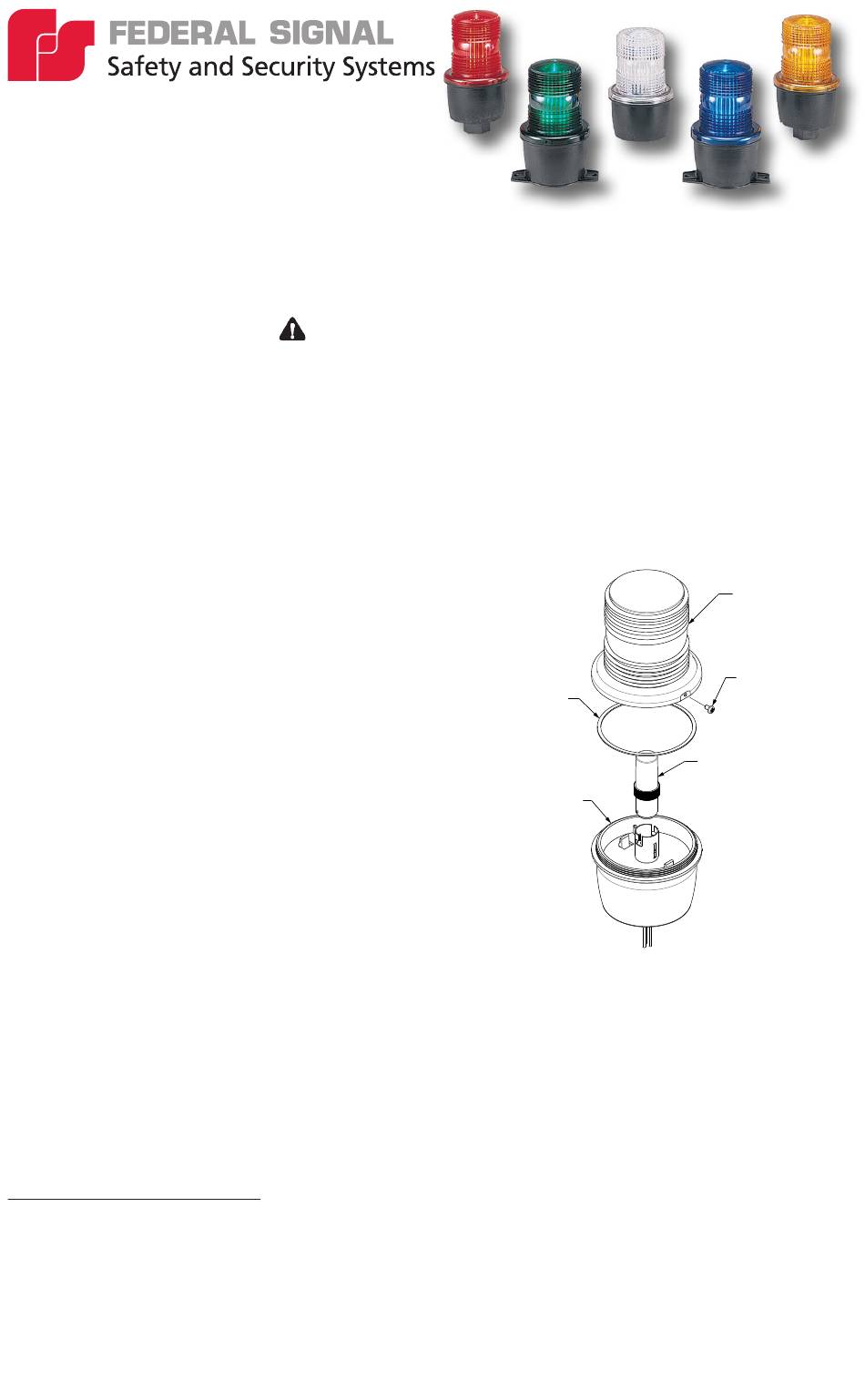

Figure 1 Model LP3SL (exploded view)
Lens Gasket
LP3SL Housing
Remove the lens from the housing by turning
it counter-clockwise.
Remove the LED assembly by depressing the
two snap tabs inside the housing and lifting
it upwards.
Using the rubber gasket as a template or the
dimensions shown in Figure 2, mark three
mounting holes and the center wiring hole.
Drill or punch out holes as necessary.
Lens
Lens Screw
LED
