Federal Signal Corporation GHSCENE Instruction Sheet

SAFETY MESSAGE TO INSTALLERS AND USERS
People's lives depend on your safe installation of our
products. It is important to read, understand and follow all
instructions shipped with the products. In addition, listed
below are some other important safety instructions and
precautions you should follow:
• To properly install this light: you must have a
good understanding of automotive electrical
procedures and systems, along with proficiency in
the installation and use of safety warning
equipment.
• DO NOT install equipment or route wiring in the
deployment path of an air bag.
• When drilling into a vehicle structure, be sure
that both sides of the surface are clear of
anything that could be damaged.
• In order for the light to function properly, a
separate ground connection must be made. If
practical, it should be connected to the negative
battery terminal. At a minimum, it may be
attached to a solid metal body or chassis part
that will provide an effective ground path as long
as the light system is to be used.
• Locate light control so the VEHICLE and
CONTROL can be operated safely under all
driving conditions.
• Do not attempt to activate or deactivate light
control while driving in a hazardous situation.
• You should frequently inspect the light to ensure
that it is operating properly and that it is
securely attached to the vehicle.
• File these instructions in a safe place and refer to
them when maintaining and/or reinstalling the
product.
Failure to follow all safety precautions and instructions
may result in property damage, serious injury, or death to you
or others.
A. GENERAL.
The Model GHSCENE is a dual lamp halogen light
designed for flush mounting on a vehicle's exterior.
B. INSTALLATION.
1. Determine the desired mounting location. Using the
flange, scribe drill position marks on the mounting surface for
INSTRUCTION SHEET
FOR
FLUSH MOUNT LIGHT MODEL GHSCENE
the 4mm mounting bolts. A 5-7/16" x 3-11/16" rectangular hole
is required for clearance. Center the rectangular hole between
the mounting holes.
Before drilling or cutting holes in ANY part of the
vehicle, be sure that both sides of the mounting
surface are clear of parts that could be damaged; such
as brake lines, fuel lines, electrical wiring or other
vital parts.
2. Drill four mounting holes in the mounting surface.
Cut the clearance hole.
3. Secure the light assembly to the mounting surface
using the supplied hardware as shown in figure 1.
C. ELECTRICAL CONNECTIONS.
The flush mount scene light assembly is supplied
with a connector. The supplied mounting kit includes two
separate connectors and pins. One connector is the mating end
of the connector supplied with the light assembly. The other
connector is to be used on the user-supplied cable.
Locate the light assembly's mating connector and
pins. Route the user-supplied cable into the light through the
rubber grommet on the rear of the housing. Crimp the supplied
pins on the user-supplied cable. See figure 2. Insert the pins in
the connector housing supplied in the kit and push until they
snap into place. The connector can now be plugged directly into
the flush mount light assembly. The other end of the user-
supplied cable connects to the power source.
FLAT WASHERS (4)
NUTS
(4)
CUT OUT A
5 9/16" x 3 3/4"
RECTANGLE
GHSCENE LIGHT
ASSEMBLY
LENS
TRIM RING
REV. A 1097
Printed in U.S.A.
CAUTION
MOUNTING SURFACE
DRILL 4 HOLES, .1718 DIA.
4MM MOUNTING
GASKET
SCREWS (4)
SCREWS (4)

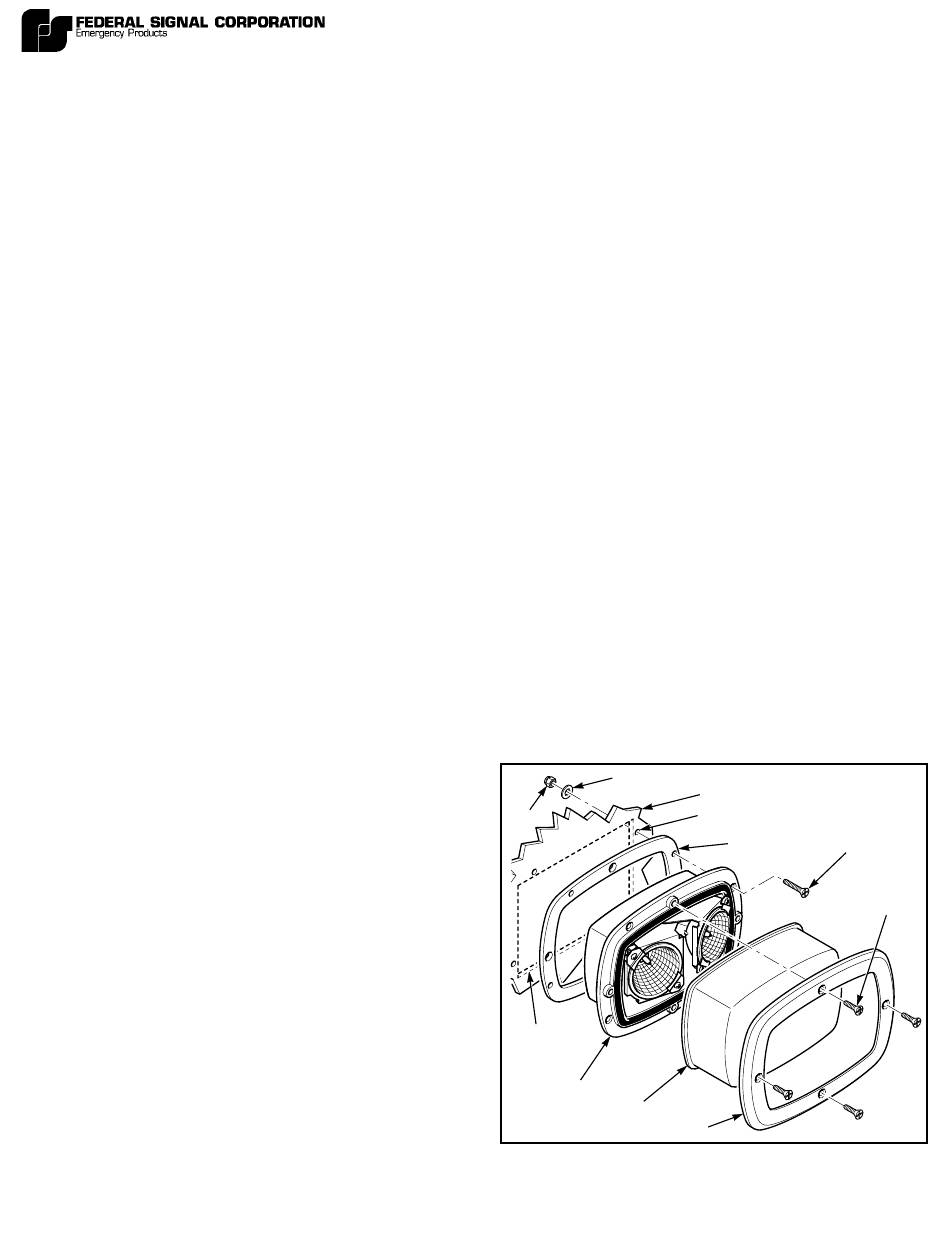

Figure 1.
2561423A
TRIM RING
290A3371
