Summary of Contents for Federal Signal Corporation SpectraLux SIFZ Front ILS

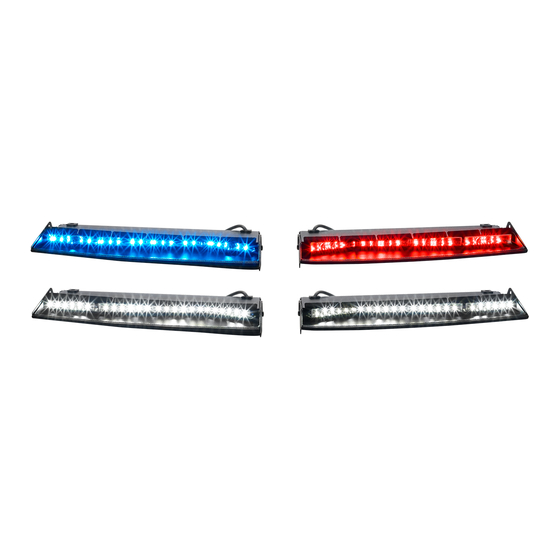

- Page 1 Models SIFZ Front ILS Light Bar Installation, Maintenance, and Service Manual 25500195 REV. A2 1120 Printed in U.S.A. © Copyright 2019-2020 Federal Signal Corporation...
- Page 2 A copy of this limited warranty can also be obtained by written request to Federal Signal Corporation, 2645 Federal Signal Drive, University Park, IL 60484, email to info@fedsig.com or call +1 708-534-3400.
-
Page 3: Table Of Contents
Contents Safety Messages..........................4 Safety Message to Installers and Service Personnel of Warning Lights ...........4 Safety Message to Operators of Warning Light Equipment ..............7 Unpacking the Light Bar ......................... 9 Introduction to the SIFZ Series SpectraLux ....................9 Selecting Configuration Options for the Serially-Controlled SIFZ ..........9 Control Wires for the Serial Interface Module ................ -
Page 4: Safety Messages
Safety Messages Safety Messages For your safety, read and understand this manual thoroughly before installing, operating, and servicing the light bar. The safety messages presented in this chapter and throughout the manual are reminders to exercise extreme care at all times. To download copies of the manual, go to www.fedsig.com or call the Federal Signal Service Department at 1-800- 433-9132, 7 a.m. - Page 5 Safety Messages to the battery as possible. Ensure that all wires and fuses are rated correctly to handle the device and system amperage requirements. • Never attempt to install aftermarket equipment that connects to the vehicle wiring without reviewing a vehicle wiring diagram available from the vehicle manufacturer. Ensure that your installation will not affect vehicle operation or mandated safety functions or circuits.
- Page 6 Safety Messages • Before mounting any components, check the manual to ensure that the component you are installing is suitable for use in that area of the vehicle. Many components are not suitable for use in the engine compartment or other extreme environmental exposure areas.
-
Page 7: Safety Message To Operators Of Warning Light Equipment
Safety Messages • File these instructions in a safe place and refer to them when maintaining and/or reinstalling the product. Failure to follow these precautions may result in property damage, serious injury, or death. Safety Message to Operators of Warning Light Equipment People’s lives depend on your safe use of our products. - Page 8 Safety Messages • Holding power of magnetic mounting systems is dependent upon surface finish, surface flatness, and thickness of the steel mounting surface. Therefore, to promote proper magnetic mounting: • Keep mounting surface and magnets clean, dry, and free of foreign particles that prevent good surface contact.
-
Page 9: Unpacking The Light Bar
Unpacking the Light Bar Unpacking the Light Bar After unpacking the ILS light assembly, inspect it for damage that may have occurred in transit. If it has been damaged, do not install it. File a claim immediately with the carrier, stating the extent of damage. -
Page 10: Control Wires For The Serial Interface Module
Control Wires for the Serial Interface Module Table 1 Switch settings on the control board of the serial-controlled ILS DIP Switch Function Position Sets what light heads turn on in Steady Burn. The default position for Switch 1 is OFF, which turns on the third outer heads on both sides of the Front ILS (Figure 1 on page 10). -
Page 11: Table 2 Sifz Light Bar Controls And Wires From The Serial Interface Module
Control Wires for the Serial Interface Module Table 2 SIFZ light bar controls and wires from the Serial Interface Module Light Bar Control Wire Color Description of Function Mode 1 Blue Lowest priority Mode 2 Blue/White Overrides Mode 1 Mode 3 Black/Red Overrides Modes 1 and 2 Steady Burn... -
Page 12: Control Wires For The Discrete-Wire Sifz Ils
Control Wires for the Discrete-Wire SIFZ ILS Control Wires for the Discrete-Wire SIFZ ILS The SIFZ SpectraLux ILS is controlled through an eight-conductor discrete-wire cable that connects to user-supplied, low-current switches. Figure 2 Discrete wire cable on passenger-side CAT5 Cable Orange Yellow Black... -
Page 13: Programming The Discrete-Wire Sifz Ils
Programming the Discrete-Wire SIFZ ILS Programming the Discrete-Wire SIFZ ILS The white programming wire enables you to program the functions of the control wires. A description of each function is listed in Table 4. Only one control wire can be modified at a time. -
Page 14: Wiring The Sifz Ils In The Vehicle
Wiring the SIFZ ILS in the Vehicle 3. Apply 12 Vdc to a control wire and to the ignition wire from the Serial Interface Module. 4. After the installation, check the entire system to make sure the lights flash properly and all light system functions operate properly. Wiring the SIFZ ILS in the Vehicle INSTALLATION PRECAUTIONS: The warning system and/or two-way radio system may operate improperly if a two-way radio antenna is installed on or... -
Page 15: Maintaining The Sifz Ils
Maintaining the SIFZ ILS Maintaining the SIFZ ILS PERIODICALLY CHECK THE GLASS: The effectiveness of the ILS light bar depends on the clarity of the glass it is being placed behind. Dirt and defects in the glass reduces the light output. The reliability of light for emergency signaling purposes may be reduced if the glass is dirty, cracked, or not clear. -
Page 16: Cleaning The Reflectors
Maintaining the SIFZ ILS To clean the domes: 1. Rinse the domes with lukewarm water to loosen dirt and debris. 2. Use a mild soap, lukewarm water, and a soft cloth to gently clean the plastic surfaces. To avoid damaging the reflectors, do not use heavy pressure or caustic, abrasive, or petroleum-based cleaners. -
Page 17: Replacing A Pcb
Servicing the SIFZ ILS Servicing the SIFZ ILS This section has instructions for replacing the light bar PCBs and reflectors. For additional service and support, call the Federal Signal Service Department at 800-433-9132, 7 a.m. to 5 p.m., Monday through Friday (Central Time). For a list of common replacement parts, see “Ordering Replacement Parts”... -
Page 18: Figure 3 Exploded View
Replacing a PCB Figure 3 Exploded view Plug Grommet 6-32 Nuts Cable Clamp Reflector Powerground Connector. To Remove, Press Tabs Nylon Spacer #10 Screw Square Grommet VSIFZ SpectraLux Split Front ILS Light Bar ® Federal Signal www.fedsig.com... -
Page 19: Getting Technical Support And Service
Getting Technical Support and Service Getting Technical Support and Service For technical support and service, please contact: Service Department Federal Signal Corporation Phone: 1-800-433-9132 Email: empserviceinfo@fedsig.com www.fedsig.com Getting Repair Service The Federal Signal factory provides technical assistance with any problems that cannot be handled locally. - Page 20 2645 Federal Signal Drive University Park, Illinois 60484-3167 www.fedsig.com Customer Support Police/Fire-EMS: 800-264-3578 • +1 708 534-3400 Work Truck: 800-824-0254 • +1 708 534-3400 Technical Support 800-433-9132 • +1 708 534-3400...
