CFIT-PF2020DSH1 and CFIT-PF2020DSH2
1.
GENERAL INTRODUCTION .......................................................... 1
1.1. Document Purpose ........................................................................ 1
1.2. Product Purpose ........................................................................... 1
1.3. Product Mounting and Location .................................................. 1
2.
SAFETY PRECAUTIONS ................................................................. 2
3.
INSTALLATION ................................................................................. 4
3.1. Inspecting the Product .................................................................. 4
3.2. Following and Using Safety Precautions .................................... 4
3.3. Obtaining Tools and Equipment .................................................. 4
3.4. Preparing the Installation Site ..................................................... 4
3.5. Mounting the CFIT ....................................................................... 5
3.6. CFIT Wiring and Equipment ........................................................ 5
3.7. Conduit Seals ................................................................................ 6
4.
5.
WARRANTY & CUSTOMER SERVICE ........................................ 6
6.
SPECIFICATIONS .............................................................................. 7
6.1. Regulatory Specifications ............................................................. 7
6.2. Product Specifications .................................................................. 7
7.
ORDERING INFORMATION .......................................................... 7

1. GENERAL INTRODUCTION

1.1. Document Purpose

This document provides general information for the CFIT-PF2020DSH1 and CFIT-PF2020DSH2 fiber storage enclosure. Figure 1 shows a
closed front view of the enclosure.
Hereafter, the Charles Universal Broadband Enclosure CFIT-PF2020DSH1 and CFIT-PF2020DSH2 will be referred to as the "CFIT."

1.2. Product Purpose

The CFIT enclosure includes a breaker, a terminal block, and six ports of LC/UPC adapters. The adapter bulkhead has space for up to six
additional ports (ordered separately). Fiber and wiring are routed through knockouts on the CFIT.

1.3. Product Mounting and Location

The outdoor, weather-resistant CFIT is to be mounted on a wall or pole.
©Copyright 2021 Charles Industries LLC. All rights reserved. Printed in the United States of America.
Availability of features and technical specifications herein are subject to change without notice.
Charles is a registered trademark of Charles Industries.
Charles Power and Fiber Enclosure
General Description and Installation

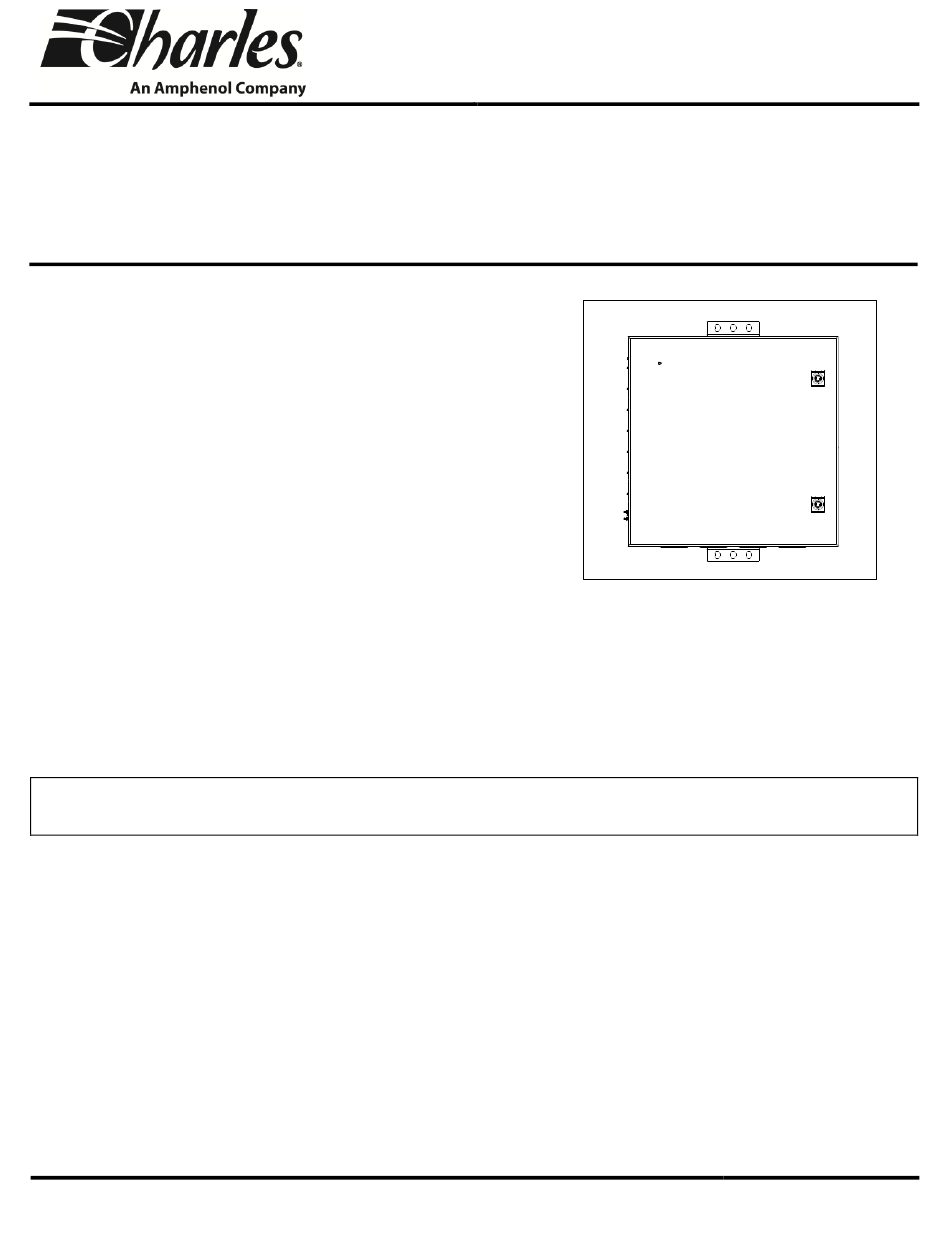

Figure 1
-NOTE-
LT-CFITPF2020
th
4
Printing, July 30, 2021
Front View of the CFIT
Page 1 of 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Charles CFIT-PF2020DSH1 and is the answer not in the manual?

Questions and answers

Related Manuals for Amphenol Charles CFIT-PF2020DSH1

Summary of Contents for Amphenol Charles CFIT-PF2020DSH1

  • Page 1: Table Of Contents

    LT-CFITPF2020 Printing, July 30, 2021 Charles Power and Fiber Enclosure CFIT-PF2020DSH1 and CFIT-PF2020DSH2 General Description and Installation GENERAL INTRODUCTION ............1 1.1. Document Purpose ................ 1 1.2. Product Purpose ................1 1.3. Product Mounting and Location ..........1 SAFETY PRECAUTIONS ..............2 INSTALLATION .................

  • Page 2: Safety Precautions

    LT-CFITPF2020 2. SAFETY PRECAUTIONS — WARNING— Risk of serious eye damage! Never look into the end of a fiber optic line or use a magnifier in the presence of laser light or radiation. Exercise caution when installing, testing or maintaining live circuits. If eyes are exposed to laser light or radiation occurs, immediately seek treatment by a medical professional.
  • Page 3 LT-CFITPF2020 Figure 3 CFIT Components Printing Page 3 of 7...

  • Page 4: Installation

    LT-CFITPF2020 3. INSTALLATION 3.1. Inspecting the Product The CFIT is shipped mounted upright on a skid. Remove the bolts, unpack the unit, and dispose of the packaging material. -INSPECTION NOTE- Visually inspect the unit for damages prior to installation. If the equipment was damaged in transit, immediately report the extent of the damage to the transportation company.

  • Page 5: Mounting The Cfit

    LT-CFITPF2020 3.5. Mounting the CFIT The CFIT is shipped with the mounting brackets flush with the top and bottom of the enclosure. Before mounting, remove the brackets, rotate them 180⁰, and re-attach. All images in this document show the brackets in the correct position for mounting. Charles recommends using a minimum SAE Grade 2, 3/8”...

  • Page 6: Conduit Seals

    LT-CFITPF2020 3.6.2. Torque Requirements Torque all hardware as shown below (unless otherwise noted). These values apply to SAE Grade 1 & 2 Low Carbon Steel, ASTM A307 Low Carbon Steel, and Stainless Steel Grade 18-8. Thread In-lbs Ft-lbs Size 4-40 4±10% 6-32 8±10%...

  • Page 7: Specifications

    LT-CFITPF2020 6. SPECIFICATIONS 6.1. Regulatory Specifications  UL-504 Type 4 Listed  UL-2416 Listed If CFITs are field-modified, a customer provided ETL field evaluation of the modified components may be required to re-establish ETL certification to UL standards. Consult local jurisdictions for guidance on a site-by-site basis. 6.2.
