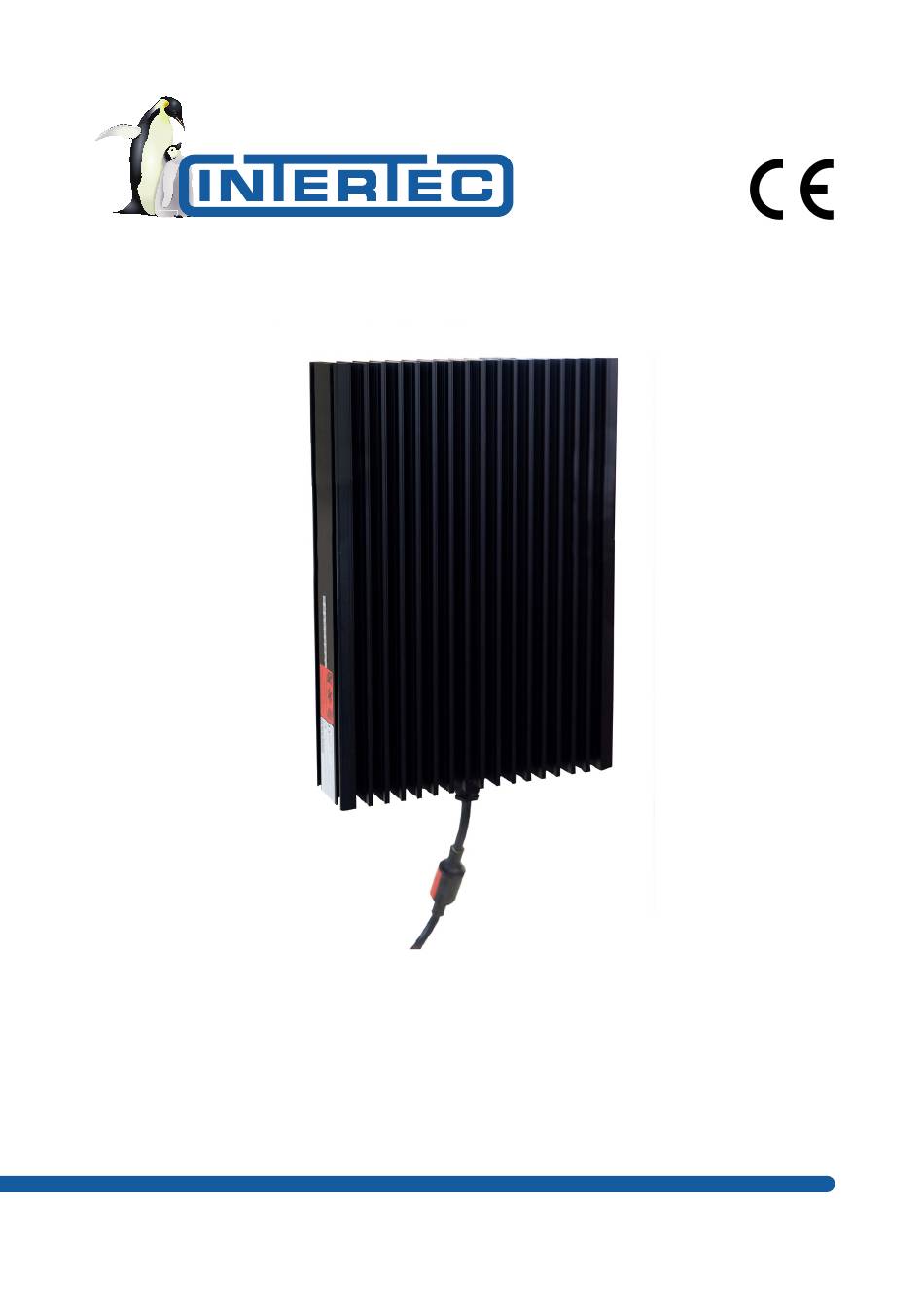

- Page 1 Operating Instructions CP MEGATHERM DN.A HOM177598475en-7 • 12/06/2024...
-
Page 2: Table Of Contents
www.intertec.info Table of contents 1 General .................................. 3 2 Use................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information.............................. 3 5 Installation accessories............................ 4 6 Technical Data ................................ 4 7 Installation ................................ 4 8 Connection................................ 5 9 Commissioning .............................. -
Page 3: General
www.intertec.info Operating Instructions CP MEGATHERM DN.A General Explanation of symbols for warnings and signal words These operating instructions describe the safe and proper way to work with the device. The safety The safety information warns the user about risks and information and instructions given as well as the local provide information on how risks can be avoided. -
Page 4: Installation Accessories
www.intertec.info Operating Instructions CP MEGATHERM DN.A Switching capacity of fault 10 A / 275 V AC CAUTION alarm (AM) Connecting cable Silicone hose cable, Risk of injury at the rib ends notch- and oil resistant, 3 The sharp edges on the heating ribs may cause injury if x 1,5 mm²... -
Page 5: Connection
www.intertec.info Operating Instructions CP MEGATHERM DN.A NOTICE Carefully remove When removing from the packaging and during transport, the connection line must not be stressed or bent. Modifications and repairs may only be carried out by the manufacturer. For free convection, the heater needs to be installed with ribs standing vertically. - Page 6 www.intertec.info Operating Instructions CP MEGATHERM DN.A WARNING The heater is only designed for non hazardous areas. INTERTEC-Hess GmbH accepts no liability for improper Junction box use. INFO The device may only be connected up and secured by a trained person, taking into account the "rated voltage" and "rated current"...
-
Page 7: Commissioning
www.intertec.info Operating Instructions CP MEGATHERM DN.A CAUTION Sufficient heat dissipation must be ensured. Unauthorized covers must be removed as otherwise there is the risk of the heater overheating. Terminal box The heating circuit is permanently disconnected by a temperature melt fuse which can't be reset if these installation instructions are not adhered to. -
Page 8: 14 Eu Declaration Of Conformity
www.intertec.info Operating Instructions CP MEGATHERM DN.A In the case of overheating, the thermal indicator (see NOTICE figure) indicates a discoloration. If more than four fields are blackened, the heater must be uninstalled and Environmental damage may be caused if returned to the manufacturer for inspection. disposed of incorrectly! Electrical scrap and electronics components are subject to hazardous waste treatment and must only be... - Page 9 www.intertec.info Operating Instructions CP MEGATHERM DN.A Please contact your INTERTEC contact person or directly contact INTERTEC-Hess GmbH Raffineriestr. 8 93333 Neustadt/Donau Germany Phone: +49 9445 9532-0 e-mail: info@intertec.info Website: www.intertec.info Warranty The legally defined warranties and warranty periods of 24 months are applicable to our scope of supply and services.
