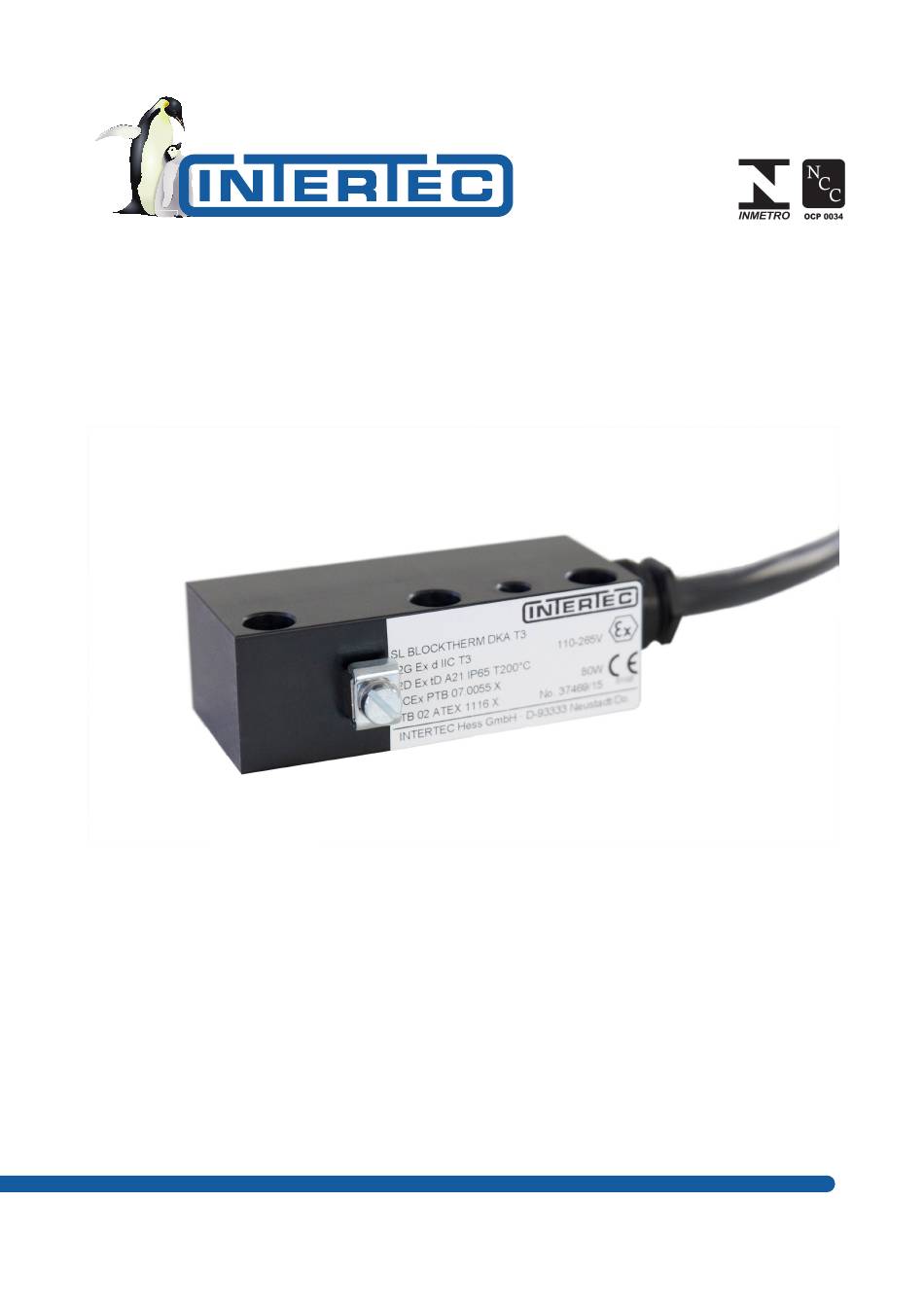

- Page 1 Operating Instructions SL BLOCKTHERM DB.A HOM146759307Ien-5 • 05/02/2020...
- Page 2 www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Special conditions for safe use.......................... 3 4 Explanation of symbols for warnings and signal words .................. 3 5 Safety information .............................. 4 6 Technical Data ................................ 4 7 Option BLOCKTHERM ADA with aluminium plate ....................
- Page 3 Operating Instructions SL BLOCKTHERM DB.A 5. Additional conditions for alternate use of thermostats General see concerning test certificate. They have to be sep- These operating instructions describe the safe and arately certified to the same standards. proper way to work with the device. The safety informa- 6.
- Page 4 Operating Instructions SL BLOCKTHERM DB.A Profile type "K" Length x 90 x 40 x 30 NOTICE Width x Height Profile type "L" Length x 105 x 40 x 30 NOTE Width x Height It is essential to pay attention to this safety advice as you Profile type "P"...
- Page 5 Operating Instructions SL BLOCKTHERM DB.A Optional plates: • Type “Standard”. Without drill pattern Length x Width x Height 215 x 120 x 15 • Type “BT”. With drill pattern for transmitter Length x Width x Height 230 x 120 x 15 •...
- Page 6 Operating Instructions SL BLOCKTHERM DB.A short-circuit protection. When using a heater without in- tegrated thermostat, the fuse protection can be selected according to the cross-section of the supply cable. Additional equipotential bonding is required. The ter- minal block designated for this purpose has the ground sign.
- Page 7 Operating Instructions SL BLOCKTHERM DB.A Functional and safety test intervals can be freely selec- ted by the operator in accordance with the applicable regulations. Repairs may only be carried out by the manufacturer in the factory. All components have to be kept clean and free of dust...
- Page 8 Operating Instructions SL BLOCKTHERM DB.A If the information contained in this instruction manual NOTICE should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further in- Environmental damage may be caused if dis- formation and service.
