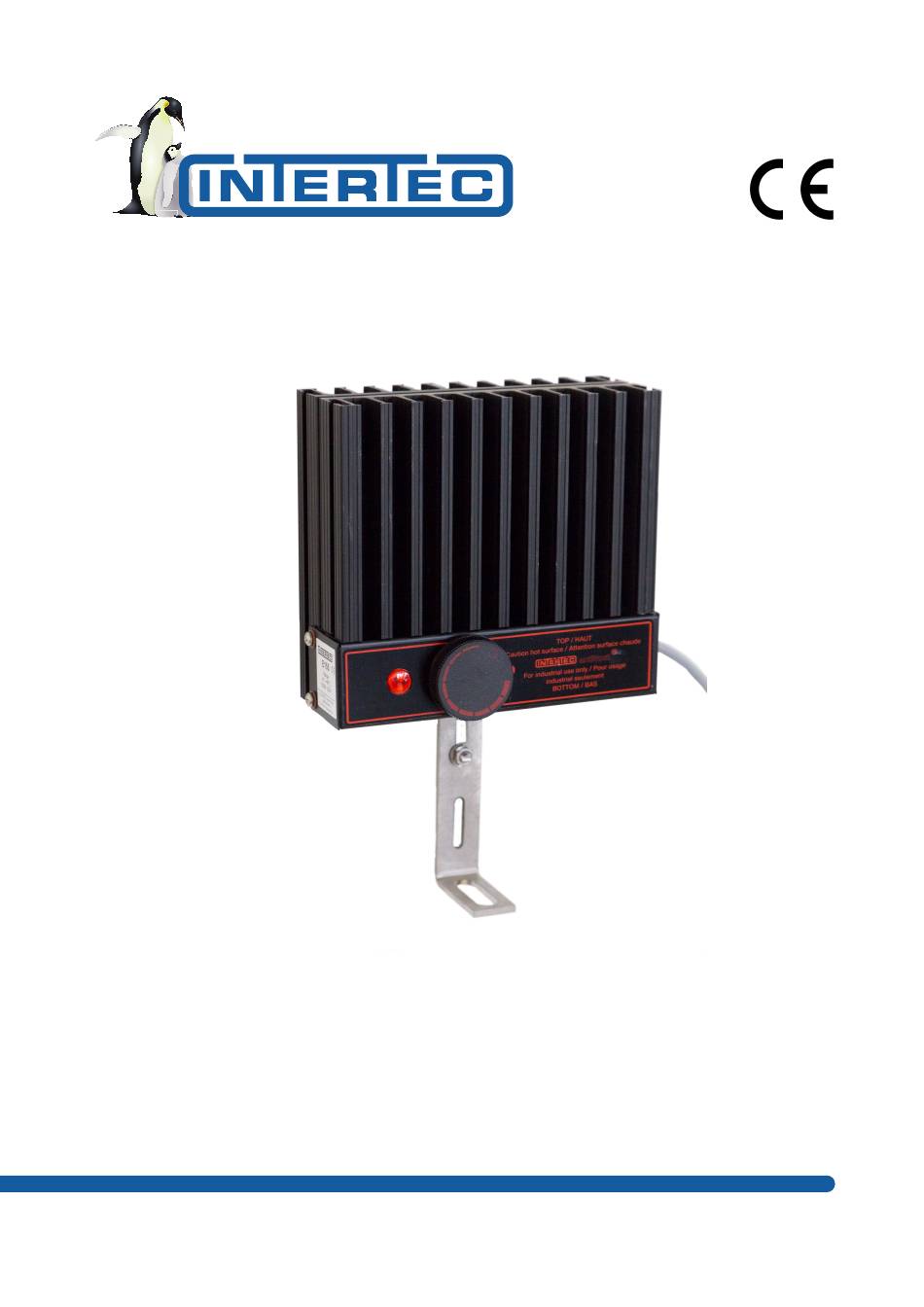

- Page 1 Operating Instructions E-Serie HOM511160459Ien-5 • 24/08/2021...
- Page 2 www.intertec.info Table of contents 1 General .................................. 3 2 Use ................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information .............................. 3 5 Installation accessories ............................ 3 6 Technical Data ................................ 4 7 Installation................................ 4 8 Connection................................
- Page 3 NOTICE This sign is warning about a hazardous situation which, if not heeded, may lead to slight, reversible injury. The E Series electrical heater is used for space heating by convection in protection enclosures, switch and NOTICE protection cabinets where explosion protection and complete encapsulation are not required.
- Page 4 www.intertec.info Operating Instructions E-Serie Piece Description Rated voltage/Operating voltage Packet of screws containing the following: Hexagon bolts M 6x12 T-head bolt type 28/15, M 6x15 Flat square nut M6, st.st. Washer shape A 6.4. st.st. If one of the components listed here is not included in the scope of delivery, then please contact the manufacturer.
- Page 5 100 mm above and 50 mm beneath the heater should remain clear. The mounting bracket can be attached to the long or Illustration 3: E series heater: Mounting example with C-rails in short sides of the heater using sliding nuts on each rib. a protection enclosure...
- Page 6 50 Ω per Volt of the rated voltage. Terminal box Illustration 5: E series heater: Mounting example with C-rails in a protection cabinet Additional mounting materials such as rails and plates are not included in the standard scope of delivery (see mounting accessories) and must be ordered separately.
- Page 7 Troubleshooting hereby declares in sole responsibility that the product If the heater fails, check the installation. Carry out a Product / Type designation: continuity test on the heating circuit. Pay attention to the E Series connection diagram switching point thermostat!
- Page 8 www.intertec.info Operating Instructions E-Serie If the information contained in this instruction manual should not be sufficient in any way, then INTERTEC would be glad to be at your disposal to provide further information and service. Please contact your INTERTEC contact person or directly contact INTERTEC-Hess GmbH Raffineriestr.
