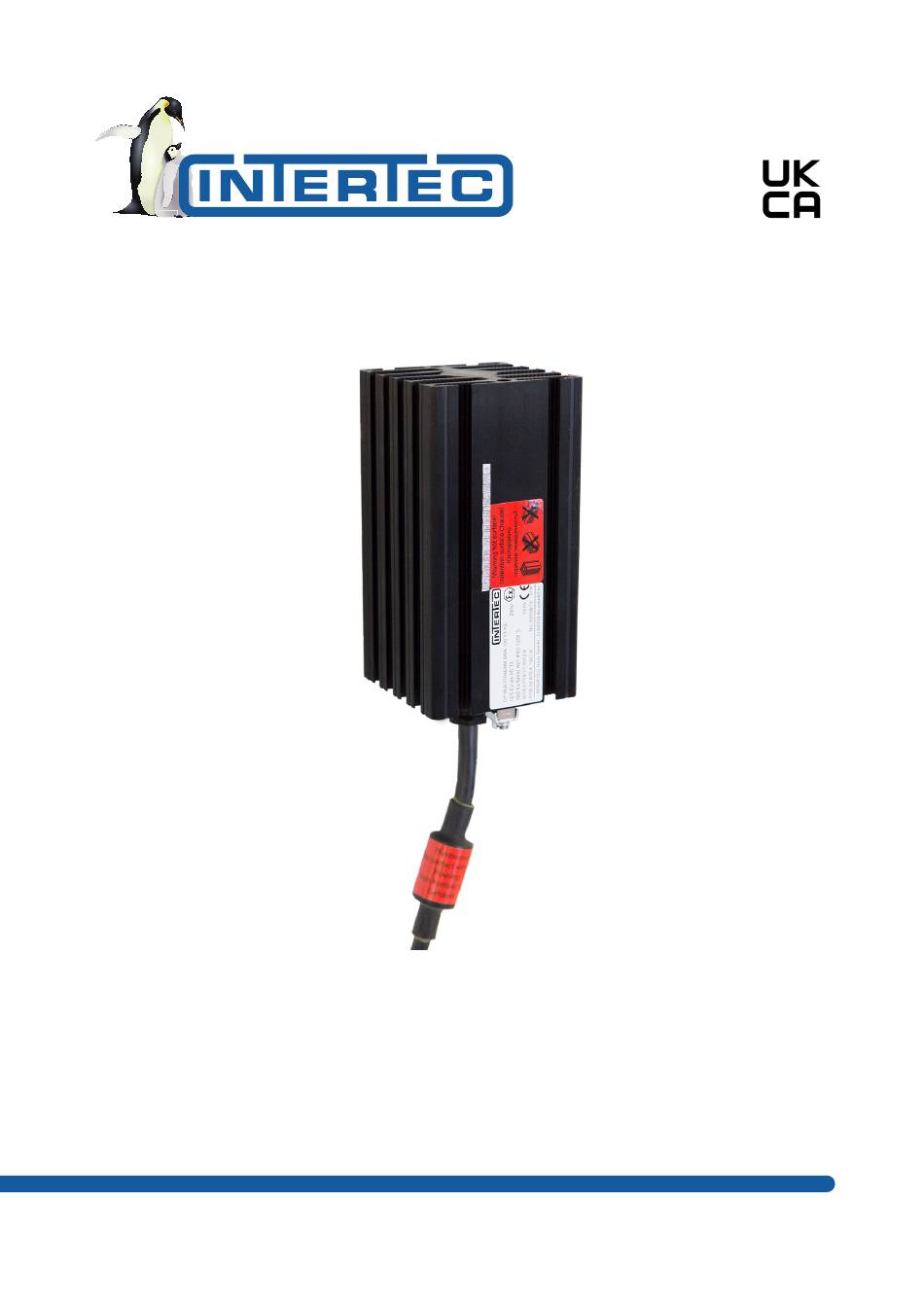

- Page 1 Operating Instructions CP MULTITHERM DG.A HI HOM2616431371en-1 • 17/08/2023...
- Page 2 www.intertec.info 1 General .................................. 3 2 Use................................... 3 3 Explanation of symbols for warnings and signal words .................. 3 4 Safety information.............................. 3 5 Installation accessories............................ 4 6 Technical Data ................................ 4 7 Installation ................................ 5 8 Connection................................ 5 9 Commissioning .............................. 6 10 Maintenance................................
- Page 3 Operating Instructions CP MULTITHERM DG.A HI General DANGER These operating instructions describe the safe and proper way to work with the device. The safety DANGER information and instructions given as well as the local This sign is warning about an extremely hazardous...
- Page 4 Operating Instructions CP MULTITHERM DG.A HI Protection class IP66/IP68 1bar/30min CAUTION Rated voltage max. 250 V AC Permitted operating voltage max. 275 V AC Risk of burns from a hot surface Rated current (in max. 10 A Attainable highest temperatures: compliance with VDE 0298) - Max.
- Page 5 Operating Instructions CP MULTITHERM DG.A HI Connection Temperature class High temperature version INFO The device may only be connected up and secured by a trained person, taking into account the "rated voltage" and "rated current" specified on the nameplate.
- Page 6 Operating Instructions CP MULTITHERM DG.A HI Repairs may only be carried out by the manufacturer in the factory. All components have to be kept clean and free of dust and harmful substances that could lead to excessive Ground temperature rise.
- Page 7 Operating Instructions CP MULTITHERM DG.A HI Disassemble the components of the product, taking the 2503 applicable local labour protection and environmental regulations into consideration and make sure that the II 2 G Ex db IIC T6, T5, T4, T3 components are recycled: II 2 D Ex tb IIIC T85°C, T100°C, T135°C, T200°C...
