Summary of Contents for Vorwerk Kobold VM7

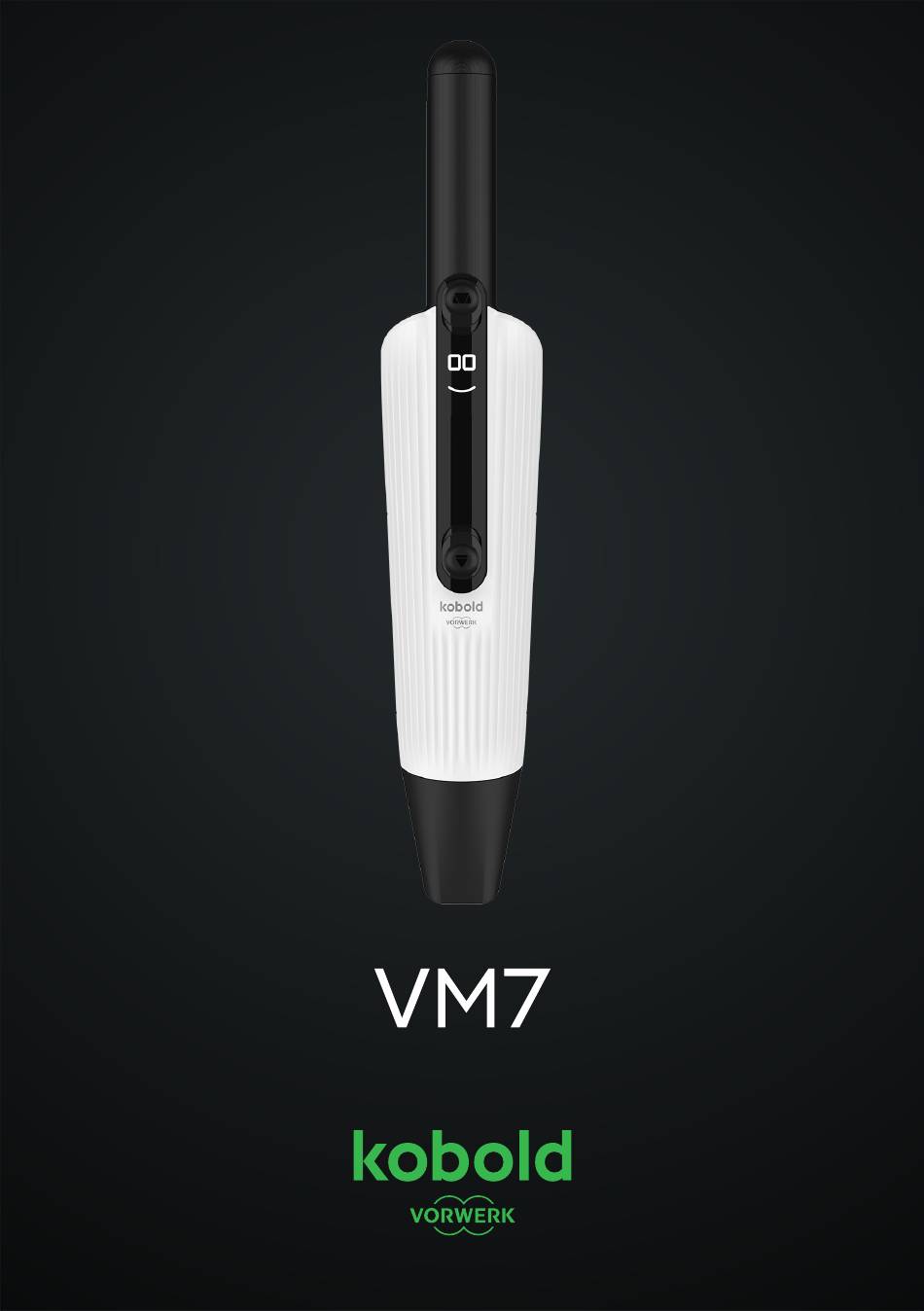

- Page 1 User manual...
-
Page 2: Table Of Contents
Table of contents Before you start ..... Removing and cleaning the dust chamber ......17 Product overview ....Cleaning the filter ..... 17 Intended use......9.3.1 Removing the filter ....17 For your safety ....... 9.3.2 Cleaning the pre-filter.... 18 Classification of safety warning messages ..... -
Page 3: Before You Start
Congratulations on the purchase of your new Kobold device. Read the instruction manual carefully before using the device and accessories for the first time. Product overview Kobold VM7 Mini Vacuum Cleaner 6 Dust chamber release button 1 Kobold BM7 battery 7 Dust chamber with quick release... -
Page 4: Intended Use
The Kobold VM7 mini vacuum cleaner is solely intended for removing dirt and dust within domestic areas and is only suitable for indoor use. -
Page 5: For Your Safety
For your safety Safety is an essential part of every Vorwerk product. However, the safety of this product can only be ensured if the product is used correctly and all safety instructions are followed. Classification of safety warning messages The safety warning messages in this manual are highlighted by safety symbols and signal words. -
Page 6: Hazards And Safety Instructions
• Only replace defective parts with original spare parts in order to avoid hazards. • In the event of damage to your device, contact Vorwerk customer service. • Do not attempt to open the charger and repair it yourself. - Page 7 Risk of electric shock! the intended protection against electric shock is provided. • To charge the device, use only the original Vorwerk charger (removable power unit) that is available for this device. If burning or readily ignitable substances should enter the Risk of fire or interior of the device, this may cause fire or an explosion.
- Page 8 Small parts may be accidentally swallowed and cause choking. Risk of choking! • Keep small parts such as fragrance chips out of the reach of children. CAUTION Suctioning the skin or hair can cause injury. Risk of injury due to negative pressure! •...
-
Page 9: Your Obligations
• Do not use the device on glossy or polished surfaces. Your obligations To ensure that your device and Vorwerk accessories operate correctly, please follow the guidelines below: 1. Follow the instructions in the manual and all accompanying documentation. -
Page 10: Operation
Operation Charging the mini vacuum cleaner © 1. Charge your mini vacuum cleaner via the USB-C port (1). ð A smiley will appear on the display (2) for 2-3 seconds to confirm that the charging process has started. ð After that, a total of three arcs will appear on the display to indicate that the device is charging. -
Page 11: Switching On And Off
Switching on and off To start vacuuming, you must always disconnect your mini vacuum cleaner from the charging cable. 1. Make sure that the mini vacuum cleaner is not connected to the charging cable. 2. Press the green power button (1) to start the device in normal mode. -
Page 12: Storing The Mini Vacuum Cleaner
Storing the mini vacuum cleaner We recommend charging your mini vacuum cleaner after each use. It will then be ready to use next time. When not in use, it can be left connected to the charging cable or in the wall mount [} 13] and stored. -
Page 13: Wall Mount
The stated operating times are typical operating times. They have been determined using a battery in new condition and at a room temperature of 21 °C. Actual operating times may differ (on a customised cleaning setting, for example). The operating times given are approximate values that depend on the type of use and the ambient conditions. -
Page 14: Wall Mounting
Wall mounting Finding a suitable location 1 , 5 A suitable location for the wall mount will meet the following criteria: It should be near a power socket but never directly next to, above or below a power socket, as there are very likely to be electrical cables there. -
Page 15: Installing The Cable
Installing the cable © 1. Feed the USB-C charging cable through the designated opening (8) on the wall mount from underneath. To do this, © slide the USB-C charging cable, connector (9) first, into the wall mount. © 2. Now take the cover and slide the connector on the USB-C charging cable into the designated socket (10). -
Page 16: Care And Maintenance
Care and maintenance Emptying the dust chamber The mini vacuum cleaner is highly effective at collecting dust and debris, which is why it is important that you regularly empty the dust chamber. For instructions, see Emptying into a waste bin [} 16] Emptying with the VK7 cordless handheld vacuum cleaner [} 16]. -
Page 17: Removing And Cleaning The Dust Chamber
ð The flap for emptying the mini vacuum cleaner will open. You can simply let it hang down as it is secured by a flexible rubber lip. 3. Connect the opening (4) directly to the connector or suction hose on your Kobold VK7 cordless handheld vacuum cleaner. 4. -
Page 18: Cleaning The Pre-Filter
9.3.2 Cleaning the pre-filter 1. Detach the pre-filter (2) from the filter (1) by pulling it forwards and away from the filter (3). 2. Clean the pre-filter. 9.3.3 Cleaning the filter 1. Now clean the filter (1) by removing debris, such as hair. 2. -
Page 19: Inserting The Airumo Fragrance Chip
The mini vacuum cleaner will release a fresh scent while vacuuming when used in combination with an airumo fragrance chip. This is a Vorwerk accessory that you can use with many Kobold products. To insert an airumo fragrance chip, follow the... -
Page 20: Troubleshooting
Troubleshooting Things do not always go as expected. If you find that your device is not working properly, it could be due to one of the following reasons: Fault Possible cause and rectification There is a small circle on The battery is too hot and cannot be charged. the display. - Page 21 Fault Possible cause and rectification The mini vacuum cleaner is The 2-in-1 nozzle may be clogged. not picking up or not – Switch off the mini vacuum cleaner and unclog the 2-in-1 picking up as well as it used nozzle. to, and is making unusual noises.
-
Page 22: Disposal
– Always lift the mini vacuum cleaner out of the holder from above. You may have knocked the device in the mount side on. – Press the mount back into the mounting plate. If the problem cannot be resolved, please contact Vorwerk Service [} 23]. Disposal 11.1 Disposal of the device... -
Page 23: Service
Service For more information, please speak to our UK & Ireland Customer Care team, either by calling +44 330 6600 834 (Monday to Friday 09:00 – 17:00) or sending an email to info@vorwerk.co.uk. -
Page 24: Technical Data
Technical data Kobold VM7 Mini Vacuum Cleaner Housing High-quality, recyclable, thermoformed plastic Motor Maintenance-free DC motor at approx. 26,500 rpm Nominal motor output 75 W Max. flow rate 23.2 m/s on normal; 29.1 m/s on boost Weight approx. 840 g (without wall mount and charger) Dimensions (W x H x L) approx.
