Vorwerk Kobold VR7 User Manual

Vorwerk Kobold VR7 User Manual

Robot vacuum cleaner
Hide thumbs Also See for Kobold VR7:
Table of Contents

Advertisement

Quick Links

Download this manual

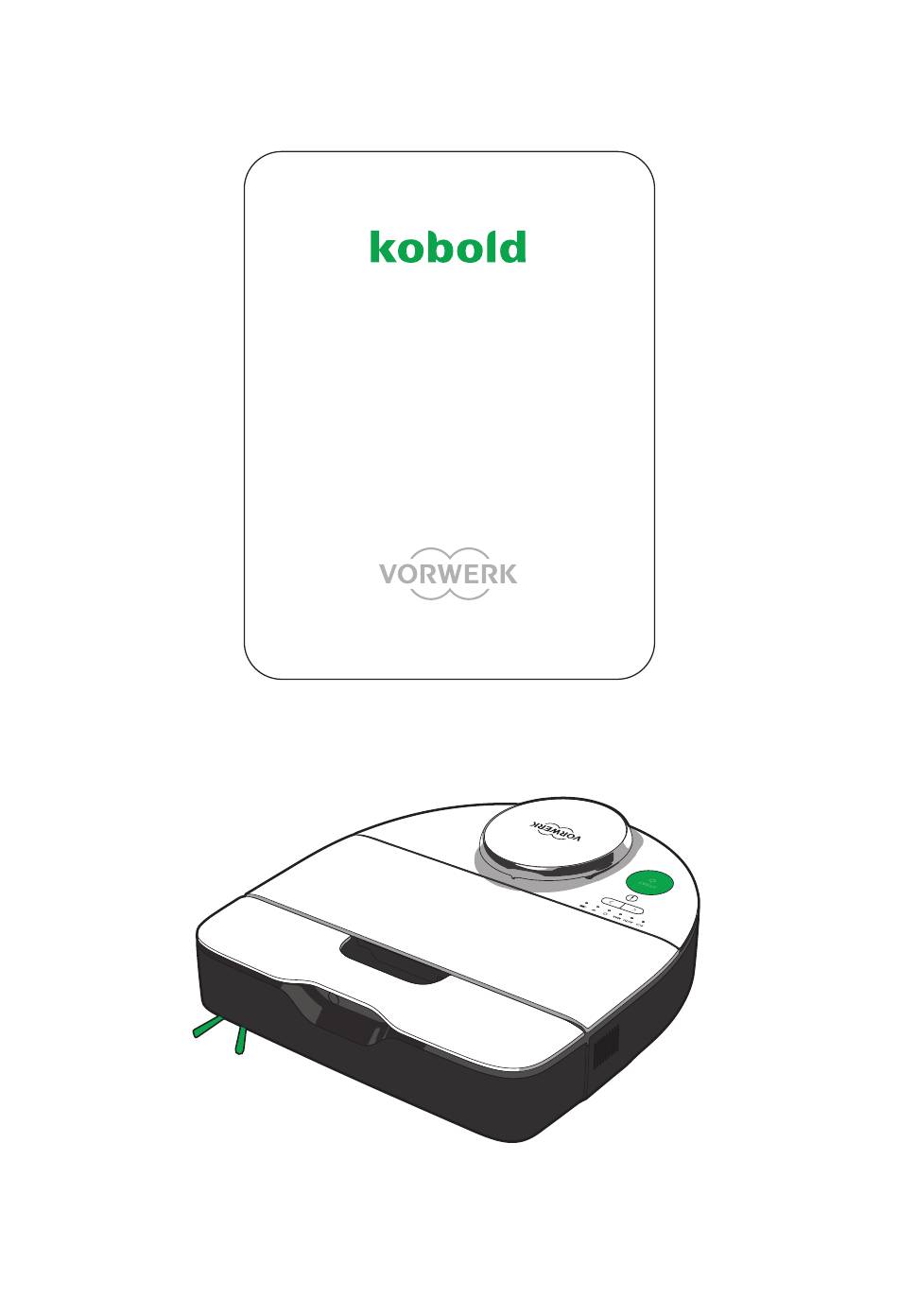

VR7
User manual
EN • 27095-05 • 0524

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kobold VR7 and is the answer not in the manual?

Questions and answers

Related Manuals for Vorwerk Kobold VR7

Summary of Contents for Vorwerk Kobold VR7

  • Page 1 User manual EN • 27095-05 • 0524...

  • Page 2: Table Of Contents

    Function overview ... 28 10.1 Operator panel overview ..28 Product overview ..... 5 10.2 LED displays......29 Kobold VR7 robot vacuum cleaner ........10.2.1 Overview of LED displays ..29 Charging options ..... 10.2.2 Status of the robot vacuum 2.2.1 Kobold CB7 solo charging cleaner ........
  • Page 3 12.3.2 Manual charging ...... 40 17.2.12 Removing or changing the battery........53 Wi-Fi and app control 17.3 Maintenance of the emptying using smart devices*..41 & charging station ....54 13.1 Technical requirements ..41 17.3.1 Opening and closing the filter 13.2 Establishing a Wi-Fi cover.........

  • Page 4: Before You Start

    Before you start Congratulations on the purchase of your new Kobold device. 1. Read the instruction manual carefully before using the device and accessories for the first time. 2. Follow the detailed instructions for use in the following chapters.

  • Page 5: Product Overview

    Product overview Kobold VR7 robot vacuum cleaner Overview of the Kobold VR7 robot vacuum cleaner and operating controls 7 ECO LED 1 Kobold VR7 robot vacuum cleaner 2 Recessed grip for carrying and opening 8 AUTO LED the device 9 MAX LED...
  • Page 6 Overview of the Kobold VR7 robot vacuum cleaner and components 13 Side brush 19 Roller brush holder 14 Side brush holder 20 Wheels 15 Charging contacts 21 Cover with dust container including filter 16 Suction opening 22 Filter on the robot vacuum cleaner...

  • Page 7: Charging Options

    Charging options 2.2.1 Kobold CB7 solo charging station Overview of the Kobold CB7 solo charging station Infrared window Cable outlet Charging contacts for the robot vacuum Mains plug cleaner Cable holder Charging plug 2.2.2 Kobold RB7 emptying & charging station Overview of the Kobold RB7 emptying &...

  • Page 8: Intended Use

    The Kobold VR7 robot vacuum cleaner may only be used with the corresponding Kobold accessories. The Kobold VR7 robot vacuum cleaner must not be stored or operated outdoors and must...

  • Page 9: For Your Safety

    (Saxony), Lechtaler carpets (handwoven new wool carpets). The following hard floors must not be cleaned with the Kobold VR7 robot vacuum cleaner: untreated or delicate floors, such as unsealed cork flooring, unsealed soft wood flooring, Belgian granite, delicate natural stone flooring, rough concrete flooring (e.g.

  • Page 10: Hazards And Safety Instructions

    • Repairs to electrical appliances may only be carried out by a Vorwerk customer service centre, a workshop authorised by Vorwerk or a person with similar qualifications in order to avoid hazards. • Defective parts may only be replaced by original replacement parts in order to avoid hazards.
  • Page 11 • If the mains power cord on the emptying & charging station is damaged, it must be replaced by a compatible original Vorwerk mains power cord. • Do not continue using the emptying & charging station and power cord if they are damaged.
  • Page 12 Charging non-rechargeable batteries can cause a fire or Risk of fire or explosion! explosion! • Only use the original Vorwerk battery that is compatible with your device. The use of an incompatible charger can damage the battery and Fire hazard! cause a fire.
  • Page 13 Safety hazards within a workspace can cause a fire. Fire hazard! • Never use the device in rooms where there are burning candles or lamps on moveable pieces of furniture or on the floor. • Secure exposed and hanging cables on electrical appliances (e.g. table lamps).
  • Page 14 The device or charging unit could injure children or pets if they Risk of injury! come into contact with them. • Keep children and pets away from the robot vacuum cleaner, and do not let them sit or stand on the robot vacuum cleaner or charging unit.
  • Page 15 Leaked electrolyte from batteries and rechargeable batteries can Risk of contact with cause injuries. dangerous • Do not touch leaked electrolyte or electrolyte residues from substances! leaking batteries or rechargeable batteries without skin or eye protection. • Leaking electrolyte must not come into contact with skin, eyes or mucous membranes.
  • Page 16 Risk of damage from improper use! • To charge the device, only use the original charger and/or charging unit and mains cable from Vorwerk that are designed to be used with this product. • Only operate the charger and/or charging unit with the alternating current voltage and mains frequency stated on the type plate.
  • Page 17 Risk of damage from damage. improper use! • Only use the original Vorwerk products that are intended to be used with this device. • Do not operate the device if the device itself or the power cord are damaged or if the device is not fully assembled.
  • Page 18 The device could get damaged if not cleaned correctly. Risk of damage due to incorrect cleaning! • Never clean the device or charging station with water, liquid cleaners or a wet cleaning cloth. • Never wet-clean the roller brush. Use a dry or slightly damp cloth if necessary.

  • Page 19: Classification Of Safety Warning Messages

    Functional earth class II supply unit Obligations of the user To ensure that your device and the Vorwerk accessories operate correctly, please follow the guidelines below: 1. Follow the instructions in the manual and all accompanying documentation. 2. Keep the manual in a place where it can be easily accessed, should you need to refer to it.

  • Page 20: Suitability For Different Types Of Floors

    Suitability for different types of floors Carpet type Kobold VR7 Loop pile carpeting, Velour carpeting Berber carpeting, deep-pile carpeting, light, loose carpets, silk carpeting, sisal carpeting Flokati Loosely woven carpets Carpets with long interwoven fibres (Saxony) Yoga mats Carpets with fibres that are not spun/lightly spun (e.g. Lechtal...

  • Page 21: Assembly

    Assembly 1. Remove the transparent protective films from the robot vacuum cleaner. 2. Attach the side brush by pressing it into position on the mounting point (1).

  • Page 22: Getting The Charging Station Ready For Use

    Getting the charging station ready for use The robot vacuum cleaner can be operated with two different charging stations: – with the Kobold CB7 solo charging station [} 7] – with the Kobold RB7 emptying & charging station [} 7] Removing the protective film •...

  • Page 23: Connecting The Mains Cable

    3. Make sure that there is a strong Wi-Fi signal from your router to the charging station in case you want to control your robot using the app. 4. Make sure that there are no obstacles within 0.5 metres on either side of the robot vacuum cleaner.
  • Page 24 Kobold RB7 emptying & charging station 1. Turn the emptying & charging station over (1). The connector for the power supply (2) is located on the underside of the emptying & charging station. 2. Insert the plug into the connector for the power supply (2). 3.

  • Page 25: Preparing Your Household

    Preparing your household Your robot vacuum cleaner has a number of safety functions. Nevertheless, you should observe the following before using your robot vacuum cleaner: What should you pay particular attention to? √ Secure exposed and hanging cables on electrical appliances (e.g. table lamps). □...

  • Page 26: Charging On The Emptying & Charging Station

    9.1.1 Charging on the emptying & charging station 1. Ensure that the emptying & charging station (1) is connected to the power supply [} 23]. 2. Slide the robot vacuum cleaner (2) onto the emptying & charging station (1) until you feel a slight click, but not right up to the infrared window.

  • Page 27: Installing The Mykobold App And Pairing Your Robot Vacuum Cleaner

    ð The robot vacuum cleaner is in the correct position when there is a small gap (3) of approx. 1.5 cm between the infrared window and the robot vacuum cleaner. 3. Wait a few seconds for the initialisation to complete. ð...

  • Page 28: Function Overview

    Function overview 10.1 Operator panel overview ECO AUTO MAX START Name Meaning START button Starts, stops or pauses the cleaning process. Information button The information button lights up and indicates the type of message (information, warning or error) that will play next. When you press the information button, this message will be played.

  • Page 29: Led Displays

    10.2 LED displays 10.2.1 Overview of LED displays ECO AUTO MAX START ECO AUTO MAX Name Meaning ECO LED The robot vacuum cleaner operates in ECO mode with reduced motor output (fan and brush performance), see ECO mode [} 34]. It is quieter, uses less energy and is suitable for light to moderate dirt.

  • Page 30: Status Of The Robot Vacuum Cleaner

    10.2.2 Status of the robot vacuum cleaner ECO AUTO MAX LED display Status LEDs (1-6) light up one after the other The robot vacuum cleaner is correctly positioned on the charging station. The illumination of the LEDs occurs once. All LEDs (1-6) off The robot vacuum cleaner is switched off.

  • Page 31: Battery Status

    10.2.3 Battery status ECO AUTO MAX Battery LED (6) Status Robot vacuum cleaner is switched off or the battery is empty Pulsates red first, then green until charging is Robot vacuum cleaner is charging during a complete cleaning cycle, ECO (1), AUTO (2) and MAX (3) LEDs: selected mode has a solid green light Pulsates green until charging is complete Robot vacuum cleaner is charging and is ready...
  • Page 32 You can set the robot’s voice response to different languages. • Hold down the information button (1) and select the preferred language by pressing the selection keys left or right. ð The voice function on the robot will tell you the language that is currently selected each time you press the selection key.

  • Page 33: Operation

    Operation You can control the robot vacuum cleaner manually using the operator panel [} 28]. You will find out how to do this in the following sections. MyKobold app [} 27] also offers you further options and gives you extensive control over the device. 11.1 Switching on •...

  • Page 34: Max Mode

    11.3.1 MAX mode The MAX cleaning mode (2) is the default setting and is activated by pressing the START button (1). As the default mode, it is suitable for most cleaning requirements and offers the best results on carpets ECO AUTO MAX and hard floors.

  • Page 35: Pausing

    11.4 Pausing If you want to interrupt the cleaning process for a short time, proceed as follows: ECO AUTO MAX 1. Press the START button (1) on the robot vacuum cleaner. ð The LED for the mode that is currently selected flashes. 2.

  • Page 36: Returning The Robot Vacuum Cleaner To The Charging Station

    11.7 Returning the robot vacuum cleaner to the charging station You can send the robot vacuum cleaner back to the charging station. ECO AUTO MAX To do this, the robot vacuum cleaner must be able to locate the START charging station. If the robot vacuum cleaner recognises where the charging station is located, the Home LED (4) will be lit green.

  • Page 37: Standby Mode

    11.8 Standby mode The robot vacuum cleaner automatically switches to standby mode if it is not used for approximately 2 minutes. The Battery LED (5) lights ECO AUTO MAX up to indicate the current battery status and is up to 50% dimmer. All other LEDs are off.

  • Page 38: Information On The Robot's Operating Method

    Information on the robot’s operating method 12.1 General cleaning pattern of the robot vacuum cleaner The robot vacuum cleaner works in straight, parallel lines to ensure that your floors are cleaned as effectively as possible. It divides larger rooms into areas of approx. 4 x 4 m. It starts by moving along the outer edge of each area before cleaning the inner section.

  • Page 39: Climbing Over Objects

    12.2.1 Climbing over objects Despite its low height, the robot vacuum cleaner can easily climb over objects with a height of up to 15mm (e.g. door sills, carpets/ rugs). The climbing ability of the robot vacuum cleaner can be influenced by the shape of the object, the type of floor covering and other local conditions.

  • Page 40: Manual Charging

    12.3.2 Manual charging Robot vacuum cleaner cannot locate the charging station The robot vacuum cleaner cannot find its way back to the charging station. The Home LED is lit yellow [} 29]. Switch the robot vacuum cleaner on [} 33]. 2. Ensure that the charging station (1) is connected to the power supply [} 23].

  • Page 41: Wi-Fi And App Control Using Smart Devices

    Wi-Fi and app control using smart devices* This feature is not available in all countries. 13.1 Technical requirements To control the robot vacuum cleaner using the app, you will require the following: Wi-Fi internet connection – The robot vacuum cleaner supports the communication protocols of IEEE802.11 b/g/n in the 2.4 GHz Wi-Fi frequency band only.

  • Page 42: Establishing A Wi-Fi Connection

    13.2 Establishing a Wi-Fi Connection Connect the charging cable on the charging station. [} 23] 2. Position the robot vacuum cleaner on the charging station and ECO AUTO MAX make sure that the robot is switched on. 3. Activate the wireless interfaces (Wi-Fi, etc.) on your mobile device. 4.

  • Page 43: Resetting

    Resetting 14.1 Resetting the robot vacuum cleaner to factory settings If you reset the robot vacuum cleaner to its factory settings, you will delete data on the robot, such as the Wi-Fi settings [} 41]. To reset the robot vacuum cleaner to factory settings, proceed as follows.

  • Page 44: Pairing The Emptying & Charging Station With The

    Pairing the emptying & charging station with the dual battery charger You can pair the Kobold PC7 dual battery charger with the emptying & charging station. This system allows you to additionally charge and store a Kobold VK7 battery in the Kobold PC7 dual battery charger (2) and the Kobold VK7 cordless handheld vacuum cleaner (1) on the emptying &...

  • Page 45: Transportation

    Transportation WARNING Risk of fire! If the device or battery are accidentally triggered or activated when in transit, this could cause a build-up of heat, which could lead to a fire. • Follow the instructions in the manual to ensure safe transportation. The device contains lithium-ion batteries, which are subject to dangerous goods regulations.

  • Page 46: Maintenance

    Maintenance CAUTION Risk of injury from moving parts! You could injure yourself on moving parts. • Stay clear of moving parts. • Never reach into the moving parts. • Finish the cleaning cycle and lay the device upside down on a solid, level surface before you start to carry out maintenance on the brushes.

  • Page 47: Emptying The Dust Container Manually

    17.2.2 Emptying the dust container manually 1. Open the dust container by reaching into the recessed grip and pressing the release button with your hand (1). 2. Take the dust container (2) out of the robot vacuum cleaner by extracting it together with the cover (3). Remove the filter (4) by pulling it out of the dust container by the green tab on the filter frame.

  • Page 48: Cleaning The Filter

    17.2.4 Cleaning the filter Clean the filter at regular intervals. 1. Remove the filter (1) by pulling it out of the dust container by the green tab (2) on the filter frame. 2. Vacuum the filter on both sides with a conventional vacuum cleaner (3).

  • Page 49: Removing And Replacing Fragrance Chips

    2. Remove the old fragrance chip (2) by sliding it out of the fragrance-chip holder from underneath (3). 3. Slide the new fragrance chip (2) into the fragrance-chip holder from above (4) with the Vorwerk logo facing forwards. Put the filter back in [} 51].
  • Page 50 Removing the motor protection filter Remove the filter [} 47]. 2. Hold the motor protection filter by the catches (1) and press it downwards (2). 3. Pull the motor protection filter forwards (3). 4. With the motor protection filter tilted forwards, pull it upwards to remove it (4).

  • Page 51: Reinstalling The Dust Container And Filter

    Inserting the motor protection filter 1. If the motor protection filter is damaged or extremely dirty, insert a new one. 2. To reinstall the motor protection filter, insert it into the holder from above (1). 3. Hold the motor protection filter by the catches (3) and press it backwards (2).

  • Page 52: Cleaning The Roller Brush

    7. Press the side brush back into position on the drive axle to install 17.2.10 Cleaning the roller brush Clean the roller brush if hair or threads have become wrapped around it. 1. Place the robot vacuum cleaner upside down on a soft surface. Remove the side brush [} 51] (1).

  • Page 53: Cleaning The Sensors

    17.2.11 Cleaning the sensors WARNING Risk of serious injury! If the floor sensors are covered or dirty, the device may fall down stairs or landings. • Before starting the robot, remove easily moveable items, including rugs or runners, as well as lightweight, loose objects from the area in which the robot will be operating.

  • Page 54: Maintenance Of The Emptying & Charging Station

    Only change the battery if the battery performance has diminished or if the battery is damaged. 17.3 Maintenance of the emptying & charging station Important You will move the emptying & charging station away from its usual location to carry out maintenance. To ensure that the robot vacuum cleaner can find its way back to it afterwards, it is best to mark the position of the emptying &...

  • Page 55: Inserting And Changing The Premium Filter Bag

    17.3.2 Inserting and changing the premium filter bag CAUTION Loss of suitability for allergy sufferers and risk of damage from improper use! Unsuitable or damaged filter material will not retain fine, allergenic particles. • Only use the original Kobold products that are intended to be used with this device.

  • Page 56: Cleaning The Emptying & Charging Station

    17.3.3 Cleaning the emptying & charging station WARNING Risk of electric shock! If water gets into the electrical components, you could get an electric shock. • The emptying & charging station is connected to the power supply. Before you start cleaning the emptying & charging station, ensure that the device is disconnected from the power.

  • Page 57: Removing, Cleaning And Inserting The Motor Protection Filter

    7. Make sure that the emptying & charging station is completely dry before you close it again. Put the premium filter bag back in [} 55]. Close the filter cover [} 54]. 17.3.4 Removing, cleaning and inserting the motor protection filter The motor protection filter (1) shields your device from contaminants.

  • Page 58: Removing And Replacing The Fragrance Chip

    3. Remove the old fragrance chip (2) by sliding it out of the fragrance-chip holder from the side. 4. Slide the new fragrance chip (3) into the holder on the motor protection filter from the side, with the Vorwerk logo facing forwards. Put the motor protection filter back in [} 57].

  • Page 59: Software Update

    It is also possible to manually install software updates. This requires a premium-quality USB-C cable. The latest software version is available at www.support.vorwerk.com. You can of course also have new versions of the software installed at our Service Centers. For locations and opening hours, please visit our...

  • Page 60: Troubleshooting

    • Never attempt to repair the device yourself. • Repairs to electrical appliances may only be carried out by a Vorwerk customer service centre, a workshop authorised by Vorwerk or a person with similar qualifications in order to avoid hazards.
  • Page 61 Fault Possible cause and rectification The robot vacuum cleaner is The robot vacuum cleaner may be in transport mode. off and cannot be switched – Charge the robot’s battery. [} 25] on again. If the robot vacuum cleaner is not in transport mode, it may be completely discharged.
  • Page 62 Fault Possible cause and rectification On thick pile carpets, the wheels of the robot vacuum cleaner may spin, which can lead to navigation errors. – Section off the carpet using no-go zones in the MyKobold app. If the sensors are dirty, the robot vacuum cleaner may interpret dark or dense carpets as a drop-off.

  • Page 63: Emptying & Charging Station

    Rug fringes may have got caught. – Release the fringes from the brush. – Section off the carpet using no-go zones in the MyKobold app. If the fault cannot be rectified, please contact Vorwerk customer service [} 66]. 19.2 Emptying & charging station...
  • Page 64 Fault Possible causes and rectification The information button on The premium filter bag in the emptying & charging station may be the robot vacuum cleaner is full. You will be informed of this via the robot's voice response. lit yellow. –...

  • Page 65: Disposal And Environmental Protection

    Disposal and environmental protection 20.1 Disposal of the device This symbol means that electrical and electronic appliances may not be disposed of in household waste. You can return your old electrical appliances to a municipal collection point free of charge. 20.2 Disposal of batteries The lithium-ion battery contains substances that can be harmful to the environment.

  • Page 66: Warranty

    Any warranty services can be found in the order note or purchase contract. Service For more information, please speak to our UK & Ireland Customer Care team, either by calling +44 330 6600 834 (Monday to Friday 09:00 – 17:00) or sending an email to info@vorwerk.co.uk.

  • Page 67: Technical Data

    2.402 GHz – 2.480 GHz < 10 dBm VR7 software licence Connect switched-on VR7 to PC via USB-C. Licence can be retrieved under the VR7’s device name ‘Vorwerk Robot’ in the subfolder ‘SW Update’ https://support.vorwerk.com/hc/en-us/articles/ 8137040801436 Laser radiation according to IEC 60825-1:2014 Wavelength 783.1 nm...

  • Page 68: Solo Charging Station

    23.2 Solo charging station Kobold CB7 solo charging station Mains charger type S030BB… Safety symbols Input voltage 100-240 V AC Input AC frequency 50/60 Hz (automatic adjustment) Output voltage 19.5 V DC Output current 1.5 A Output power 29.95 W Average active efficiency >...

  • Page 69: Manufacturer And Importer

    Ascot SL5 7DD Declaration of Conformity Vorwerk Elektrowerke GmbH & Co. KG hereby declares that the radio equipment type Kobold VR7 robot vacuum cleaner is in compliance with the Directive 2014/53/EU. The full text of the EU declaration of conformity is available on the following websites: https://www.vorwerk-group.com/de/home/meta/eu-...
