DeLonghi PAC W130E Instructions For Use Manual
De'longhi water/ air air conditioner instructions for use
Table of Contents
ELECTRICAL SPECIFICATIONS 115V ~ 60Hz
DONNEES ELECTRIQUES 115V~60Hz
CARACTERISTICAS ELECTRICAS 115V ~ 60Hz
CARATTERISTICHE ELETTRICHE 115V~60Hz
P A C W 1 3 0 E
W
/A
A
ATER
IR
IR
Instructions for use
Keep these instructions
C
L I M AT I S E U R
Mode d'emploi
Conservez cette notice
A
C
R
ONDICIONADO
Instrucciones para el uso
Repase y guarde estas instrucciones
Lea cuidadosamente este instructivo
antes de usar su aparato
C
ONDIZIONATORE
Istruzioni per l'uso
Leggere e conservare queste
istruzioni
Register this product on-line and receive a
free trial issue of Cook's Illustrated.
Visit www.delonghiregistration.com.
Visit www.delonghi.com for a list of service
centers near you. (U.S. Only)
Enregistrez ce produit en ligne et recevez un
numéro gratuit de Cook's Illustrated.
Visitez www.delonghiregistration.com.
Visitez www.delonghi.com pour y voir une liste
des centres de réparation proches de chez
vous. (É.-U. uniquement)
Registre este producto en línea y reciba un
ejemplar gratis de Cook's Illustrated.
Visite www.delonghiregistration.com.
Visite www.delonghi.com para ver la lista de
centros de servicios cercanos a usted.
(Solamente en los Estados Unidos)
Registra questo prodotto "on-line" per riceve-
re una copia omaggio della rivista.
Visita www.delonghiregistration.com.
Visita www.delonghi.com per una lista dei
centri di servizio a te piu vicini. (Solo negli Stati
Uniti)
C
ONDITIONER
E
A
A U -
I R
Á
A
GUA/
R
A
/A
CQUA
RIA
Table of Contents
Related Manuals for DeLonghi PAC W130E
Summary of Contents for DeLonghi PAC W130E
-
Page 1: Instructions For Use
Register this product on-line and receive a free trial issue of Cook's Illustrated. Visit www.delonghiregistration.com. Visit www.delonghi.com for a list of service centers near you. (U.S. Only) Enregistrez ce produit en ligne et recevez un numéro gratuit de Cook's Illustrated. -
Page 2: Save These Instructions
Children should be supervised to ensure that they do not play with the appliance. • Should repairs be necessary, contact the nearest authorized De’Longhi Repair Service Center. Unauthorized Delonghi servicing can be dangerous. • This appliance is to be used by adults only; keep away from children. - Page 3 During the summer, you feel comfortable at a temperature of between 75°F and 81°F (24 and 27° C) with a relative humidity of about 50%. An air conditioner removes excess moisture and heat from the room where it is located. Compared with installed models, portable air conditioners have the advantage that they can be moved from one room to another in the home or be transported from one building to another.

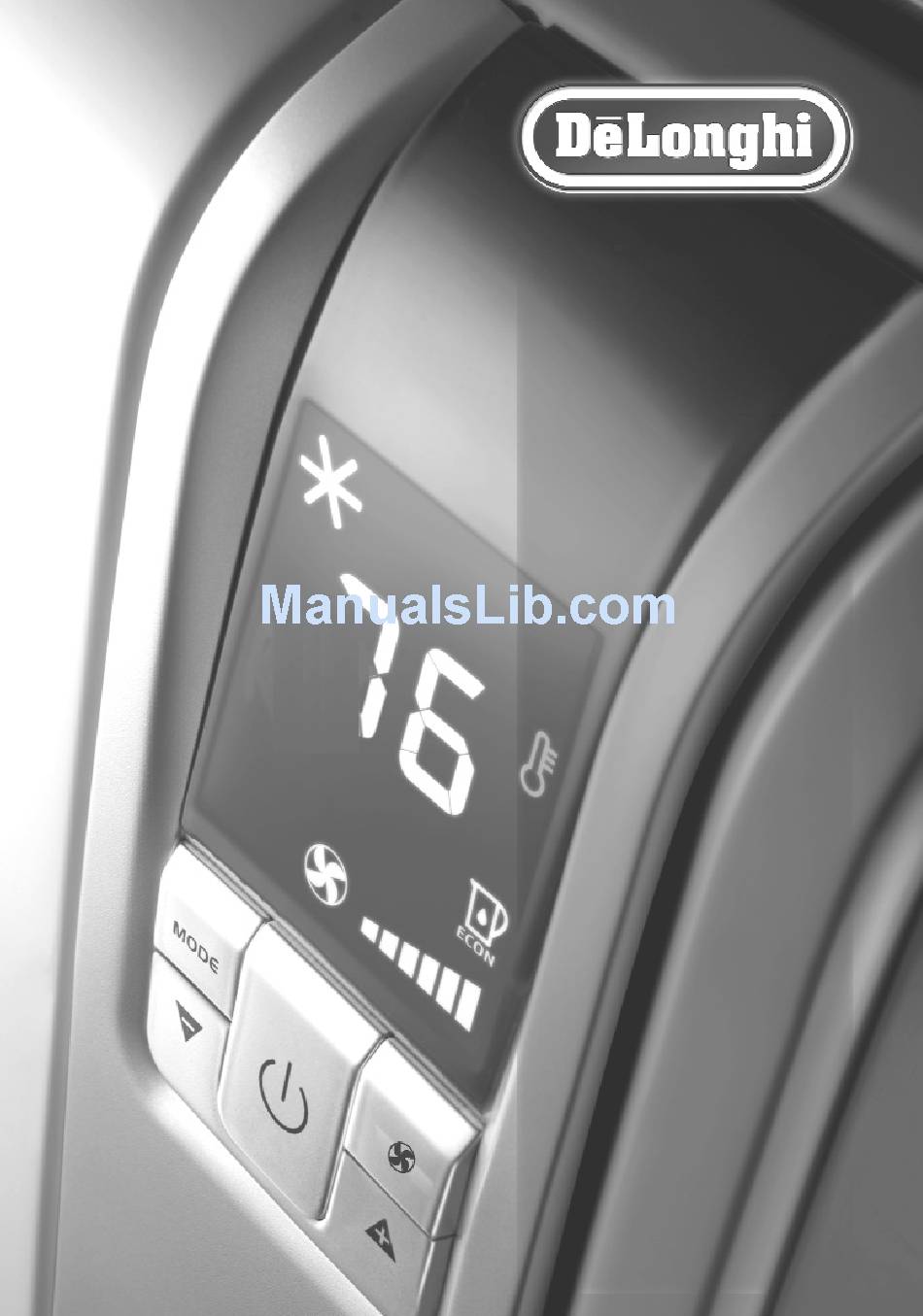

- Page 4 DESCRIPTION A Air outlet grille B Control panel with advanced LCD display C Handle D Grille Castors Air intake grille with dust filter G Air exhaust hose housing H Water drainage hose door Power cable compartment door Water fill door K Air exhaust hose Remote control M Water jug...
- Page 5 (fig. 1). • Fit the window outlet (N) to the end of the hose. • Place the air conditioner near a window or French window. • Adjust the length of the air exhaust hose to reach the window.
- Page 6 Keep the air hose as short and free of curves as possible to avoid bottlenecks. ✔ When installing the air conditioner semi-permanently, you should leave a door slightly open as little as 1/2“ (1cm) to gua- rantee correct ventilation. MAX 39 in...
- Page 7 PREPARING OPERATION Once the appliance has been installed following the instructions above, it is ready for use. However, its efficiency can be enhan- ced by operating it in the exclusive De'Longhi water mode. The water in the tank increases the cooling power of your Pinguino and at the same time reduces noise levels and electrical con- sumption.
- Page 8 ✔ Never turn the air conditioner off by unplugging from the electrical outlet. Always press the ON/STAND-BY button, then wait for a few minutes before unplugging. This allows the appliance to perform a cycle of checks to verify operation.
- Page 9 AIR CONDITIONING Ideal for hot muggy weather when you need to cool and dehu- midify the room. Always make sure the water fill door (J) is completely closed before setting this mode. To set this mode correctly: • Press the MODE button (15) a number of times until the air- conditioning symbol appears.
- Page 10 . 19) MODE When using the appliance in this mode, the air hose does not need to be attached. To set this mode correctly: • Press the MODE button (15) a number of times until the fan symbol appears. • Select the required fan speed by pressing the FAN button (16). Three speeds are available: Maximum speed: for maximum fan power.
- Page 11 DESCRIPTION OF THE REMOTE CONTROL 1 Air conditioning symbol 2 Dehumidifying symbol 3 Fan symbol 4 WATERSAVE symbol 5 Fan speed indicator 6 SMART symbol 7 BOOST symbol 8 SLEEP symbol 9 AUTOFAN indicator 10 MODE button (selects the modes) 11 FAN button 12 Increase (+) and decrease (-) tem- perature button...
- Page 12 NSERTING OR REPLACING THE BATTERIES • Remove the back cover of the remote control (fig. 21); • Insert two R03 “AAA” 1.5V batteries, making sure they are in the correct position (see the instructions inside the battery compartment); • Replace the cover. ✔...
- Page 13 SLEEP . 25) FUNCTION This function is ideal for the night as it gradually reduces opera- tion of the appliance. To set this function correctly: • Press the button. The appliance operates in the previously selected mode with low fan speed. The SLEEP function maintains the room at optimum temperature without excessive fluctuations in either temperature or humidity and with silent operation.
-
Page 14: Programming Start Up
ROGRAMMING THE TIMER The appliance can be programmed to start up and shut down when required. Programming start up • Press the button. The start-up time and message trol display (fig. 27). • Press the buttons to set the time you want the applian- ce to start up. - Page 15 • Never use the appliance in very damp (laundry rooms for example). • Never use the appliance outdoors. • Make sure the air conditioner is standing on a level surface. If necessary, place the castor locks (R) under the wheels. AIR PURIFYING FILTERS The appliance is fitted with a dust filter which retains impurities in the air drawn in from the room.
- Page 16 You should clean the appliance with a slightly damp cloth then dry with a dry cloth. ✔ Never wash the air conditioner with water. It could be dan- gerous. ✔ Never use petrol, alcohol or solvents to clean the appliance.
-
Page 17: Recommended End Of Season Operations
RECOMMENDED END OF SEASON OPERATIONS • Descale as described in the following section. • Empty the water from the tank and internal circuit by extrac- ting and opening the two hoses inside the water drainage hose door (H) (fig.37). • Operate the appliance with the water tank empty in fan only mode for about half an hour. - Page 18 TROUBLESHOOTING PROBLEM The air conditioner • No electricity does not come on • It is not plugged into the socket • The internal safety device has tripped • The safety device of the plug has tripped The air conditioner • There are bends or kinks in the...
- Page 19 TECHNICAL CHARACTERISTICS: Power supply voltage Max. power input during air conditioning Absorbed power heating (certain models only) Refrigerant Cooling capacity IMIT CONDITIONS Room temperature for air conditioning Room temperature for heating (certain models only) PPLIANCE DIMENSIONS • width • height •...
- Page 20 From the purchase date, our obligation under this warranty is to provide one (1) year free parts and labor on the entire AIR CONDITIONER, with an additional four (4) years free on any part of the sealed system consisting of the compressor, evaporator, condenser and facto- ry connected refrigerant tubing.
