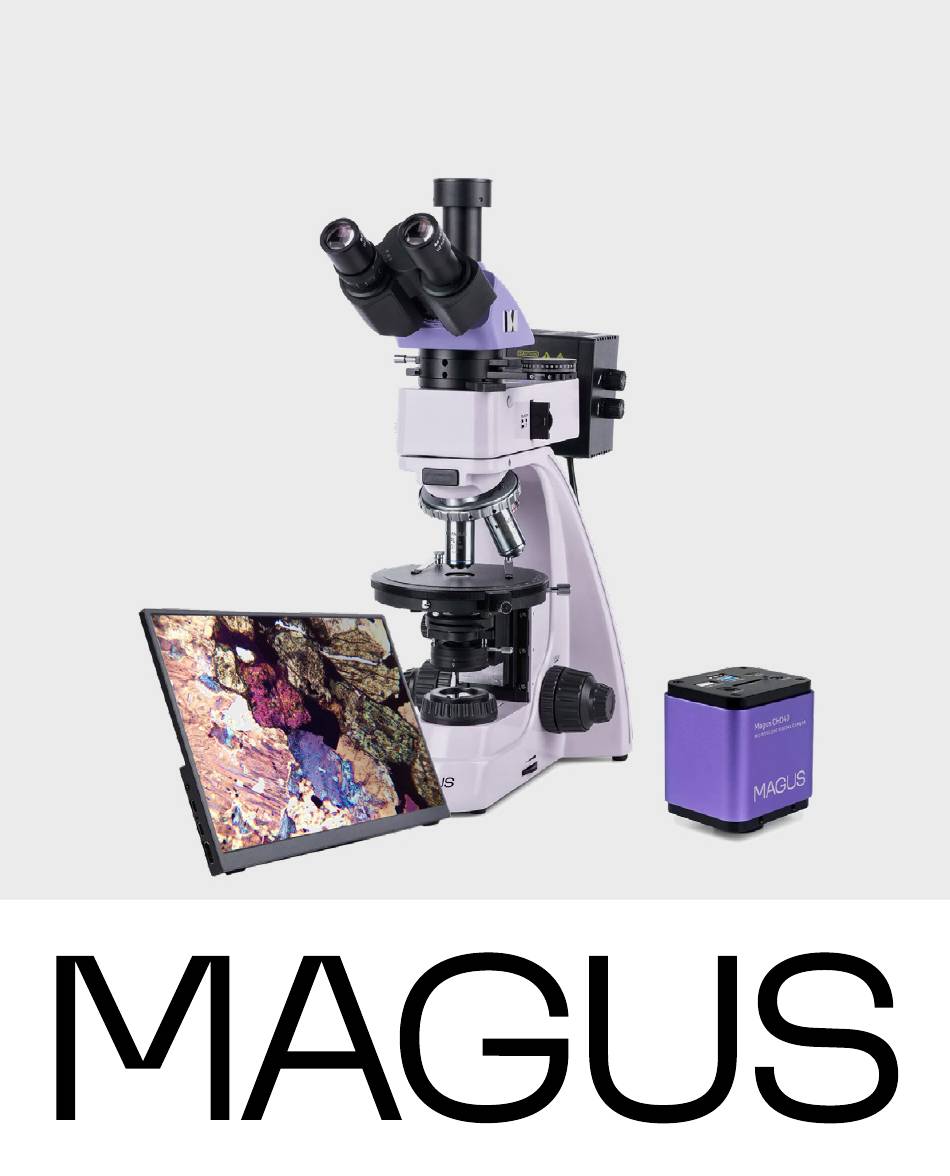

- Page 1 M AG U S POL D 8 5 0 LCD P OL A R IZ I NG D I G ITA L MI C RO S C OP E U S E R M A N U A L...
- Page 2 928 E 124th Ave. Ste D, Tampa, FL 33612, USA +1 813 468-3001 contact_us@levenhuk.com Levenhuk Optics s.r.o. (Europe) V Chotejně 700/7, 102 00 Prague 102, Czech Republic +420 737 004-919 sales-info@levenhuk.cz Magus® is a registered trademark of Levenhuk, Inc. © 2006–2024 Levenhuk, Inc. All rights reserved. www.levenhuk.com 20241205...
-
Page 3: Safety Precautions
Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures. - Page 4 Bulb installation: – Do not touch the glass surface of the bulb with your bare hands. When installing the bulb, wear gloves or wrap the bulb with a cotton cloth. – Use a clean cotton cloth moistened with alcohol-based disinfectant to wipe dirt off the surface of the bulb.
-
Page 5: Table Of Contents
Using the camera Using the monitor 5 USING OPTIONAL EQUIPMENT Stage attachment Eyepiece with a scale Calibration slide with a camera 6 TROUBLESHOOTING 7 SCOPE OF DELIVERY 8 CARE AND MAINTENANCE Replacing the bulb and the fuse Maintenance 9 MAGUS WARRANTY... -
Page 6: Description
MAGUS Pol D850 LCD Polarizing Digital Microscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation. - Page 7 Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8 GHz Intel Core 2 System requirements or higher, minimum 4GB RAM, USB 2.0 ports, RJ45, CD-ROM, 19" or larger display (with USB connection) Software HDMI: built-in, USB: MAGUS View Mount type C-mount Illuminator body Metal...
-
Page 8: Microscope Kit
Horizontal/vertical viewing angle, ° 178/178 Viewable screen size (WxH), mm 295x165 Pixel pitch (WxH), mm 0.154x0.154 Display refresh rate, Hz Type of matrix backlight LED backlight lifetime, h 50000 Interface HDMI Power supply AC 110–220V, DC 5–12V/1A (Type-C) Power consumption, W 12 (maximum) Dimensions without package 201×545×457... - Page 9 21 22 Fig. 1. MAGUS Pol D850 LCD Microscope. View from the left 11. Fine focusing knob 19. Lamphouse 1. Eyepieces 2. Diopter adjustment 12. Coarse focusing knob 20. Field diaphragm centering screw 3. Bertrand lens 13. Coarse focusing tension 21.
- Page 10 23 22 21 20 19 Fig. 2. MAGUS Pol D850 LCD Microscope. View from the right 1. Interpupillary distance 10. Coarse focusing tension 18. Left/right lamp adjustment knob adjustment scale adjusting knob 19. Field diaphragm centering screw 2. Eyepiece tubes 11.
-
Page 11: Components
COMPONENTS STAN D The stand 16 (Fig. 1) has stable ergonomic design. Parts attached to the stand: – revolving nosepiece 4 (Fig. 2) with objectives 5 (Fig. 2) – stage 15 (Fig. 2) – condenser mount (not shown in Fig. 1 and 2) –... -
Page 12: Eyepieces
EYE PI ECES The microscope kit includes eyepieces 1 (Fig. 1) and an eyepiece with crosshairs. The eyepieces have long eye relief and are designed to work with or without glasses. Eyepiece diameter: 23.2mm. Eyepiece magnification: 10x. Field of view: 20mm. The 10х... -
Page 13: Reflected Light Illumination
RE F LECTE D LI GH T IL LU MI NAT IO N The reflected light illuminator is shown in Fig. 3. Fig. 3. Reflected light illumination system 1. Illuminator locking screw 5. Lamp focusing knob 9. Color filters 2. Polarizer 6. -
Page 14: Intermediate Attachment
The aperture and field diaphragms should not be considered as a tool to adjust the image brightness. The brightness should be adjusted by changing the light intensity using the knob 9 (Fig. 2) for adjusting the halogen bulb brightness. Lamphouse The lamphouse 7 (Fig. -
Page 15: Transmitted Light Illumination
The analyzer is rotated by the ring 6 (Fig. 5). Rotation angles in the range of 0–360° are measured on the scale on the disk 6 (Fig. 5) with a graduation value of 1° and vernier scale 5 (Fig. 5) with a graduation value of 0.1°. The slot 2 (Fig. -
Page 16: Stage
The camera is powered via a 12V/1A AC power adapter. MONITO R The monitor is designed to use a visualization system of the MAGUS microscope. It connects to a microscope-mounted camera to display a real-time image. The monitor is installed on the table or shelf on a folding mount or attached directly to the camera or microscope stand. -
Page 17: Brightfield Observation Procedure
3. Take out the reflected light illuminator. Install the illuminator on the microscope stand and secure it with an Allen wrench. 4. Remove the trinocular microscope head and intermediate attachment with a Bertrand lens, analyzer, and a compensator. Insert the intermediate attachment into the mounting slot of the illuminator and secure it with a screw using an Allen wrench. -
Page 18: Pl Ac In G The Sp Ec Im E N
PL AC IN G THE SP EC IM E N Place the specimen on the stage and secure it with the spring clips. The stage is 360° rotatable. Its diameter is 150mm. Before polarized light observations, you should align the optical path of the objectives with the center of the rotary stage. FOCU SI N G O N T H E S PECI ME N Focusing on the specimen is achieved by coarse and fine focusing knobs. -
Page 19: Setting Up Köhler Illumination In Transmitted Light
SE TTI N G U P KÖ H L ER IL LU MI NAT IO N I N T R A N S M IT T ED L I G HT In the light optical microscope, the image quality depends equally on the optics and on the illumination system, so adjusting the illumination is an important preparatory step. -
Page 20: Centering The Stage And Objectives
While adjusting the illumination, you should keep in mind that changing the size of the field diaphragm only affects the size of the illuminated field. For each objective, you should open the field diaphragm so far that its image is close to the edge of the microscope’s field of view, not outside of the field. -
Page 21: Transmitted Light Observations With A Polarizer
Halve the distance from the center of the crosshairs to the selected object detail (center point between 4 and 5) and move the target point to that location. Rotate the screws installed in the centering slots of the revolving nosepiece 2 to move the target point to the center and align it with the center of the crosshairs. -
Page 22: Reflected Light Observations
– reduce the opening of the aperture diaphragm to match the size of the objective exit pupil – remove the Bertrand lens from the optical path – while observing through the eyepiece, place the section of the object you want to observe in the center of the field of view: place the selected grain on the center of the crosshairs –... -
Page 23: Reflected Polarized Light Observations
R EFL ECTED P O L ARI Z E D LIG HT O B S ERVAT I ON S Introduce the polarizer 13 (Fig. 1) and analyzer 22 (Fig. 2) into the optical path. The polarization device is aligned in such a way that the setting of the analyzer on the numerical scale to position "90" corresponds to the crossed position of the polarization devices. -
Page 24: Using The Monitor
If there is a strict requirement to synchronize the image in the eyepieces and camera (coincidence between the image center and direction), you should adjust the camera image. There are three centering screws on the trinocular tube. Adjust it as follows: –... -
Page 25: Using Optional Equipment
USING OPTIONAL EQUIPMENT STAGE ATTACHM EN T A mechanical stage attachment is used for convenient movement of specimens in two mutually perpendicular directions: X-axis (right-left) and Y-axis (forward/backward). The stage attachment is mounted on pins into the stage holes and secured with a screw. -
Page 26: Calibration Slide With A Camera
CAL IBRAT ION SLI D E W I TH A CA ME RA The calibration slide (stage micrometer) is used to calibrate the image analysis software for measurements in actual units. In the calibration mode, you should capture an image of the micrometer scale with every objective magnification and indicate the known distance. - Page 27 Dust is visible in the field of view There is dust on the eyepiece lens Remove dust using a special puffer or brush The objective is damaged Have the objective repaired by a qualified technician or replaced The aperture diaphragm is opened Adjust the opening to match the numerical too wide aperture of the objective used...
-
Page 28: Scope Of Delivery
SCOPE OF DELIVERY The scope of delivery (Table 5) Component Note M I CRO S COPE MAIN COMPONENTS Stand with built-in power source, transmitted light source, focusing mechanism, stage, and revolving nosepiece Condenser with a transmitted light polarizer Reflected light illuminator Lamphouse Trinocular microscope head Ring with color filters... -
Page 29: Care And Maintenance
DI GITAL CAMER A Digital camera HDMI cable (1.5m) USB 3.0 cable (1.5m) USB mouse 32GB SD memory card Wi-Fi USB-adapter EU-plug 12V/1A AC power adapter Flash drive with drivers and software Fasteners (mounting plate and screws) User manual MO NITO R Monitor HDMI cable AC power adapter... -
Page 30: Maintenance
2. Replacing the transmitted light bulb. Access to the transmitted light bulb is at the base of the microscope. – unplug the power cord from the connector – loosen the screw 4 and open the cover 3, as shown in Fig. 22 –... -
Page 31: Magus Warranty
8. Periodic inspection: the microscope should be regularly inspected and serviced to maintain its performance. MAGUS WARRANTY MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product. - Page 32 www.magusmicro.com...
