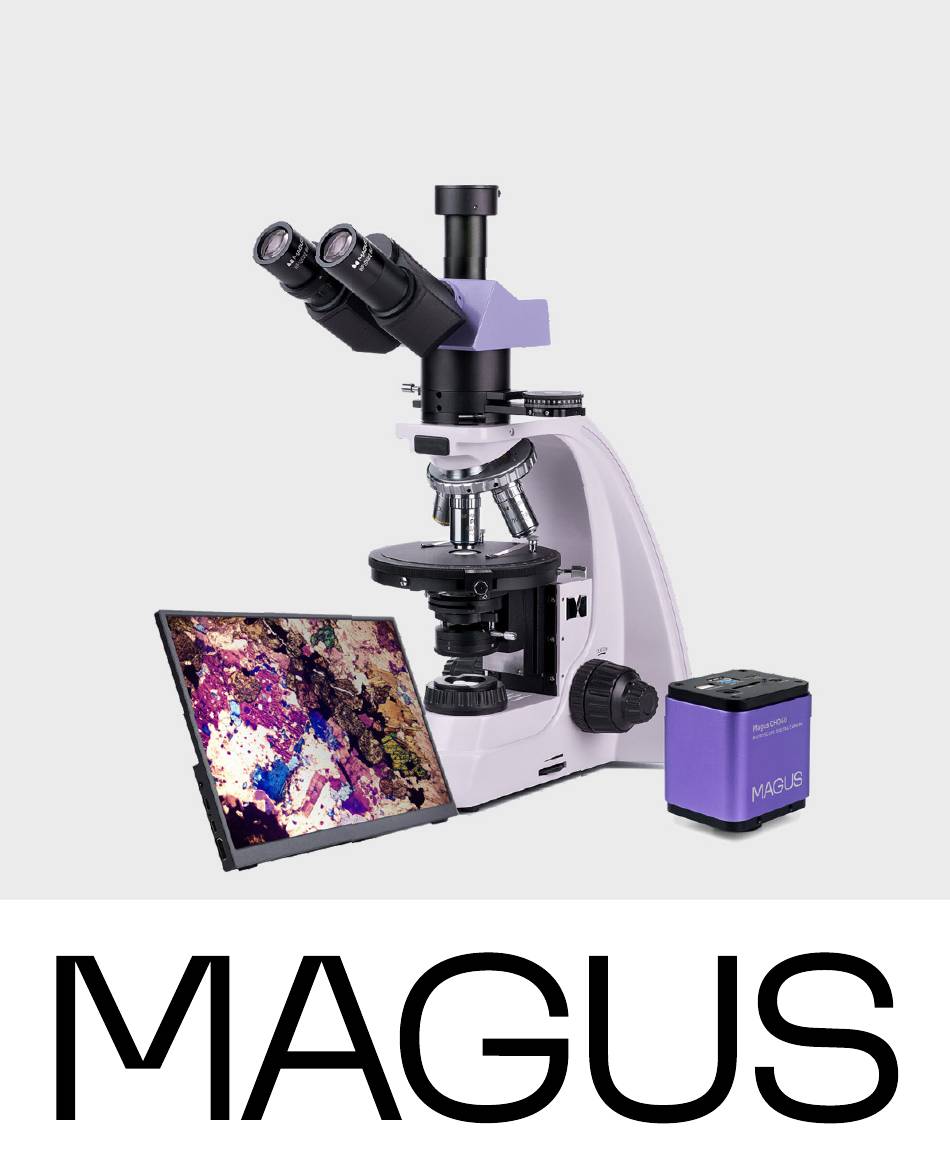

- Page 1 M AG U S P OL D 8 0 0 LC D PO LAR I Z IN G D IG ITA L MI C ROS C O P E U S E R M A N U A L...
- Page 2 928 E 124th Ave. Ste D, Tampa, FL 33612, USA +1 813 468-3001 contact_us@levenhuk.com Levenhuk Optics s.r.o. (Europe) V Chotejně 700/7, 102 00 Prague 102, Czech Republic +420 737 004-919 sales-info@levenhuk.cz Magus® is a registered trademark of Levenhuk, Inc. © 2006–2024 Levenhuk, Inc. All rights reserved. www.levenhuk.com 20241209...
-
Page 3: Safety Precautions
Before using the microscope, please read this user manual carefully to study the instrument design, operation modes and procedures, operational limitations, and safety precautions. Due to the continuous improvements in the microscope design, this manual may not reflect minor design changes that do not affect the microscope performance and operation procedures. - Page 4 Bulb installation: – Do not touch the glass surface of the bulb with your bare hands. When installing the bulb, wear gloves or wrap the bulb with a cotton cloth. – Use a clean cotton cloth moistened with alcohol-based disinfectant to wipe dirt off the surface of the bulb.
-
Page 5: Table Of Contents
Using the camera Using the monitor 5 USING OPTIONAL EQUIPMENT Stage attachment Eyepiece with a scale Calibration slide with a camera 6 TROUBLESHOOTING 7 SCOPE OF DELIVERY 8 CARE AND MAINTENANCE Replacing the bulb and the fuse Maintenance 9 MAGUS WARRANTY... -
Page 6: Description
MAGUS Pol D800 LCD Polarizing Digital Microscope has been designed and tested in accordance with the international safety standards. If properly used, the microscope is safe for the customer’s health, life, property, and the environment. Proper maintenance of the microscope is a prerequisite for its reliable and safe operation. - Page 7 Windows 8/10/11 (32 and 64 bit), Mac OS X, Linux, up to 2.8 GHz Intel Core 2 System requirements or higher, minimum 4GB RAM, USB 2.0 ports, RJ45, CD-ROM, 19" or larger display (with USB connection) Software HDMI: built-in, USB: MAGUS View Mount type C-mount Illuminator body Metal...
-
Page 8: Microscope Kit
M ICROS COPE K IT The microscope kit includes the following main components: – stand with a built-in power source, transmitted light source, focusing mechanism, stage, and revolving nosepiece – trinocular head – intermediate attachment with a Bertrand lens – compensators –... - Page 9 Fig. 1. MAGUS Pol D800 LCD Microscope. View from the left 1. Eyepieces 8. Collector 15. Bertrand lens lever 2. Eyepiece tubes 9. Coarse focusing lock knob 16. Beam splitter lever 17. Microscope head 3. Revolving nosepiece 10. Coarse focusing knob 4.
- Page 10 Fig. 2. MAGUS Pol D800 LCD Microscope. View from the right 1. Diopter adjustment ring 8. Brightness adjustment ring 15. Spring clips 2. Intermediate attachment 9. Coarse focusing tension 16. Intermediate attachment adjusting knob locking screw 3. Compensator 10. Coarse focusing knob 17.
-
Page 11: Components
COMPONENTS STAND The stand 12 (Fig. 2) has stable ergonomic design. Parts attached to the stand: – revolving nosepiece 3 (Fig. 1) with objectives 4 (Fig. 1) – stage 4 (Fig. 2) – condenser mount (not shown in Fig. 1 and 2) –... -
Page 12: Intermediate Attachment
IN TER M EDIAT E AT TACHMENT The intermediate attachment is installed in the slot on top of the stand and secured with a screw using an Allen wrench. There is an analyzer, a slot for compensators, and a Bertrand lens in the intermediate attachment. The general view of the intermediate attachment is given in Fig. -
Page 13: Transmitted Light Illumination
A first order full-wave plate (λ) introduces a phase shift of 90° into the green wavelength of light, which is then blocked by the analyzer, leaving the linear polarization of the other light wavelengths unchanged. It is used for quantitative analysis in conoscopic and orthoscopic polarization microscopy, for determining the optical sign of a positive or negative birefringent sample, for determining the thickness of the object and the birefringence of crystalline and polymeric materials, for enhancement of contrast of the objects with weak birefringence, e.g. -
Page 14: Objectives
Four out of five slots of the revolving nosepiece are centered to align the optical axis of the objective and microscope. Thus, as the revolving nosepiece rotates, the section of the object that was in the center of the field of view on one objective remains in the center of the field of view on the other objectives. -
Page 15: Camera
The camera is powered via a 12V/1A AC power adapter. MONITO R The monitor is designed to use a visualization system of the MAGUS microscope. It connects to a microscope-mounted camera to display a real-time image. The monitor is installed on the table or shelf on a folding mount or attached directly to the camera or microscope stand. -
Page 16: Brightfield Observation Procedure
1. Unpack the microscope and check the scope of delivery using Section 7 of the User Manual. 2. Take out the stand 1 and place it on a stable work table, remove packaging and dust cover. 3. Remove the intermediate attachment 2 with a Bertrand lens, an analyzer, and a compensator. Insert it into the mounting hole on the stand and secure it with the screw 5 using an Allen wrench. -
Page 17: Focusing On The Specimen
FO CU SI N G ON T H E S P EC IM EN Focusing on the specimen is achieved by coarse and fine focusing knobs. Perform the focusing using the 10x objective. Rotate the revolving nosepiece to place the 10x objective in the optical path. - Page 18 The Köhler illumination is one of the features of professional microscopes. Proper set-up of Köhler illumination offers the following benefits: – the highest possible resolution on each objective – focusing on the specimen image, removing the images of artifacts: dust on the illuminator or on the slide, glare; –...
-
Page 19: Centering The Stage And Objectives
The size of the aperture diaphragm affects the image contrast. Do not increase the image brightness by opening the aperture diaphragm, as this will result in loss of contrast and low resolution. The brightness is only adjustable with the brightness adjustment ring. The greater the magnification of the objective, the larger is its aperture, and the larger is the opening of the condenser diaphragm. -
Page 20: Observations With One Polarizer
O BSE RVATI ONS WI T H O N E P O L ARI Z ER Turn the ON/OFF switch to the ON position. Remove the analyzer 17 (Fig. 2) from the optical path. Mount the specimen on the stage 4 (Fig. 2) and secure it with spring clips. Make sure that there is an eyepiece with a reticle in one of the tubes. -
Page 21: Calculating The Total Magnification
– introduce the analyzer into the optical path and use the scale of the analyzer and polarizer to set the crossed position of nicols – introduce the Bertrand lens into the optical path and observe a conoscopic image – rotate the analyzer slightly relative to the zero position to achieve the best possible contrast in the conoscopic image. CALCU LATI N G T HE TOTAL M AGN IF I CAT I ON The total magnification is the eyepiece power multiplied by the objective power. -
Page 22: Using The Monitor
Adjust it as follows: – Set the beam splitter lever 5 to the eyepiece position. While observing the specimen through the eyepieces, find a distinctive point in the field of view (an easily identifiable target, such as point S in Fig. 15а), move the specimen on the stage so that the point is in the center of the field of view, as shown in Fig. -
Page 23: Using Optional Equipment
USING OPTIONAL EQUIPMENT STAGE ATTACHM EN T A mechanical stage attachment is used for convenient movement of specimens in two mutually perpendicular directions: X-axis (right-left) and Y-axis (forward/backward). The stage attachment is mounted on pins into the stage holes and secured with a screw. -
Page 24: Calibration Slide With A Camera
CAL IBRAT ION SLI D E W I TH A CA ME RA The calibration slide (stage micrometer) is used to calibrate the image analysis software for measurements in actual units. In the calibration mode, you should capture an image of the micrometer scale with every objective magnification and indicate the known distance. -
Page 25: Scope Of Delivery
The objective is damaged Have the objective repaired by a qualified technician or replaced The aperture diaphragm is opened Adjust the opening to match the numerical too wide aperture of the objective used Poor image quality (low The objective is not correctly Rotate the revolving nosepiece until it clicks resolution, poor contrast) engaged in the optical path... - Page 26 10x/22mm eyepiece 10x/22mm eyepiece with crosshairs 10x/22mm eyepiece with a scale. The scale value is 0.1mm Optional 12.5x/14mm eyepiece Optional 15х/15mm eyepiece Optional 20х/12mm eyepiece Optional 25х/9mm eyepiece Optional λ compensator λ/4 compensator Quartz wedge C-mount camera adapter Calibration slide Optional Mechanical attachment Optional...
-
Page 27: Care And Maintenance
CARE AND MAINTENANCE REPL ACING T HE B U LB AN D T H E FU SE Before replacing the bulb or fuse, turn the ON/OFF switch to "0" position (off). Unplug the power cord from the power outlet. Wait about 30 minutes for the bulb to cool down. -
Page 28: Magus Warranty
8. Periodic inspection: the microscope should be regularly inspected and serviced to maintain its performance. MAGUS WARRANTY MAGUS provides a 5-year international warranty from date of purchase (valid for the entire life of the instrument). The Levenhuk company warrants the product to be free from defects in materials and workmanship. The Seller warrants that the MAGUS product you have purchased meets specification requirements, provided that the Buyer complies with terms and conditions of transport, storage, and operation of the product. - Page 30 www.magusmicro.com...
