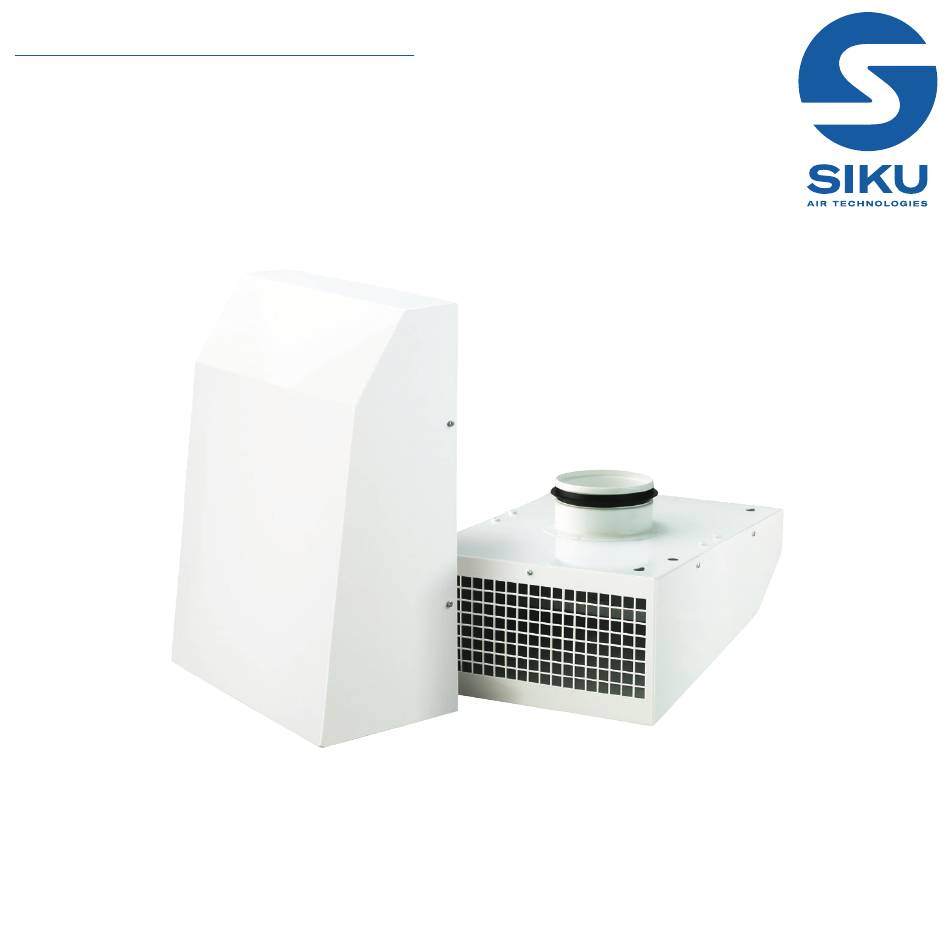

- Page 1 INSTRUCTION MANUAL SIKU VCN CENTRIFUGAL TUBE FANS...
- Page 2 100, 125, 150, 160, 200 EXAMPLE OF THE DESIGNATION CODE SIKU VCN 100 - radial fan for mounting on Ø 100 mm round ducts. SIKU VCN 150 K - radial fan with a non-return damper for mounting on Ø 150 mm round ducts.
- Page 3 (for VCN...K modification with the non-return flap) TABLE 1 Dimensions, mm Typ of fans Weight, kg VCN 100 / VCN 100 E 3,60 VCN 125 / VCN 125 E 3,60 VCN 150 / VCN 150 E 4,70 VCN 160 / VCN 160 E...
- Page 4 IP X4 VCN 200 / VCN 200 E 1 ~ 230 0,42 700 (640*) 2415 IP X4 * for models with a built-in non-return valve (VCN...K) TABLE 2 Typ of fans V, 50 Hz m³/h dB(A) °C VCN 100 / VCN 100 E...
-
Page 5: Safety Regulations
SAFETY REGULATIONS The IPX4 protection class of the fan requires extra protection against water ingress. To protect the fan against water ingress, mount the fan under the roof or install an external bonnet on the fan intake connection. Take meas- ures to prevent smoke, carbon oxide gases and other flammable products from entering the room through open smoke vents or other fire protection devices and to prevent gas backflow from appliances with gas or open flames. - Page 6 Disconnect the fan from the power supply before carrying out any connection, adjustment, ser- vice or repair work, Fig. 3. For wall mounting, unscrew the self-tapping screws 6 and remove the cover 2 (Fig. 4). Drill dowel holes in the wall in accordance with the fits on the housing (fig. 5, 6, 7) and fix the fan with screws (fig.
-
Page 8: Connection To The Mains
CONNECTION TO THE MAINS The fan is connected to the mains via an automatic switch integrated in the cabling system. Switch off the power supply before making any electrical connections. The contact spacing on all poles must be at least 3 mm. Connect the mains cable to the terminal strip 8 according to the wiring diagram on the mounting bracket 3, Fig. -
Page 9: Maintenance
MAINTENANCE Before carrying out any maintenance work, disconnect the fan from the mains! Maintenance consists of regular cleaning of the surface from dust and dirt. The dust can be removed with a soft brush or compressed air (Fig. 13). The impeller blades must be thoroughly cleaned every 6 months. The filter prevents dirt from penetrating and shortens cleaning intervals. -
Page 10: Storage And Transport Instructions
STORAGE AND TRANSPORT INSTRUCTIONS The fan must be stored in its original packaging in a ventilated room at a temperature of +5°C to +40°C and a relative humidity of no more than 80% at +20°C. The fan must not be exposed to acid and alkali vapours or other harmful foreign substances in the air. -
Page 11: Acceptance Report
In any case, the compensation under these warranty conditions may not exceed the value actually paid by the purchaser for the appliance. ACCEPTANCE REPORT The fan VCN _______________________________ is recognised as operational. Acceptance certificate Manufactured on (date) - Page 12 SIKU VertriebsgmbH | Sandstraße 13 | 2100 Stetten | Austria | Phone: +43 2262 61 521 | www.siku.at | office@siku.at BDA_SIKU_VCN_EN-2024-01...
