Page 1
OPERATING INSTRUCTIONS SIKU DOMESTIC FANS AXIAL HOUSEHOLD FANS...
Page 2

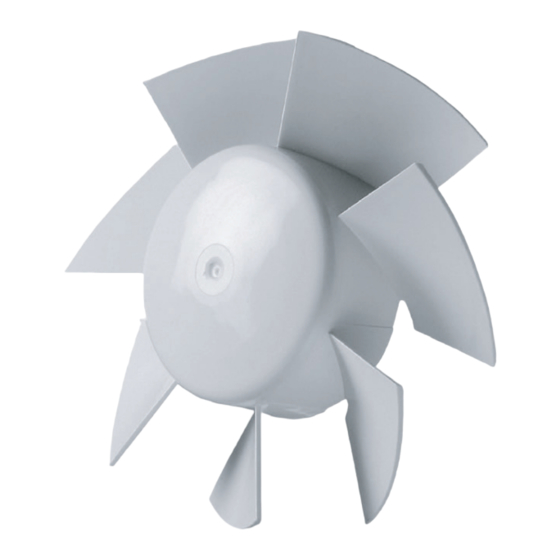

SIKU X X X X X X X Diameter of the outlet port - 100, 125, 150 mm Fan series - SIKU 1, SIKU 2, SIKU 3, VKO, M, AZ, PF, LD, LD Auto, S, Silenta-S Decorative front panel: A - Brushed aluminium (for LD series)
SAFETY REGULATIONS Disconnect the fan from the mains before all connection, adjusting, servicing and repair tasks. Service and maintenance tasks shall be carried out only by specialist personnel who have a valid permit for electrical work on electrical systems up to 1000 V. Read the operating instructions before all installation work. The single-phase electrical network to which the device will be connected must comply with the applicable electrical standards.
TRF 220/12-25 (special accessory). The fan is not subject to mandatory earthing. The fans (except for SIKU 1, SIKU 2, SIKU 3 and VKO) are designed for wall and ceiling installation. Protection against foreign object penetration and water:...
Page 5
The installation order for the fan is as follows: Screws and wall/floor plugs - 4 pc. SIKU 1, SIKU 2, SIKU 3, VKO fan series (except for SIKU 1, SIKU 2, SIKU 3, VKO models) PF fan series M, AZ fan series Screws, bolts, nuts, plastic nuts - 4 pc.
Page 6
Type SIKU 1 SIKU 1 SIKU 2 SIKU 2 123.5 SIKU 3 SIKU 3 147.5 Type 100 VKO 100 VKO 125 VKO 125 VKO 123.5 150 VKO 150 VKO 147.5 Type 100 M 100 M 88.5 125 M 125 M 123.5...
Page 7
Type 100 LD 125 LD 100 LD (Light) 150 LD 125 LD 123.5 100 LD Light 150 LD 147.5 Type 100 LD Auto 100 LD Auto 125 LD Auto 125 LD Auto 123.5 150 LD Auto 150 LD Auto 147.5 Type 100 S 125 S...
Page 8
150 PF 147.5 The fan series M, S, Silenta S, LD, LD Auto, SIKU 1, SIKU 1L, SIKU 2L, 100 VKO L, 125 VKO L can be equipped with a non-return flap. In this case, the outlet ports will be 14 mm longer.
Page 9
SIKU 1, SIKU 2, SIKU 3, VKO 1.11 1.31 1.51 1.71...
Page 13
Wiring diagram for the connection of a fan with a pull- Wiring diagram for the connection of a fan without a pull- switch and with a movement sensor. switch. Wiring diagram for the connection of a fan with run-on Wiring diagram for the connection of a fan with run-on time / run-on time and humidity sensor and a pull-switch.
(adjustable from 2 to 30 minutes) and then switches off. Fans with run-on time and movement sensor TP - The fans starts when there is movement within the range of 1 to 4 m and in a horizontal viewing angle of 100°.
Page 15
For the timers T, T1 and TP: SIKU 1, SIKU 2, SIKU 3, VKO S, Silenta S, LD, LD Auto M, AZ 2min 2min 2min 2min 30min 30min 30min 30min 2min 2min 30min 30min For the timer T1: M, AZ...
MAINTENANCE Disconnect the fan from the electrical power supply before all maintenance work! Clean the fan with a soft cloth or a brush and a mild soap solution. In doing so, protect the electronic components from splashing water! After cleaning, dry the surface and only connect to the electrical power supply once fully dry. STORAGE AND TRANSPORT REGULATIONS The device should be stored in the original packaging, in a ventilated room, at a temperature from +5°C to +40°C and relative humidity of max.
Page 17
Please contact the company where you bought the device in order to take advantage of the warranty service. If the on-site guarantee is not possible, you will be provided with the necessary information for this service. The manufacturer awards no guarantee in the following cases: •...
Page 18
The manufacturer shall accept no liability for defects that arise before the handover of the device to the consumer. The manufacturer shall accept no liability for defects that arise after the handover of the device to the consumer as a result of a failure to comply with the transport, storage, installation or operating regulations, handling by third parties or force majeure.
ACCEPTANCE LOG The fan is accepted as operationally serviceable. We hereby declare that the product complies with the relevant requirements of directive 2004/108/EC for electromagnetic compatibility, directive 89/336/EEC, and the low voltage directive 2006/95/EC, directive 73/23/EEC and directive 93/68/EEC regarding CE labelling. This certificate is issued after checking the product against the aforementioned.
