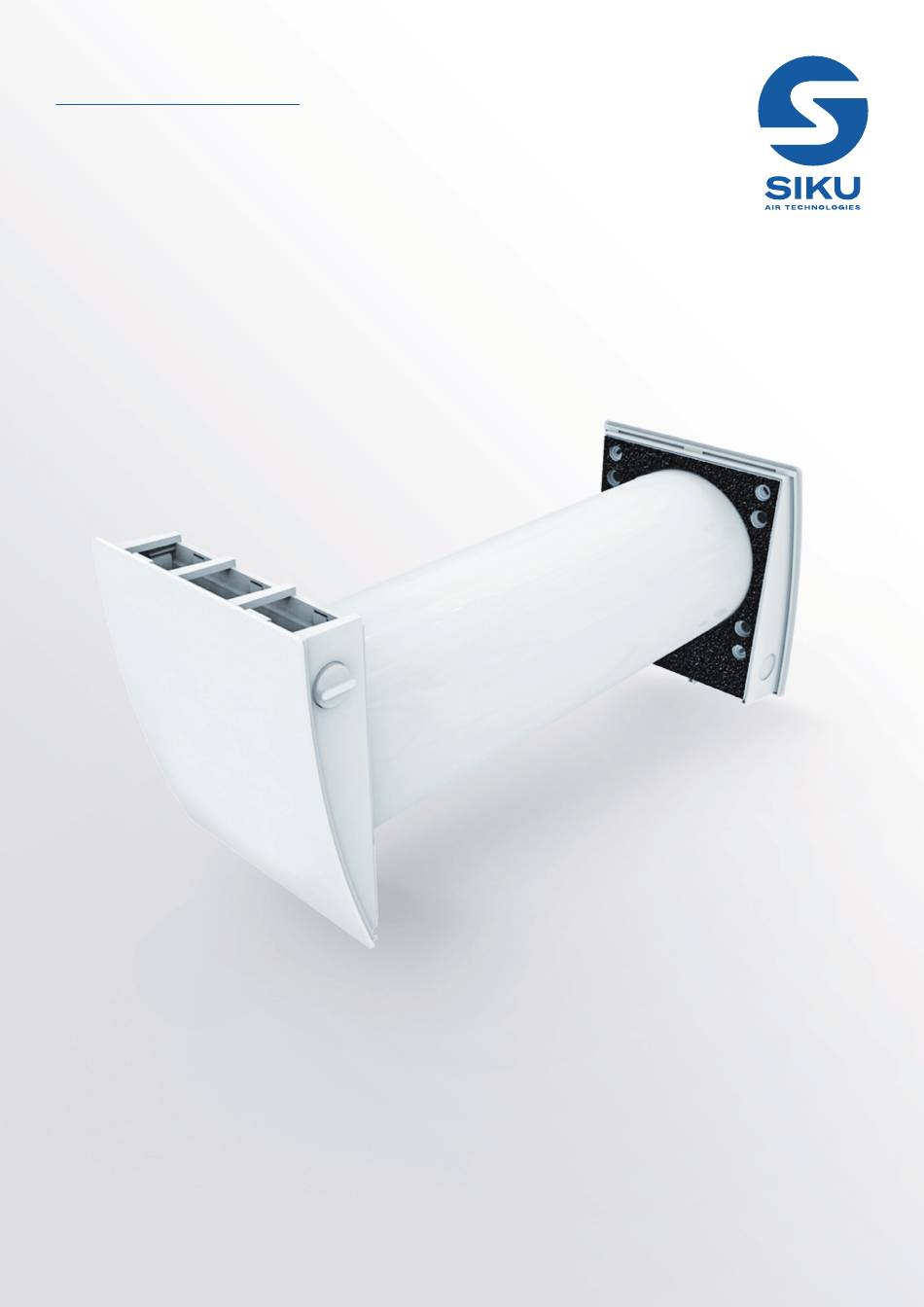

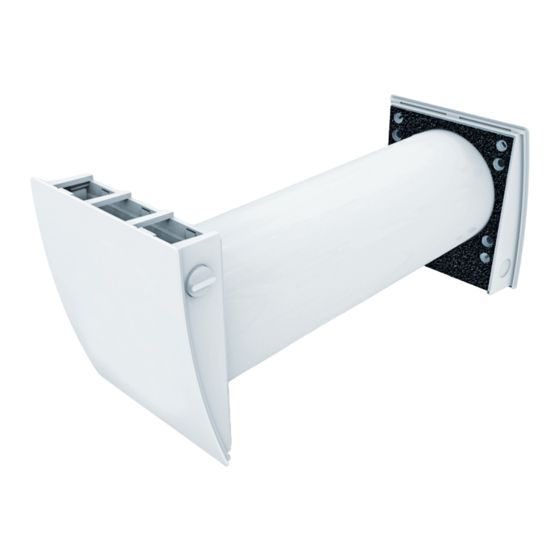

- Page 1 USER‘S MANUAL SIKU Twin Fresh Easy Digital V2 Heat regeneration single-room reversible ventilator siku.at...
- Page 2 SIKU Twin Fresh Easy Digital V2 and standards applicable in the territory of the unit and all its modifications. country.
- Page 3 Twin Fresh Easy Digital V2 SIKU The connection to the supply mains must be made No part of this publication may be reproduced, through a mean for disconnection from the supply stored in a retrieval system, or transmitted, in mains having a contact separation in all poles that...
- Page 4 1 pc. SOUND ABSORBING MATERIAL 1 pc. CARTRIDGE 1 pc. INDOOR UNIT 1 pc. VENTILATION HOOD 1 pc. CONTROL PANEL 1 pc. REMOTE CONTROL 1 packing FIXING SET 1 pc. MOUNTING BOX 1 pc. USER‘S MANUAL 1 pc. PACKING BOX siku.at...
- Page 5 The unit design is constantly being improved, thus windows. some models may be slightly different from those The transported air temperature must be in the range described in this manual. MODEL SIKU TWIN FRESH EASY DIGITAL V2 SPEED 100-240 V (50/60 Hz) VOLTAGE (V/HZ) 1,00 2,10...
- Page 6 Front part of the indoor unit Fulfils the decorative function. It is a part of the indoor unit design and directs the air flow upwards. siku.at siku.at...
- Page 7 Twin Fresh Easy Digital V2 SIKU VENTILATOR OPERATION MODES The ventilator has two operation modes: Ventilation mode. The ventilator operates in the air supply or air extract mode at set speed. In this mode in case of installation of two ventilators one ventilator supplies air to the room and the other one extracts used air.
- Page 8 The mounting side. Do not disconnect the the mounting box through the box is included in the connectors on the circuit fastening holes with supplied delivery set. boards in the casing. screws. siku.at siku.at...
- Page 9 Twin Fresh Easy Digital V2 SIKU VENTILATOR MOUNTING DO NOT BLOCK THE AIR DUCT OF THE INSTALLED UNIT WITH DUST ACCUMULATING MATERIALS, SUCH AS CURTAINS, CLOTH SHUTTERS, ETC. AS IT PREVENTS AIR CIRCULATION IN THE ROOM. 1. Prepare core holes in the outer wall.
- Page 10 Fill the gaps between the wall polystyrene wedges. Fill the gap between the and the hole with a mounting air duct and the opening with mounting foam. foam. min 3 mm Foam wedge siku.at siku.at...
- Page 11 Twin Fresh Easy Digital V2 SIKU 5. Route the cable though the cable hole and fix the back part of the indoor unit. Insert the cartridge in the air duct. Disconnect the connector on the cartridge wire and connect the wires from the control panel to the mating part in compliance with the wiring diagram in page 12.
- Page 12 Connect the signal cable screen to the terminals „-“ of the control panel and the fan. Use only copper wires for all electric wirings! • Electrical connections of the ventilator must be completed in compliance with wiring diagrams. siku.at siku.at...
- Page 13 Twin Fresh Easy Digital V2 SIKU WIRING DIAGRAM FOR THE VENTILATOR WITH CONTROL PANEL WITH LCD DISPLAY Ventilator 1 Ventilator 2 (Air supply) (Air extract) 100-230 V 50/60 Hz The ventilator is controlled via the control panel. These parameters are editable with the control panel: •...
- Page 14 12. 4. Engineering menu Press the button to go to engineering menu To navigate between the engineering menu items press consistently the button. filter servicing timer configuration deactivation mode speed setting siku.at siku.at...
- Page 15 Twin Fresh Easy Digital V2 SIKU 5. Parameter setting in the engineering menu. filter servicing timer The serviced hour number is displayed. To reset the filter servicing timer press and hold the button for 4-5 seconds. configuration Parameter setting using the buttons: One ventilator 1.
- Page 16 The vertical lever position corresponds to the OPEN position and the horizontal position corresponds to the CLOSED position. Close Attention! Turning the air damper on or off will not turn the ventilator on or off! siku.at siku.at...
- Page 17 Twin Fresh Easy Digital V2 SIKU TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! ENSURE THAT THE UNIT IS SWITCHED OFF FROM THE SUPPLY MAINS BEFORE REMOVING THE GUARD. Maintenance of the ventilator consists in regular cleaning of the surfaces of dust and cleaning or replacement of the filters.
- Page 18 The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures, allow the unit to warm up at operating temperature for at least 3-4 hours. siku.at siku.at...
- Page 19 Twin Fresh Easy Digital V2 SIKU MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.
- Page 20 This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. CUSTOMER’S SIGNATURE Seller’s Stamp INSTALLATION CERTIFICATE The Twin Fresh Easy Digital V2 unit is installed pursuant to the requirements stated in the present user‘s manual. COMPANY NAME ADDRESS PHONE NUMBER INSTALLATION TECHNICIAN‘S FULL...
- Page 21 RV 1-35 C Mini SIKU siku.at...
- Page 22 Printing errors, mistakes and technical changes reserved. SIKU VertriebsgmbH | Bundesstraße 5 | 2102 Bisamberg | Austria | Tel.: +43 2262 61 521 | Fax: +43 2262 61 520 | www.siku.at | office@siku.at BDA_50160_SIKU_TwinFreshEasyDigitalV2_EN_01...
