Page 1

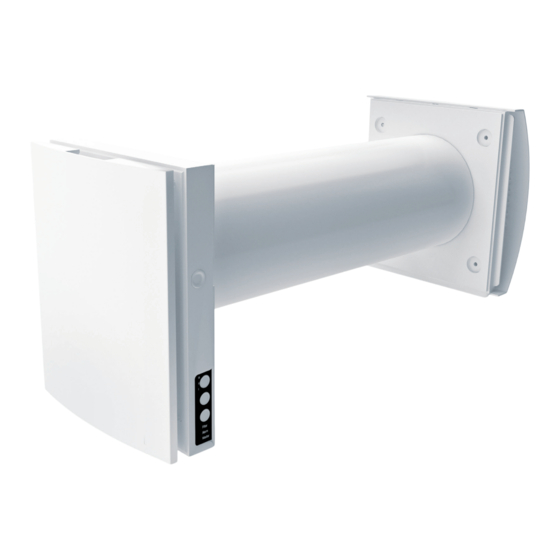

USER‘S MANUAL SIKU RV 50 C Pro Comfo V2 SIKU RV 30 C Pro Duo Comfo V2 Single-room reversible energy recovery ventilator siku.at...
Page 2
The Company reserves the right to technical details, operating principle, design, and modify the technical characteristics, design, or installation of the SIKU RV 30/50 C Pro (Duo) configuration of its products at any time in order to Comfo V2 unit and all its modifications.
Page 3
RV 30/50 C Pro (Duo) Comfo V2 SIKU • Do not change the power cable length at your own discretion. Do not bend the • Do not lay the power cable of the unit in power cable. Avoid damaging the power close proximity to heating equipment.
Page 4
DELIVERY SET NUMBER NAME SIKU RV 50 C Pro Comfo V2 SIKU RV 30 C Pro Duo Comfo V2 1 Pcs 1 Pcs INDOOR UNIT OF THE VENTILATOR 1 Pcs...
Page 5
L (MM) L: length of the cartridge (depending on the type of Ventilation system). SIKU RV 50 C Pro Comfo V2 SIKU RV 30 C Pro Duo Comfo V2 OVERALL DIMENSIONS OF THE INDOOR UNIT, MM RV 50 C PRO COMFO V2...
Page 6
UNIT DESIGN AND OPERATING PRINCIPLE The ventilator consists of an indoor unit with a SIKU RV 30 C Pro Duo Comfo V2 are equipped with a set decorative front panel, a cartridge, an air duct of air flow separators. The design of the and an outer ventilation hood.
Page 7
RV 30/50 C Pro (Duo) Comfo V2 SIKU LOUVER SHUTTERS OPERATION PRINCIPLE SIKU RV 50 C PRO COMFO V2 The indoor unit is equipped with automatic shutters. During the ventilator operation the automatic shutters are opened and let the air flow freely through the ventilator.
Page 8
The length of the ventilation pipe can be adjusted before or after fixing the ventilation pipe in the wall. In the second case, there must be sufficient access to the outer wall after installing the ventilation pipe be taken care of. siku.at siku.at...
Page 9
RV 30/50 C Pro (Duo) Comfo V2 SIKU 3. Stick the delivered cardboard master plate on the indoor wall MARKING THE using a mounting tape. The large opening in the master plate must MOUNTING HOLES (MM) be axially aligned with the air duct. For aligning the master plate with respect to the horizon line it is recommended to use a Ø...
Page 10
8. Place the front part of the inner element. SIKU RV 50 C PRO COMFO V2 SIKU RV 30 C PRO DUO COMFO V2 9. Insert the sound absorbing material into the 9. Insert the sound absorbing material into the air duct from the outside.
Page 11
RV 30/50 C Pro (Duo) Comfo V2 SIKU CONNECTION TO POWER MAINS AND CONTROL BEFORE STARTING ANY WORK WITH THE DEVICE, SWITCH OFF THE POWER SUPPLY. ELECTRICAL CONNECTIONS MAY ONLY BE CARRIED OUT BY AN AUTHORIZED SPECIALIST! THE BASIC ELECTRICAL DATA OF THE DEVICE IS LISTED ON THE MANUFACTURER LABEL.
Page 12
DIP switch. It is located on the controller circuit board. To access the DIP switch, take off the front panel of the indoor unit and uplift the rubber plug that covers the switch. Dip switch and USB interface under the rubber cover siku.at siku.at...
Page 13
Turning the ventilator off is not allowed. The switch position disables switching the ventilator off with the button on the side control panel. SIKU RV 50 C PRO COMFO V2 SIKU RV 30 C PRO DUO WIFI V2 Fan rotation direction...
Page 14
Activation of Speed III by the timer synchronously. (4 hours by default). Master indicator Night mode Indicator of the first ventilator in the Activation of Speed I by the timer group. (8 hours by default). siku.at siku.at...
Page 15
In case of an emergency shutdown of a SIKU RV 50 C Pro Comfo V2 it in the network the defective ventilation unit is marked with the blinking Alarm indicator. All the connected SIKU RV 50 C Pro Comfo V2 ventilation units are also stopped. ALARM...
Page 16
Reset of alarm and timer settings. Ventilator speed selection: III-II-I speeds respectively. Regeneration mode SIKU RV 50 C Pro Comfo V2 The rotation direction of the fan changes to opposite every 70 seconds. Heat recovery is performed in this mode.
Page 17
The front panel incorporates an operating LED indicator. During the dark time the indicator light intensity drops down. AIR FLOW BLOCKING FOR THE SIKU RV 30 C PRO DUO COMFO V2 Press the side tabs to detach the front part of the...
Page 18
Turn off the ventilator using the remote control or the buttons on the indoor unit. Then turn the power completely off. SIKU RV 50 C PRO COMFO V2 1. Press the side locks on the inner panel to separate the front section.
Page 19
• After the set filter replacement periodicity (90 days) has expired the Filter indicator starts glowing. For the SIKU RV 50 C Pro Comfo V2 unit the filter timer is reset once the cartridge connector is disconnected from the circuit board. Reset the filter timer for the SIKU RV 30 C Pro Duo Comfo V2 unit by turning the DIP switch 8 off and back on again.
Page 20
The unit must be transported only in the working position. • Avoid sharp blows, scratches, or rough handling during loading and unloading. • Prior to the initial power-up after transportation at low temperatures allow the unit to warm up at • operation temperature for at least 3-4 hours. siku.at...
Page 21
RV 30/50 C Pro (Duo) Comfo V2 SIKU MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC.
Page 22
This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted. CUSTOMER‘S SIGNATURE Seller‘s Stamp INSTALLATION CERTIFICATE The SIKU RV _____________ unit has been connected to power mains pursuant to the requirements stated in the present user’s manual. SELLER ADDRESS PHONE NUMBER INSTALLATION TECHNICAN‘S FULL...
