www.ti.com

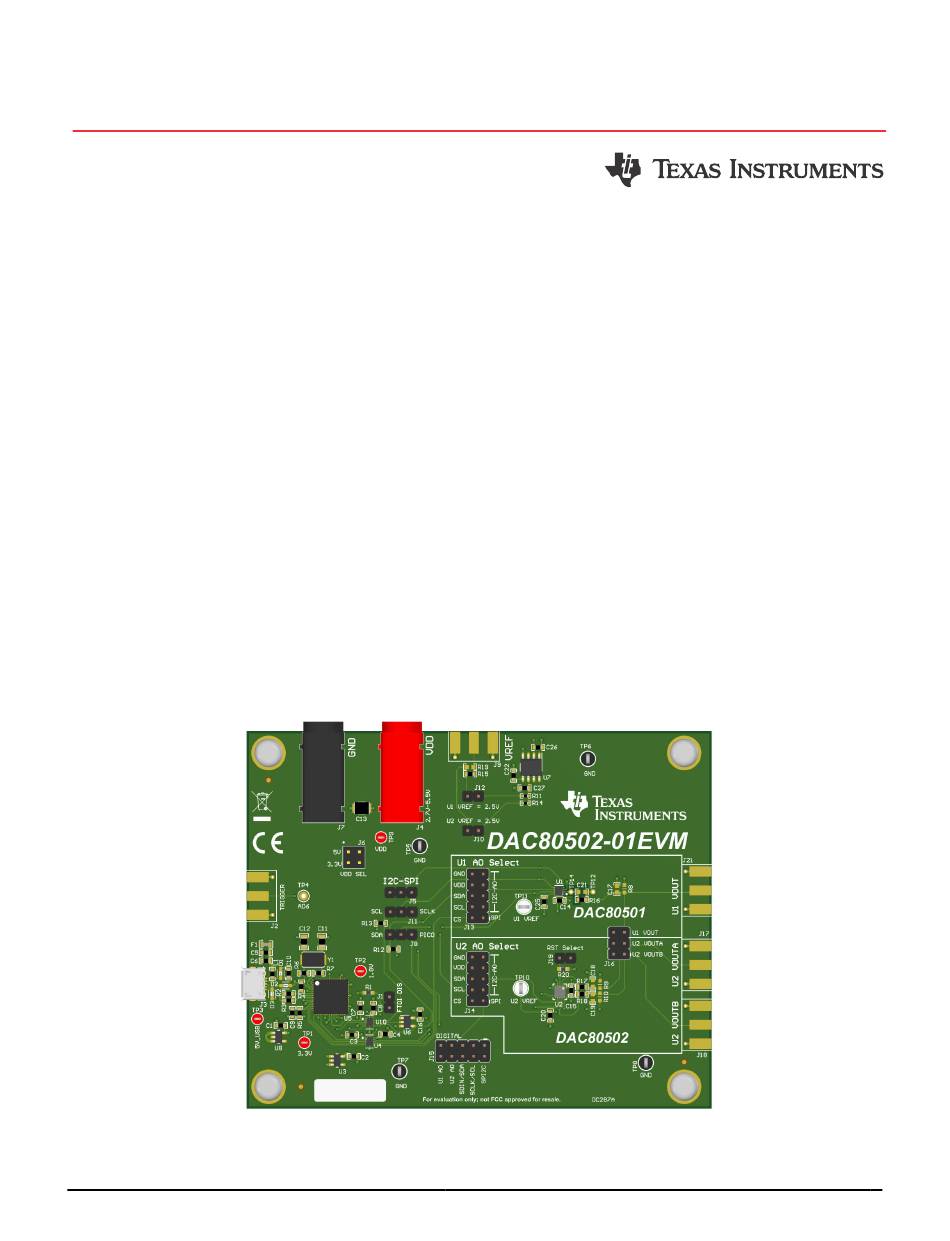

EVM User's Guide: DAC80502-01EVM
DAC80502-01 Evaluation Module
Description

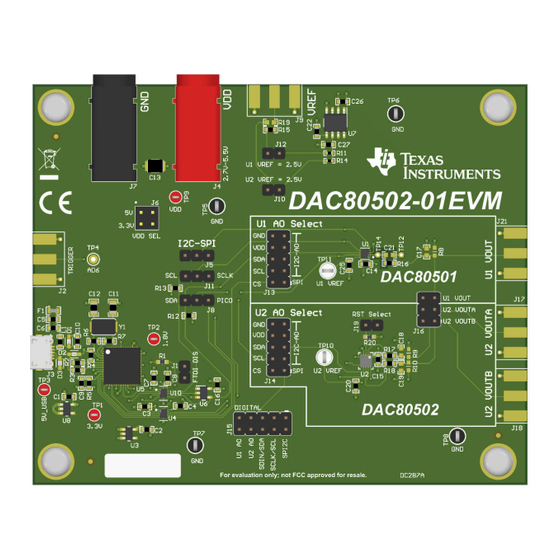

The
DAC80502-01EVM
is an easy-to-use platform
to evaluate the functionality and performance
of the
DAC80502
and
DAC80501
DAC80502-01EVM has optional circuits and jumpers
to configure the device for different applications. The
DAC80502 and DAC80501 are both installed on the
EVM.
The DAC80501 is a single-channel, buffered, low-
voltage-output digital-to-analog converter (DAC) in 16-
bit resolution. DAC80502 is a dual-channel, buffered,
low-voltage-output DAC in 16-bit resolution. The
devices provide unipolar output voltage up to 5V.
Get Started
1. Order the EVM.
2. Configure EVM jumpers.
3. Install the DAC805xxEVM GUI from ti.com.
4. Connect USB and external power supplies.
5. Launch the DAC805xxEVM GUI.
SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024
Submit Document Feedback
Features
•
devices. The
•
•
•
•
•
Applications
•
•
•
•
•
•
•
•
Copyright © 2024 Texas Instruments Incorporated
Configurable circuit to evaluate the DACx0501 and
DACx0502 family of devices
Onboard VDD (5V or 3.3V) support via USB and
onboard voltage regulators
FT4232 easily writes to the DAC using the
DAC805xxEVM GUI
Option for external reference voltage or on-board
2.5V reference voltage
Trigger output is available for synchronous
measurement
2
External SPI and I
C connections available
Oscilloscopes and digitizers
Parametric measurement unit (PMU)
Data acquisition (DAQ)
Flat panel display (FPD) shorting bar pattern
generator
Small cell base station
Analog output module
Process analytics (pH, gas, concentration, force
and humidity)
Programmable dc power supply
DAC80502-01 Evaluation Module
Description
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Texas Instruments DAC80502-01EVM
Summary of Contents for Texas Instruments DAC80502-01EVM
- Page 1 DAC80502 DAC80501 devices. The • Onboard VDD (5V or 3.3V) support via USB and DAC80502-01EVM has optional circuits and jumpers onboard voltage regulators to configure the device for different applications. The • FT4232 easily writes to the DAC using the...
- Page 2 1.4 Device Information Table 1-2 lists the devices supported by the DAC80502-01EVM. DACx050x is used as a generic name for these devices. This document focuses on the DAC80501 and DAC80502 that come pre-installed on the EVM. Table 1-2. DAC80502-01EVM Supported Devices...
- Page 3 C or SPI protocols. 2.1.1 Hardware Theory of Operation The DAC80502-01EVM is connected to the computer through the on-board FTDI digital controller using the USB cable that is supplied with the EVM. The evaluation board features connectors and test points for all communication lines, DAC outputs, and supplies.
- Page 4 Hardware www.ti.com 2.1.2 Jumper Definitions The jumpers must be connected properly to operate the DAC80502-01EVM. Table 2-1 provides the details of the configurable jumper settings of the DAC80502-01EVM. Figure 2-2 shows the default jumper connections on the board. Table 2-1. DAC80502-01EVM Jumper Definitions...
- Page 5 Hardware Figure 2-2. DAC80502-01EVM Default Jumper Settings 2.1.3 Connector Definitions Table 2-2 shows the power connector definitions of the DAC80502-01EVM. Table 2-2. Power Connector Definitions Designator Definition SMA connector for FTDI Trigger Input (unpopulated) USB connector DAC80501 and DAC80502 VDD supply (2.7V to 5.5V)
- Page 6 DAC80502 VOUTA DAC80502 VOUTB 2, 4, 6 Ground 2.1.4 Test Points The DAC80502-01EVM has a variety of test points available for measuring and debugging purposes. Table 2-5 explains the purpose of each test point. Table 2-5. DAC80502-01EVM Test Points Test Point...
- Page 7 2.2.1 Electrostatic Discharge Caution CAUTION Many of the components on the DAC80502-01EVM are susceptible to damage by electrostatic discharge (ESD). Customers are advised to observe proper ESD handling precautions when unpacking and handling the EVM, including the use of a grounded wrist strap at an approved ESD workstation.
- Page 8 Hardware www.ti.com 2.2.4 I C Configuration Figure 2-4 shows the DAC80502-01EVM configured for I C communication. Figure 2-4. DAC80502-01EVM I C Configuration The jumper connections on J13 and J14 determine the device address of the DAC80501 and DAC80502, respectively. Table 2-7 shows the required configuration of the two A0 jumpers for specific device addresses.
- Page 9 If left unchanged, Figure 3-1 shows that the software location defaults to C:\Program Files (x86)\Texas Instruments\DAC805xxEVM. Figure 3-1. Software Installation Path SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 DAC80502-01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 10 FTDI USB drivers installation window that is automatically launched after the DAC805xx software installation is complete. Figure 3-2. FTDI USB Drivers DAC80502-01 Evaluation Module SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 11 GUI. When using SPI, both devices can be used at the same time. When using C, make sure both devices have different I C addresses. Figure 3-4. DAC8050xxEVM Interface Settings Menu SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 DAC80502-01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 12 DEMO MODE or CONNECTED. After the FTDI controller is properly connected to the computer, restart the DAC805xxEVM software to detect the device. Figure 3-6. FTDI Digital Controller Connection Status DAC80502-01 Evaluation Module SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 13 Data are written to the registers by entering a value in the value column of the GUI. Figure 3-7. DAC80501 Low Level Configuration Page SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 DAC80502-01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 14 DAC. The internal reference and the reference division can also be powered on and off here. Figure 3-8. DAC80501 Tab of the High Level Configuration Page DAC80502-01 Evaluation Module SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 15 DACs. The internal reference and the reference division can also be powered on and off here. Figure 3-9. DAC80502 Tab of the High Level Configuration Page SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 DAC80502-01 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 16 Hardware Design Files www.ti.com 4 Hardware Design Files 4.1 Schematics The DAC80502-01EVM schematics are shown in Figure 4-1 through Figure 4-2. 5V -> 3.3V 3.3V -> 1.8V 3p3V 3.3V 1.8V 3p3V TPS72118DBVR 1p8V FTDI_DIS 5V_USB 4.7µF 4.7µF FTDI DIS TLV75533PDBVR...
- Page 17 Figure 4-6 show the board layout for the DAC80502-01EVM. Figure 4-3. DAC80502-01EVM PCB Top Layer Layout Figure 4-4. DAC80502-01EVM PCB Mid Layer 1 Layout (Ground Plane) SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 DAC80502-01 Evaluation Module Submit Document Feedback...
- Page 18 Hardware Design Files www.ti.com Figure 4-5. DAC80502-01EVM PCB Mid Layer 2 Layout (Power Plane) Figure 4-6. DAC80502-01EVM PCB Bottom Layer Layout DAC80502-01 Evaluation Module SLAU919A – NOVEMBER 2023 – REVISED JUNE 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
- Page 19 Hardware Design Files 4.3 Bill of Materials Table 4-1 lists the DAC80502-01EVM BOM. Table 4-1. Bill of Materials for the DAC80502-01EVM Designator Value Description Package Reference Part Number Manufacturer C1, C2, C5 4.7µF CAP, CERM, 4.7µF, 16V,+/- 10%, X7R, 0603...
- Page 20 Hardware Design Files www.ti.com Table 4-1. Bill of Materials for the DAC80502-01EVM (continued) Designator Value Description Package Reference Part Number Manufacturer 10kΩ ±0.1% 0.1W, 1/10W Chip Resistor 0603 R1, R20 10kΩ 0603 CRT0603-BY-1002ELF Bourns Inc. (1608 Metric) Current Sense Thin Film R2, R3 10Ω...
- Page 21 Hardware Design Files Table 4-1. Bill of Materials for the DAC80502-01EVM (continued) Designator Value Description Package Reference Part Number Manufacturer Automotive Catalog Single Buffer/Driver With DBV0005A SN74LVC1G07QDBVRQ1 Texas Instruments Open-Drain Output, DBV0005A (SOT-23-5) Low Noise, Very Low Drift, Precision Voltage...
- Page 22 Texas Instruments integrated circuits used in the assembly of the DAC80502-01EVM. This user's guide is available from the TI web site under literature number SLAU919. Any letter appended to the literature number corresponds to the document revision that is current at the time of the writing of this document.
- Page 23 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
- Page 24 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
- Page 25 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
- Page 26 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
- Page 27 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
- Page 28 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
