ZTW Spider 20A OPTO User Manual

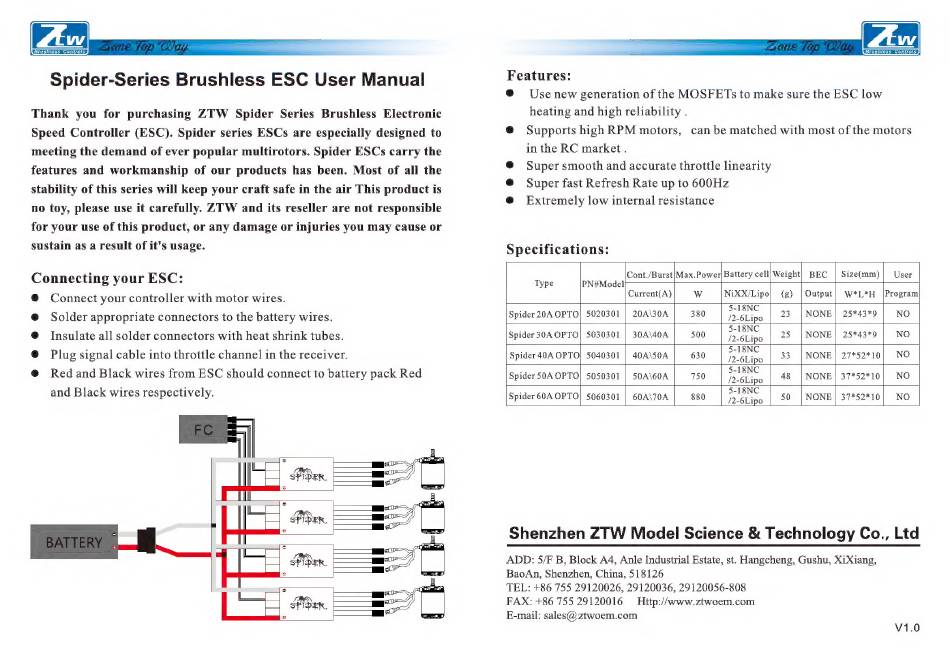

Spider-Series Brushless ESC User Manual
Thank you for purchasing ZTW Spider Series Brushless Electronic
Speed Controller (ESC). Spider series ESCs are especially designed to
meeting the demand of ever popular multirotors. Spider ESCs carry the
features and workmanship of our products has been. Most of all the
stability of this series will keep your craft safe in the air This product is
no toy, please use it carefully. ZTW and its reseller are not responsible
for your use of this product, or any damage or injuries you may cause or
sustain as a result of it's usage.
Connecting your ESC:
@ Connect your controller with motor wires.
Solder appropriate connectors to the battery wires.
Insulate all solder connectors with heat shrink tubes.
Plug signal cable into throttle channel in the receiver.
Red and Black wires from ESC should connect to battery pack Red
and Black wires respectively.
Features:
@ Use new generation of the MOSFETs to make sure the ESC low
heating and high reliability .
@ Supports high RPM motors, can be matched with most of the motors
in the RC market .
Super smooth and accurate throttle linearity
@ Super fast Refresh Rate up to 600Hz
@ Extremely low internal resistance
Specifications:
Cont./Burst|Max.Power|Battery cell|Weight| BEC | Size(mm)| User
Type PN#Model
Current(A)| wo |NiXX/Lipo] (g) |Output| W*L*H {Program
Spider 20A OPTO| 5020301 | 20A\30A 380 ia 23 NONE | 25*43*9 NO
Spider 30A OPTO| 5030301 | 30A\40A 500 Acar 25 NONE | 25*43*9 NO
Spider 40A OPTO| 5040301 | 40A\50A 630 Polina 33 NONE | 27*52*10 NO
Spider 50A OPTO| 5050301 | 50A\60A 750 ao 48 | NONE | 37*52*10 NO
Spider 60A OPTO| 5060301 | 60A\70A 880 Ara 50 | NONE | 37*52*10 NO
Shenzhen ZTW Model Science & Technology Co., Ltd
ADD: S/F B, Block A4, Anle Industrial Estate, st. Hangcheng, Gushu, XiXiang,
BaoAn, Shenzhen, China, 518126
TEL: +86 755 29120026, 29120036, 29120056-808
FAX: +86 755 29120016 = Http://www.ztwoem.com
E-mail: sales@ ztwoem.com
