Summary of Contents for ZTW Mantis Series
-
Page 2: Important Warnings

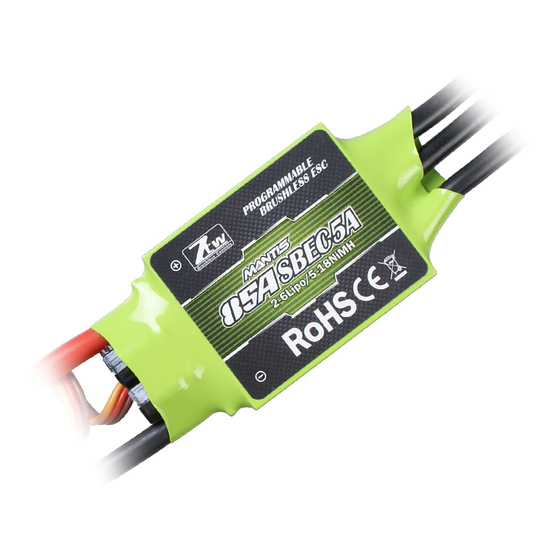

Thank you for purchasing ZTW Mantis Brushless Electronic Speed Controller (ESC). ZTW Mantis series ESC is a medium level product line designed for xed wing and Helis. It features super smooth start up and throttle linearity, multiple protection, strong BEC output, low cost and best performance at this level of product. -
Page 3: Speci Cations
You need extra appropriate battery to offer power supply for the receiver for HV OPTO version. Connection Diagram as follows BATTERY RECEIVER UBEC BATTERY Connecting your Anti-spark Circuit 1. Solder an extra wire to the positive wire (Red) of the battery for sake of best use of the circuit 2. -
Page 4: Throttle Calibration
Cont.\Burst Battery cell Weight Size(mm) User Type PN#Model Current(A) NiXX\Lipo Output W*L*H Program 2085301 85A\100A 5-18NC\2-6Lipo 35x47x11 Mantis 85A OPTO 5.0V,5.5V,6.0V 2085201 5-18NC\2-6Lipo 35x47x15 85A\100A Mantis 85A SBEC 5A adjustable/5A 5.0V,5.5V,6.0V 48x80x21 Mantis 125A SBEC 5A 2125211 125A\150A 5-18NC\2-6Lipo adjustable/5A 5.0V,5.5V,6.0V Mantis 155A SBEC 5A 2155211... -
Page 5: Entering The Programming Mode
Using the ESC 1. Turn on your radio and keep the throttle stick at the lowest position 2. Connect the battery pack to the ESC. 3. Motor emits two sets of audible tones in succession means the ESC is armed and ready to use. - Page 6 3. Low Voltage Protection Threshold ( Cutoff Threshold ) a. Turn on your radio and set the throttle stick to top positon (100%) b. Plug the battery pack into your controller c. Wait for 2 seconds, you will hear 4 groups of two sets of fast beeps, after this you will hear four single beeps to indicate you have successfully entered the programming mode d.
-
Page 7: Timing Setup
5. Timing Setup a. Turn on your radio and set the throttle stick to top positon (100%) b. Plug the battery pack into your controller c. Wait for 2 seconds, you will hear 4 groups of two sets of fast beeps, after this you will hear four single beeps to indicate you have successfully entered the programming mode d. - Page 8 2) Soft Start : Soft Start 1: 8-second delay from start to full rpm; Soft Start 2: 18-second delay from start to full rpm; Note: If the throttle is cut off after starting less 3 Seconds, then the next start will be as normal start.
- Page 9 d. When you here 1 long beep and four short beeps “ Beep----- Beep- Beep- Beep- Beep” means you are in the Start Up Strength menu, please choose your desired value by pulling the throttle stick to the lowest position. e.
-
Page 10: Frequently Asked Questions
BatteryType Lipo NiCd/NiMH LiFe Cut Off Voltage 2.8V/50% 3.0V/60% 3.2V/65% Threshold Protection Restore Factory Restore Setup Defaults Motor Timing Auto 2° 8° 15° 22° 30° SBEC Voltage 5.0V 5.5V 6.0V Output Governor Governor Governor Mode RPM OFF 1 Soft Start 2 Soft Start Mode 1 Mode 2...
