ZTW Spider Series Manual Instruction

Series brushless electronic speed controller

Advertisement

Spider manual Instruction
Thank you for purchasing ZTW Spider Series Brushless Electronic Speed Controller (ESC). Spider
series ESCs are especially designed to meeting the demand of ever popular multi-rotors, and has been
improved and bettered base on the various feedback from the market given the compatibility with some
new design motor on the market. With better quality and competitive price, Spider will be your best
choice for your multirotors.

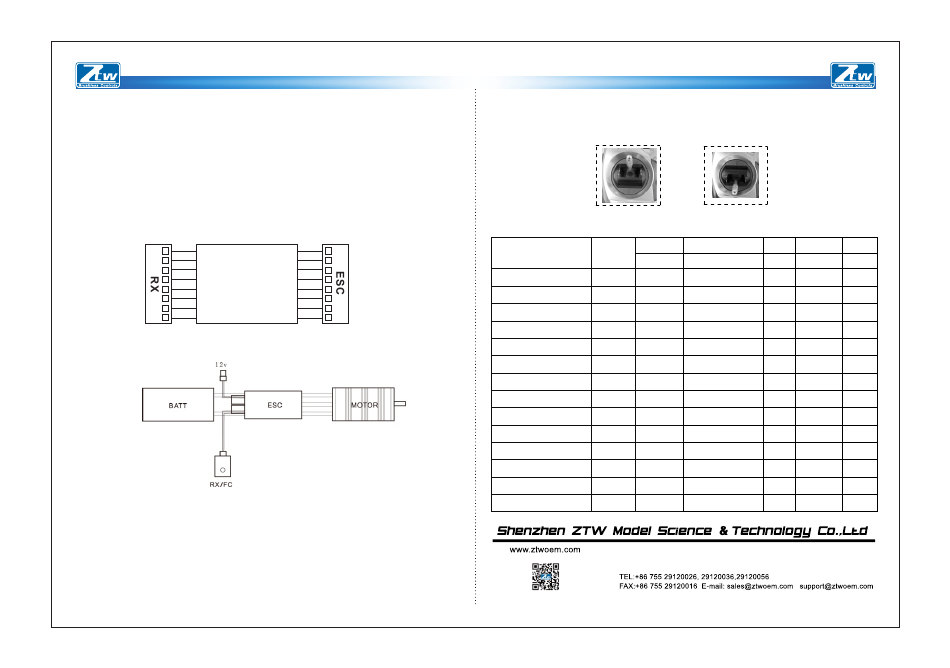

Connecting your ESC:

Connect your controller with motor wires.
Solder appropriate connectors to the battery wires.
Insulate all solder connectors with heat shrink tubes.
Connect ESC signal cable according to your own flight control instruction.
Red and Black wires from ESC should connect to battery pack Red and Black wires respectively.
1
CH1
2
CH2
3
CH3
Flight
4
CH4
5
CH5
Control
6
CH6
7
CH7
8
CH8
Note: In order to provide better power supply to external equipment, we add extra 12v for new
Spider 50A OPTO 12V and Spider 60A OPTO 12V. Longer one is signal cable to receiver or FC,
and short one is BEC 12V output

Features:

• Use new generation of the MOSFETs to make sure the ESC low heating and high reliability .
• Supports high RPM motors,can be matched with most of the motors in the RC market .
• Capable of using BLHELI and Simonk firmware.
• Capable of ONESHOT feature to work better with your flight controllers.
• Super smooth and accurate throttle linearity.
• Super fast Refresh Rate up to 600Hz.

Throttle Calibration:

When you use the ESC for the first time, we would like to suggest you calibrate your throttle end point
of your radio system. This will make the throttle response better. Please see following steps of how-to:
M1
1
M2
2
M3
3
M4
4
M5
5
M6
6
M7
7
M8
8
1. Power on your radio and push your throttle stick to 100%.(see fig 1)
2. Then connect battery to your ESC, you will hear "W V" from motor to confirm the end point
after three seconds.
3. Pull throttle stick back to 0%, you will hear two "
4. Throttle calibration is done. Please recycle your battery to use ESC.
fig 1

Specifications:

Cont./Burst
Type
PN#Model
Current(A)
Spider 12A OPTO
5012301
12A\20A
Spider Lite 18A OPTO
18A\30A
5018301
Spider 20A OPTO
5020301
20A\30A
Spider 30A OPTO
5030301
30A\40A
Spider 40A OPTO
40A\50A
5040301
Spider 20A OPTO Small
5020311
20A\30A
Spider 30A OPTO Small
30A\40A
5030311
Spider 40A OPTO Small
5040311
40A\50A
5050311
Spider 50A OPTO 12V
50A\60A
Spider 60A OPTO 12V
60A\70A
5060311
Z-Link
201000010
3A\5A
UBEC 3A
300100010
6A\10A
UBEC 6A
300200010
UBEC 12A
300300010
12A\18A
ADD: 2/F, Block 1, Guanfeng Industrial Park, The Second Industrial Estate,
Jiuwei New Village, Xixiang, Baoan, Shenzhen, China, 518126
- - —
" from motor confirm the lowest end point.
fig 2
Battery cell
Weight
Size(mm)
User
NXX\Lipo
(g)
Program
W*L*H
5-12NC\2-4Lipo
8
15*26*6
NO
5-12NC\2-4Lipo
5.3
12*22*4.3
NO
5-18NC\2-6Lipo
23
25*43*9
NO
5-18NC\2-6Lipo
25
25*43*9
NO
5-18NC\2-6Lipo
33
27*52*10
NO
5-18NC\2-6Lipo
23
20*47*8
NO
5-18NC\2-6Lipo
20
20*47*8
NO
5-18NC\2-6Lipo
31
20*47*10
NO
5-18NC\2-6Lipo
48
30*55*13
NO
5-18NC\2-6Lipo
50
30*55*13
NO
2.1
30*12*6
NO
7
5-18NC\2-6Lipo
30*13*6
NO
5-18NC\2-6Lipo
18
45*23*10
NO
8-60NC\3-14Lipo
51
60*34*15
NO
V4.0
