ZTW Spider PRO Series Manual Instruction

Spider PRO manual Instruction

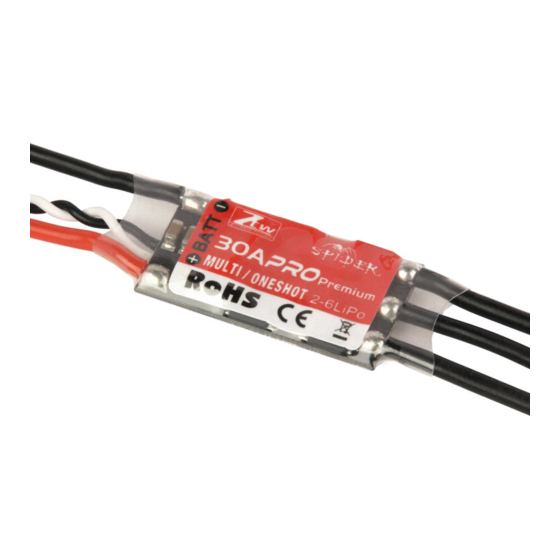

Thank you for purchasing ZTW Spider Pro Series Brushless Electronic Speed Controller(ESC).Spider
Pro series ESCs are especially designed to meet the demand of ever popular FPV RACING multi-
rotors ,and has been improved and bettered base on the various feedback from the market given the
compatibility with some new design motor on the market .With better quality and competitive price .
Spider Pro will be your best choice for you rmultirotors.
Connecting your ESC:
•
Connect your controller with motor wires.
• Solder appropriate connectors to the battery wires.
•
Insulate all solder connectors with heat shrink tubes.
• Connect ESC signal cable according to your own flight control instruction.
•
Red and Black wires from ESC should connect to battery pack Red and Black wires respectively.
1 CH1 M1 1
2 CH2 M2 2
3 CH3 M3 3
Flight
4 CH4 M4 4
Control
5 CH5 M5 5
6 CH6 M6 6
7 CH7 M7 7
8 CH8 M8 8
Features:
• Use new generation of the MOSFETs to make sure the ESC low heating and high reliability .
• Supports high RPM motors，can be matched with most of the motors in the RC market .
• Using BLHELI firmware.
• Capable of ONESHOT feature to work better with your flight controllers.
• Super smooth and accurate throttle linearity.
• Super fast Refresh Rate up to 600Hz.
Throttle Calibration:
When you use the ESC for the first time, we would like to suggest you calibrate your throttle end point
of your radio system. This will make the throttle response better. Please see following steps of how-to:
1. Power on your radio and push your throttle stick to 100%.(see fig 1)
2. Then connect battery to your ESC, you will hear "W V" from motor to confirm the end point
after three seconds.
3. Pull throttle stick back to 0% immediately when you hear "W V".
4. Throttle calibration is done. Please recycle your battery to use ESC.
fig 1 fig 2
Specifications:
Cont./Burst Batter y cell Weight Size(mm)
Type PN#Model
Current(A) NXX\Lipo (g) W*L*H
Spider 12A OPTO 5012301 12A\20A 5-12NC\2-4Lipo 8 15*26*6
Spider Lite 18A OPTO 5018301 18A\30A 5-12NC\2-4Lipo 5.3 12*22*4.3
Spider Lite 20A BEC 20A\30A 5-12NC\2-4Lipo
5020101 8.2 27*14.3*4.5
Spider PRO 20A OPTO 2-4S 5020321 20A\30A 5-12NC\2-4Lipo 9.8 27*14*5.5
Spider PRO 20A HV OPTO 2-6S 5020421 20A\30A 5-18NC\2-6Lipo 12 29*16.5*5.5
Spider PRO 30A HV OPTO 2-6S 5030421 30A\40A 5-18NC\2-6Lipo 29*16.5*5.5
12
Spider PRO Premium 20A OPTO 2-4S 5020331 20A\30A 5-12NC\2-4Lipo 9.8 27*14*5.5
Spider PRO Premium 30A OPTO 2-4S 5-12NC\2-4Lipo
5030331 30A\40A 9.8 27*14*5.5
Spider PRO Premium 20A OPTO 2-6S 5020431 20A\30A 5-18NC\2-6Lipo 11 30.8*16.8*4.7
Spider PRO Premium 30A OPTO 2-6S 5030431 30A\40A 5-18NC\2-6Lipo 11 30.8*16.8*4.7
Spider PRO 20A OPTO 4in1 2-4S 5-12NC\2-4Lipo
5020341 20A\30A 27 43*40*11
2/F, Block 1, Guanfeng Industrial Park, The Second Industrial Estate,
Jiuwei New Village, Xixiang, Baoan, Shenzhen, China, 518126

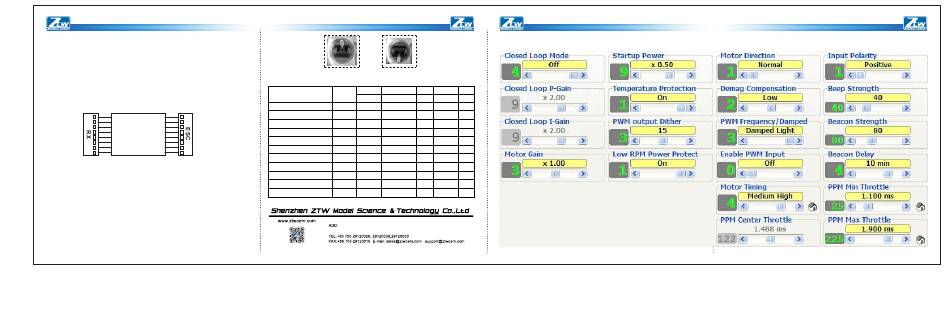

Default setting:
User
Program
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
NO
V2.0
