Summary of Contents for Total UTMGLI2001 Series

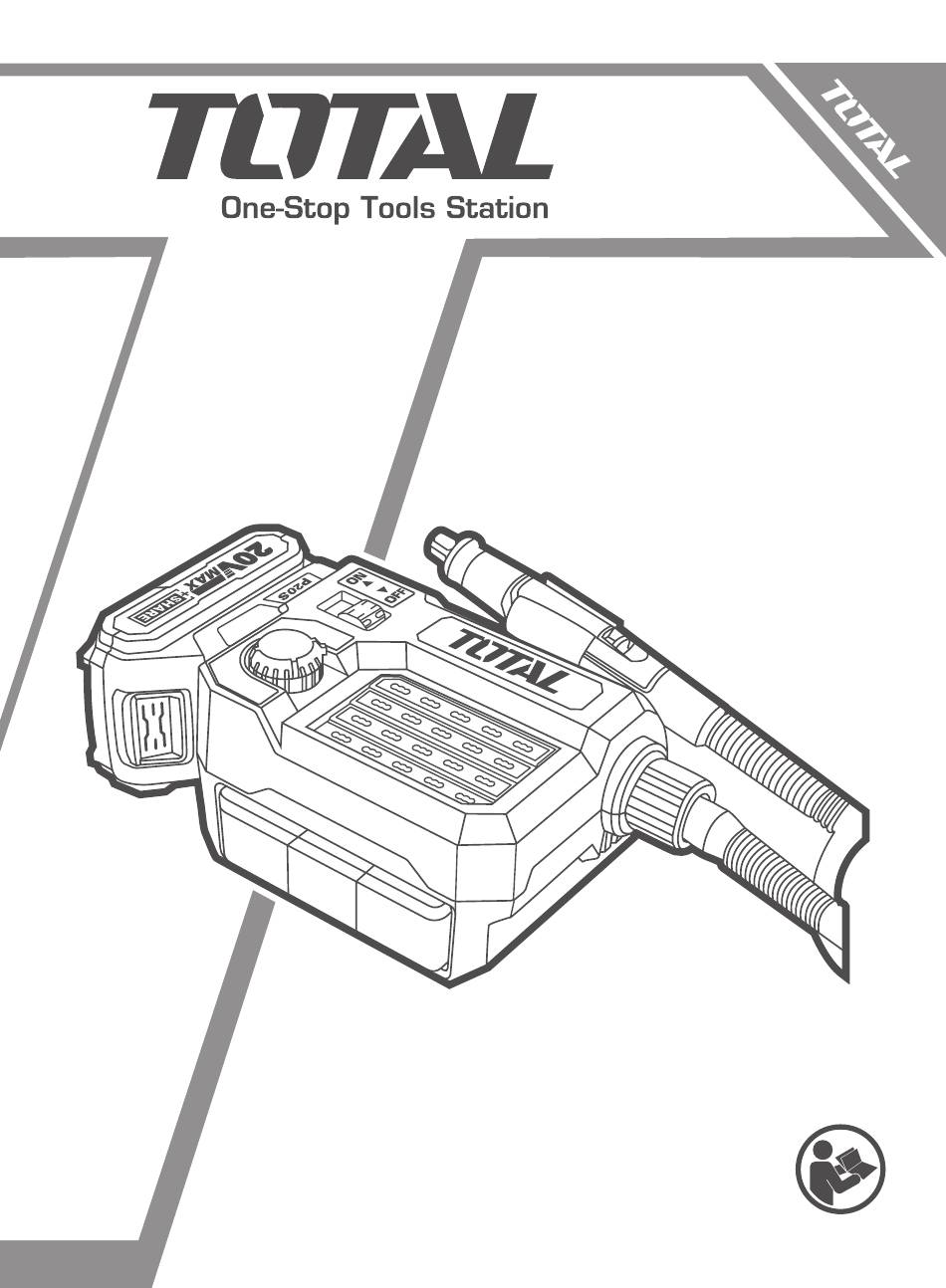

- Page 1 PRODUCT MANUAL LITHIUM-ION GRINDER TMGLI2001,TMGLI2001X,TMGLI2001E, TMGLI2001XE,TMGLI2001X-X, TMGLI 2001M,TMGLI2001XM,TMGLI2001XA, UTMGLI2001,UTMGLI2001X (X stands for 1 to 9)
-
Page 2: General Safety Warnings
Original Instructions GENERAL SAFETY WARNINGS Warning! risk of electric shock if your body is earthed or grounded. Read all safety warnings and all c) Do not expose power tools to rain instructions. or wet conditions. Water entering a power tool will increase the risk of Failure to follow the warnings and electric shock. - Page 3 c) Prevent unintentional starting. any adjustments, changing accesso- Ensure the switch is in the off-po- ries, or storing power tools. Such pre- sition before connecting to power ventive safety measures reduce the risk source and/or battery pack, pick- of starting the power tool accidentally. ing up or carrying the tool.
- Page 4 BATTERY TOOL SAFETY WARNINGS Save these instructions ing improperly or at temperatures outside the specified range may 1) Battery tool use and care damage the battery and increase a) Recharge only with the charger the risk of fire. specified by the manufacturer. A charger that is suitable for one type 2) Tips for maintaining maximum of battery pack may create a risk of...
- Page 5 seek medical attention right away. It f) Do not store the tool and battery may result in loss of your eyesight. cartridge in locations where the tem- perature may reach or exceed 50°C e) Do not short the battery cartridge: (122°F).
- Page 6 THE SYMBOLS IN INSTRUCTION MANUAL Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Charging the battery only below 40ºC. Always recycle batteries. Do not destroy battery by fire.
-
Page 7: Additional Safety Warnings
ADDITIONAL SAFETY WARNINGS 1) Safety instructions for all opera- properly fit the spindle or collet of the tions power tool. Accessories that do not match the mounting hardware of the Safety warnings common for grind- power tool will run out of balance, ing, sanding, polishing, carving or vibrate excessively and may cause abrasive cutting-off operations:... - Page 8 exposure to high intensity noise may power tool out of your control. cause hearing loss. p) After changing the bits or making j) Keep bystanders a safe distance any adjustments, make sure the away from work area. Anyone enter- collet nut, chuck or any other adjust- ing the work area must wear person- ment devices are securely tightened.
- Page 9 b) Use special care when working cor- side of a cut-off wheel. Abrasive cut- ners, sharp edges etc. Avoid bounc- off wheels are intended for peripheral ing and snagging the accessory. grinding, side forces applied to these Corners, sharp edges or bouncing wheels may cause them to shatter.
-
Page 10: Residual Risks
Warning! workpiece to minimize the risk of wheel pinching and kickback. Large workpieces tend to sag under their This power tool produces an own weight. Supports must be electromagnetic field during placed under the workpiece near operation. This field may under the line of cut and near the edge of some circumstances interfere the workpiece on both sides of the... -
Page 11: Components List
SPECIFICATIONS Components list 1. Flexible shaft connector 7. Speed dial 2. Handle storage 8. Storage case 3. Power switch 9. Spindle lock 4. Battery pack 10. Rotary tool handle 5. Flexible shaft 11. Collet nut 6. Storage slots Accessories 1. 40 pcs accessories 2. - Page 12 Warning Note Only use original battery pack x (blank, 1,2,3,4,5,6,7,8,9, E, S,A,M) and battery charger as below for y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9, E, S,A,M) this power tool. Product Battery pack Model No. FBLI200x FBLI2001sy Voltage 20V MAX Capacity 2.0Ah Product Battery pack charger FCLI2034 FCLI2034xy Model No.
- Page 13 OPERATION PICTURE Hold Hold Hold...
-
Page 14: Operation
OPERATION Assembling the flexible Attaching accessories (see shaft (see Dia A1) Dia E) a) Slide back and hold the spindle lock a) Press the end of the flexible shaft con- nector firmly against the square socket. b) Using the supplied wrench slightly loosen the collet nut. - Page 15 MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure Disconnect the When the machine is ●The power cord or wiring is broken, machine from turned on, the electric power cord plug malfunction; the mains and motor does not work.
- Page 16 TOTAL TOOLS WORLD MADE IN CHINA T0223.V01 TOTAL TOOLS CO., PTE. LTD. No. 45 Songbei Road, Suzhou Industrial Park, China.
