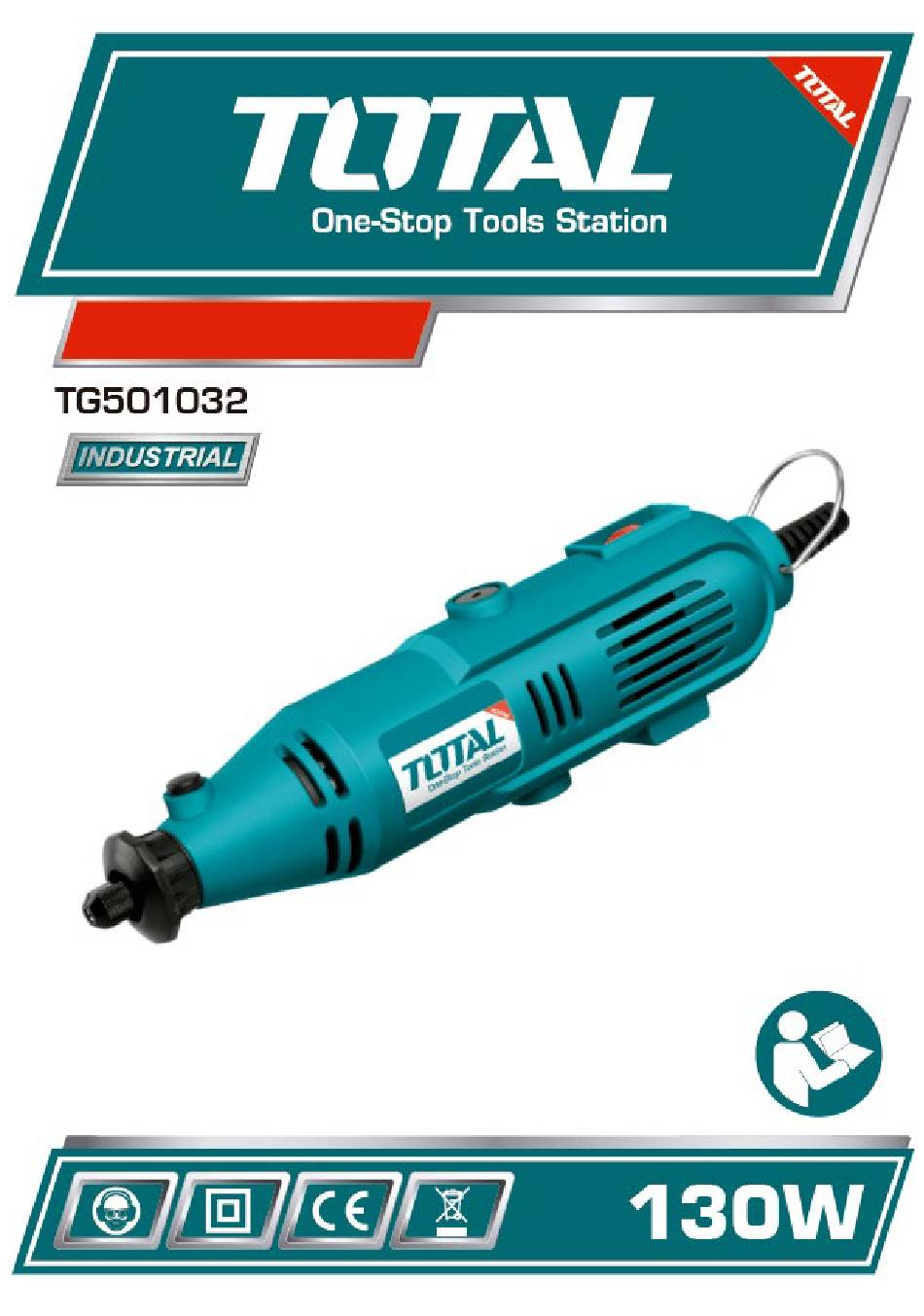

- Page 1 MINI GRINDER...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and instructions. Failure to comply with them may result in electric shock, fire and/or serious injury. To ensure safe operation when using your power tool, be sure to follow basic safety principles to reduce the risk of personal injury, electrical shock, and fire. Please read the following instructions before using this product. -
Page 3: Additional Security Warnings
Safety rules for correct use Double insulation for additional protection Please read the instruction manual before use. CE conformity. Wear safety glasses, gloves, hearing protection, and a dust mask. Waste electrical products must not be disposed of with household waste. Please recycle at the appropriate facilities. -
Page 4: Other Risks
is significant vibration or other defects are detected. If this condition occurs, check the machine to determine the cause. Check that the workpiece is properly supported. • The machine continues to rotate after the tool is turned off. • Inspect the grinding wheel before use, do not use chipped, cracked or defective •... -
Page 5: Product Description

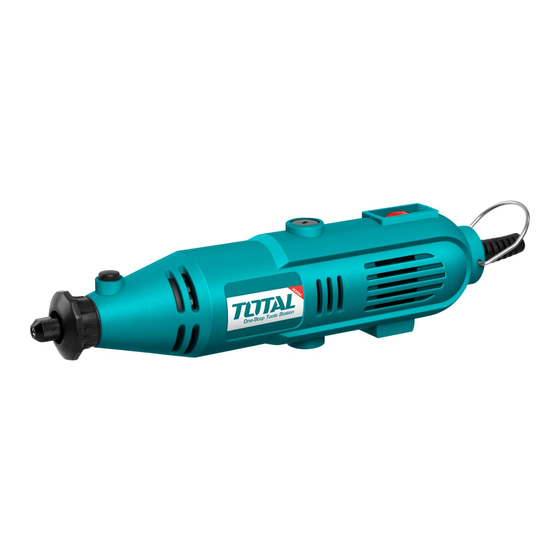

Product description 1. Collet nut 4. Speed selector 2. Spindle lock button 5. Power cord 3. Brush holder 6. On/off switch Note 2: Not all accessories illustrated or described need to be included in the standard delivery. Set up Your rotary tool has been designed for drilling, cutting, sanding, grinding, routing and polishing wood, metal, plastic and stone. - Page 6 Press and hold the spindle lock button. • Use the wrench to loosen the nozzle • nut. Remove the nozzle nut and old • nozzle. Locate the new caliper. • Restore the caliper nut. • Release the spindle lock button. •...
-
Page 7: Maintenance And Cleaning
Maintenance and cleaning Maintenance Make sure the tool is unplugged from power before performing any maintenance. Replacement of carbon brushes Carbon brushes must be checked periodically. There are two brushes on the tool and they must be replaced in pairs. Remove the carbon brush holders with a small flat blade screwdriver and check •... - Page 8 Accessory Description Speed to use in grinding stones At maximum speed Metal Various styles of 30,000rpm Steel heads, on shafts Wood Plastic Copper diamond bits At maximum speed Aluminum various head styles 30,000 rpm Zinc Nickel Mild steel Metal polishing wheel Mounted to At half speed Metal...
-
Page 9: Exploded View
Exploded view... - Page 10 MINI GRINDER...
