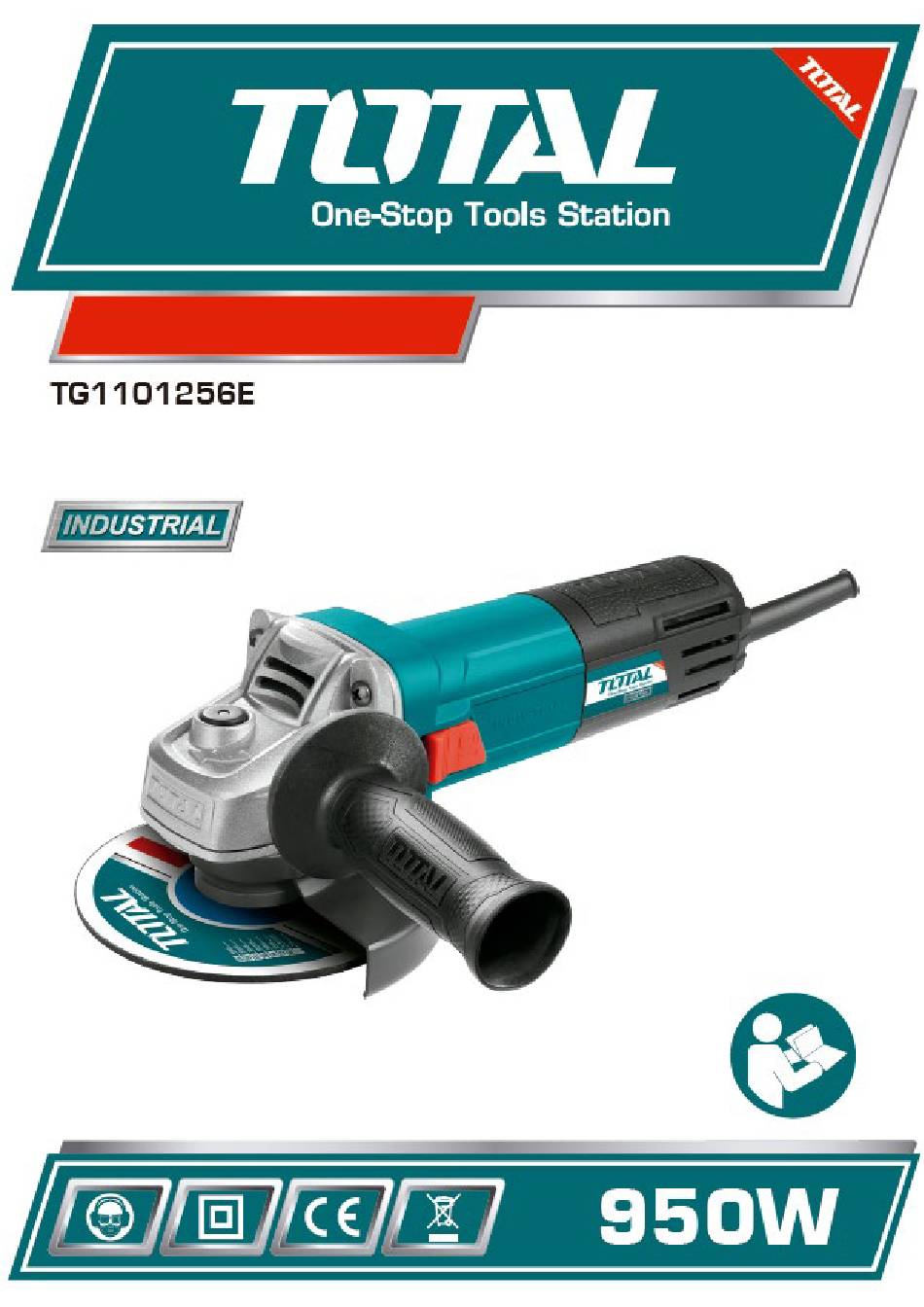

- Page 1 ELECTRIC GRINDER...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire, and / or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 4) Use and care of power tools a. Do not force the tool. Use the right power tool for each use. b. Do not use the power tool if its ignition switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 4: Additional Safety Warnings
Additional safety warnings Grinding, sanding, wire brushing, polishing or abrasion cutting operations This power tool is designed to function as a grinder, sander, wire brush planer, polisher, or cutting tool. Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. - Page 5 Periodically clean the tool vents. The motor fan will draw dust into the housing • and excessive accumulation of powdered metal can cause electrical hazards. Do not use the power tool near flammable materials. Sparks could ignite these • materials. Do not use cutting tools or tools that require coolant.
-
Page 6: Other Risks
Any oversized workpiece should be clamped with the proper clamps to minimize • the risk of jamming. Brackets, clamps, “C” presses, clamps or “F” presses must be positioned on the edges of the workpiece at a safe and secure distance from the cutting or roughing line to be performed. -
Page 7: Technical Data
Technical data Data sheet Voltage 220-240V ~ Frequency 50 / 60Hz Power 950 W No-load speed 11000 / min Disc diameter 115 mm Sanding pad diameter 125 mm Wire brush diameter 75 mm Disc inner diameter Ø22.2 mm Spindle thread Double insulation Weight 2.75 kg... - Page 8 Set up Mounting Auxiliary Handle Installation The auxiliary handle can be positioned in both gearbox positions. If you are right-handed, adjust the handle as shown in the figure. If you are left-handed, adjust the handle in the opposite direction. When using a cut-off wheel, you can screw the handle onto the top of the gearbox.
- Page 9 When the outer flange washer is tight, release the spindle lock button and remove the key. Spindl Disk Outer Inner flange flange switch The on / off switch is in the “OFF” position. The angle sander is started by pushing the on / off switch forward.
- Page 10 For better tool control, material removal and minimal overload, maintain an angle between the blade and the work surface of approximately 15 ° -30 ° during grinding and 10 ° -15 ° during sanding. Put light pressure on the abrasive discs for efficient operation. Pushing too hard will cause a drop in speed and can lead to overloading and motor damage.
-
Page 11: Maintenance And Troubleshooting
Maintenance and troubleshooting Maintenance Make sure the tool is unplugged before performing any maintenance. Keep the ventilation slots clean and free from obstructions. If possible, blow • compressed air into the vents to remove internal dust (safety glasses should be worn when performing this process). -
Page 12: Exploded View
Exploded view... - Page 13 ELECTRIC GRINDER...
