Marca: Total Tools
Voltaje: 110 - 220V~50/60Hz
Potencia: 2400W
Velocidad sin Carga: 8500min
Diametro Disco: 7"
Eje Enrosacado: 5/8 - 11UNC
2400W

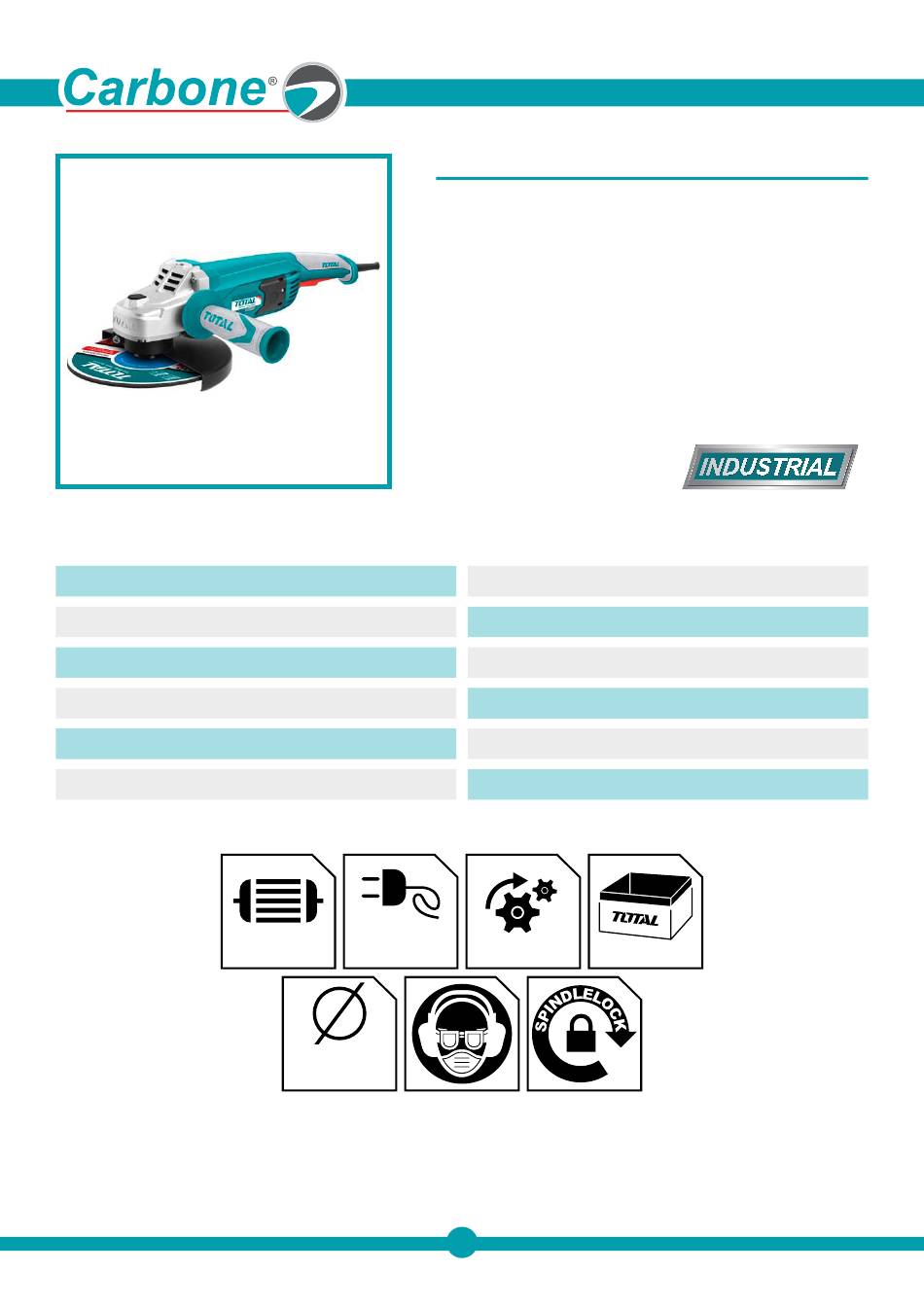

FICHA TÉCNICA
Producto: Lijadora Angular 2400W modelo Antiguo
DESCRIPCIÓN:
modelo antiguo. Funciona con voltaje 110-120V~50/60Hz,
de una velocidad sin carga de 8500min-1. Eje enroscado de
5/8 - 11 UNC con spindle lock que permite cambio de disco
facilmente. Mango auxiliar y llave incluidos con la herramineta.
CÓDIGO:
-1
110-120V
~ 50/60Hz
180mm
230mm
1

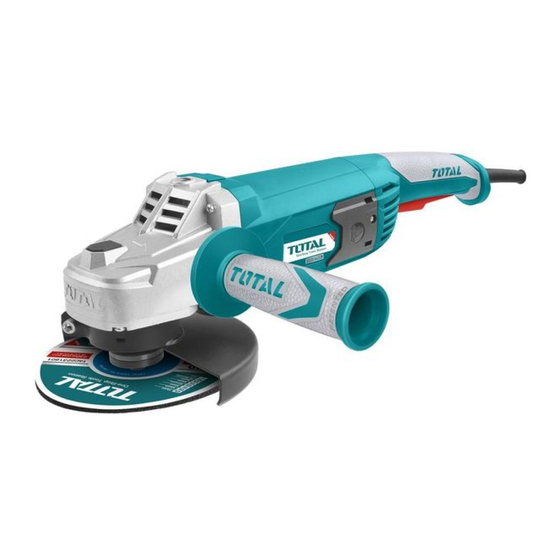

Lijadora angular Total Tools de 2400 W
UTG1241806
Mango Auxiliar y Llave: Incluidos
Garantía: 3 meses
Incluye: Spindle Lock, Incluido, permite cambio discos
facilmente.
Procedencia: Importado
min
-1
8500
Caja a color
Generadores
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Total TG1241806
Summary of Contents for Total TG1241806
- Page 1 Generadores FICHA TÉCNICA Producto: Lijadora Angular 2400W modelo Antiguo Lijadora angular Total Tools de 2400 W DESCRIPCIÓN: modelo antiguo. Funciona con voltaje 110-120V~50/60Hz, de una velocidad sin carga de 8500min-1. Eje enroscado de 5/8 - 11 UNC con spindle lock que permite cambio de disco facilmente.
-
Page 2: Angle Grinder
ANGLE GRINDER www.totaltools.cn TOTAL TOOLS CO.,LIMITED MADE IN CHINA T1217.V06 2350W... - Page 3 General Power Tool Safety Warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
- Page 4 5) Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) If the replacement of the supply cord is necessary, this has to be done by the manufacturer or his agent in order to avoid a safety hazard.
- Page 5 accessory may grab the surface and pull the power tool out of your control. m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning accessory could snag your clothing, pulling the accessory into your body. n) Regularly clean the power tool’s air vents.
- Page 6 to these wheels may cause them to shatter. e) Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. f) Do not use worn down wheels from larger power tools.
-
Page 7: Specifications
SPECIFICATIONS Model No. TG1241806 UTG1241806 TG1241806-4(IRAM Plug) Rated voltage 220-240V~50/60Hz 110-120V~50/60Hz 220-240V~50/60Hz Rated power input 2350W 2350W 2350W No-load speed 8000/min 8000/min 8000/min Disc diameter 180mm 7˝ 180mm Spindle thread 5/8˝-11UNC Model No. TG1241806-6(ISRAEL Plug) TG1241806-8(BS Plug) TG1241806S (SAA Plug) -
Page 8: Specific Safety Rules
10. Dress properly. Do not wear loose clothing or Service jewelry. Contain long hair. Keep your hair, 23. Tool service must be performed only by clothing, and gloves away from moving parts. qualified repair personnel. Service Loose clothes, jewelry, or long hair can be caught maintenance performed by unqualified personnel in moving parts. -
Page 9: Functional Description
flawed, it will likely separate during this test. Use only flanges specified for this tool. Symbols Be careful not to damage the spindle, the The followings show the symbols used for tool. flange (especially the installing surface) or the ･ volts lock nut. - Page 10 For continuous operation, pull the switch trigger and Switch handle mounting positions then push in the lock button, and then relese the switch trigger. 1. Motor housing To stop the tool from the locked position, pull the switch 2. Handle trigger fully, then release it.
- Page 11 For tool with clamp lever type wheel guard and securely tighten clockwise. 1. Bearing box 1. Lock nut wrench 2. Wheel guard 2. Shaft lock 3. Nut To remove the wheel, follow the installation procedure in 1. Nut reverse. Installing or removing flex wheel (optional accessory) 1.
-
Page 12: Operation
To remove the disc, follow the installation procedure in Operation with wire cup brush (optional reverse. accessory) OPERATION 1. Wire cup brush 2. Urethane WARNING: washer It should never be necessary to force the tool. The • weight of the tool applies adequate pressure. Forcing and excessive pressure could cause dangerous wheel breakage. -
Page 13: Maintenance
If you decide to use your TOTAL grinder with approved accessories which you purchase from your TOTAL distributor or factory service center, be sure to obtain and use all Replacing carbon brushes necessary fasteners and guards as recommended in this manual. - Page 14 TG1241806,UTG1241806, TG1241806-4 TG1241806-6,TG1241806-8,TG1241806S Exploding view 35 36 30 31 28 29 49 50 43 44 41 42 56 57...
-
Page 15: Spare Part List
TG1241806,UTG1241806, TG1241806-4 TG1241806-6,TG1241806-8,TG1241806S Spare part list Part Description Part Description Special Spanner 6201 Bearing Pressure Plate Press Plate of Bearing Grinding Wheel Screw M5×10 Pressure Plate Rotor Guard Dustproof Cover Screw M8×30 629 Bearing Nut M8 Bearing Sheath Main Spindle Cross Screw ST5×75...
