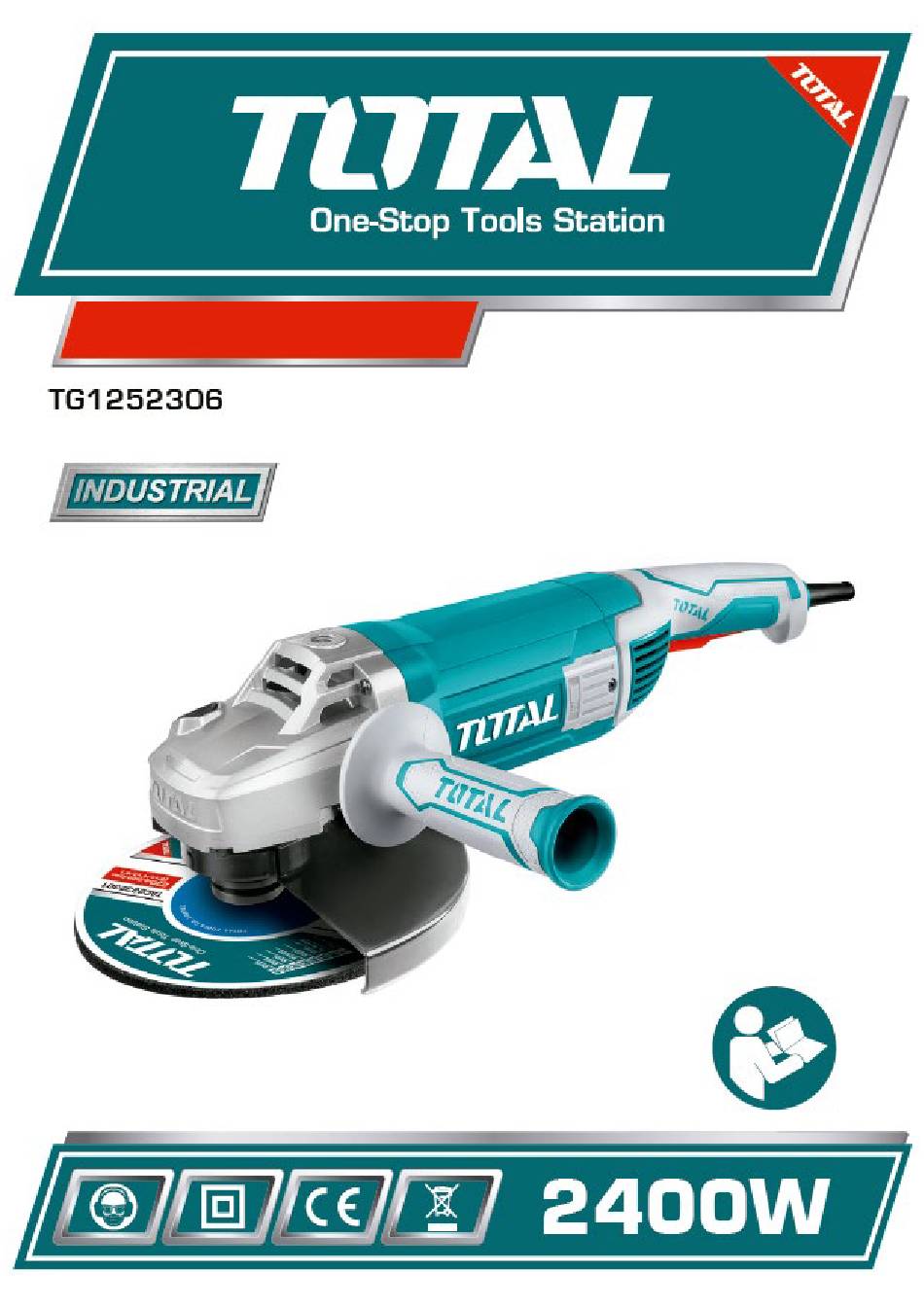

- Page 1 ELECTRIC GRINDER...
-
Page 2: Security Instructions
Security instructions Caution Read all safety warnings and all instructions. Failure to follow all warnings and instructions can result in electric shock, fire, and / or serious injury. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 4) Use and care of power tools a. Do not force the tool. Use the right power tool for each use. b. Do not use the power tool if its ignition switch does not work. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
-
Page 4: Additional Safety Warnings
Additional safety warnings Grinding, sanding, wire brushing, polishing or abrasion cutting operations This power tool is designed to function as a grinder, sander, wire brush planer, polisher, or cutting tool. Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. - Page 5 Periodically clean the tool vents. The motor fan will draw dust into the housing • and excessive accumulation of powdered metal can cause electrical hazards. Do not use the power tool near flammable materials. Sparks could ignite these • materials. Do not use cutting tools or tools that require coolant.
-
Page 6: Other Risks
Do not restart the cutting operation on the workpiece. Allow the blade to reach • full speed and re-cut with caution. The blade can bind, rise, or roll back if the power tool is reset on the workpiece. Any oversized workpiece should be clamped with the proper clamps to minimize •... -
Page 7: Technical Data
Attention Safe working with this machine is only possible when the operating or safety information is fully read and the instructions contained therein are strictly followed. Technical data Grinder datasheet Voltage 220-240V ~ Frequency 50 / 60Hz Power 2400 W No-load speed 6300 / min Wire brush diameter... - Page 8 Change action 1. Lock button 2. Trigger switch Attention Before plugging in the tool, always check that the switch trigger operates correctly and returns to the OFF position when released. To start the tool, press the lock button and then squeeze the switch trigger. Release the trigger to stop.
- Page 9 Install or remove disk protection When using a multi-disc grinding wheel, flexible wheel or wire wheel brush, the wheel guard must be installed on the tool so that the closed side of the guard always points towards the user. 1. Wheel guard 2.
- Page 10 Functioning Attention It should never be necessary to force the tool. The weight of the tool applies adequate pressure. Excessive force and pressure can cause dangerous wheel breakage. Never turn on the tool when it is in contact with the workpiece, it may cause injury to the operator.
- Page 11 Note: When using a wire cup brush, mount the washer on the shaft. It will make it easier to remove the wire cup brush. Wire wheel brush operation (optional accessory) 1. Wire wheel brush Attention Verify the operation of the wire wheel brush by running the tool without load, making sure that no one is in front of or in line with the wire wheel brush.
-
Page 12: Maintenance And Troubleshooting
In the case of cutting stone or brick, it is recommended to use a dust extractor. • The electronic control allows a continuous preselection of the speed according to the material to be worked. Constant electronic control keeps the preset impact rate nearly constant between no-load and load conditions. - Page 13 Problem solving If your grinder has problems, check the following: • If it is not working, check the power supply at the mains connection socket. • If the disc wobbles or vibrates, check that the outer flange is tight; verify that the disc is properly seated on the flange plate.
-
Page 14: Exploded View
Exploded view... - Page 15 ELECTRIC GRINDER...
