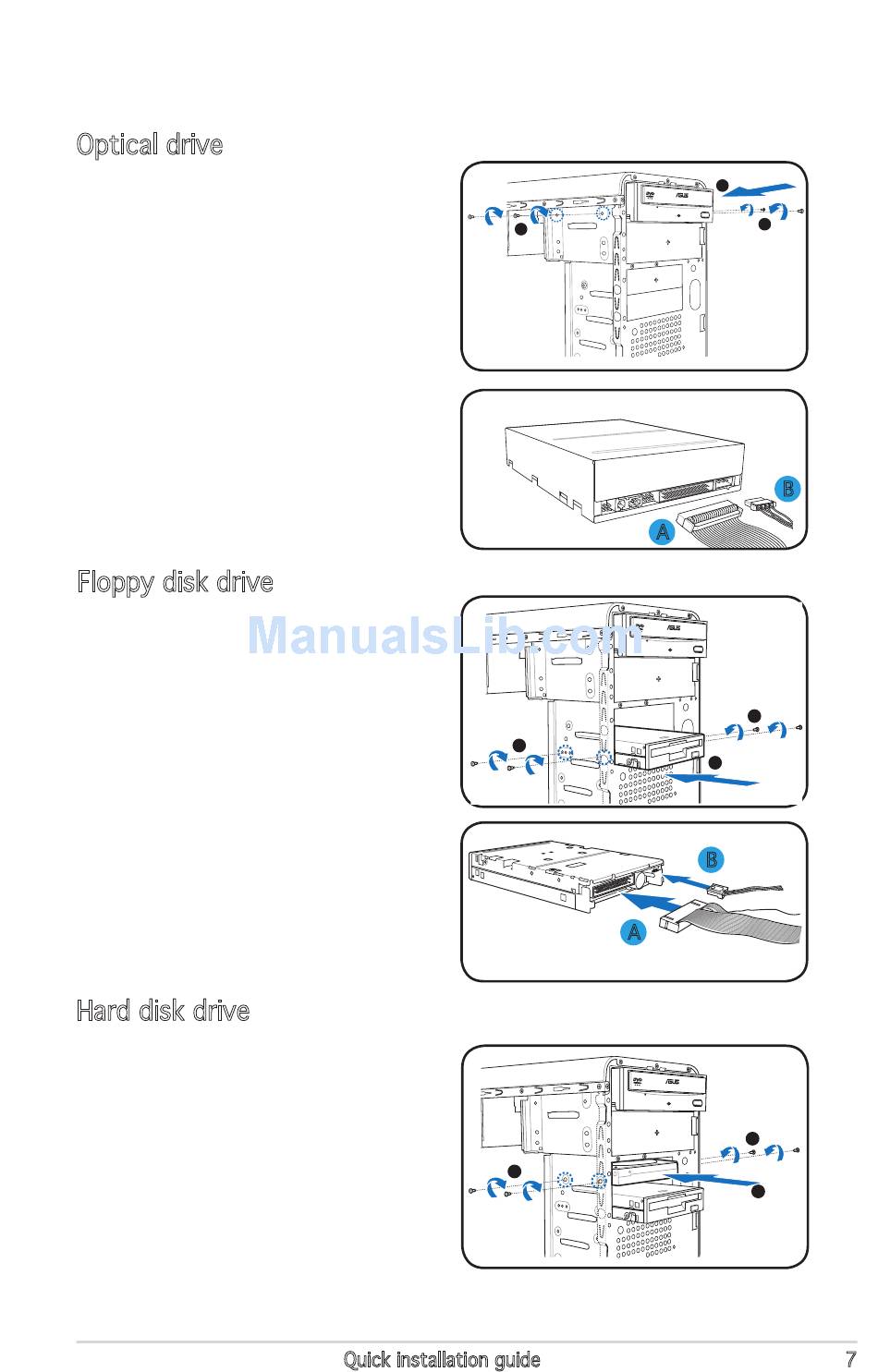

Installing storage drives
Optical drive
1.
Place the chassis upright, then
remove the upper 5.25" drive
bay metal plate cover.
2.
Insert the optical drive to the
bay, then carefully push the
drive until its screw holes align
with the holes on the bay.
3.
Secure the optical drive with two
screws on both sides of the bay.
4.
Connect the IDE (A) and power
(B) plugs to connectors at the
back of the drive.
Floppy disk drive
1.
Place the chassis upright, then
remove the lower 3.5" drive bay
metal plate cover.
2.
Insert the floppy disk drive to
the bay, then carefully push the
drive until its screw holes align
with the holes on the bay.
3.
Secure the floppy disk drive with
two screws on both sides of the
bay.
4.
Connect the signal (A) and
power (B) plugs to connectors at
the back of the drive.
Hard disk drive
1.
Place the chassis upright, then
remove the upper 3.5" drive bay
metal plate cover.
2.
Insert the hard disk drive to the
bay, then carefully push the
drive until its screw holes align
with the holes on the bay.
3.
Secure the hard disk drive with
two screws on both sides of the
bay.
