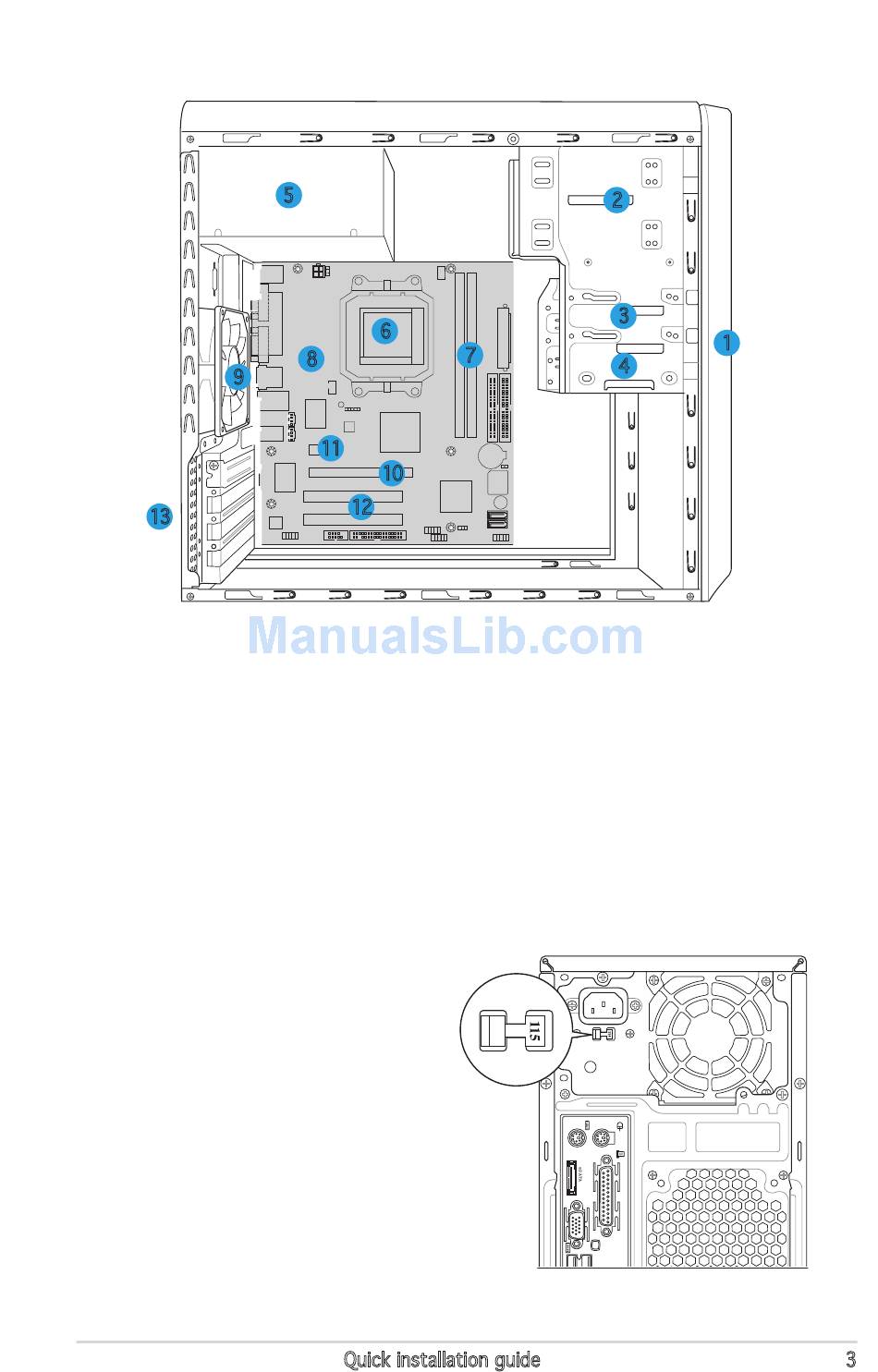

Internal components
9
13
1.
Front panel cover
2.
5.25-inch optical drive bays
3.
Hard disk drive bay
4.
Floppy disk drive bay
5.
Power supply unit
6.
CPU socket
7.
DIMM sockets
Selecting the voltage
The systemʼs power supply unit has
a 115 V/230 V voltage selector
switch located beside the power
connector. Use this switch to select
the appropriate system input voltage
according to the voltage supply in your
area.
If the voltage supply in your area is
100-127 V, set the switch to 115 V.
If the voltage supply in your area is
200-240 V, set the switch to 230 V.
5
6
8
M2V-TVM
11
10
12
Quick installation guide
2
3
7
4
8.
ASUS motherboard
9.
Chassis fan
10. PCI Express x16 slot
11. PCI Express x1 slot
12. PCI slots
13. Metal bracket lock
1
3
