Refer to the system user guide for installation details and other system
information from ASUS website.

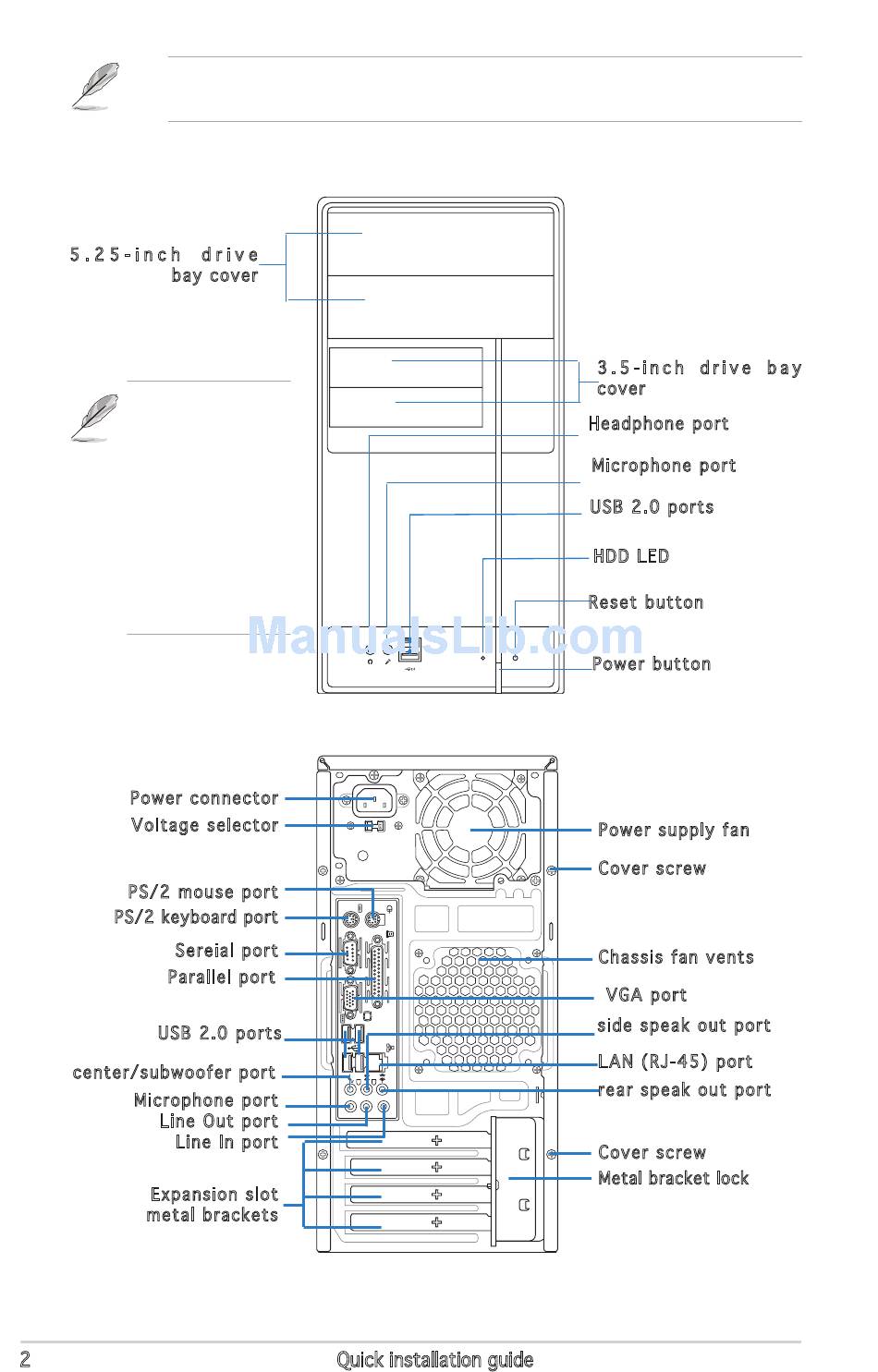

Front panel features
5 . 2 5 - i n c h
bay cover
This V-series
provide V2/V3
two types of
front panel for
users to choose,
please refer to
your product
package for the
front panel type
you purchased.
Rear panel features
Power connector
Voltage selector
PS/2 mouse port
PS/2 keyboard port
Sereial port
Parallel port
USB 2.0 ports
center/subwoofer port
Microphone port
Line Out port
Line In port
Expansion slot
metal brackets
2
d r i v e
Quick installation guide
3 . 5 - i n c h d r i v e b a y
cover
Headphone port
Microphone port
USB 2.0 ports
HDD LED
Reset button
Power button
Power supply fan
Cover screw
Chassis fan vents
VGA port
side speak out port
LAN (RJ-45) port
rear speak out port
Cover screw
Metal bracket lock
