Summary of Contents for Bryton Rider S510

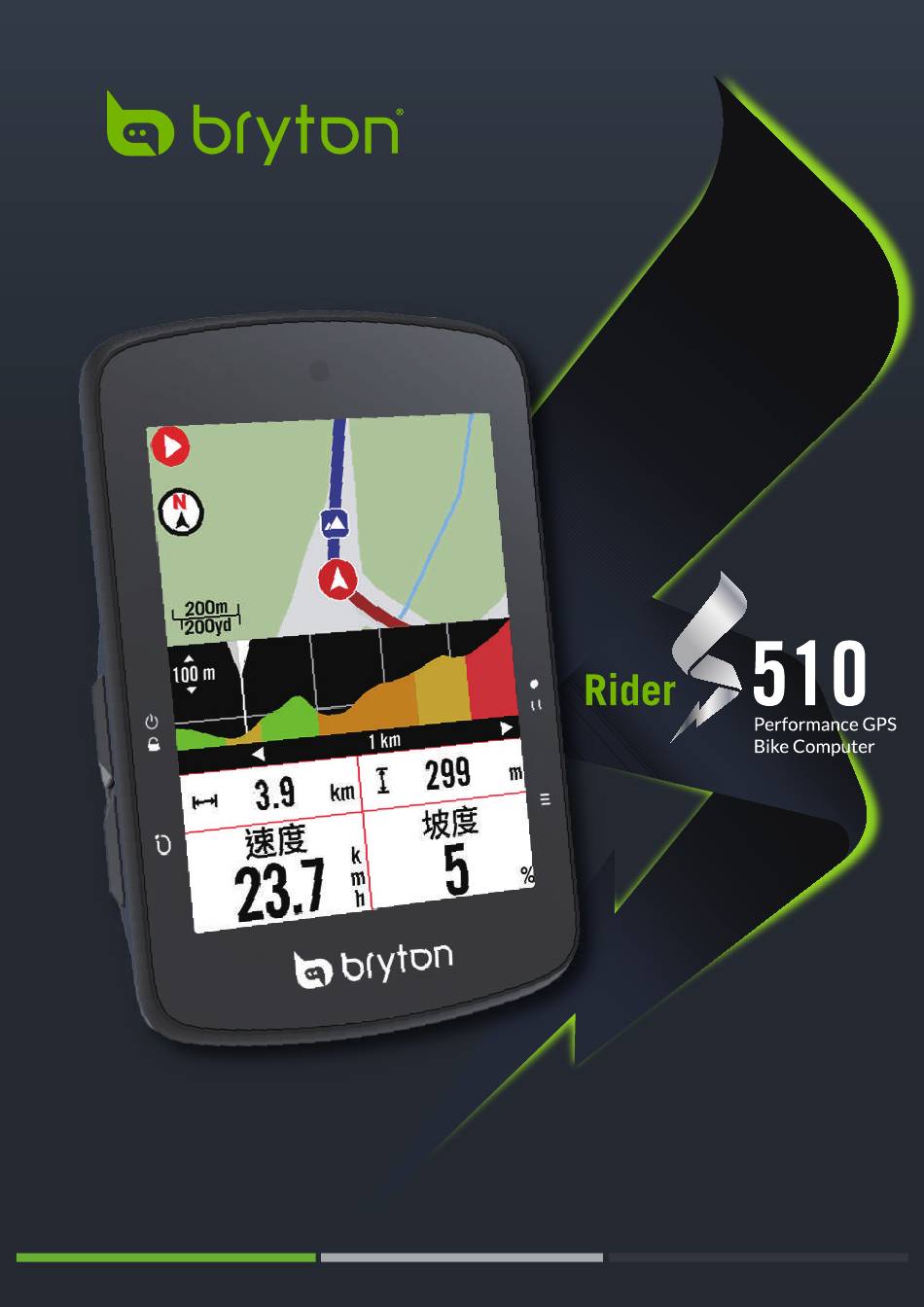

  • Page 1 使用手冊...

  • Page 2: Table Of Contents

    Quick Status ........Retrace ..........Status Icons ........Download Maps ......... Results ........Step 1: Charge your Rider S510 ..Settings ........Step 2: Turn On Rider S510 ....Step 3: Initial Setup ......Bike Setup ......... Step 4: Acquire Satellite Signals ..

  • Page 3: Australian Consumer Law

    Video Tutorial For a step-by-step demonstration of device and Bryton Active app, please scan the QR code below to check out Bryton Tutorial Videos. http://www.youtube.com/c/BrytonActive...

  • Page 4: Getting Started

    In Cycling mode, press to switch meter screen pages. Reboot Rider Press ( ) at the same time to reboot the device. Accessories The Rider S510 E SKU comes with the following accessories: USB Cable Bike Mount Safety Landyard Optional items: (Include in T Sku)

  • Page 5: Touch Screen

    Touch Screen Speed Speed Altitude Speed Speed Speed Cadence Alt. Gain Cadence Alt. Gain Cadence Alt. Gain Cadence Alt. Gain Cadence Ride Time Gradient Ride Time Gradient Ride Time Gradient Ride Time Gradient Ride Time 06:15 06:15 06:15 06:15 06:15 Trip Time Calories Trip Time...

  • Page 6: Gui Display

    GUI Display Outer Rings Average value Inner Rings Current value when using a Speed or a Cadence sensor. Current value when using a Heart Rate Monitor or a Power sensor. The colors will change by different zones, which are based on the settings 15.2 1293...

  • Page 7: Quick Status

    Quick Status See key statuses while riding, such as sensor & smartphone connection, GPS signal, and individual battery status of paired sensor ,etc…Users can also see if device is recording at a glance by the flicker. 1. Single-tap the screen on meter page to open the Quick Staus menu.

  • Page 8: Status Icons

    Status Icons Icon Description Icon Description Icon Description Screen Locked Status Off Zoom In Recording Heart Rate Sensor Zoom Out Speed Sensor Recording Pause Move the Map Active Device Battery Cadence Sensor Location Unable GPS Combo Sensor Compass Mode Power Meter GPS Off / Heading Mode No Signal (not xed)

  • Page 9: Step 1: Charge Your Rider S510

    Step 2: Turn On Rider S510 Press to turn on the device. Step 3: Initial Setup When powering on the Rider S510 for the first time, follow the instruction to complete setup. 1. Select the display language. 2. Choose the units of measurement.

  • Page 10: Step 4: Acquire Satellite Signals

    Step 4: Acquire Satellite Signals Once the Rider S510 is turned on, it will automatically search for satellite signals. It may take 30 to 60 seconds to acquire signals for first time use. • The GPS signal Icon ( ) appears when GPS is fixed.

  • Page 11: Step 6: Share Your Records

    Register for a new account. 2. Connect to PC Turn on your Rider S510 and connect it to a computer by USB cable. 3. Share Your Records a. Click “+” in the right upper corner. b. Drop FIT, BDX, GPX file(s) here or Click “Select files” to upload tracks.

  • Page 12: App

    Bryton Active App. match, press Cancel and try again. NOTE: Bryton Active App syncs with Brytonactive.com. If you already have a brytonactive.com account, please use the same account to log in to Bryton Active App and vice versa.

  • Page 13: Firmware Update

    Firmware Update Bryton Update Tool Bryton Update Tool is the tool for you to update GPS data, firmware and download Bryton Test. 1. Go to http://www.brytonsport.com/#/supportResult?tag=BrytonTool and download Bryton Update Tool. 2. Follow the on-screen instructions to install Bryton Update Tool.
  • Page 14 Or select Firmware Update to start updating. c. Choose to update the firmware with the Bryton cable or Bluetooth. You will need a USB-C to USB Adapter with Bryton original cable. Make sure the smartphone is connected to the device. Select the “BRYTON” root folder to allow Bryton Active app gets permission to access the device for downloading new firmware.

  • Page 15: For Android Phone

    Or select Firmware Update to start updating. c. Choose to upadte the firmware with Bryton cable or with Bluetooth. If you are using the cable, please give the app permission to access phone storage. You will need a USB-C to...

  • Page 16: Course

    3. Auto sync routes from Strava, Komoot and RideWithGPS. Plan Trips via Bryton Active App 1. In Bryton Active App, select Course > My Route > + > Plan trip to set a Start point and Destination by tapping on the map or inputting address in left Search Bar.
  • Page 17 Peak in Route mode, allowing you to make the right decision based on your status and stay motivated along the way. 1. Go to Course > My Routes in Bryton Active App. 2. Select the route you would like to add POIs.

  • Page 18: Route Guidance

    After downloading routes to the Rider S510, you are able to follow the route guidance. Rider S510 supports advanced features to help you stay on track and get the most out of your rides, such as auto-rerouting, on-screen POIs, and reverse downloaded routes.
  • Page 19 Navigate to the Start/Nearest Point on route When you start to follow a route, Rider S510 will ask if you want to navigate to the start or not. Once you get on the route, Rider S510 will guard you to the route finish.

  • Page 20: Climb Challenge 2.0

    Climb Challenge 2.0 When you approach a climb, the Rider S510 will change to the Climb Section page, providing an overview of a route’s climb segments. The Climb Challenge screen shows a color-coded altitude map based on the gradient, distance remaining, and ascent remaining, giving you the climb information at-a-glance.

  • Page 21: Workout

    2. Import workout from 3rd party platforms. Plan workout via Bryton Active App 1. In Bryton Active App, select Course > Workout Plan > My Workout > Plan Workout to plan a training workout by selecting interval types and enter details.
  • Page 22 After you synced the workout plan from the app for the 7-day period, the workouts will disapper when the date passed. If you want to save a particular workout to the Rider S510, please download the workout from the app to the device.information.

  • Page 23: Smart Trainer

    2. Select to confirm. NOTE: To see how to create tracks: 1. Plan trip via Bryton Active App. 2. Import routes from 3rd party platforms. 3. Auto sync routes from Strava, Komoot and RideWithGPS. Please go to Page16.
  • Page 24 Smart Workout Training plans can be built with the Bryton Active App and downloaded directly to the Rider S510. With ANT+ FE-C support, the Rider S510 will communicate with your smart trainer to simulate the resistance from the training plan.
  • Page 25 5. Power training will automatically stop once you start 00:45:59 Virtual Ride or the Smart Trainer lost connection. Power NOTE: You need to connect a smart trainer to the Rider S510 before having access to the Virtual Ride, Smart Workout, Resistance, and Power Workout.

  • Page 26: Group Ride

    Join Group Ride The Group Ride needs to work with the Bryton Active app. Please make sure you pair the Rider S510 with the Bryton Active app on your smartphone. Create Group Ride 1. Select Course on Bryton Active app.

  • Page 27: Live Track

    Share your real-time location with friends and family using the Live Track feature.Before using, please ensure that Rider S510 is already recording a ride by pressing the record button and then open the Bryton Active app on our smartphone. This feature will not work properly if the device is not recording.

  • Page 28: Navigation

    Navigation With connection to the internet, you can use your voice to search for locations on the Rider S510 in over 100 languages. The voice search features offers a faster, more intuitive and more convenient to find addresses or POIs. Voice Search Select Navigation in the home page.

  • Page 29: Pin A Location

    2. Tap on to start navigation. Navigate on Bryton Active App 1. Pair the Rider S510 with Bryton Active App, select Course > Navigation. 2. Input keywords or address or POI type in the search bar then click 3.

  • Page 30: Retrace

    Retrace When you want to return back to your starting location, the Rider S510 can help you double back with just a press of a button at any point during a ride, using the same path you took to retrace your steps and providing turn-by-turn route guidance! Route 1.

  • Page 31: Download Maps

    3. Wait until S510 is shown on the screen and then select “Update Map”. Here you will see the maps installed or downloaded on your device. 4. Select “Add Bryton Standard Map” if you want to download other maps by country or region.

  • Page 32: Results

    Results You can view recorded activities on the Rider S510 or delete records to free more storage capacity of the device. View Records 1. Select in the home page. 2021/12/15 2. Pick a record to view details. Summary Details 3. Tap Details or Summary to see different data.

  • Page 33: Settings

    Bike Setup Rider S510 supports up to 3 bike profiles, it is easier than ever to customize your device for any type of setup. Settings for each profile can be completely customized such as GPS system, data fields, and auto features.
  • Page 34 GPS System Rider S510 has full GNSS (Global Navigation Satellite System) support including GPS, GLONASS (Russia), BDS (China), QZSS (Japan) and Galileo (EU). You can select to turn on or off the GPS system. 1. Select in the home page.
  • Page 35 Overview Select Overview to view more details of the bike odometer. Find in the home page > Bike Settings > Select a bike Overview profile > Overview Trip 1 20 km Trip 1 / 2: Trip 2 Cumulative mileage recorded before you reset it. You are free to use Trip 1 or Trip 2 to record travel distance in a period 124.3 km and reset it.

  • Page 36: Pair Sensors

    Pair Sensors We suggest that you pair all your sensors with the device beforehand, Rider S510 will scan for nearby active sensors from the sensor pool, making switching between bikes and sensors easier and more convenient than ever. 1. Select in the home page.
  • Page 37 Using Electronic Shifting Systems After pairing electronic shifters, such as Shimano Di2 or SRAM, you can enter the sensor pages for further settings. To customize the data grids on meter pages, please go to page 5 for more instruction. Sensor Details Rear Gear Gear 1 120345...
  • Page 38 2. Choose any type of sensor that you would like to pair with. 3. To pair sensors with your device, please have Bryton Smart Sensors installed first, then wear a heart rate monitor or rotate the crank and wheel a few times to wake Bryton Smart Sensors up.
  • Page 39 If there is no vehicle around you, the color strip will not show on the screen. • Please go to Page 37 to see how to pair a bike radar with Rider S510. Using E-bike The Rider S510 incorporates Shimano Steps and ANT+ LEV e-bike support for compatible brands to display various e-bike data, including assist mode, assist level shifting mode, E-Bike battery, travel range and rear gear position.

  • Page 40: System

    System In System, you can customize System Settings, Recording Settings, Auto Scroll, Start Remind, File Saving, Memory, ODO, and Data Reset. System Settings You can setup Language, Backlight Duration, Meter Color Mode, Key Tone, Sound, Time/ Unit, Auto Lock, and Status Duration. 1.

  • Page 41: Recording Settings

    Recording Settings In Recording Settings, data recording frequency can be customized for higher accuracy / data saving, as well as how data is included depending on user preference. 1. Select in the home page. Recording Settings 2. Select System > Recording Settings. Smart Recording 1 Sec Smart Recording...
  • Page 42 Altitude With Internet connection, Bryton Active app provides altitude information for you to calibrate directly. You can also change altitude manually. Calibrate Altitude Altitude 1. Choose in the home page. 2. Select Altitude. 3. Click on the number to change the value.

  • Page 43: Profile

    Profile In Profile, you can browse and personalize your information. Personal Information 1. Select in the home page. PROFILE 2. Select Herat Rate Zone and tap to edit details. Device Name Katherine Customize Heart Rate Zone 1. Select MHR. Gender •...

  • Page 44: Bryton App Advanced Settings

    Phone Pairing a. Go to your phone “ Settings > Bluetooth ” and enable Bluetooth. b. Go to Bryton Mobile App and Tap on “ Settings > Device Manager > + ”. c. Select and add your device by pressing “+”.

  • Page 45: Appendix

    Appendix Specification Rider S510 Item Description Display 2.8” Color TFT Capacitive Touch Screen Physical Size 87.2 x 56.8 x 14.9 mm Weight 96 g Operating -10°C ~ 60°C Temperature Battery Charging 0°C ~ 40°C Temperature Battery Li polymer rechargeable battery...

  • Page 46: Install Rider S510

    Install Rider S510 Use Bike Mount to Mount Rider S510 (Optional) Use Sport Mount to Mount Rider S510 (Optional) Safety Lanyard...

  • Page 47: Install Heart Rate Belt (Optional)

    Accuracy may be degraded by poor sensor contact, electrical interference, and receiver distance from transmitter. The Bryton Smart HR Sensor contains a user-replaceable CR2032 battery. To prolong the life of your heart rate monitor, detach the sensor and clean the strap...

  • Page 48: Install The Speed / Cadence / Dual Sensor (Optional)

    Cadence Sensor Speed Sensor Remove battery tab before use. The Bryton Smart Speed / Cadence Sensor contains a user-replaceable CR2032 battery. • Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.

  • Page 49: Wheel Size And Circumference

    Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 12x1,75 26x3,00 2170 12x1,95 26x1-1/8 1970 14x1,50 1020 26x1-3/8 2068 14x1,75 1055 26x1-1/2 2100 16x1,50 1185 650C Tubular 26 1920 x7/8 16x1,75...

  • Page 50: Data Field

    Data Field Category Data Field Description of Data Fields Altitude The height of your current location above or below sea level. The highest height of your current location above or below sea level Max Altitude which the rider achieved for the current activity. Alt.
  • Page 51 Category Data Field Description of Data Fields Calories The number of total calories burned. Energy Kilojoules The accumulated power output in kilojoules for the current activity. The number of times your heart beats per minute. It requires compati- Heart Rate ble HR sensor pairing connection to your device.
  • Page 52 Category Data Field Description of Data Fields Power Now Current Power in Watt. Avg Power The average power for the current activity. Max Power The maximum power for the current activity. 3s power 3 seconds average of power 10s power 10 seconds average of power 30s power 30 seconds average of power...
  • Page 53 Category Data Field Description of Data Fields CurPB-LR The current left/right power balance. AvgPB-LR The average left/right power balance for the current activity. CurTE-LR The current left/right percentage of how efficiently a rider is pedaling. The maximum left/right percentage of how efficiently a rider is peda- MaxTE-LR ling.
  • Page 54 Category Data Field Description of Data Fields SPD Ring The current speed rate displays in dynamic coloured graphical mode. SPD Bar CAD Ring The current cadence rate displays in dynamic coloured graphical mode. CAD Bar HR Ring The current heart rate displays in dynamic coloured graphical mode. HR Bar Graph PW Ring...

  • Page 55: Basic Care For Your Rider S510

    0.5cm separation distance to the user. Hereby, Bryton Inc. declares that the radio equipment type Bryton product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.brytonsport.com/download/Docs/CeDocs_Rider S510.pdf...
