Pergola Room Kit
Installation and Operating Instructions – YM12514
Yardistry – North America
Toll Free Customer Support: 1.888.509.4382
info@yardistrystructures.com
www.yardistrystructures.com
Yardistry / Selwood Products – Europe
Customer Support: +44 1284 852569
parts@selwoodproducts.com
www.selwoodproducts.com
Revised 01/10/2014
1
3.05 m (10')
3.66 m (12')
support@yardistrystructures.com
HEIGHT:
8'2" or 2.49m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YM12514 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Yardistry YM12514

Summary of Contents for Yardistry YM12514

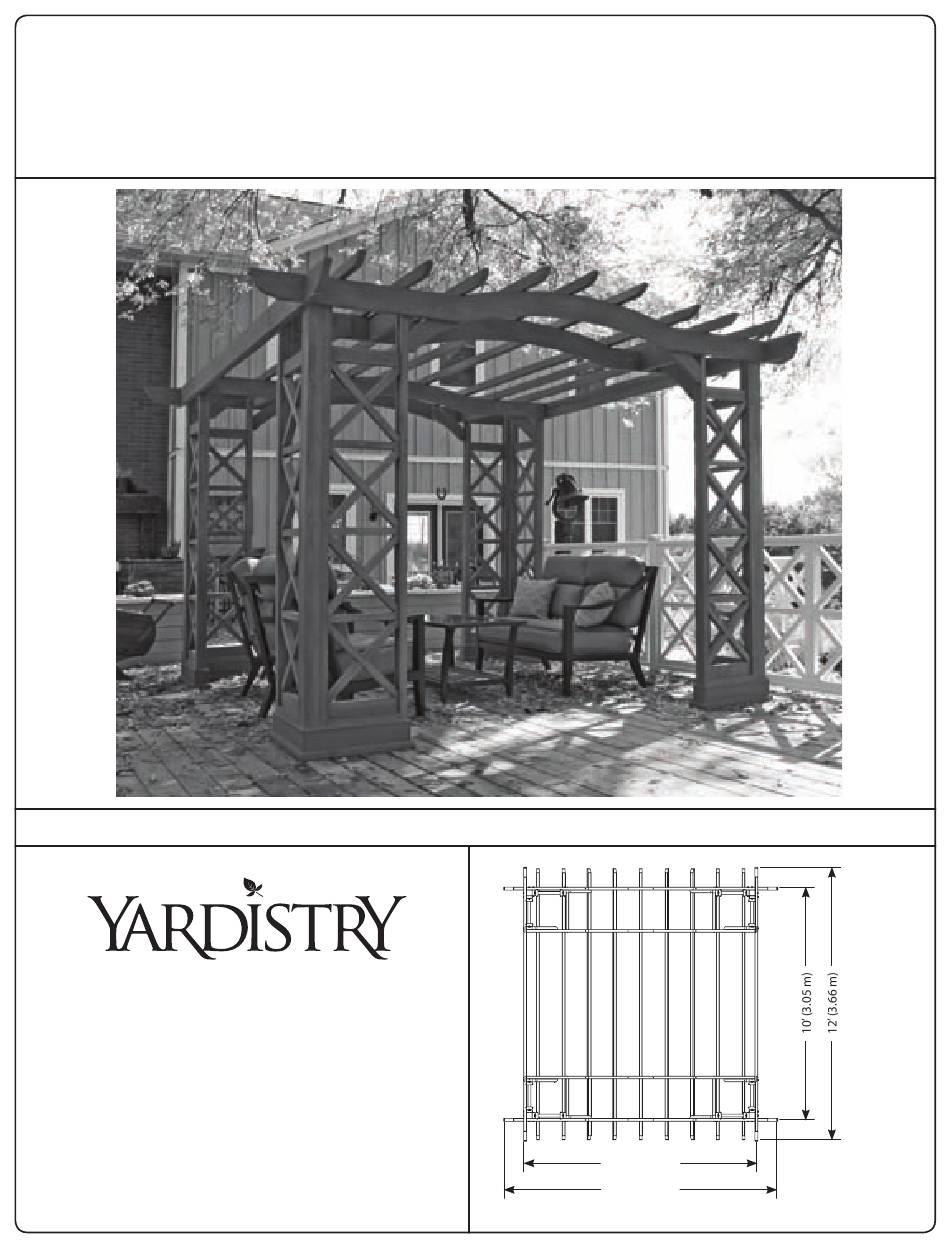

  • Page 1 Pergola Room Kit Installation and Operating Instructions – YM12514 Revised 01/10/2014 Yardistry – North America Toll Free Customer Support: 1.888.509.4382 info@yardistrystructures.com www.yardistrystructures.com Yardistry / Selwood Products – Europe Customer Support: +44 1284 852569 parts@selwoodproducts.com 3.05 m (10’) HEIGHT: www.selwoodproducts.com 8’2” or 2.49m 3.66 m (12’)

  • Page 2: Important Safety Notice

    Wood is NOT flame retardant and will burn. Grills, fire pits and chimineas are a fire hazard if placed too close to a Yardistry structure. Consult user’s manual of the grill, fire pit or chimnea for safe distances from combustible materials.

  • Page 3: Instructions For Proper Maintenance

    Instructions for Proper Maintenance Your Yardistry structure is designed and constructed of quality materials. As with all outdoor products it will weather and wear. To maximize the enjoyment, safety and life of your structure it is important that you, the owner, properly maintain it.

  • Page 4: Limited Warranty

    Limited Warranty Yardistry warrants that this product is free from defect in materials and workmanship for a period of one year from the original date of purchase. In addition, all lumber is warranted for 5 years against rot and decay. This warranty applies to the original owner and registrant and is non-transferable.
  • Page 5 Permanent Installation Examples Note: It is critically important you start with square, solid and level footings, concrete pad or deck to attach your Pergola Room. We supply Room L-Mounts with this structure which gives you the flexibility to permanently install your structure to a pre-existing or new wood or concrete surface.
  • Page 6 Permanent Installation Examples cont. Concrete Patio (min. 10’ 2” x 10’ 2”) with 12” clearance on all sides #10 x 1-1/4” Pan Screws Included Anchoring Hardware not included Wood Deck (min. 10’ 2” x 10’ 2”) with 12” clearance on all sides #10 x 1-1/4”...
  • Page 7 support@yardistrystructures.com...
  • Page 8 Part Identification ( Dimensions are approximate and are shown to assist in the identification of parts for assembly. Actual dimensions may be smaller or larger. 38.1 x 63.5 x 850.9mm 9pc. (062)- Trellis End 33-1/2" FSC 3 x 2 x 33-1/2" - Box 3 38.1 x 63.5 x 2806.7mm 9pc.
  • Page 9 Part Identification ( Dimensions are approximate and are shown to assist in the identification of parts for assembly. Actual dimensions may be smaller or larger. 34.9 x 152.4 x 598.5mm 8pc. (033) - Long Plinth Assembly FSC - Box 2 - Y70219-033 34.9 x 152.4 x 492.1mm 4pc.

  • Page 10: Hardware Identification

    Hardware Identification ( Dimensions are approximate and are shown to assist in the identification of parts for assembly. Actual dimensions may be smaller or larger. #8 x 3" #8 x 2-1/2" 32pc. - Wood Screw - (Y06427-530) 48pc. - Wood Screw - (Y06427-522) #10 x 1-1/4"...
  • Page 11 • Please retain this information for future reference. You will need this information if you contact the Consumer Relations Department. PRODUCT NUMBER: YM12514 CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 1) CARTON I.D. STAMP: __ __ __ __ __ ___ (Box 2) CARTON I.D.
  • Page 12 Step 2: Attach Corner Panel Assemblies to Corner Posts Part 1 Fig. 2.1 Note: Only pre-drill one post per assembly A: On Engineered Corner Panel Assemblies, pre-drill two holes from the inside, at the places shown in fig. 2.1 and 2.2.
  • Page 13 Step 2: Attach Corner Panel Assemblies to Corner Posts Part 2 Fig. 2.3 (190) B: Through the pre-drilled holes attach two #8 x 2-1/2” #8 x 2-1/2” Corner Wood Corner Panel Assemblies to one (190) Corner Wood Post Screws Screws Post with one #10 x 4”...
  • Page 14 Step 3: Attach L - Mount Brackets A: Pre-drill with a 1/8” drill bit and attach two L Mounts (one L Mount Right and one L Mount Left) flush to the inside edge, at the bottom of each Corner Panel Assembly with two #10 x 1-1/4” Pan Screw per L Mount as shown in fig.
  • Page 15 Step 4: Attach Plinths to Corner Post Assemblies Part 1 A: Place one (034) Short Plinth B Assembly with one (035) Short Plinth A Assembly tight to each other and attach using two #6 x 30 mm Trim Screw at the opposite corners per Plinth. (Fig. 4.1 and 4.2) Note: Plinths will be attached to four corners.
  • Page 16 Step 4: Attach Plinths to Corner Post Assemblies Part 2 B: On the outside of the Corner Post Assembly, place two (033) Long Plinth Assembly tight against eachother using 2 #6 x 30 mm Trim Screws per Plinth. Be sure they are flush and tight. (Fig. 4.3 and 4.4) Fig.
  • Page 17 Step 4: Attach Plinths to Corner Post Assemblies Part 3 C: Place one (032) End Plinth Assembly onto each Corner Post Assembly. Line them up with previously placed Plinths. Make sure they are flush and tight to each other and then fasten with two #6 x 30 mm Trim Screw per end.
  • Page 18 Step 4: Attach Plinths to Corner Post Assemblies Part 4 Note: Make sure all plinths are lined up, flush and level before installing remaining screws. D: After the End Plinths have been placed, go back and install the two remaining #6 x 30 mm Trim Screws per end to the assembled Plinth on the Corner Post Assemblies.
  • Page 19 Step 5: Placement of Corner Post Assemblies Fig. 5.1 A: Move your Corner Post Assemblies to the final location. Make sure the ground is flat and level before continuing assembly. B: Stand all four complete Corner Post Assemblies so they form a square as shown in fig.
  • Page 20 Step 6: Assemble Beam Ends Fig. 6.1 10-1/2” Two Beam Ends attached on opposite side of cut-out #10 x 4” Wood Screws A: On a flat and level surface attach one (192) Beam (069) Beam End 10-1/2” to (192) Beam End 34-1/4”...
  • Page 21 Step 7: Attach Beams to Corner Post Assemblies It is important the proper hardware gets Fig. 7.1 Beam End placed in the places shown. You install Assembly Flat Washer the Wafer Bolt first and then the screws. Panel Post 1/4 x 4-1/4” Wafer Bolt A: Attach one Beam End assembly from (068) Beam...
  • Page 22 Step 8: Attach Arch Beam Fronts It is important the proper hardware gets Corner of Corner Post placed in the places shown. Make sure Assembly Fig. 8.1 you install the Wafer Bolt first and then the wood screws. Connector Attach one (195) Arch Beam Front in between two Corner Post Assemblies as shown in fig.
  • Page 23 Step 9: Attach Arch Beam Offsets It is important the proper hardware gets Arch Beam Fig. 9.1 placed in the places shown. Front A: Attach one (080) Arch Beam Offset #10 x 4” Wood #8 x 2-1/2” Screw x 3 through centre of grooves of Corner Panel #10 x 4”...
  • Page 24 Step 10: Assemble Trellis Ends A: On a flat and level surface, fit together one (062) Trellis End 33-1/2” and one (061) Trellis End 110-1/2”. (fig. 10.1) B: Place one Trellis Clip over the joined ends and attach with one 1/4 x 2” Wafer Bolt (with 1/4” lock nut). (fig.
  • Page 25 Step 11: Attach Trellis End Assemblies Part 1 A: Measure 59-1/4” from the inside of each Beam 81-1/2” and place one Trellis End Assembly on the Arch Beam Offsets and Arch Beam Fronts. This should be centred and both ends should hang 9-3/4” over the edges. (fig. 11.1 and 11.4) B: Attach with three #10 x 4”...
  • Page 26 Step 11: Attach Trellis End Assemblies Part 2 D: Starting at the centre Trellis End Assembly and working outwards attach four Trellis End Assemblies on either side alternating each Trellis End Assembly so the Trellis Clip is on opposing sides to the assemblies next to it. (fig.
  • Page 27 Step 12: Attach Left and Right Arch Gussets Part 1 Note: The bevelled ends on each Arch Gusset should always face away from the wood it is attaching to. A: At two corners of the assembly attach one (193) Arch Gusset Right to the Panel Post with one #8 x 3” Wood Screw and flush to the inside, bottom edge of the Arch Beam Front with two #8 x 2-1/2”...
  • Page 28 Step 12: Attach Left and Right Arch Gussets Part 2 Note: The bevelled ends on each Arch Gusset should always face away from the wood it is attaching to. B: Attach one (193) Arch Gusset Right or one (194) Arch Gusset Left to the remaining Panel Posts, flush with the top of the Cross Brace Insert, using one #8 x 3”...
  • Page 29 NOTES support@yardistrystructures.com...
  • Page 30 NOTES support@yardistrystructures.com...
  • Page 31 NOTES support@yardistrystructures.com...
  • Page 32 Would you recommend the purchase of our products to friends and family? Comments: MAIL TO: Yardistry c/o Solowave Design 375 Sligo Road W. Mount Forest, Ontario, Canada Yardistry would like to say Thank You for your time and feedback. N0G 2L0 Attention: Customer Service REVISION: 10/18/11 support@yardistrystructures.com...
