DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
VERSION HISTORY REV. DATE SUMMARY OF CHANGE RDV1 2020/07/22 Preliminary release RDV2 2022/09/07 Minor typographical corrections Ver 1.10 2023/12/15 Add feature support for AES67. Updated 1. Introduction, 5. Features...

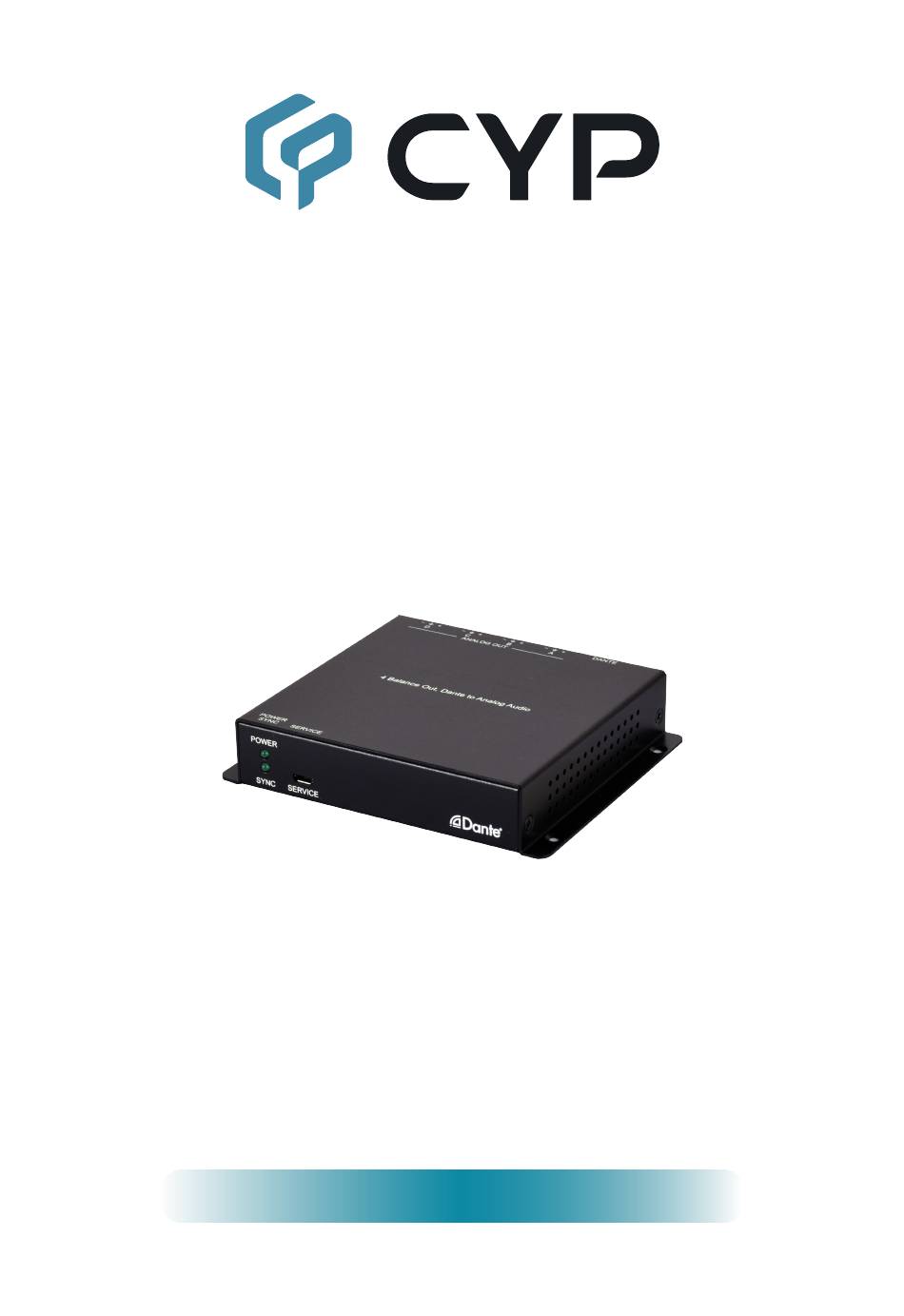

1. INTRODUCTION This 4-channel Dante audio to analog output receiver is easy to use and convenient to install. Thanks to the integrated support for Dante/AES67 technology which extends and routes audio across standard Ethernet networks, this unit forms an important part of an easier and more flexible system for managing large audio systems than traditional point-to-point physical wiring.
4. SYSTEM REQUIREMENTS • An active network connection from a switch or router that supports PoE (802.3af) for extension of Dante audio and to power the unit. • Analog audio receiving equipment such as audio amplifiers or powered speakers. • 3rd party control software, such as Dante Controller from Audinate, is required to configure and manage audio routes between Dante endpoints.
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER SYNC SERVICE POWER LED: This LED will illuminate to indicate the unit is on and receiving power. SYNC LED: This LED will illuminate to indicate the unit is actively connected to a valid Ethernet network. SERVICE Port (USB 2.0 Micro-B): This port is used for serial control and firmware updates.
6.3 RS-232 Pinout and Defaults Serial Port Default Settings Baud Rate 19200 Data Bits Parity Bits None Stop Bits Flow Control None Note: Serial control over this unit is available only via the USB Micro-B service port on the front of the unit. Connect the unit directly to the USB port on a PC or laptop and configure the virtual COM port to use the above settings.
6.5 Serial Commands (via USB) COMMAND Description and Parameters help Show the full command list. help N1 Show details about the specified command. N1 = {Command} ? Show the full command list. ? N1 Show details about the specified command. N1 = {Command} get fw ver...
Page 12
COMMAND Description and Parameters set audio out all mute N1 Enable or disable muting on all audio outputs. Available values for N1: [Mute] [Unmute] get audio out N1 mute Show the current mute state of the specified output. Available values for N1: [Analog output A] [Analog output B] [Analog output C]...
