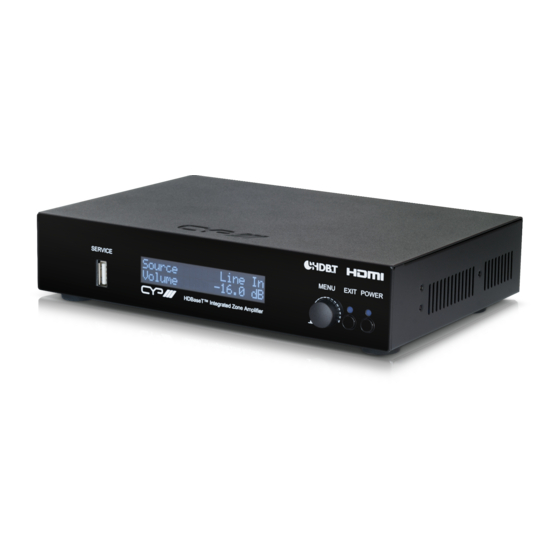

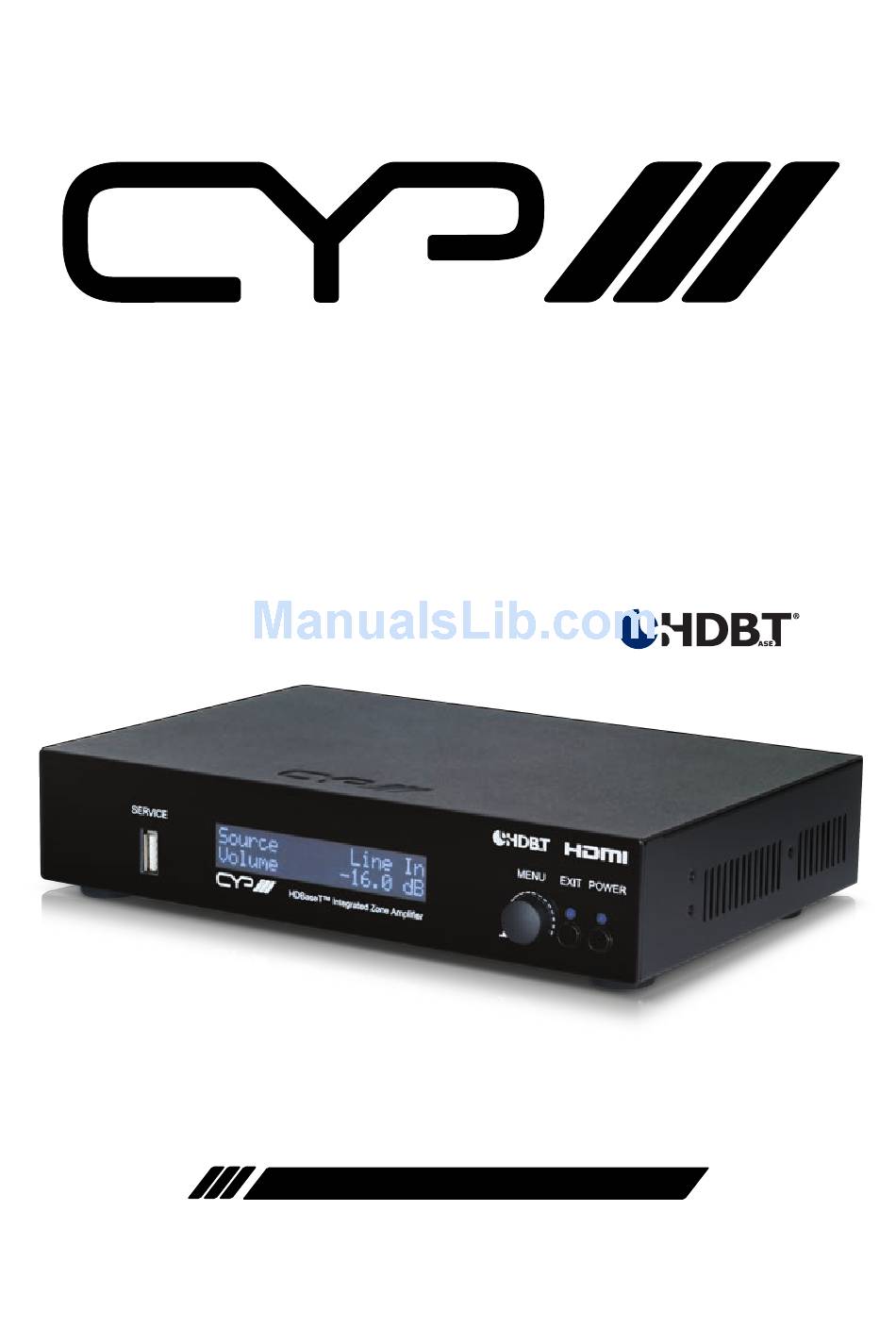

- Page 1 AU-A300-HBT HDBaseT™ 2-Channel Digital AV Receiver (Repeatable) OPERATION MANUAL...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 RS-232 Pin Assignment .....5 6.4 IR Cable Pin Assignment....6 7. -
Page 4: Introduction
1. INTRODUCTION The AU-A300-HBT is a compact 2 channel digital receiver that is perfect for providing high quality audio distribution in remote AV zones within any multi-room installation. This advanced solution can integrate local HDMI and remote HDBaseT sources from a CYP matrix,... -
Page 5: Features
5. FEATURES • 30W per channel digital stereo Amplifier • Integrated HDBaseT Input and Output • Control via remote control, RS-232 or IP (Web GUI or Telnet) • Simultaneous audio outputs • HDMI Audio Embedding • Supports Digital to Analogue (DAC) and Analogue to Digital (ADC) conversion •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel SERVICE SERVICE MENU MENU EXIT POWER EXIT POWER HDBaseT™ 4K UHD with Digital Presentation Amplifier HDBaseT™ 2-Channel AV Receiver Service: Connect with USB fl ash driver for fi rmware update only. OLED: Display current input source selection and volume setting. IR Window: Accept IR signal from the remote control included in the package. -
Page 7: Rear Panel
6.2 Rear Panel RS-232 LINE IN IR IN IR OUT RCA IN COAX. CAT5e/6/7 OUT CAT5e/6/7 IN AUDIO-CAT HDMI OUT HDMI IN DC 24V OPT. SPEAKER LAN: Connect from PC/Laptop with RJ-45 cable for Telnet/WebGUI controls. RS-232: Connect from PC/Laptop with D-Sub 9pin cable for RS-232 controls. -
Page 8: Rs-232 Pin Assignment
LINE IN: Connect from audio device with 3.5ø pone jack for stereo audio signal input. IR IN: Connect the IR Extender for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the equipment to be controlled. IR OUT: Connect to IR Blaster for IR signal transmission. -
Page 9: Ir Cable Pin Assignment
6.4 IR Cable Pin Assignment IR Blaster Power IR Blaster Signal IR Receiver IR Signal Power Grounding... -
Page 10: Remote Control
7. REMOTE CONTROL Power: Press this button to turn on the device or to set it to standby mode. MENU EXIT MUTE eAUDIO Vol +/-: Press these buttons to HDMI HDBaseT adjust the volume. OPTICAL MENU: Press this button to enter COAXIAL LINE IN into the menu selection... -
Page 11: Oled Menu
7.1 OLED Menu Audio In Display Set IP Confi g Function Select Reset to Default EDID Mode Video Set Line IN RCA IN Optical Audio Select Coaxial eAudio HDMI HDBaseT TimeOut 5s Display Setting TimeOut 10s TimeOut 15s IP Confi g IP Confi... -
Page 12: Telnet & Rs-232 Command
7.2 Telnet & RS-232 Command Command Description Parameter DISPLAY LIST OF COMMANDS, CODE ENTRY IS CASE SENSITIVE DISPLAY LIST OF HELP COMMANDS, CODE ENTRY IS CASE SENSITIVE POWER CONTROL 0:OFF 1:ON S:STATUS 0:LINE IN 1:RCA IN 2:OPT. 3:COAX. SOURCE AUDIO IN SELECT 4:eAUDIO 5:HDMI 6:HDBaseT S:SHOWVOL +:+0.5dB... - Page 13 Command Description Parameter PRINT THE TELNET SHOWTPORT COMMUNICATION PORT TO THE SCREEN PRINT THE HTTP SHOWHPORT COMMUNICATION PORT TO THE SCREEN SIPADD SET THE IP ADDRESS SET THE NET MASK SNETMASK ADDRESS SET THE GATEWAY SGATEWAY ADDRES SET THE HTTP SHTTPPORT [1-65535] [80] COMMUNICATION PORT...
-
Page 14: Telnet Control
7.3 Telnet Control To access the telnet control under MS windows, click ‘Start’ menu and type “cmd” in the search fi eld then press enter. Under Mac OS X, go to Go → Application → Utilities → Terminal See below for reference. Once in the command line interface (CLI) type "telnet", then the IP address, and hit enter. - Page 15 Press “Help” or “?” then hit enter to bring up all available commands. Note: Any commands will not be executed unless followed by a carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 16: Webgui Control
7.4 WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (available from LCM monitor) on the web address entry bar. The browser will display the device’s control page. -
Page 17: Connection Diagram
8. CONNECTION DIAGRAM Display RS-232 Equipped PC or Notebook 60° 60° 1.5m 1.5m RS-232 Equipped 60° 60° Device DVD or Blu-ray Player RS-232 DVD or Blu-ray Player Adaptor IR1 Extender IR2 Extender HDMI Out HDMI In RS232 Out IR2 Blaster RS232 In IR1 Blaster 60°... -
Page 18: Specifi Cations
9. SPECIFICATIONS Video Bandwidth 300MHz/9Gbps Ethernet Speed 100Mbps Input ports 1x HDMI, 1xCAT5e/6/7, 1 x Optical, 1 x Coaxial, 1 x 3.5Ø Line in, 1 x R/L RCA, 1 x D-Sub 9pin (RS-232), 1 x RJ-45 (LAN), 1 x Keypad, 1 x IR, 1 x AUDIO-CAT Output ports 1 x HDMI, 1 x CAT5e/6/7, 1 x R/L, 1 x IR, 1 x AUDIO-CAT(same as input port) - Page 19 Amplifi er Performance: • 2 X 30 W @4Ohm < 0.1% THD+N @ 1Khz • 2 X 15 W @8Ohm < 0.1% THD+N @ 1Khz • Frequency Response <+/- 1dB • SNR > 70dB @ 20hz-20Khz A weighted • THD+N @1W <0.05% @ 1KHz •...
- Page 21 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
