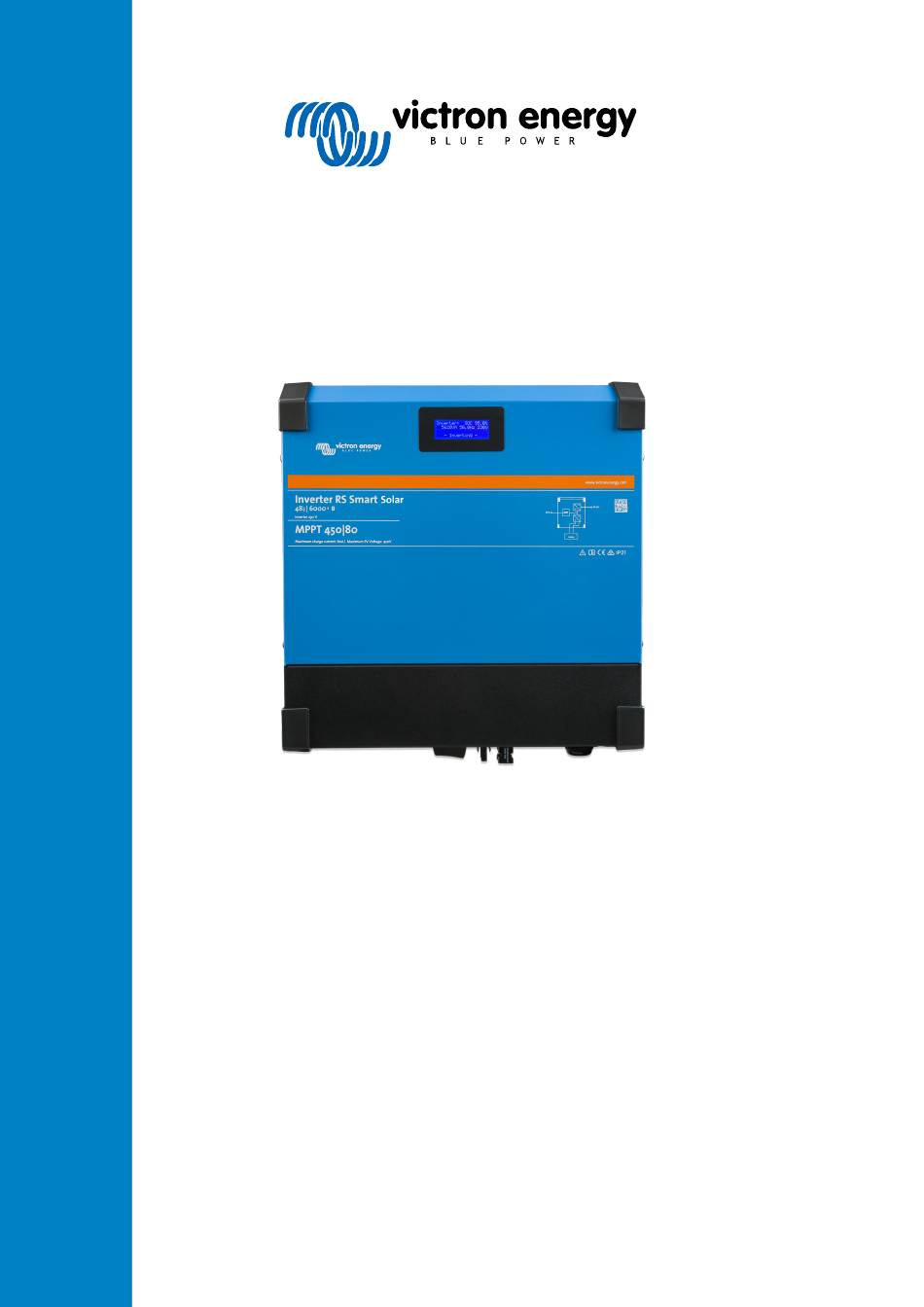

- Page 1 ENGLISH Inverter RS Smart Rev 03 02/2021...
-
Page 2: Table Of Contents
Inverter RS Smart Table of Contents 1. Safety Instructions ........................1 2. General Description ......................... 3 2.1. High efficiency ....................... 3 2.2. Frequency shift function ....................3 2.3. High power, safe operation ....................3 2.4. Interfacing and Communications ..................3 2.5. -
Page 3: Safety Instructions
Inverter RS Smart 1. Safety Instructions ELECTRIC SHOCK HAZARD Please read this manual carefully before the product is installed and put into use. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. - Page 4 Inverter RS Smart Ensure that the equipment is used under the correct ambient conditions. Never operate the product in a wet or dusty environment. Never use the product where there is a risk of gas or dust explosions. Ensure there is adequate free space for ventilation above and below the product and check that the ventilation vents are not blocked.
-
Page 5: General Description

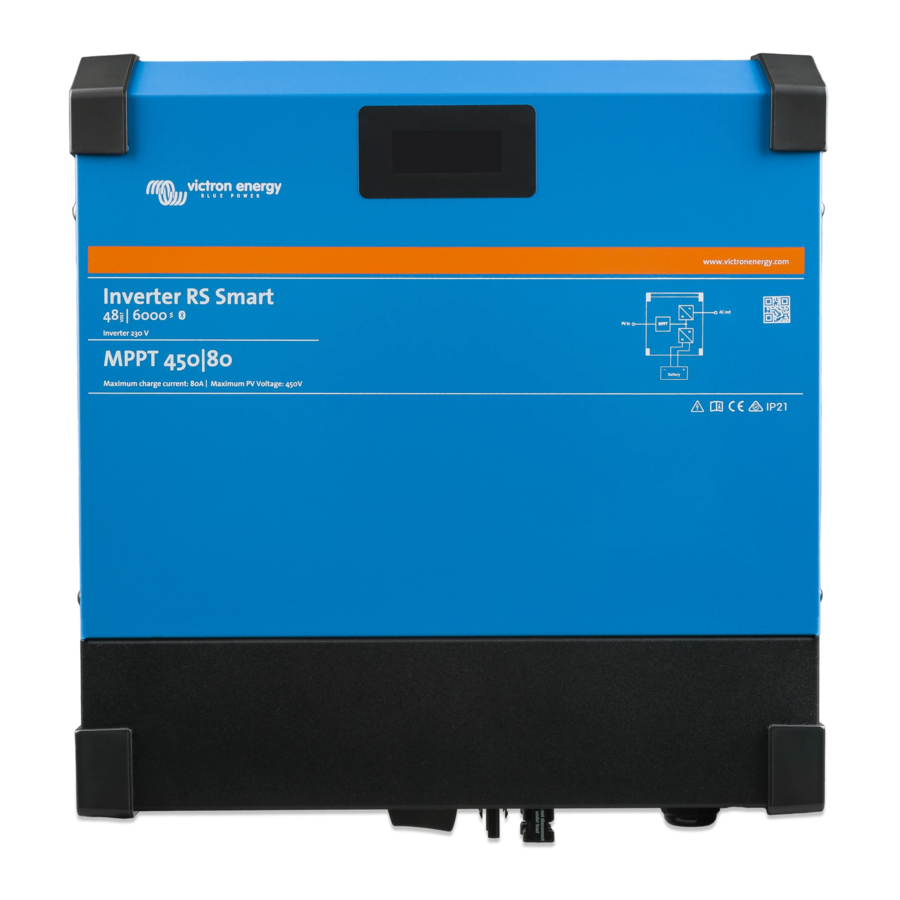

Inverter RS Smart 2. General Description The Inverter RS is a combined battery inverter and MPPT solar charge controller. It is designed to operate with a 48V battery bank, a PV input voltage range of between 80-450V, and produces a pure AC sine wave at 230V. -
Page 6: Battery Charger
Inverter RS Smart 2.5. Battery charger The batteries are charged by solar energy using the built-in MPPT solar controller. It can also be charged by a PV grid inverter connected to the AC out. In this case the battery will be charged to ~98%. The built-in MPPT has a power limit of 4000W. So the maximum charging current for a 50V battery will be 80A. -
Page 7: Installation
This product contains potentially dangerous voltages. It should only be installed under the supervision of a suitable qualified installer with the appropriate training, and subject to local requirements. Please contact Victron Energy for further information or necessary training. Excessively high ambient temperature will result in the following: ·... -
Page 8: Battery And Battery Lead Requirements
Inverter RS Smart 3.3. Battery and battery lead requirements In order to utilize the full capacity of the product, batteries with sufficient capacity and battery cables with sufficient cross section should be used. The use of undersized batteries or battery cables will lead to: •... -
Page 9: Cable Connection Sequence
Inverter RS Smart Table 2. PV Array Example Panel Type Vmpp Impp # of Power panels String total Voltages Victron 260W (60 cell) 36.75 V 30 V 9.30 A 8.66 A #1 - 8 304 V 4160 W #2 - 8 3.5. -
Page 10: Programmable Relay
Inverter RS Smart 3.10.2. Programmable relay Programmable relay which can be set for general alarm, DC under voltage or genset start/stop function. DC rating: 4A up to 35VDC and 1A up to 70VDC 3.10.3. Voltage sense For compensating possible cable losses during charging, two sense wires can be connected directly to the battery or to the positive and negative distribution points. -
Page 11: Programming With Victronconnect
Inverter RS Smart Number Connection Description TSENSE + Temperature Sensor positive VSENSE - Voltage Sensor negative VENSE + Voltage Sensor positive 3.11. Programming with VictronConnect This guide will help you with the specific elements of VictronConnect that relate to the MPPT Solar Charge Controller. -
Page 12: Battery Settings
Inverter RS Smart 3.11.2. Battery settings Battery voltage The RS is fixed to 48V, and is only available for 48V systems. Max charge current Allows the user to set a lower maximum charge current. Charger enabled Toggling this setting turns the Solar Charger off. The batteries will not be charged. This setting is intended only for use when carrying-out work on the installation. - Page 13 Inverter RS Smart Battery voltage Vb (@start-up) Multiplier Maximum absorption times Vb > 12.6 V x 2/6 01:00 hours The multiplier is applied to the maximum absorption time setting and this results in the maximum duration of the absorption period used by the charger.
- Page 14 Inverter RS Smart Temperature compensation Many types of battery require a lower charge voltage in warm operating conditions, and a higher charge voltage in cold operating conditions. The configured coefficient is in mV per degree Celsius for the whole battery bank, not per cell. The base temperature for the compensation is 25°C (77°F), as shown in the chart below.
-
Page 15: Operation
Inverter RS Smart 4. Operation 4.1. Device display The inverter has an LCD screen that displays operational information. Inverter: Inverter state, Power output, Frequency and AC Voltage Battery: Battery Power (charging shows positive number, discharging shows negative number), Current, DC voltage, Temperature (*), State-of-charge (*) and Time-to-go (*). -
Page 16: Status - Live Data Information
Inverter RS Smart 4.2. STATUS - Live Data Information • MPPT [Model Number] confirms the connected device. A custom name can also be set if desired. • Solar 'Gauge' icon shows the dynamic real-time power output from the solar array. With regard to the Solar Panel voltage, note that the Solar charger will only operate once the Panel voltage has risen more than 5V above battery voltage. -
Page 17: History - Thirty-Day Graphic
Inverter RS Smart 4.3. HISTORY - Thirty-day Graphic (The fragmented square icon (top left) allows you to toggle between 'portrait' and 'landscape' screen presentations.) A summary of activity for the last 30 days is presented graphically. Swipe the bar left or right to show any of the previous 30 days. -
Page 18: Protections And Automatic Restarts
Inverter RS Smart Days Yield Max. Max. Min. Max. Time in Time in Time Last (Wh) battery battery bulk(m) absorp. error last last last power voltage voltage voltage float error error error 14500 2167 118.80 51.34 52.99 15450 2326 118.81 51.68... -
Page 19: High Temperature
Inverter RS Smart 4.4.4. High temperature A high ambient temperature or enduring high load may result in shut down to over temperature. The inverter will restart after 30 seconds. The inverter will continue to try and resume operation, and will not stay off after multiple retries. Reduce load and/or move inverter to better ventilated area. -
Page 20: Troubleshooting
Inverter RS Smart 5. Troubleshooting Check the Victron website for error codes and troubleshooting: https://www.victronenergy.com/live/mppt-error-codes Page 18 Troubleshooting... -
Page 21: Technical Specifications
Inverter RS Smart 6. Technical Specifications INVERTER RS SMART 48/6000 INVERTER DC Input voltage range 38 – 64V Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1) Continuous output power at 25°C Increases linearly from 4800W at 46 VDC to 5300W at 52 VDC Continuous output power at 40°C... - Page 22 Inverter RS Smart INVERTER RS SMART 48/6000 Remote on-off Operating temperature range -40 to +65°C (fan assisted cooling) Humidity (non-condensing) max 95% ENCLOSURE Material & Colour steel, blue RAL 5012 Protection category IP21 Battery-connection Two M8 bolts PV Connection 2 positive & 2 negative MC4 230 V AC-connection Screw terminals 13 mm²...
-
Page 23: Appendix
Inverter RS Smart 7. Appendix Page 21 Appendix... -
Page 24: Appendix A : Connection Overview
Inverter RS Smart 7.1. Appendix A : Connection Overview Figure 2. Inverter RS Front Page 22 Appendix... - Page 25 Inverter RS Smart Figure 3. Inverter RS Bottom Page 23 Appendix...
- Page 26 Inverter RS Smart Figure 4. User I/O User I/O Connector is located on bottom left side of connection area, diagram shows 3 perspectives. Left Side - Top - Right Side Table 4. User I/O Functions - See Installation Section for more details.
-
Page 27: Appendix B : Block Diagram
Inverter RS Smart 7.2. Appendix B : Block Diagram 230 Vac PV IN MPPT BATTERY Page 25 Appendix... -
Page 28: Appendix C : Example Wiring Diagram
Inverter RS Smart 7.3. Appendix C : Example Wiring Diagram Figure 5. Inverter RS Optional PV Array GX device Up to 5 kW AC PV inverter VE.Can or VE.Direct Connection AC loads 48V Battery Up to 4 kW 80 – 450V PV Array... -
Page 29: Appendix D : Dimensions
Inverter RS Smart 7.4. Appendix D : Dimensions Dimension Drawing - Inverter RS PIN482601000 Inverter RS 48/6000 230V Smart Solar 6(4x) 6.2(3x) Dimensions in mm Page 27 Appendix...
