- Page 1 ENGLISH Inverter RS Smart...
-
Page 2: Table Of Contents
Inverter RS Smart Table of Contents 1. Safety Instructions ........................1 2. General Description ......................... 3 2.1. Frequency shift function ....................3 2.2. High power, safe operation ....................3 2.3. Interfacing and Communications ..................3 2.4. Battery charger ......................3 2.5. - Page 3 Inverter RS Smart 6.1.20. Notification 65 - Communication warning ..............18 6.1.21. Notiofication 66 - Incompatible device ............... 18 6.1.22. Error 67 - BMS Connection lost ................18 6.1.23. Error 68 - Network misconfigured ................18 6.1.24. Error 114 - CPU temperature too high ............... 18 6.1.25.
-
Page 4: Safety Instructions
Inverter RS Smart 1. Safety Instructions ELECTRIC SHOCK HAZARD Please read this manual carefully before the product is installed and put into use. This product is designed and tested in accordance with international standards. The equipment should be used for the designated application only. - Page 5 Inverter RS Smart Ensure that the equipment is used under the correct ambient conditions. Never operate the product in a wet or dusty environment. Never use the product where there is a risk of gas or dust explosions. Ensure there is adequate free space for ventilation above and below the product and check that the ventilation vents are not blocked.
-
Page 6: General Description

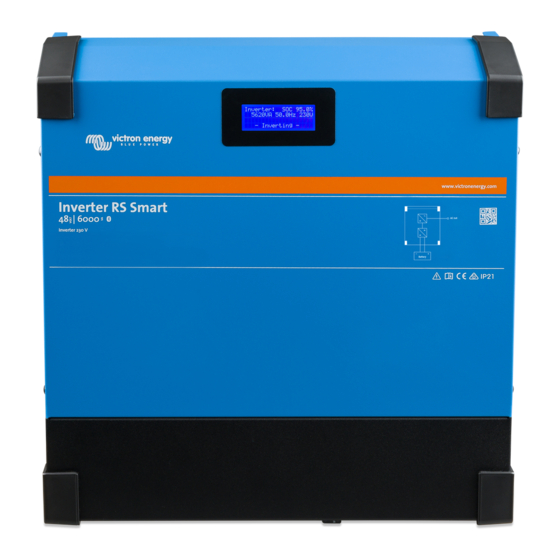

Inverter RS Smart 2. General Description The Inverter RS Smart is a Inverter. It is designed to operate with a 48V battery bank and produces a pure AC sine wave at 230V. • Low battery voltage alarm trip and reset levels •... -
Page 7: Setup Options
Inverter RS Smart A custom maximum charge current can be set in the VictronConnect app. Battery charging will take place up to approximately 98% battery state of charge. The charger algorithm is the same as for the BlueSolar MPPT solar controllers. This provides built-in battery preset parameters, and allows for expert mode to define additional charging parameters. -
Page 8: Installation
This product contains potentially dangerous voltages. It should only be installed under the supervision of a suitable qualified installer with the appropriate training, and subject to local requirements. Please contact Victron Energy for further information or necessary training. Excessively high ambient temperature will result in the following: ·... -
Page 9: Cable Connection Sequence
Inverter RS Smart Model Battery capacity Lead-acid 200 Ah Battery capacity Lithium 50 Ah Recommended DC fuse 125 A - 150 A Minimum cross section (mm2) per + and - connection terminal 0 - 2 m 35 mm 2 - 5 m... -
Page 10: User I/O
Inverter RS Smart 3.8. User I/O 3.8.1. Remote on/off connector The remote on/off has two terminals: Remote L and Remote H. A remote on/off switch or relay contact can be connected between L and H. Alternatively, terminal H can be switched by a connection to battery positive, or terminal L can be switched by a connection to battery minus. -
Page 11: User I/O Functions
Inverter RS Smart 3.8.7. User I/O functions Table 2. User I/O Functions - See Installation Section for more details. Number Connection Description Relay_NO Programmable relay Normally Open connection AUX_IN - Common negative for programmable auxiliary inputs AUX_IN1+ Programmable auxiliary input 1 positive connection... -
Page 12: Configuration
Inverter RS Smart 4. Configuration 4.1. Configuring via the VictronConnect app The VictronConnect app can be used to change all settings and to update the firmware. The VictronConnect app can connect to the inverter via: • Local - via built in Bluetooth •... -
Page 13: Battery Settings
Inverter RS Smart 4.2. Battery settings Battery voltage The RS is fixed to 48V, and is only available for 48V systems. Max charge current Allows the user to set a lower maximum charge current. Charger enabled Toggling this setting turns the Solar Charger off. The batteries will not be charged. This setting is intended only for use when carrying-out work on the installation. - Page 14 Inverter RS Smart Battery voltage Vb (@start-up) Multiplier Maximum absorption times Vb > 12.6 V x 2/6 01:00 hours The multiplier is applied to the maximum absorption time setting and this results in the maximum duration of the absorption period used by the charger.
-
Page 15: Inverter Settings
Inverter RS Smart Set the current threshold that will be used to finish absorption phase before the maximum absorption time expires. When the battery current gets below the tail current for one minute, the absorption phase will end. This setting can be disabled by setting it to zero. -
Page 16: Programmable Relay
Inverter RS Smart Setting Explanation Default Range Ground relay When this setting is enabled, Neutral (N) will enabled enabled or be connected to protective earth (PE) when disabled the inverter is operational. This connection will be broken when the inverter is not operational. -
Page 17: Operation
Inverter RS Smart 5. Operation 5.1. Device display The inverter has an LCD screen that displays operational information. Inverter: Inverter state, Power output, Frequency and AC Voltage Battery: Battery Power (charging shows positive number, discharging shows negative number), Current, DC voltage, Temperature (*), State-of-charge (*) and Time-to-go (*). -
Page 18: High Battery Voltage
Inverter RS Smart See the Technical Data table for default low battery shut down, restart and charge detect levels. They can be adjusted with VictronConnect (computer or app). Additionally another external MPPT or battery charger can also be used to recharge the battery to reach the Restart Voltage or Charge Detect voltage level. -
Page 19: Troubleshooting And Support
Inverter RS Smart 6. Troubleshooting and Support Consult this chapter in case of unexpected behaviour or if you suspect a product fault. The correct troubleshooting and support process is to first consult the common issues as described in this chapter. -
Page 20: Error 22, 23 - Internal Temperature Sensor Failure
Inverter RS Smart 6.1.9. Error 22, 23 - Internal temperature sensor failure The internal temperature measurements are out of range. Disconnect all wires, and then reconnect all wires, to restart the unit. This error will not auto-reset. If the error remains, please contact your dealer, there might be a hardware defect. -
Page 21: Error 53, Error 54 - Inverter Output Voltage
Inverter RS Smart 6.1.17. Error 53, Error 54 - Inverter output voltage If the battery voltage is getting low and a large load is applied to the AC output the inverter is unable to maintain the proper output voltage. Re-charge the battery or reduce the AC loads to continue operation. -
Page 22: Error 119 - Settings Data Lost
Inverter RS Smart SmartSolar models (not the BlueSolar models): upgrading to v1.4x firmware is a one-way trip, you cannot go back to an older firmware version once you upgrade to v1.4x. Reverting to older firmware gives error 116 (calibration data lost), this can be fixed by re-installing the v1.4x firmware. -
Page 23: Warranty
Victron Energy to make such repairs. Non-compliance with the instructions in this manual will render the warranty void. Victron Energy is not liable for any consequential damages arising from the use of this product. The maximum liability of Victron Energy under this limited warranty shall not exceed the actual purchase price of the product. -
Page 24: Technical Specifications
Inverter RS Smart 8. Technical Specifications Inverter RS Smart 48/6000 INVERTER DC Input voltage range 38 – 64V Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1) Continuous output power at 25°C Increases linearly from 4800W at 46 VDC to 5300W at 52 VDC Continuous output power at 40°C... - Page 25 Inverter RS Smart Inverter RS Smart 48/6000 230 V AC-connection Screw terminals 13 mm² (6 AWG) Weight 11 kg Dimensions (hxwxd) 425 x 440 x 125 mm STANDARDS Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1, EN-IEC 62109-2 Emission, Immunity EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3...
-
Page 26: Appendix
Inverter RS Smart 9. Appendix 9.1. Appendix A : Connection Overview Figure 2. Inverter RS Smart Front Figure 3. Inverter RS Smart Bottom Page 23 Appendix... - Page 27 Inverter RS Smart Figure 4. User I/O Page 24 Appendix...
-
Page 28: Appendix B: Block Diagram
Inverter RS Smart User I/O Connector is located on bottom left side of connection area, diagram shows 3 perspectives. Left Side - Top - Right Side Table 3. User I/O Functions - See Installation Section for more details. Number Connection... -
Page 29: Appendix D : Dimensions
Inverter RS Smart 9.4. Appendix D : Dimensions Page 26 Appendix...
