Making External Connections
Now, connect the MultiModem to the telephone line and, optionally, to your
telephone. For voice mail or speakerphone, you can also connect it to a
microphone and an external speaker, headphone, or sound card. The microphone
can be used for recording answering machine messages or for speakerphone use.
The speaker or headphone can be used for playing back messages or as a
speakerphone.

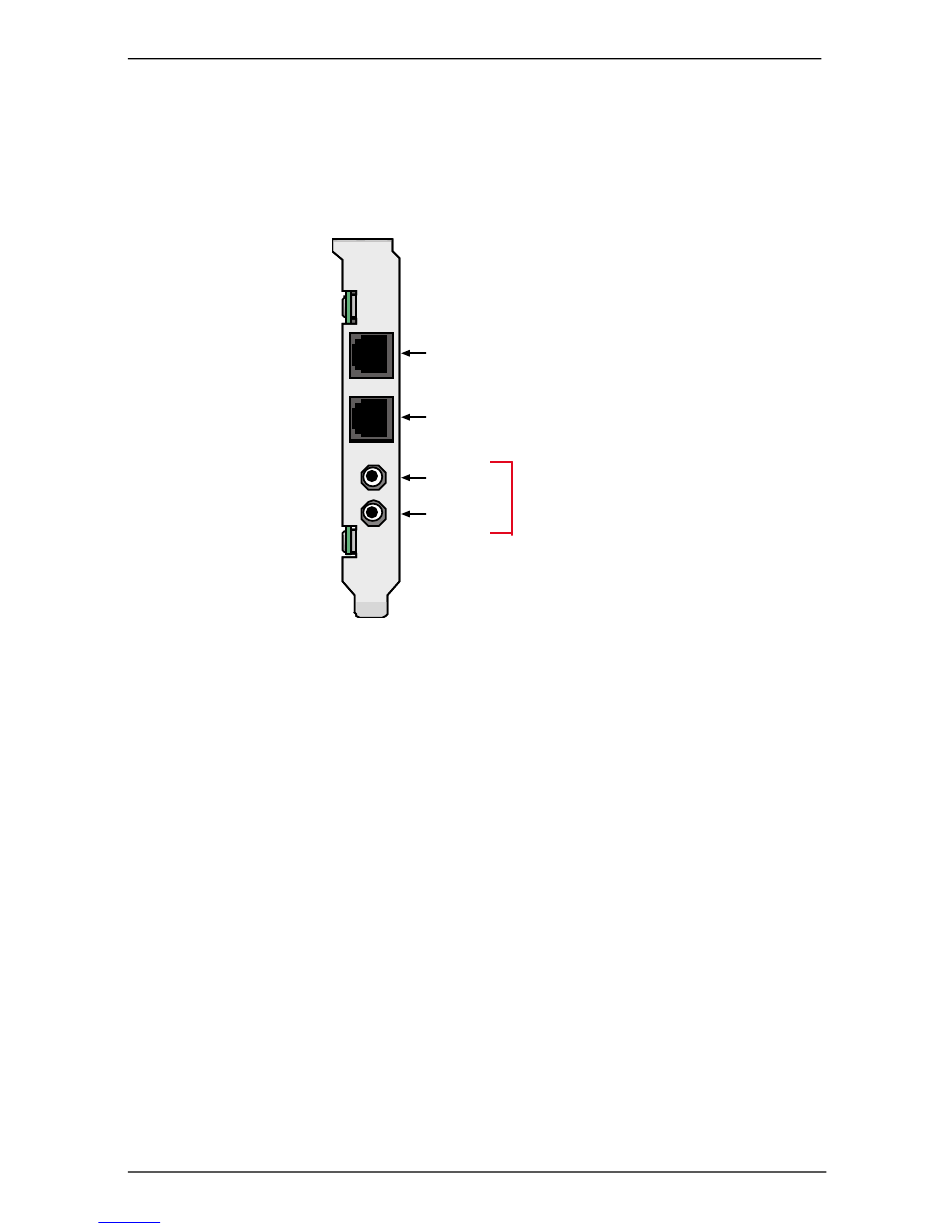

Line Connection
Plug one end of the provided telephone cable into the modem's LINE jack, and the
other end into a telephone wall jack. This is the only required connection.
Important:
the phone into the LINE jack or the line cable into the PHONE jack.
Note: The Federal Communications Commission (FCC) and Industry Canada
impose certain restrictions on equipment connected to public telephone systems.
Configure the Modem for Your Country
Different countries have different requirements for how modems must function.
Therefore, before you use your modem, you must configure it to match the defaults
of the country in which you are using it. The modem is set to country, Euro/NAM,
with a country code of 52 decimal by default. You can use one of two configuration
methods:
●
●
