Unverferth ORTHMAN 1tRIPr Manual

Seedbed tillage (3 point)
Hide thumbs

Advertisement

Quick Links

Download this manual
Seedbed Tillage
1tRIPr (3 Point)
Part No. L125-082

Advertisement

loading
Need help?

Need help?

Do you have a question about the ORTHMAN 1tRIPr and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Unverferth ORTHMAN 1tRIPr

Summary of Contents for Unverferth ORTHMAN 1tRIPr

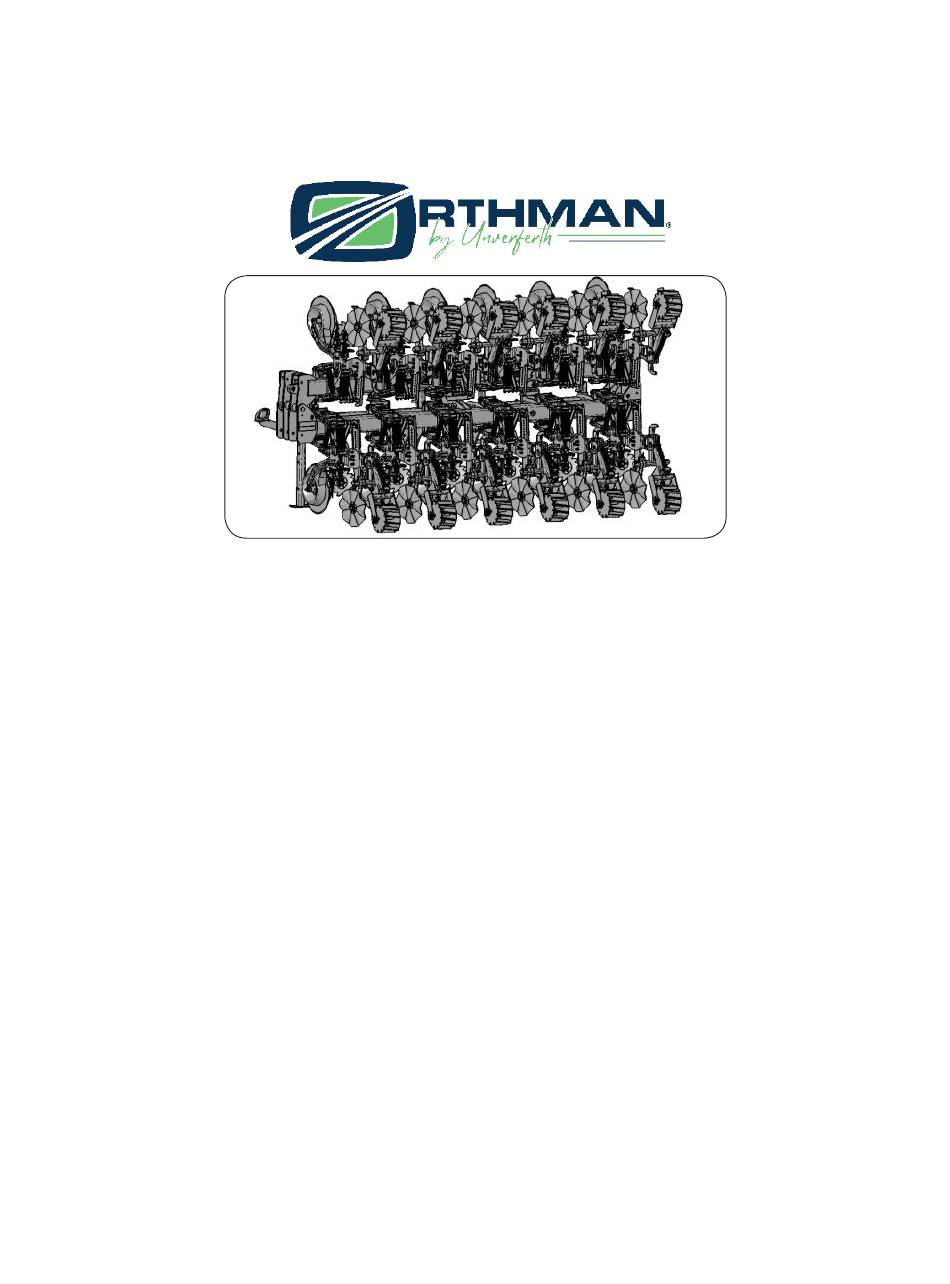

  • Page 1 Seedbed Tillage 1tRIPr (3 Point) Part No. L125-082...
  • Page 2 1 tRIPr (3 Point) — Introduction Foreword This symbol identifies important safety messages. When you see it, read the message that follows and be alert to the possibility of personal injury. Remember, safety instructions stated in this manual are for your protection. Read them carefully and follow them closely when working around or using this machine.

  • Page 3: Product Information

    Please fill out and retain this portion for your records. All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from material and workmanship defects for one full year from time of consumer delivery. Your local dealer will gladly assist you with any warranty questions.

  • Page 4: Table Of Contents

    1 tRIPr (3 Point) — Introduction Table of Contents Foreword ........................2 Product Information ....................3 SECTION I Safety General Hazard Information ................1-2 Safety Decals .......................1-3 Following Safety Instructions ................1-4 Before Servicing or Operating ................1-4 During Operation....................1-5 Before Transporting .....................1-5 During Transport ....................1-5 Preparing for Emergencies .................1-5 Wearing Protective Equipment ................1-6...
  • Page 5 1 tRIPr (3 Point) — Introduction Table of Contents SECTION II Set Up General Set Up Information ................2-2 Basic Set Up .......................2-3 Hydraulic System ...................2-3 SMV Emblem ....................2-3 Light and Light Bracket Set Up ...............2-4 Outer Lights ....................2-4 Inner Lights .....................2-5 Row Unit Mounting .....................2-6 Set Back Clamp Mounting .................2-8 Overhead Layouts ....................2-10...
  • Page 6 1 tRIPr (3 Point) — Introduction Table of Contents SECTION III Operations General Operation Information ................3-2 Preparing Tractor ....................3-2 Hitching to Tractor ....................3-3 Wing Folding Degree Adjustment ..............3-5 Adjustable Wing Rest ..................3-7 90 Degree Folding Procedure ................3-8 Implement Field Operation .................3-9 Rigid Operation ....................3-9 Wing Leveling ....................3-9 Implement Field Adjustment ................3-10...
  • Page 7 1 tRIPr (3 Point) — Introduction Table of Contents SECTION IV Maintenance Lubrication ......................4-2 Mount and Parallel Linkage Disassembly and Assembly .......4-3 Front Coulter Disassembly and Assembly............4-5 Row Cleaner Disassembly and Assembly ............4-6 Floating Row Cleaner ..................4-6 Rigid Row Cleaner ..................4-8 Auto Reset Trip Disassembly and Assembly ...........4-9 Shear Bolt Trip Disassembly and Assembly ..........4-11 Tillage Shank Disassembly and Assembly .............4-13...
  • Page 8 1 tRIPr (3 Point) — Introduction Table of Contents SECTION V Parts Decals ........................5-2 Hitch Components ....................5-3 Hitch Clamp Components...................5-4 Set Back Clamp Components ................5-5 Adjustable Wing Rest Components ..............5-6 170 Degree Wing Rest Components ..............5-8 180 Degree Wing Rest Components ..............5-9 Support Stand Components ................5-10 Single Toolbar Hinge Components ..............5-11 Double Toolbar Hinge Components..............5-12...
  • Page 9 — Safety 1 tRIPr (3 Point) SECTION I Safety General Hazard Information ................1-2 Safety Decals .......................1-3 Following Safety Instructions ................1-4 Before Servicing or Operating ................1-4 During Operation....................1-5 Before Transporting .....................1-5 During Transport ....................1-5 Preparing for Emergencies .................1-5 Wearing Protective Equipment ................1-6 Pressurized Oil .....................1-6...

  • Page 10: Safety

    It is said that, “the best kind of a safety device is a careful operator.” We, at Unverferth Mfg. Co., Inc. ask that you be that kind of operator.

  • Page 11: Safety Decals

    — Safety 1 tRIPr (3 Point) Safety Decals • REPLACE LOST, DAMAGED, PAINTED, OR UNREADABLE DECALS IMMEDIATELY. IF PARTS THAT HAVE DECALS ARE REPLACED, ALSO MAKE SURE TO INSTALL NEW DECALS. THESE DECALS INFORM AND REMIND THE OPERATOR WITH OPERATIONAL INFORMATION AND SAFETY MESSAGES.

  • Page 12: Following Safety Instructions

    — Safety 1 tRIPr (3 Point) Following Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufacturer. •...

  • Page 13: During Operation

    — Safety 1 tRIPr (3 Point) During Operation • Regulate speed to working conditions. Maintain complete control at all times. • Never service or lubricate equipment when in operation. • Use extreme care when operating close to ditches, fences, or on hillsides. •...

  • Page 14: Wearing Protective Equipment

    — Safety 1 tRIPr (3 Point) Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job. • Wear steel-toed shoes when operating. • Wear hearing protection when exposed to loud noises. • Do not wear additional hearing impairing devices such as radio headphones, etc Pressurized Oil •...
  • Page 15 — Set Up 1 tRIPr (3 Point) SECTION II Set Up General Set Up Information ................2-2 Basic Set Up .......................2-3 Hydraulic System ...................2-3 SMV Emblem ....................2-3 Light and Light Bracket Set Up ...............2-4 Outer Lights ....................2-4 Inner Lights .....................2-5 Row Unit Mounting .....................2-6 Set Back Clamp Mounting .................2-8 Overhead Layouts ....................2-10...

  • Page 16: General Set Up Information

    — Set Up 1 tRIPr (3 Point) General Set Up Information This section contains all of the instructions required for the complete assembly of the machine. For your safety, and the safety of others, use proper tools and equipment and always use safe working procedures.

  • Page 17: Basic Set Up

    — Set Up 1 tRIPr (3 Point) Basic Set Up Due to shipping requirements and various dealer-installed options, some initial implement set up will be required after it arrives from the factory. Use the following procedures as needed for initial implement set up. Hydraulic System Check all hoses and cylinders for signs of leakage.

  • Page 18: Light And Light Bracket Set Up

    — Set Up 1 tRIPr (3 Point) Light and Light Bracket Set Up (Single Toolbar) For Outer Lights: NOTE: The left and right light brackets should be adjusted according to the degree at which the wings fold. 1. Remove the hex nut and capscrew from the top of the light bracket mount.

  • Page 19: Inner Lights

    — Set Up 1 tRIPr (3 Point) Light and Light Bracket Set Up (Single Toolbar) For Inner Lights: Inner light brackets must each be mounted equaly from the center of the toolbar and be a total distance of between 4’ and 10’ from each other. The inner red lights will only have a lens on one side of the light and it should be visible from the rear of the toolbar.

  • Page 20: Row Unit Mounting

    — Set Up 1 tRIPr (3 Point) Row Unit Mounting TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH. • BE SURE MACHINE IS SECURELY BLOCKED. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands. 2.
  • Page 21 — Set Up 1 tRIPr (3 Point) Row Unit Mounting (Continued) 7. Tighten the wedge capscrew until the wedge FIG. 2-11 is firmly against the bottom of the toolbar. (Fig. 2-11) 8. Insall the row unit onto the mounting plate using the pins, flat washers, and roll pins.

  • Page 22: Setback Clamp Mounting

    — Set Up 1 tRIPr (3 Point) Setback Clamp Mounting TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH. • BE SURE MACHINE IS SECURELY BLOCKED. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands. 2.
  • Page 23 — Set Up 1 tRIPr (3 Point) Setback Clamp Mounting (Continued) 6. Install the set back clamp halves onto the FIG. 2-15 toolbar, then install the capscrews, lock washers, and hex nuts. (Fig. 2-15) Lock Washers 7. Install the row unit onto the set back clamp Nuts using the pins, spacers, and roll pins.

  • Page 24: Overhead Layouts

    — Set Up 1 tRIPr (3 Point) Overhead Layouts A= Overall Width B= Width to the top link of the 3 point hitch C= Width from the end of the toolbar to the center of the first row unit D= Width between the centers of the row units 2-10...
  • Page 25 — Set Up 1 tRIPr (3 Point) Overhead Layouts Model Measurements (Inches) 4R22 Rigid 116.24 58.12 25.12 4R30 Rigid 116.24 58.12 13.12 4R36 Rigid 144.24 72.12 18.12 4R38 Rigid 144.24 72.12 15.12 4R40 Rigid 144.24 72.12 12.12 6R22 Rigid 180.24 90.12 35.12 6R30 Rigid...
  • Page 26 — Operation 1 tRIPr (3 Point) SECTION III Operation General Operation Information ................3-2 Preparing Tractor ....................3-2 Hitching to Tractor ....................3-3 Wing Folding Degree Adjustment ..............3-5 Adjustable Wing Rest ..................3-7 90 Degree Folding Procedure ................3-8 Implement Field Operation .................3-9 Rigid Operation ....................3-9 Wing Leveling ....................3-9 Implement Field Adjustment ................3-10 Down Pressure Adjustment .................3-10...

  • Page 27: General Operation Information

    — Operation 1 tRIPr (3 Point) General Operation Information • READ AND UNDERSTAND SAFETY RULES BEFORE OPERATING OR SERVICING THIS MACHINE. REVIEW “SAFETY” SECTION IN THIS MANUAL IF NECESSARY. Read this operation section thoroughly. Acquaint yourself with the adjustments required to obtain efficient and trouble-free operations.

  • Page 28: Hitching To Tractor

    — Operation 1 tRIPr (3 Point) Hitching to Tractor • CRUSHING CAN CAUSE SERIOUS INJURY OR DEATH. DO NOT STAND BETWEEN TOWING VEHICLE AND IMPLEMENT WHEN HITCHING. ALWAYS ENGAGE PARKING BRAKE AND STOP ENGINE BEFORE INSERTING HITCH PINS OR SECURING LATCHES. 3 Point Hitch Tractor Connection 1.
  • Page 29 — Operation 1 tRIPr (3 Point) Hitching to Tractor (Continued) Quick Hitch Tractor Connection 1. Back up tractor to the implement hitch. Place the tractor in park, turn off the engine, and remove the key before connecting the implement. Injury or death can result from being trapped between the tractor and FIG.

  • Page 30: Wing Folding Degree Adjustment

    — Operation 1 tRIPr (3 Point) Wing Folding Degree Adjustment MOVING WINGS CAN CAUSE SERIOUS INJURY OR DEATH. KEEP AWAY FROM FOLDING • AND UNFOLDING WINGS. NOTE: Vertical Folding Toolbars can be folded to either 90˚, 115˚, 135°, or 180˚. Modifications may need to be made to the current fold angle due to transportation, storage, and application issues of the particular operation NOTE: All Vertical Folding Toolbars come standard with cylinders in the 180 degree fold...

  • Page 31: Adjustable Wing Rest

    — Operation 1 tRIPr (3 Point) Adjustable Wing Rest MOVING WINGS CAN CAUSE SERIOUS INJURY OR DEATH. KEEP AWAY FROM FOLDING • AND UNFOLDING WINGS. NOTE: Vertical Folding Tillage Toolbars are standard with 180° fold configuration. If 115° or 135° fold configuration is desired, adjustable wing rests must be ordered separately (see adjustable wing rest parts page).
  • Page 32 — Operation 1 tRIPr (3 Point) Adjustable Wing Rest MOVING WINGS CAN CAUSE SERIOUS INJURY OR DEATH. KEEP AWAY FROM FOLDING • AND UNFOLDING WINGS. Adjusting The Wing Rest 1. Before adjusting, be sure the internal FIG. 3-5 hydraulic cylinder is in the correct position Telescoping for the desired degree of folded wing Tube...

  • Page 33: 90 Degree Folding Procedure

    — Operation 1 tRIPr (3 Point) 90 Degree Folding Procedure MOVING WINGS CAN CAUSE SERIOUS INJURY OR DEATH. KEEP AWAY FROM FOLDING • AND UNFOLDING WINGS. NOTE: The 90 degree fold transport lock (sold seperately) is mandatory for the 90 degree fold position.

  • Page 34: Implement Field Operation

    — Operation 1 tRIPr (3 Point) Implement Field Operation Rigid Operation MOVING WINGS CAN CAUSE SERIOUS INJURY OR DEATH. KEEP AWAY FROM FOLDING • AND UNFOLDING WINGS. 1. With the wings completly unfolded, move the wing lock pin from the storage position and install it into the wing lock position.

  • Page 35: Implement Field Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments Down Pressure Adjustment NOTE: Row unit down pressure springs should be adjusted to arrive at a setting where parallel linkages operate independenly from the toolbar and the toolbar serves only as a towing device.

  • Page 36: Row Cleaner Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments (Continued) Row Cleaner Disc Adjustment TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INJURY OR DEATH. • BE SURE MACHINE IS SECURELY BLOCKED. • SHARP EDGES ON THE MACHINE CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND THE MACHINE.

  • Page 37: Tillage Shank Height Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments (Continued) Tillage Shank Height Adjustment • SHARP EDGES ON THE MACHINE CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND THE MACHINE. NOTE: Row unit down pressure springs should be adjusted to arrive at a setting so the parallel linkages operate independenly from the toolbar and the toolbar serves only as a towing device.

  • Page 38: Wavy Coulter Width Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments (Continued) Wavy Coulter Width Adjustment • SHARP EDGES ON THE MACHINE CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND THE MACHINE. NOTE: Row unit down pressure springs should be adjusted to arrive at a setting where parallel linkages operate independently from the toolbar and the toolbar serves only as a towing device.

  • Page 39: Wavy Coulter Depth Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments (Continued) Wavy Coulter Depth Adjustment • SHARP EDGES ON THE MACHINE CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND THE MACHINE. NOTE: Row unit down pressure springs should be adjusted to arrive at a setting where parallel linkages operate independently from the toolbar and the toolbar serves only as a towing device.

  • Page 40: Wavy Coulter Fore And Aft Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments (Continued) Wavy Coulter Fore and Aft Adjustment • SHARP EDGES ON THE MACHINE CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND THE MACHINE. NOTE: Row unit down pressure springs should be adjusted to arrive at a setting so the parallel linkages operate independently from the toolbar and the toolbar serves only as a towing device.

  • Page 41: Conditioning Basket Down Pressure Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments (Continued) Conditioning Basket Down Pressure Adjustment • SHARP EDGES ON THE MACHINE CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND THE MACHINE. NOTE: Row unit down pressure springs should be adjusted to arrive at a setting so the parallel linkages operate independently from the toolbar and the toolbar serves only as a towing device.

  • Page 42: Liquid Fertilizer Tube Adjustment

    — Operation 1 tRIPr (3 Point) Implement Field Adjustments (Continued) Liquid Fertilizer Tube Adjustment 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands. 2. Lower the unit until it is supported by the stands, then set the tractor’s parking brake and remove the key.

  • Page 43: Shear Bolt Trip Operation

    — Operation 1 tRIPr (3 Point) Shear Bolt Trip Operation When the shank encounters an immovable object, FIG. 3-24 the resulting force will shear the lower 1/2” bolt, and the tail will rotate upward about the pivot point to clear the obstacle. Shear Once the shear bolt has been tripped, the operator Bolt...

  • Page 44: Transporting And Field Positions

    — Operation 1 tRIPr (3 Point) Transport and Field Positions • USE TRANSPORT LIGHTS AS REQUIRED BY ALL LAWS TO ADEQUATELY WARN OPERATORS OF OTHER VEHICLES. • REGULATE SPEED TO ROAD CONDITIONS AND MAINTAIN COMPLETE CONTROL. Transport Position: Regulate speed to road conditions and maintain complete control. Be aware of obstructions above, below, and around the implement when in operation or transport.
  • Page 45 — Operation 1 tRIPr (3 Point) Notes 3-20...
  • Page 46 — Maintenance 1 tRIPr (3 Point) SECTION IV Maintenance Lubrication ......................4-2 Mount and Parallel Linkage Disassembly and Assembly .......4-3 Front Coulter Disassembly and Assembly............4-5 Row Cleaner Disassembly and Assembly ............4-6 Floating Row Cleaner ..................4-6 Rigid Row Cleaner ..................4-8 Auto Reset Trip Disassembly and Assembly ...........4-9 Shear Bolt Trip Disassembly and Assembly ..........4-11 Tillage Shank Disassembly and Assembly .............4-13 Liquid Fertilizer Units ..................4-13...

  • Page 47: Lubrication

    — Maintenance 1 tRIPr (3 Point) Lubrication Lubrication Service Intervals # of Grease Points Interval (Hours) Wing Hinge Wing Cylinder Links Wing Cylinder Links Wing Hinge FIG. 4-1 FIG. 4-2...

  • Page 48: Mount And Parallel Linkage Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Mount and Parallel Linkage Disassembly and Assembly • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands. 2.
  • Page 49 — Maintenance 1 tRIPr (3 Point) Mount and Parallel Linkage Disassembly and Assembly 6. Remove the cotter pins and spring trunnions FIG. 4-5 from the top and bottom linkages. (Fig. 4-5) 7. Remove the roll pin, flat washer and pins Spring Trunnion from the front side of the top and bottom Cotter Pins...

  • Page 50: Front Coulter Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Front Coulter Disassembly and Assembly • SHARP EDGES ON THE MACHINE CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND THE MACHINE. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands. 2.

  • Page 51: Row Cleaner Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Row Cleaner Disassembly and Assembly • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. • SHARP EDGES ON COULTER BLADES CAN CAUSE INJURY. BE CAREFUL WHEN WORKING AROUND COULTER BLADES.
  • Page 52 — Maintenance 1 tRIPr (3 Point) Row Cleaner Disassembly and Assembly (continued) 8. Remove the capscrew and hex nut, then FIG. 4-13 remove the row cleaner trunnion from the Capscrew assembly. (Fig. 4-13) 9. Remove the carriage bolts, lock nuts, and disc from the assembly.

  • Page 53: Rigid Row Cleaner

    — Maintenance 1 tRIPr (3 Point) Row Cleaner Disassembly and Assembly (continued) For Rigid Row Cleaner: 1. Remove the carriage bolts, disc and lock FIG. 4-17 nuts from the row cleaner assembly. (Fig. Disc 4-17) 2. Remove the snap ring, dust cover, and o-ring from the hub.

  • Page 54: Auto Reset Trip Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Auto Reset Disassembly and Assembly • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands to the ground. 2.

  • Page 55: Auto Reset Trip Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Auto Reset Disassembly and Assembly (continued) 7. Remove the capscrew and pin from the FIG. 4-25 middle of the assembly, then seperate the arms of the auto reset assembly. (Fig. 4-25) Capscrew 8. Remove the bushings from the lower arm of the auto reset assembly.

  • Page 56: Shear Bolt Trip Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Shear Bolt Trip Disassembly and Assembly • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands to the ground. 2.
  • Page 57 — Maintenance 1 tRIPr (3 Point) Shear Bolt Reset Disassembly and Assembly (continued) Lock Washers 7. Remove the capscrews, shear bolt, lock FIG. 4-29 Hex Nuts washers, and hex nuts from the assembly. Capscrews (Fig. 4-29) Shear Bolt 8. Remove the capscrew and pivot pin. (Fig. 4-29) 9.

  • Page 58: Tillage Shank Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Tillage Shank Disassembly and Assembly • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands to the ground. 2.

  • Page 59: Dry Fertilizer Units

    — Maintenance 1 tRIPr (3 Point) Tillage Shank Disassembly and Assembly (continued) 6. Remove the roll pin and mole shank from the shank. (Fig. 4-30) FIG. 4-30 7. Inspect parts and replace as necessary. Mole 8. Install the mole shank and roll pin onto the Shank shank.
  • Page 60 — Maintenance 1 tRIPr (3 Point) Tillage Shank Disassembly and Assembly (continued) 3. Remove the roll pin and liquid fertilizer FIG. 4-33 tube. (Fig. 4-33) 4. Remove the capscrew, flat washers, lock washer and hex nut, then remove the guard from the mole shank.

  • Page 61: Wavy Coulter Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Wavy Coulter Disassembly and Assembly • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands to the ground. 2.
  • Page 62 — Maintenance 1 tRIPr (3 Point) Wavy Coulter Disassembly and Assembly (continued) 6. Remove the snap ring, dust cover, and o-ring from the hub. (Fig. 4-38) FIG. 4-38 Dust Cover 7. Remove the cap screw, hex nut, lock washer, and spacer. Then remove the hub from the assembly.

  • Page 63: Conditioning Basket Disassembly And Assembly

    — Maintenance 1 tRIPr (3 Point) Conditioning Basket Disassembly and Assembly • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. 1. Leave the unit attached to the tractor, raise the unit, then lower the support stands to the ground. 2.
  • Page 64 — Maintenance 1 tRIPr (3 Point) Conditioning Basket Disassembly and Assembly (continued) 6. Remove the hex nuts, lock washers, and flat Flat Washers FIG. 4-44 washers. Remove the outer bearing flange Lock Washers and bearing from the assembly. (Fig. 4-44) Hex Nuts Bearing 7.
  • Page 65 — Maintenance 1 tRIPr (3 Point) Toolbar Internal Cylinder Removal • KEEP HANDS CLEAR OF PINCH POINT AREAS. • EYE PROTECTION AND OTHER APPROPRIATE PERSONAL PROTECTIVE EQUIPMENT MUST BE WORN WHILE SERVICING IMPLEMENT. • HIGH-PRESSURE FLUIDS CAN PENETRATE THE SKIN AND CAUSE SERIOUS INJURY OR DEATH.
  • Page 66 — Maintenance 1 tRIPr (3 Point) Toolbar Internal Cylinder Removal (continued) 9. Remove the locking capscrew, lock washer FIG. 4-48 and flat washer that hold the cylinder pin in place, then remove the cylinder pin from the assembly. (Fig. 4-48) Cylinder Pin 10.

  • Page 67: Storage

    — Maintenance 1 tRIPr (3 Point) Storage Do the following before placing the implement in storage: 1. Remove dirt and trash which could cause rusting. 2. Repaint any chipped or scraped areas. 3. Coat all earth moving surfaces with grease or suitable rust preventative. 4.

  • Page 68: Complete Torque Chart

    — Maintenance 1 tRIPr (3 Point) Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end. FOOT NEWTON SIZE...

  • Page 69: Capscrews - Grade 8

    — Maintenance 1 tRIPr (3 Point) Complete Torque Chart (continued) Capscrews - Grade 8 NOTE: • Grade 8 capscrews can be identified by six radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts evenly and equally to have the same number of threads exposed on each end.

  • Page 70: Hydraulic Fittings - Torque And Installation

    — Maintenance 1 tRIPr (3 Point) Hydraulic Fittings – Torque and Installation Tightening O-Ring Fittings 1. Inspect components for damage or O-Ring fittings contamination. Do not connect any other type of fitting to an O-ring fitting. 2. For adjustable fittings, insure the jam nut and washer are fully backed up.
  • Page 71 — Maintenance 1 tRIPr (3 Point) Hydraulic Fittings – Torque and Installation Tightening JIC Fittings 1. Inspect all components for damage or contamination. Do not connect any other JIC fittings type of fitting to a JIC fitting. 2. Lubricate the threads. 3.
  • Page 72 — Maintenance 1 tRIPr (3 Point) Notes 4-27...
  • Page 73 — Parts 1 tRIPr (3 Point) SECTION V Parts Decals ........................5-2 Hitch Components ....................5-3 Hitch Clamp Components...................5-4 Set Back Clamp Components ................5-5 Adjustable Wing Rest Components ..............5-6 170 Degree Wing Rest Components ..............5-8 180 Degree Wing Rest Components ..............5-9 Support Stand Components ................5-10 Single Toolbar Hinge Components ..............5-11 Double Toolbar Hinge Components..............5-12 Single Folding Toolbar Light Brackets and SMV Sign Components ..5-13...

  • Page 74: Decals

    — Parts 1 tRIPr (3 Point) Decals Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L153-1012 Orthman by Unverferth Decal L153-432 1tRIPr Model Decal L153-172 Yellow Reflective Decal L153-173 Orange Reflective Decal L153-171 Red Reflective Decal...

  • Page 75: Hitch Components

    — Parts 1 tRIPr (3 Point) Hitch Components Please visit www.unverferth.com/parts/ for the most current parts listing. Cat. 4 Hitches Are Only Available On Models with Double Folding Toolbars ITEM PART NO. DESCRIPTION NOTES L601-971 Medium Lift Hitch Package, 110” Category 3/3N L601-972 Medium Lift Hitch Package, 144”...

  • Page 76: Hitch Clamp Components

    — Parts 1 tRIPr (3 Point) Hitch Clamp Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L601-380 Clamp Assembly, Heavy Duty - Medium L601-360 Clamp Assembly, Regular Duty - Medium L302-571 Clamp, Heavy Duty...

  • Page 77: Set Back Clamp Components

    — Parts 1 tRIPr (3 Point) Set Back Clamp Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-470 Top Arm Weldment L388-737 Bottom Arm Weldment L388-530 Spacer, 1 3/4” OD x 1 1/16” ID x 1/2”...

  • Page 78: Adjustable Wing Rest Components

    — Parts 1 tRIPr (3 Point) Adjustable Wing Rest Components Please visit www.unverferth.com/parts/ for the most current parts listing.
  • Page 79 — Parts 1 tRIPr (3 Point) Adjustable Wing Rest Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L600-074 Adjustbale Wing Rest Kit L600-101 Adjustable Wing Rest Kit (Short) L300-065 Mount Bracket L300-071 Reciever Tube...
  • Page 80 — Parts 1 tRIPr (3 Point) 170 Degree Wing Fold Assembly Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L301-524 170 Degree Wing Rest L146-008 Rubber Bumper L315-031 U-Bolt, 3/4”-10UNC x 7” x 7”...

  • Page 81: 180 Degree Wing Rest Components

    — Parts 1 tRIPr (3 Point) 180 Degree Wing Rest Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L301-545 180 Degree Wing Rest L315-031 U-Bolt, 3/4”-10UNC x 7” x 7” L108-022 Lock Washer, 3/4”...

  • Page 82: Support Stand Components

    — Parts 1 tRIPr (3 Point) Support Stand Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L600-354 Support Stand Kit 48” L303-744 Stand Tube, 48” L301-098 Stand Mount L315-027 U-Bolt, 5/8”-11UNC x 5” x 7”...

  • Page 83: Single Toolbar Hinge Components

    — Parts 1 tRIPr (3 Point) Single Toolbar Hinge Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L301-146 Toolbar Pivot Pin L301-156 Toolbar Locking Pin L134-005 Toolbar Pivot Bushing L134-040 Toolbar Cylindser Bushing...

  • Page 84: Double Toolbar Hinge Components

    — Parts 1 tRIPr (3 Point) Double Toolbar Hinge Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L321-624 Hinge Pin L321-319 Wing Lock Pin L104-065 Linch Pin, 5-16” x 1 11/16” L134-040 Bushing, 1 7/8” x 1 1/2” x 3/4”...
  • Page 85 — Parts 1 tRIPr (3 Point) Single Folding Toolbar Light Mounts and SMV Sign Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L301-567 Adjustable Light Bracket, Right L301-568 Adjustable Light Bracket, Left L301-563...
  • Page 86 — Parts 1 tRIPr (3 Point) Double Folding Toolbar Light Mounts and SMV Sign Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L341-822 Outer Light Mount (Left) L341-821 Outer Light Mount (Right) L341-825...
  • Page 87 — Parts 1 tRIPr (3 Point) Rigid Toolbar Light Mounts and SMV Sign Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L301-573 Light Mount L153-109 SMV Sign L385-183 SMV Sign Mount L333-499 SMV Sign Mounting Strap L315-026 U-Bolt, 3/8”-16UNC x 7’...

  • Page 88: 180 Degree Wing Fold Assembly Components

    — Parts 1 tRIPr (3 Point) 180 Degree Wing Fold Assembly Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-16...
  • Page 89 — Parts 1 tRIPr (3 Point) 180 Degree Wing Fold Assembly Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L194-499 Cylinder, 4” x 24” L301-980 Connecting Strap L301-548 Linkage Pin L301-982 Guide Wheel...
  • Page 90 — Parts 1 tRIPr (3 Point) 170 Degree Wing Fold Assembly Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-18...
  • Page 91 — Parts 1 tRIPr (3 Point) 170 Degree Wing Fold Assembly Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L194-499 Hydraulic Cylinder, 4” x 24” L301-502 Connecting Strap L301-548 Linkage Pin L301-802 Guide Wheel...

  • Page 92: Mount And Parellel Linkage Components

    — Parts 1 tRIPr (3 Point) Mount and Parallel Linkage Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L387-902 Mounting Bracket L387-901 Row Unit Linkage L387-521 Wedge L387-905 Spring Trunnion L340-029 Spring Plug...

  • Page 93: Row Unit Frame Components

    — Parts 1 tRIPr (3 Point) Row Unit Frame Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-001 Row Unit Main Frame Casting L388-002 Row Unit Tail Casting L388-221 Scraper L388-390 Main Frame Pivot Pin...
  • Page 94 — Parts 1 tRIPr (3 Point) Auto Reset Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-743 Upper Arm L388-741 Lower Arm L388-408 L388-363 Spring Trunnion L340-029 Spring Plug L148-027 Spring L104-007 Roll Pin, 1/4” x 1 1/2”...
  • Page 95 — Parts 1 tRIPr (3 Point) Shear Bolt Reset Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-430 Reset Side Plate L388-367 Reset Stop Block L388-431 Reset Center Link L388-410 Reset Rear Pin L104-007 Roll Pin, 1/4”...

  • Page 96: Depth Band Coulter Components

    — Parts 1 tRIPr (3 Point) Depth Band Coulter Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L166-033 Smooth Disc, 22” L385-167 Depth Band Includes Items 4 L385-950 Hub Assembly and 6 L385-945...
  • Page 97 — Parts 1 tRIPr (3 Point) Rigid Row Cleaner (Narrow Row) Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-615 Narrow Row Cleaner Assembly L387-054 Narrow Row Cleaner Shank L166-042 Notched Disc, 16”...

  • Page 98: Rigid Row Cleaner Components

    — Parts 1 tRIPr (3 Point) Rigid Row Cleaner Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-26...
  • Page 99 — Parts 1 tRIPr (3 Point) Rigid Row Cleaner Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-415 Rigid Row Cleaner Assembly L388-416 Rigid Row Cleaner Shank L166-042 Notched Disc, 13” Includes Items 4...

  • Page 100: Floating Row Cleaner Components

    — Parts 1 tRIPr (3 Point) Floating Row Cleaner Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-28...
  • Page 101 — Parts 1 tRIPr (3 Point) Floating Row Cleaner Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-725 Floating Row Cleaner Assembly L388-724 Upper Row Celaner Mount L388-087 Lower Row Cleaner Mount Includes Items 11...

  • Page 102: Tillage Shank (Liquid) Components

    — Parts 1 tRIPr (3 Point) Tillage Shank Components (Liquid) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-30...
  • Page 103 — Parts 1 tRIPr (3 Point) Tillage Shank Components (Liquid) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-442 Tillage Shank Assembly (Liquid) L388-440 Shank L164-060 Mole Shank L387-091 Mole Shank Guard L385-552 Liquid Fertilizer Tube L104-039 Slotted Spring Pin, 5-16”...

  • Page 104: Tillage Shank (Dry) Components

    — Parts 1 tRIPr (3 Point) Tillage Shank Components (Dry) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-32...
  • Page 105 — Parts 1 tRIPr (3 Point) Tillage Shank Components (Dry) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-451 Tillage Shank Assembly (Dry) L388-433 Shank L164-060 Mole Shank L388-464 Mole Shank Guard L387-204 Side Plates...
  • Page 106 — Parts 1 tRIPr (3 Point) Tillage Shank Components (NH3) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-501 NH3 Knife Tillage Shank Assembly L388-500 Shank L176-003 NH3 Knife L317-301 Shank Adapter (RH) L317-212...
  • Page 107 — Parts 1 tRIPr (3 Point) Tillage Shank Components (Mole Knife) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-502 Mole Knife Tillage Shank Assembly L388-500 Shank L385-577 Mole Knife L317-301 Shank Adapter (RH)

  • Page 108: Tillage Shank (Nh3) Components

    — Parts 1 tRIPr (3 Point) Tillage Shank Components (Shallow Tilage) Please visit www.unverferth.com/parts/ for the most current parts listing. 5-36...
  • Page 109 — Parts 1 tRIPr (3 Point) Tillage Shank Components (Shallow Tillage) Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-457 Shallow Tillage Shank Assembly L388-456 Shallow Tillage Shank L320766 Wavy Coulter, 18” Includes Items 4...

  • Page 110: Wavy Coulter Components

    — Parts 1 tRIPr (3 Point) Wavy Coulter Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-38...
  • Page 111 — Parts 1 tRIPr (3 Point) Wavy Coulter Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-101 Wavy Coulter Assembly L388-616 Mounting Shank L388-005 Coulter Arm, Left L388-006 Coulter Arm, Right L166-040 Wavy Coulter...

  • Page 112: Conditioning Basket Components

    — Parts 1 tRIPr (3 Point) Conditioning Basket Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-40...
  • Page 113 — Parts 1 tRIPr (3 Point) Conditioning Basket Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-091 Conditioning Basket Assembly, 14” L388-310 Comditioning Basket Assembly, 8” L388-094 Conditioning Basket Frame, 14” Basket L388-421 Conditioning Basket Frame, 8”...

  • Page 114: Liquid Fertilizer Routing Components

    — Parts 1 tRIPr (3 Point) Liquid Fertilizer Routing Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L388-481 Bracket L388-484 Bracket L100-746 U-Bolt, 1/4”-20UNC x 1 1/4” L100-114 Capscrew, 1/2”-13UNC x 1” Grade 5 Capscrew, 5/16”-18UNC x 2 1/2”...

  • Page 115: Hydraulic Cylinder

    — Parts 1 tRIPr (3 Point) Hydraulic Cylinder Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L194-499 Hydraulic Cylinder, 4” x 24” L194-440 Hydraulic Cylinder Seal Kit 5-43...

  • Page 116: Hydraulic Components

    — Parts 1 tRIPr (3 Point) Hydraulic Components Please visit www.unverferth.com/parts/ for the most current parts listing. 5-44...
  • Page 117 — Parts 1 tRIPr (3 Point) Hydraulic Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES 9009751 Hose Grip, Green (+) 9009752 Hose Grip, Green (-) Hydraulic Hose, 3/8” x 80” 98508 9-16” JIC Female x 3/4”-16 OR Male L140-092 Hydraulic Hose Tip, ISO 3/4”-16 Female...

  • Page 118: Light Kit Components

    — Parts 1 tRIPr (3 Point) Light Kit Components Please visit www.unverferth.com/parts/ for the most current parts listing. ITEM PART NO. DESCRIPTION NOTES L154-1001 Red Light L154-1000 Yellow Light L154-1007 Flasher Module L154-1020 Light Harness, 13’ Not Shown L154-1005 Light Harness, 7 Pin to Tractor...
  • Page 119 — Parts 1 tRIPr (3 Point) 5-47...
