Ceiling Mount Air Handlers
INSTALLATION INSTRUCTIONS & OPERATING INSTRUCTIONS
FRONT RETURN CONFIGURATION
AIRFLOW DIRECTION
INTERCHANGEABLE
RETURN PANEL
ONLY PERSONNEL THAT HAVE BEEN TRAINED TO IN-
STALL, ADJUST, SERVICE, MAINTENANCE OR REPAIR
(HEREINAFTER, "SERVICE") THE EQUIPMENT SPECIFIED IN
THIS MANUAL SHOULD SERVICE THE EQUIPMENT.
THIS
EQUIPMENT
IS
PERSONS
(INCLUDING
PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK
OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE
BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING
USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR
THEIR SAFETY.
CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT
THEY DO NOT PLAY WITH THE EQUIPMENT.
THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR
ANY INJURY OR PROPERTY DAMAGE ARISING FROM
IMPROPER
SUPERVISION,
PROCEDURES. IF YOU SERVICE THIS UNIT, YOU AS-
SUME RESPONSIBILITY FOR ANY INJURY OR PROPERTY
DAMAGE
WHICH
MAY
JURISDICTIONS THAT REQUIRE ONE OR MORE LICENS-
ES TO SERVICE THE EQUIPMENT SPECIFIED IN THIS
MANUAL, ONLY LICENSED PERSONNEL SHOULD SERVICE
THE EQUIPMENT.
IMPROPER SUPERVISION, INSTALLA-
TION, ADJUSTMENT, SERVICING, MAINTENANCE OR RE-
PAIR OF THE EQUIPMENT SPECIFIED IN THIS MANUAL, OR
ATTEMPTING TO INSTALL, ADJUST, SERVICE OR RE-
PAIR THE EQUIPMENT SPECIFIED IN THIS MANUAL WITH-
OUT PROPER SUPERVISION OR TRAINING MAY RESULT
IN PRODUCT DAMAGE, PROPERTY DAMAGE, PERSONAL
INJURY OR DEATH.
DO NOT BYPASS SAFETY DEVICES
WARNING
NOT
INTENDED
FOR
CHILDREN)
WITH
REDUCED
SERVICE
OR
RESULT.
IN
ADDITION,
WARNING
© 2024
19001 Kermier Rd., Waller, TX 77484
www.daikinac.com
P/N: IO-4015A
BOTTOM RETURN CONFIGURATION
INTERCHANGEABLE
RETURN PANEL
HIGH VOLTAGE
DISCONNECT ALL POWER BEFORE SERVICING
OR INSTALLING THIS UNIT. MULTIPLE POWER
SOURCES MAY BE PRESENT. FAILURE TO
DO SO MAY CAUSE PROPERTY DAMAGE,
USE
BY
PERSONAL INJURY OR DEATH.
RECOGNIZE THIS SYMBOL AS A SAFETY PRECAUTION.
NOTE: SPECIFICATIONS AND PERFORMANCE DATA LISTED
HEREIN ARE SUBJECT TO CHANGE WITHOUT NOTICE.
NOTE: NEVER OPERATE THE UNIT WITHOUT ALL PANELS
INSTALLED.
SERVICE
NOTE: THIS EQUIPMENT IS APPROVED TO USE ONLY WITH R-32
REFRIGERANT
IN
Date: August 2024
AIRFLOW DIRECTION
WARNING
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Daikin ACST18MU13 AA Series
Summary of Contents for Daikin ACST18MU13 AA Series

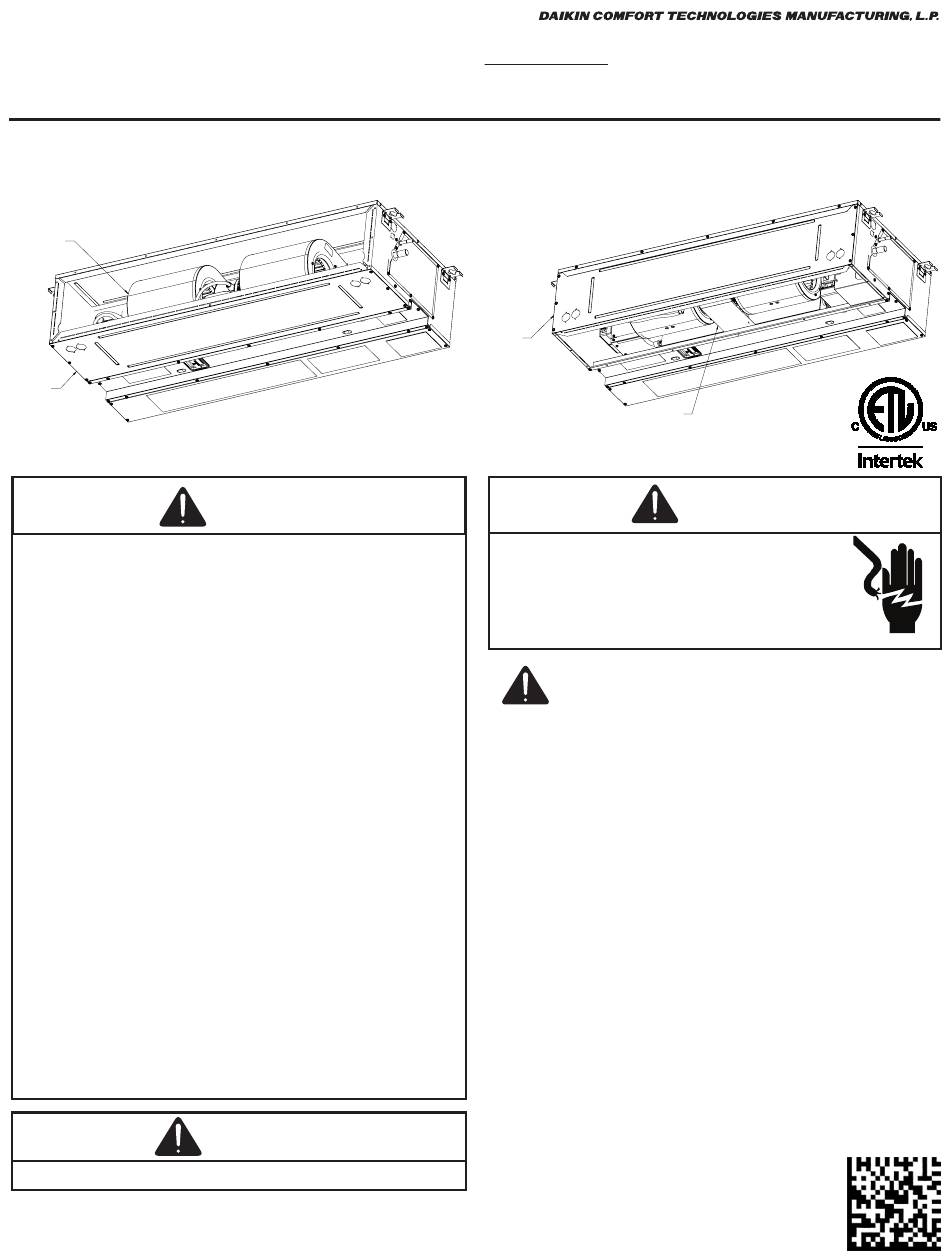

- Page 1 Ceiling Mount Air Handlers © 2024 19001 Kermier Rd., Waller, TX 77484 INSTALLATION INSTRUCTIONS & OPERATING INSTRUCTIONS www.daikinac.com P/N: IO-4015A Date: August 2024 FRONT RETURN CONFIGURATION BOTTOM RETURN CONFIGURATION AIRFLOW DIRECTION INTERCHANGEABLE RETURN PANEL INTERCHANGEABLE RETURN PANEL AIRFLOW DIRECTION WARNING WARNING HIGH VOLTAGE ONLY PERSONNEL THAT HAVE BEEN TRAINED TO IN-...
-
Page 2: Table Of Contents
CONTENTS 1 Important Safety Instructions ................................4 2 Codes & Regulations ..................................... 4 3 Shipping Inspection ....................................4 3.1 Parts ........................................4 3.2 Handling ......................................4 3.3 Shipping Material Removal................................. 4 4 Wiring Diagram ....................................... 5 5 Replacement Parts ....................................6 6 Application Information .................................. - Page 3 WARNING WARNING DO NOT USE MEANS TO ACCELERATE THE DEFROSTING IF ANY HOT WORK IS TO BE CONDUCTED ON THE PROCESS OR TO CLEAN, OTHER THAN THOSE RECOMMENDED REFRIGERATING EQUIPMENT OR ANY ASSOCIATED PARTS, BY THE MANUFACTURER. THE APPLIANCE SHALL BE STORED APPROPRIATE FIRE EXTINGUISHING EQUIPMENT SHALL BE IN A ROOM WITHOUT CONTINUOUSLY OPERATING IGNITION AVAILABLE ON HAND.
-
Page 4: Important Safety Instructions
1 IMPORTANT SAFETY INSTRUCTIONS Symbols and labels are used throughout this manual to indicate immediate or potential safety hazards. The owner’s and installer’s responsibility is to read and comply with all safety information and instructions accompanying these symbols. Failure to heed safety information increases the risk of personal injury, property damage, and/or product damage. -
Page 5: Wiring Diagram
4 WIRING DIAGRAM Wiring is subject to change. Always refer to the Wiring Diagram on the unit for the most up-to-date wiring. -
Page 6: Replacement Parts
Run ducts as directly as possible to supply and return outlets. Use non-flammable weatherproof flexible connectors on both supply HOMEOWNER SUPPORT and return connections at the unit to reduce noise transmission. DAIKIN COMFORT TECHNOLOGIES MANUFACTURING, L.P. 7.4 Ducting 19001 KERMIER ROAD, Ductwork should be fabricated by the installing contractor in WALLER, TX 77484 accordance with local codes. -
Page 7: Layout For Ceiling Mount Air Handler
A Secondary Condensate Drain Connection has been provided When coils are installed above ceilings, or in other locations where for areas where the building codes require it. Pitch the drain line damage from condensate overflow may occur, it is MANDATORY to 1/4”... -
Page 8: Electrical Connections
"A" 2X4 STUDS "B" "C" TOP VIEW MOUNT UNIT TO STUD WITH (4) 3/8" X 12" ALL THREAD ROD. (18) 3/8" HEX NUTS AND (18) 3/8" FENDER WASHER LEVEL TO WITHIN A 1/4" BUBBLE. 22.27 16.00 2.75 FRONT VIEW (4) 3/8" X 12" ALL THREAD ROD. 11.00 2X4 STUDS SECONDARY DRAIN... -
Page 9: Maximum Overcurrent Protection (Mop)
The wire must be sized to allow no more than a 2% voltage drop GROUND LUG FOR FIELD GROUND WIRE from the building breaker/fuse panel to the unit. Wires with different insulation temperature ratings have varying ampacities - be sure to check the temperature rating used. Refer to the latest edition of the National Electric Code or in Canada the Canadian Electric Code when determining the correct wire size. -
Page 10: Constant Torque (Eem) Motors
11 CONSTANT TORQUE (EEM) MOTORS CEILING MOUNT UNIT ACST models utilize constant torque (EEM) motors. These motors come with a separate control box which is mounted on the side C.R.I. of the unit as shown in Figure 9. The harness from the motor is inserted into the control box which has another harness leading into the control panel of the unit. -
Page 11: Airflow Data
12 AIRFLOW DATA CFM @ STATIC PRESSURE (IN W.C.) Model Speed Tap ACST18MU13**AA ACST24LU13**AA ACST30LU13**AA Table 4 NOTE: 1. Airflow data indicated is at 230V without an air filter in place. 2. The cooling/heating speed tap should be selected based on AHRI Ratings. Otherwise, select a speed tap that provides a minimum of 300 CFM per outdoor ton. -
Page 12: Standing Pressure Test (Recommended Before Vacuum)
IMPORTANT NOTE: Torch heat required to braze tubes of various detect refrigerant leaks but, in the case of flammable refrigerants, sizes is proportional to the size of the tube. Tubes of smaller size the sensitivity may not be adequate, or may need recalibration. require less heat to bring the tube to brazing temperature before (Detection equipment shall be calibrated in a refrigerant-free area.) adding brazing alloy. -
Page 13: Thermal Expansion Valve System Adjustment
The recovery equipment shall be in good working order with a set of 4. Label the system when charging is complete (if not already). instructions concerning the equipment that is at hand and shall be 5. Extreme care shall be taken not to overfill the refrigerating suitable for the recovery of the flammable refrigerant. - Page 14 SATURATED SUCTION PRESSURE- SATURATED LIQUID PRESSURE- TEMPERATURE CHART FOR R-32 TEMPERATURE CHART FOR R-32 SUCTION PRESSURE SATURATED SUCTION SUCTION PRESSURE SATURATED SUCTION (PSIG) TEMPERATURE (°F) (PSIG) TEMPERATURE (°F) SUBCOOL FORMULA = SAT. LIQUID LINE TEMP. - LIQUID LINE TEMP. SUPERHEAT FORMULA = SUCT.
-
Page 15: Refrigeration Detection System (Rds)
14 REFRIGERATION DETECTION SYSTEM (RDS) Ceiling Mount Air Handler - Mitigation Mode Table Minimum Mitigation Airflow Minimum Air Minimum Air Required Speed Tap T2 Conditioned Conditioned Model Mitigation at 0.3” static Room Area Room Area Airflow pressure in W.C. (m²) (ft²) (CFM) (CFM) -
Page 16: Altitude Adjustment Factor To Calculate Minimum Room Area
14.1 Altitude Adjustment Factor to Calculate Minimum Room Area The Indoor equipment mitigation requirements are calculated at sea level. For higher altitudes adjust the minimum room area specified on the Serial Plate by the corresponding altitude adjustment factor shown below. This table is provided as a reference. Adjusted room area (Amin ) is the product of the minimum room area specified in the serial plate and the adjustment factor AF, as shown in below formula... -
Page 17: Sensor Mounting And Dismounting Instructions
14.2 Sensor Mounting and Dismounting Instructions 14.2.1 Sensor Dismounting Instructions Detach the service panel by unfastening screw “A” (Refer to figure A). PCB BOX COVER Detach the return panel by unfastening screw “B” (Refer to figure A). Remove the PCB Box Upper case (Refer to figure C). Remove the Sensor Wire Connection from the PCB (Refer to figure D). - Page 18 RED LED'S STATUS MODE Definition LED Flashing Pattern Recommended actions Notes: Slow LED flashing pattern Normal Operation No faults to report No action (2 seconds on and 2 seconds off) R-32 leak is The controls and sensor are working R-32 Leak Alarm currently being Fast LED Flashing Pattern properly.
-
Page 19: Maintenance
15 MAINTENANCE 15.4 Heater Kit Service This comfort equipment comes pre-installed with a UL 2-40 certified 15.1 Room Thermostat heater kit. In times of replacement, please ensure that only a UL The room thermostat controls the operation of your heating and/ 2-40 certified kit is utilized. -
Page 20: Split Systems
SPLIT SYSTEMS AIR CONDITIONING AND HEAT PUMP HOMEOWNER’S ROUTINE MAINTENANCE RECOMMENDATIONS We strongly recommend a biannual maintenance checkup be performed before the heating and cooling seasons begin by a qualified servicer. Replace or Clean Filter IMPORTANT NOTE: Never operate unit without a filter installed as dust and lint will build up on internal parts resulting in loss of efficiency, equipment damage and possible fire. -
Page 21: Start-Up Checklist
START-UP CHECKLIST Air Handler / Coil Model Number Serial Number ELECTRICAL Line Voltage (Measure L1 and L2 Voltage) L1 - L2 Secondary Voltage (Measure Transformer Output Voltage) R - C Blower Amps Heat Strip 1 - Amps Heat Strip 2 - Amps BLOWER EXTERNAL STATIC PRESSURE Return Air Static Pressure IN. - Page 22 THIS PAGE LEFT INTENTIONALLY BLANK.
- Page 23 THIS PAGE LEFT INTENTIONALLY BLANK.
- Page 24 Contractor Program and Training • Customer Services • Financing Options 19001 Kermier Road, Waller, TX 77484 © 2024 Daikin Comfort Technologies Manufacturing, L.P. is a registered trademark of Maytag Corporation or its related companies and is used under license. All rights reserved.
