Summary of Contents for SunSynk Lifelynk 6kW XLS

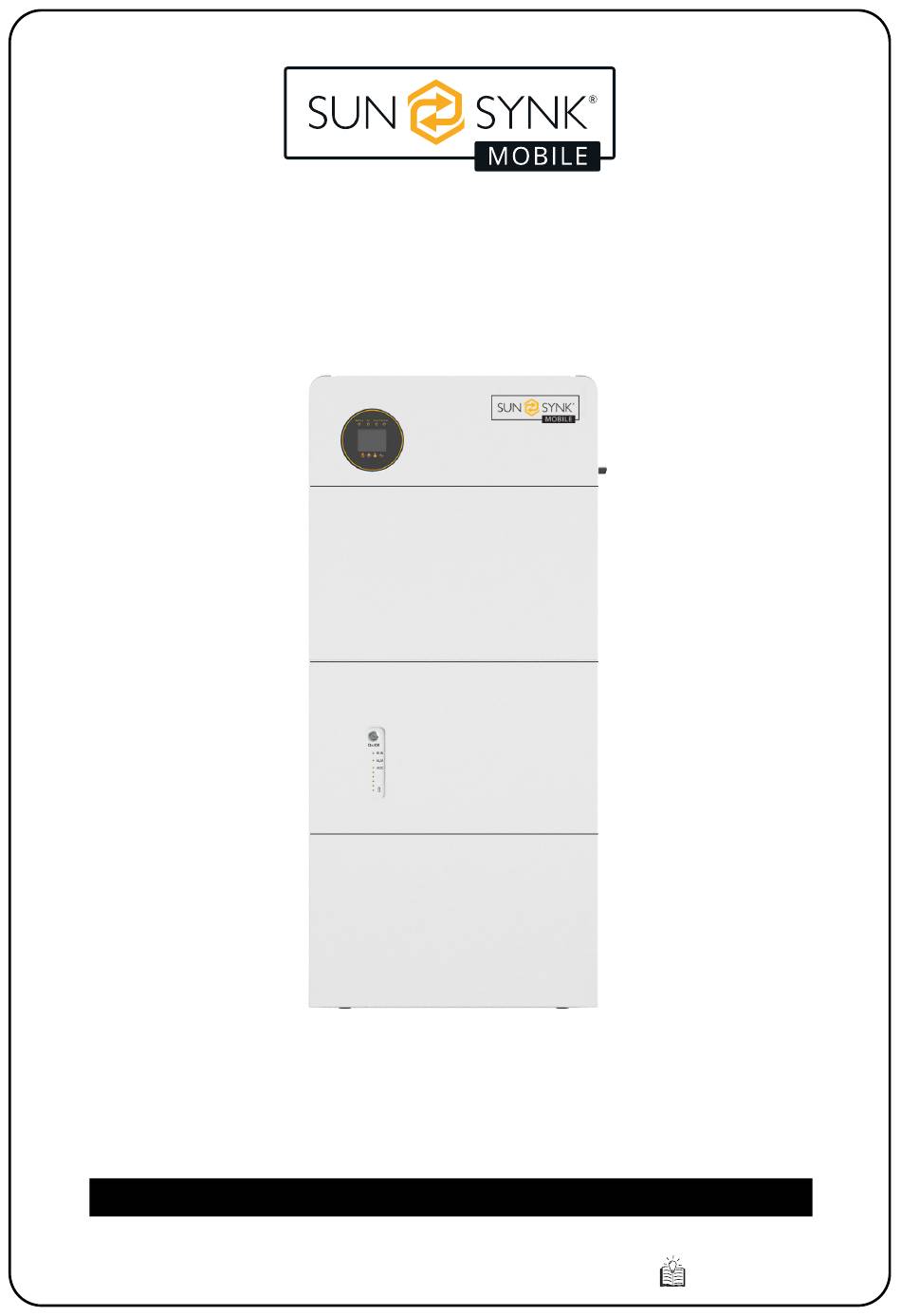

- Page 1 Lifelynk 6kW XLS SM6.0kWLLXLS USER MANUAL UK/EU www.sunsynkmobile.com / sales@sunsynkmobile.com Please retain for future reference...
-
Page 2: Table Of Contents
CT Coil and Load Power Settings Parallel Operation COMMISSIONING External Battery and Parallel Connections Startup / Shutdown Procedure Load Connection Information for Commissioning the Inverter Grid Connection GFDI Fault Solar Connection MAINTENANCE LCD DISPLAY SCREEN APPENDIX A SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 3: Safety
Safety Instructions WARNING HIGH LIFE RISK DUE TO FIRE OR ELECTROCUTION. The Lifelynk 6kW XLS can only be installed by a qualified licensed electrical contractor. This is not a DIY product. Ensure to follow the safety warnings listed below: Be sure to read this manual thoroughly before installation. -
Page 4: Symbols In The Manual
Do not drop, deform, or impact the Ground Terminal. inverter. Single Phase. Three Phase. Do not submerge the inverter in water Keep out of reach of children, animals, or expose it to moisture or liquid. and insects. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 5: Manual Download
Electrical devices should be disposed of in accordance with regional directives on electronic and / or electronic-waste disposal. In case of further questions, please consult your supplier. In some cases, the supplier can take care of disposal. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 6: Product Introduction
PRODUCT INTRODUCTION The Lifelynk 6kW XLS is a highly efficient power management solution that helps users achieve ‘parity’ targets by optimizing power flow from multiple sources such as solar, mains power (grid), and generators. It intelligently manages the distribution of power based on demand, ensuring effective use of available energy when needed by the utilities. -
Page 7: Technical Specification
High nominal output power of 6.0 kW that can run several appliances. ƒ With batteries, the power capacity is 5120Wh. ƒ MPPT charge controller feature. ƒ Bi-directional inverter that can rapidly charge its internal batteries in just one hour. ƒ SM6.0kWLLXLS - Lifelynk 6kW XLS... - Page 8 Nominal Input/Output Frequency 50/60Hz (Auto Adjusted to Fit Home Grid) Max. Bypass Current Shift Time (Bypass and Inverter) 10ms Efficiency Max. Efficiency 97.6% Max. Battery to Load Efficiency 94.0% Europe Efficiency 97.6% MPPT Efficiency 99.9% SM6.0kWLLXLS - Lifelynk 6kW XLS...
- Page 9 Refer to Compatible Inverter List (Compatible with Major PCS Brands) Standard Compliance Compliance UN38.3 / IEC62619/ IEC61000 (More Available Upon Request) Ordering & Deliverable Part Part SUN-BAT T-5.12 Ecco Battery SUN-BATT-5.12 Ecco Parallel cable SUN-BATT-5.12 Ecco to PCS cable SM6.0kWLLXLS - Lifelynk 6kW XLS...
-
Page 10: Installation
INSTALLATION Parts & Component Lists Parts - Main Structure SUN-BATT-5.12 Ecco Lower Cover Wall Spacer Remove lower cover - secured by six M4*8 screws (3 per side) Components - Screw M4*8 (6) Screw M6*10 (4) SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 11: Mounting The Sun-Batt-5.12 Ecco
3. After connecting the battery cables, lift the battery into the main structure. Please Note - Before pushing the battery into the main structure, first rest the battery feet on the inner base of the main stucture, then slowly push the battery in. Push in SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 12: Mounting The Battery/Cover
2. Align the lower cover on the main structure. 3. Fix the lower cover with six M4*8 screws. Please Note - Two M6 screws need to be threaded through the wall spacer and fixed to the battery. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 13: External Battery Cable Connection
External Battery Cable Connection 13.0 mm 10 mm SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 14: Selecting The Mounting Area
Areas where animals may urinate on the unit or ammonia may be generated. ƒ High altitude areas (over 4000 metres above sea level). ƒ Environments where precipitation or humidity are above 95%. ƒ Areas where the air circulation is too low. ƒ SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 15: Mounting The Inverter
/ cabling. CAUTION Risk of Injury (Heavy Object) Remember that this inverter is heavy, so users must be careful in handling the unit during installation especially when mounting or removing from a wall. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 16: Turning On The Batteries
Turning On the Batteries Turn the battery isolation switch to turn on the batteries. CAUTION Setting a power limit higher than maximum will damage the battery fuse. Flow Diagram Essential Loads Non-Essential Loads SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 17: Connecting To The Mains / Grid
Connecting to the Mains / Grid 1. Connect the Lifelynk 6kW XLS Hybrid Inverter to the electrical grid via the grid ports, using a suitable RCD and a 30A fuse on the consumer board. 2. Now, connect only the essential loads to the load ports (output) to a secondary consumer board, consid- ering the maximum limit of 6 kW. -
Page 18: Ct Coil And Load Power Settings
CT Coil and Load Power Settings The CT coil is one of the most important parts of the Lifelynk 6kW XLS. This device reduces the power of the inverter to prevent feeding power to the grid. This is also known as zero export. -
Page 19: Parallel Operation
Parallel Operation In order to connect Lifelynk 6kW XLS inverters to operate in parallel, you need to set up the work mode con- figuration for each the inverter. Basically, you have to set which inverter will be the master and which will be the slaves, and then make the connections described in section External Battery and Parallel Connections. -
Page 20: External Battery And Parallel Connections
3-4 minutes. After that, the device should return to its normal working condi- tion, with the error cleared. External Battery and Parallel Connections Inverter Unit: 1 External Battery Number: 1 Inverter Unit: 1 External Battery Number: 2 Inverter Unit: 2 External Battery Number: 1 SM6.0kWLLXLS - Lifelynk 6kW XLS... - Page 21 Inverter Unit: 2 External Battery Number: 2 Inverter Unit: 3 External Battery Number: 1 Inverter Unit: 3 External Battery Number: 2 Inverter Unit: 2 External Battery Number: 1 (Shows CT Coil Connection + Master&Slave) SM6.0kWLLXLS - Lifelynk 6kW XLS...
- Page 22 Inverter Unit: 2 External Battery Number: 2 (Shows Batteries connected in parallel) Inverter Unit: 3 External Battery Number: 6 (Show External Batteries can be installed into each inverter) SM6.0kWLLXLS - Lifelynk 6kW XLS...
-
Page 23: Load Connection
Load Connection Grid Connection SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 24: Solar Connection
Solar Connection SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 25: Lcd Display Screen
LCD DISPLAY SCREEN The LCD display screen is situated on the front of the Lifelynk 6kW XLS, this is where you can control and operate the system. 1. Power - to turn the system on / off. 2. Settings / Select - to operate the settings menu & to select. -
Page 26: Factory Settings
Default Setting 00:00 6:00 3000W 52.0V 6:00 12:00 3000W 52.0V 12:00 18:00 3000W 52.0V 18:00 23:59 3000W 52.0V BATTERY COMPATIBILITY The following batteries are compatible with Sunsynk Mobile Lifelynk Inverter: SUN-BATT-5.32 ƒ SUNSYNK-L5.3 ƒ L051069-A ƒ SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 27: Operation
3000W 52.0V Year Energy 3600KWh Enable Low Battery Earth Neutral Bond 49.0V Max Grid Freq 52.0Hz 18:00 23:59 3000W 52.0V Total Energy 7200KWh Night Power Saving Enable Float Charge 56.0V Voltage AC 230V Frequency 50Hz SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 28: Switching On / Off
What you can do from this page If you press the select button you can navigate to the basic setup menu If Sunsynk Connect has been connected, the WI-FI icon appears Access the CT screen by pressing the Home/Back button... -
Page 29: Home Settings
15-05-2023 Set Date Set Date Backlight Backlight Standalone Standalone Work Mode Work Mode Voltage SOC/Voltage SOC/Voltage Factory Reset Factory Reset What does this page display? Time Date Backlight on / off Work Mode SOC/Voltage Reset SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 30: Language Settings
Change the language settings via the “Basic Settings” page by pressing the “Factory Reset” button. Then a password input page will be shown. The default password is “1234”. Basic Settings Set Time 15:16 Please Input the Password 15-05-2023 Set Date Backlight **** Standalone Work Mode SOC/Voltage SOC/Voltage Factory Reset Factory Reset SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 31: Grid Mode Settings
Change the language settings via the “Basic Settings” page by pressing the “Factory Reset” button. Then a password input page will be shown. The default password is “1234”. Basic Settings Set Time 15:16 Please Input the Password 15-05-2023 Set Date Backlight **** Standalone Work Mode SOC/Voltage SOC/Voltage Factory Reset Factory Reset SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 32: Work Mode Settings
Change the work mode settings via the “Basic Settings” page by pressing the “Work Mode” button. Then a password input page will be shown. The default password is “1234”. Basic Settings Set Time 15:16 Please Input the Password 15-05-2023 Set Date Backlight **** Standalone Work Mode Work Mode SOC/Voltage SOC/Voltage Factory Reset SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 33: System Logger
Daily Energy 1KWh Daily Energy 1KWh Monthly Energy 30KWh Monthly Energy 30KWh Year Energy 3600KWh Year Energy 3600KWh Total Energy 7200KWh Total Energy 7200KWh What does this page display? Solar production icon Grid production icon SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 34: Advance Settings
What does this page display? Grid Settings page icon System Configuration page icon Battery Settings page icon System Controller page icon What you can do from this page You can access the grid, system, inverter, and battery setting pages. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 35: Grid Settings
Charge from AC Low Battery Low Battery 49.0V Float Charge Float Charge 56.0V 56.0V What does this page display? Low battery SOC/Voltage Reboot SOC/Voltage Maximum charge current Charge from the mains Low Battery SOC/Voltage Float charge SOC/Voltage SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 36: System Settings
If Earth Neutral Bond is enabled, the relay will make and earth neutral bond on the load port of the inverter after the grid power fails. This is for earth leakage devices to function correctly on this island circuit. The Night Power Saving can be set to “Enable” or “Disable”. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 37: Export Control
The power selling time and power settings are determined by “System Controller”. Export Sell to Grid 1. Press the Settings button (2) on the main screen. 2. Select Advanced Settings. Home Settings Basic System Logger Fault Codes Advanced SM6.0kWLLXLS - Lifelynk 6kW XLS... - Page 38 Which operating mode the machine is working in is shown in the following screens: Essential Load Home Load Essential Load Home Load Power Power Power Power Power Power Essential Load Home Load Power Power Power Sell SM6.0kWLLXLS - Lifelynk 6kW XLS...
-
Page 39: System Controller
GRID earth when GRID has power. When it is set to “Disable”, this function will not be available. Export Control Export Control Enable Enable Earth Neutral Bond Earth Neutral Bond Disable Night Power Saving Enable Night Power Saving Enable SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 40: Night Power Saving
AC is off, the UPS function shift time will be longer, can’t be immediate, it will take around 30 seconds. When there is PV power input, then the inverter’s DC to DC converting will work again, because without this converting, the batter packs can’t be charged. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 41: Setting Details
56V and set all time range to Y. Start to charge battery time by selecting the Charge Y or N System Controller Time Start Time Stop Power %/Voltage Charge 00:00 06:00 3000W 100% 06:00 12:00 3000W 100% 12:00 18:00 3000W 100% 18:00 23:59 3000W 100% SM6.0kWLLXLS - Lifelynk 6kW XLS... - Page 42 Earth Neutral Bond Float Charge Night Power Saving Enable 56.0V System Controller Time Start Time Stop Power %/Voltage Charge 00:00 06:00 3000W 52.0V 06:00 12:00 3000W 52.0V 12:00 18:00 3000W 52.0V 18:00 23:59 3000W 52.0V SM6.0kWLLXLS - Lifelynk 6kW XLS...
- Page 43 System Controller Time Start Time Stop Power %/Voltage Charge 00:00 06:00 3000W 06:00 12:00 3000W 12:00 18:00 3000W 18:00 23:59 3000W If the low battery voltage is set higher, the %voltage will be placed higher accordingly. SM6.0kWLLXLS - Lifelynk 6kW XLS...
-
Page 44: Fault Codes
1. Power supply failure, update power board. Working mode change Inverter work mode changed: 1. Reset the inverter. 2. Seek help from Sunsynk Mobile. Short circuit protecting Short circuit fault: 1. Maintain the connection. 2. Proceed to the settings to modify the work mode. - Page 45 3. If the fault exists, please contact us for help. Load current exceeding 1. Try tu reduce the load power. 2. Seek help from Sunsynk Mobile. Over Load Protection 1. Reduce appliance power on LOAD side (sys- tem will auto-reboot in 2 minutes).
-
Page 46: Commissioning
(Refer to the relevant content of the App user manual). Bus one shutdown 1. Reset the inverter. 2. Seek help from Sunsynk Mobile. DRMs0 stop Reserved Error code FAN Error 1. A technician needs to check the internal fan wire or replace fan. -
Page 47: Information For Commissioning The Inverter
This is the heart of the Ensure you are familiar with system, this controls every- this, if you fully understand thing. the controller you will fully appreciate the capabilities of there inverter. Familiarise yourself with common fault codes. SM6.0kWLLXLS - Lifelynk 6kW XLS... -
Page 48: Gfdi Fault
2. Be of the type specified in the inverter manufacturer’s instructions or as labelled on the inverter. We recommend the use of an RCD on all circuits and sub circuits connected to the Sunsynk Mobile inverter. Residual current breaker with overcurrent protection (RCBO). - Page 49 Address HK: Room 702-704, 7/F Texwood Plaza, 6 How Ming Street, Kwun Tong, Kowloon, Hong Kong. UK: Sunsynk UK Ltd, 17 Turnstone Business Park, Mulberry Avenue, Widnes, Cheshire, WA8 0WN. SA: Globaltech Sunsynk South Africa (Pty) Ltd, Unit 2 Highview Boulevard, Ferndale 2194.
