Coast XP9R Manual

Table of Contents

Contents

1 PARTS AND FEATURES
2 USING THE FLASHLIGHT
3 ADJUSTING THE BEAM
4 CHARGING THE BATTERY
5 MAINTENANCE
6 QUESTIONS?
7 Documents / Resources
- 7.1 References
- 7.2 Download manual

Coast XP9R Manual

PARTS AND FEATURES

USING THE FLASHLIGHT

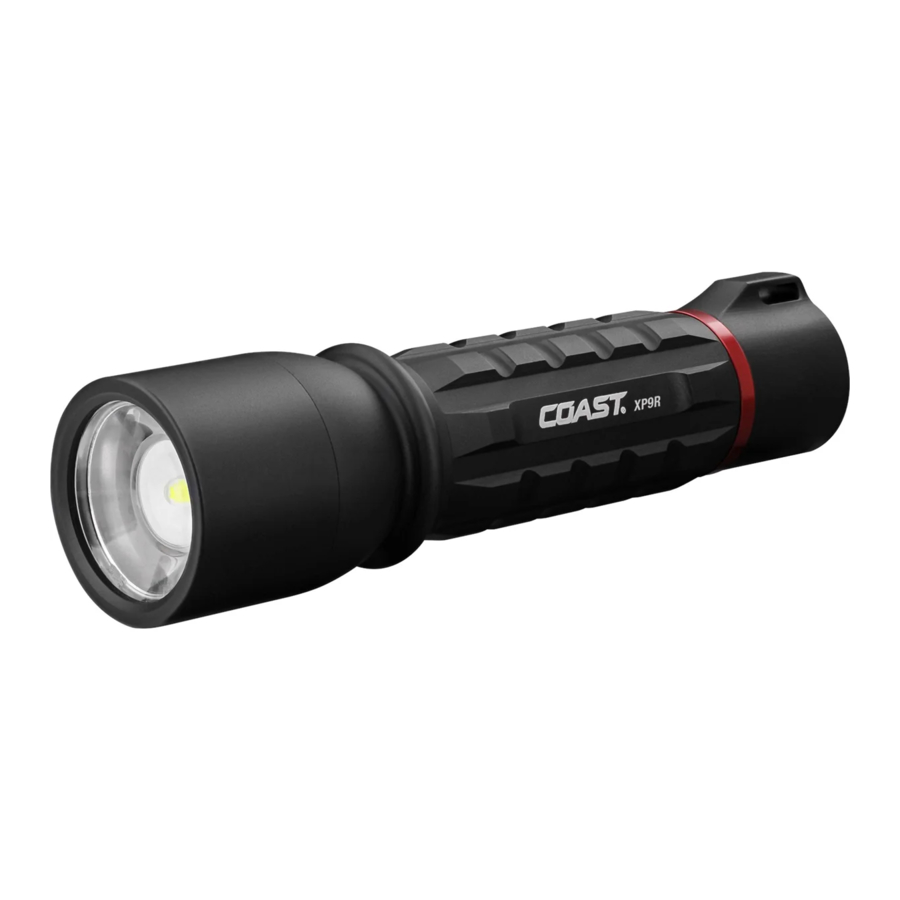

The COAST XPSR weatherproof flashlight delivers brightest-in-class light with three light modes.
USING THE FLASHLIGHT

To turn on the flashlight, press the power button located on the tail cap. The flashlight will start in medium brightness mode.

To set the flashlight on high brightness, press the power button twice.

To set the flashlight on low brightness, press the power button three times.

Pressing the power button a fourth time will turn off the flashlight.

warning Note: The XP9R was designed with COAST's Easy Off functionality. After the flashlight has been on for five seconds or longer, pressing the power button once will turn it off.

ADJUSTING THE BEAM

Designed with COAST's PURE BEAM ® Slide Focus and Beam Lock technologies, the flashlight can be continuously adjusted between an Ultra-View Flood Beam and a Bulls-Eye Spot Beam.

To pinpoint the beam on a precise area, grasp the base of the bezel and slide forward.
To expand the beam and maximize the lighting area, slide the bezel backward.
To lock the Slide Focus system, pointing the light outward, twist the bezel to the left. To unlock, twist the bezel to the right.

CHARGING THE BATTERY

The XPOR can be powered by either a COAST ZITHION-X™ rechargeable battery, or two CR123 Lithium batteries.

To charge the battery directly, unscrew the tail cap from the flashlight to access the battery compartment and remove the battery. Insert the provided USB Type-C charging cable into the battery charging port, then plug the cable into an available power supply.

To power the XPOR with CR123 Lithium batteries, place two CR123 Lithium batteries in the battery compartment in the correct orientation.

The XPOR was designed for use with a COAST ZITHION-X™ rechargeable battery. Do not use aftermarket rechargeable batteries.
